M5/KIT Stromversorgungs-Kit

2.2.- KITS FÜR DIE MONTAGE VON STROMKEISEN
POWER SUPPLIES KIT - M5/KIT

INNOVATIVE SYSTEME

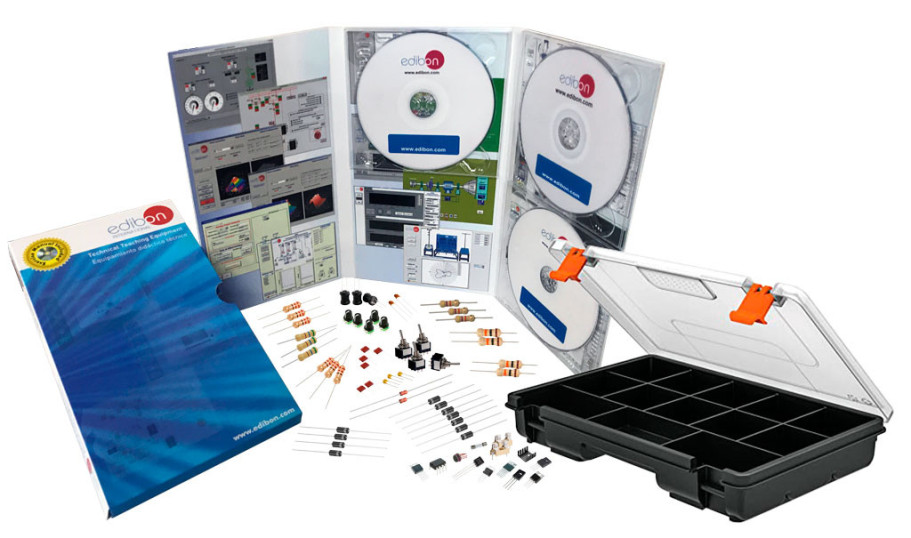

With the Power Supplies Kit "M5/KIT", designed by EDIBON, symmetrical voltage regulators, operation of fixed, symmetrical and switched-mode power supplies as well as rectification (conversion of an AC voltage to a DC voltage) can be studied.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

Laboratorien

2TV
 Elektroniklabor für technische und berufliche Bildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

With the Power Supplies Kit "M5/KIT", designed by EDIBON, symmetrical voltage regulators, operation of fixed, symmetrical and switched-mode power supplies as well as rectification (conversion of an AC voltage to a DC voltage) can be studied.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Rectification:

  1. Rectification.
  2. Bridge rectifier.
  3. Theoretical/practical exercises.

Fixed voltage sources:

  1. Power supply with the Zener diode.
  2. Stabilization through Zener and Transistor.
  3. Faults study in "Stabilization through Zener and Transistor".
  4. Protection against overcurrents.
  5. Protection against overvoltages.
  6. Faults study of "Protection against overcurrents".
  7. Theoretical/practical exercises.

Symmetrical voltage power sources:

  1. Symmetrical source: 78XX regulator.
  2. Symmetrical source: 79XX regulator.
  3. Theoretical/practical exercises.

Voltage regulators with integrated circuits:

  1. Adjustable regulator: LM317.
  2. Faults study in adjustable LM317 regulator.
  3. Adjustable L200 regulator.
  4. Faults study in adjustable L200 regulator.
  5. Theoretical/practical exercises.

Introduction to switched power supplies:

  1. Switching technique.
  2. Switching technique. PWM.
  3. Switching technique. Boost.
  4. Theoretical/practical exercises.
Mehr sehen

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Voltage Feedback.
  2. DC-DC converter.
  3. Several other exercises can be done and designed by the user.
