N-EM-PLLT Tankfüllprozess

6.2.2.2.- STUFEN- UND DURCHFLUSSREGELUNG

INNOVATIVE SYSTEME

"N-EM-PLLT" represents a filling process system composed by three tanks which fill the tank where the desired product is mixed.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ALLGEMEINE BESCHREIBUNG

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

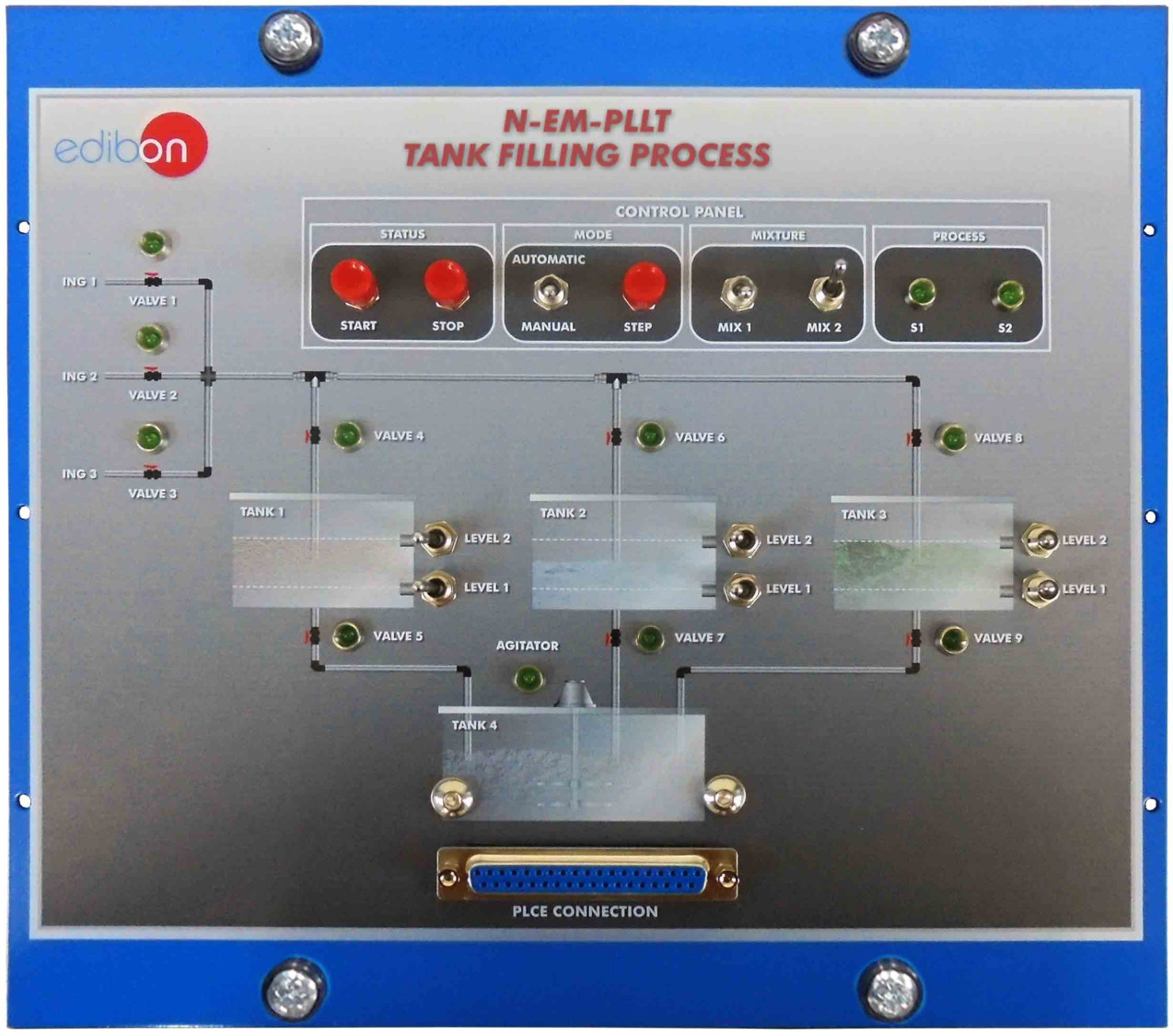

"N-EM-PLLT" represents a filling process system composed by three tanks which fill the tank where the desired product is mixed. The system allows to select the desired product by controlling the amount of liquid poured by each tank.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.

ERGÄNZENDE AUSRÜSTUNG

N-EM-SBAR

Available
