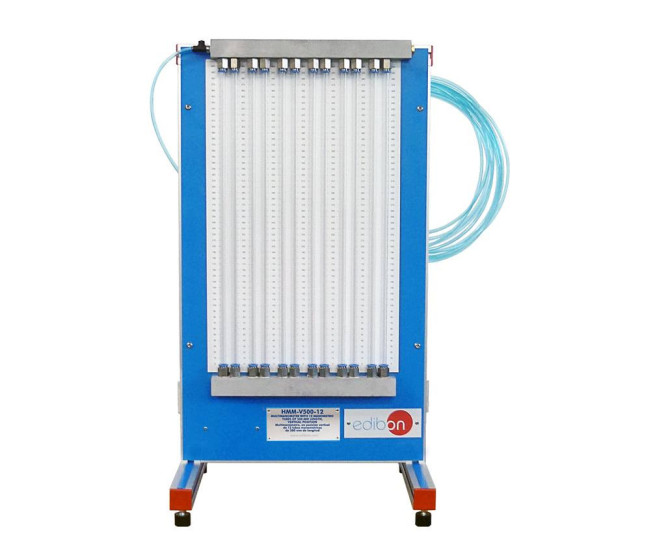

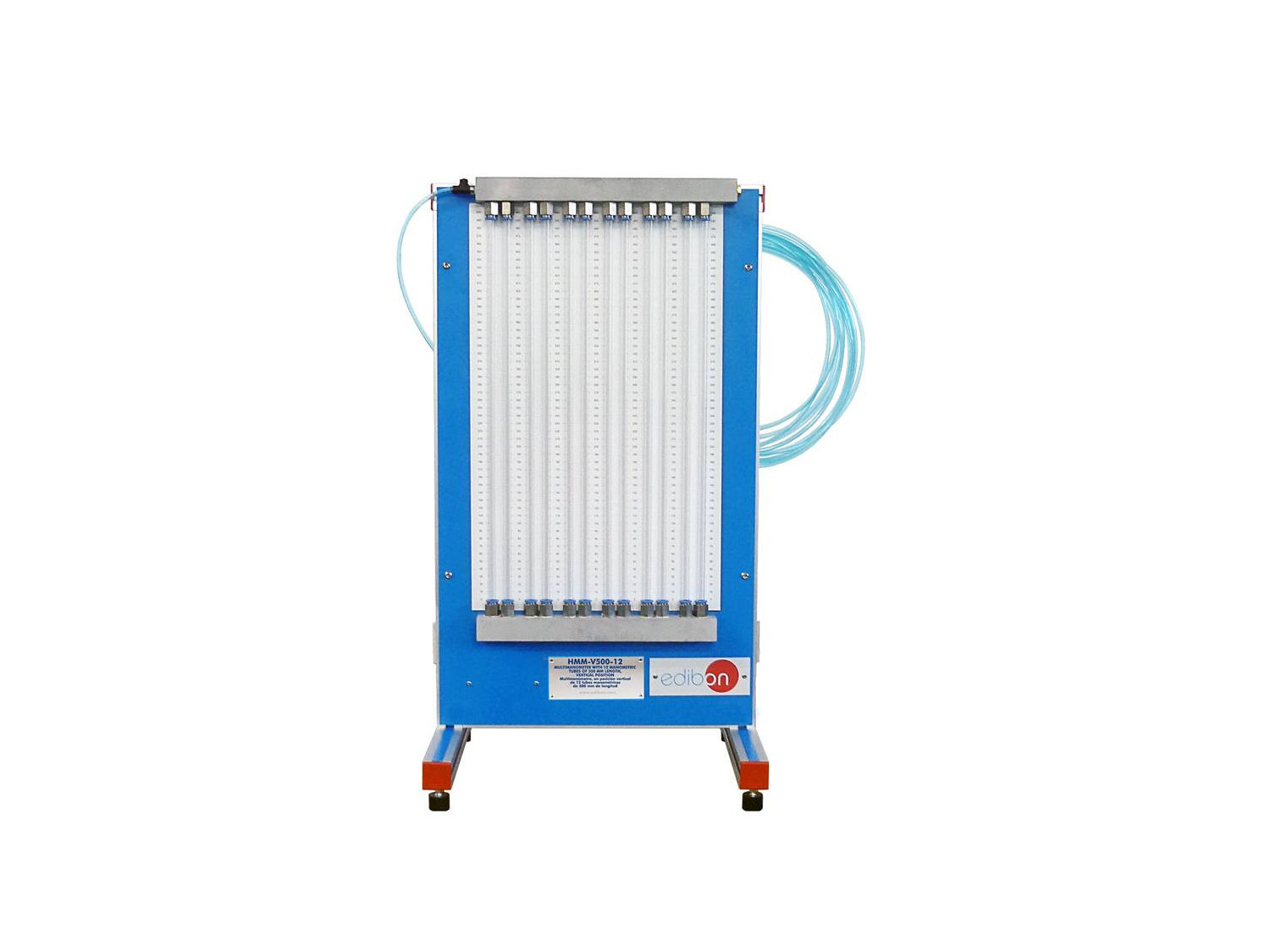

HMM-V500-12 Vertikales Multimanometer mit 12 Messröhren, 500 mm Länge

8.2.- MESSUNG
MULTIMANOMETER WITH 12 MANOMETRIC TUBES OF 500 MM LENGHT, VERTICAL POSITION - HMM-V500-12

INNOVATIVE SYSTEME

One type of gauge is a U-shaped gauge, which balances the unknown pressure with a known pressure. The pressure is determined by measuring the difference in liquid level of the two branches. Most of these gauges can be used as open gauges or as differential gauges, when they indicate the difference between two different pressures from the atmospheric one.

Allgemeine Beschreibung anzeigen

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

One type of gauge is a U-shaped gauge, which balances the unknown pressure with a known pressure. The pressure is determined by measuring the difference in liquid level of the two branches. Most of these gauges can be used as open gauges or as differential gauges, when they indicate the difference between two different pressures from the atmospheric one.

  • Twelve Manometric tubes, length: 500 mm.
  • Tubes inner diameter: 8mm, to avoid bubbles.
  • Air pump for pressurization.
  • Twelve points for differential pressure measurement, with key.
  • Common collector.
  • Non-return valve.
  • Drain valve.
