PWP-WE Windkraftwerk

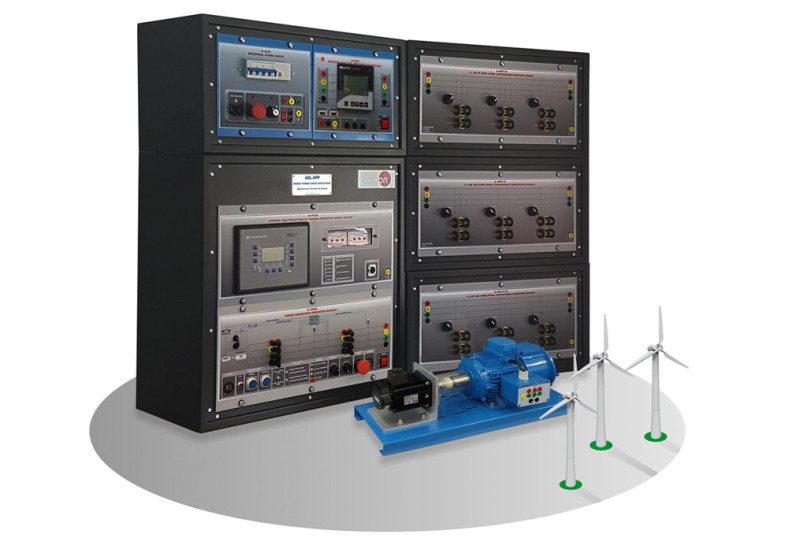

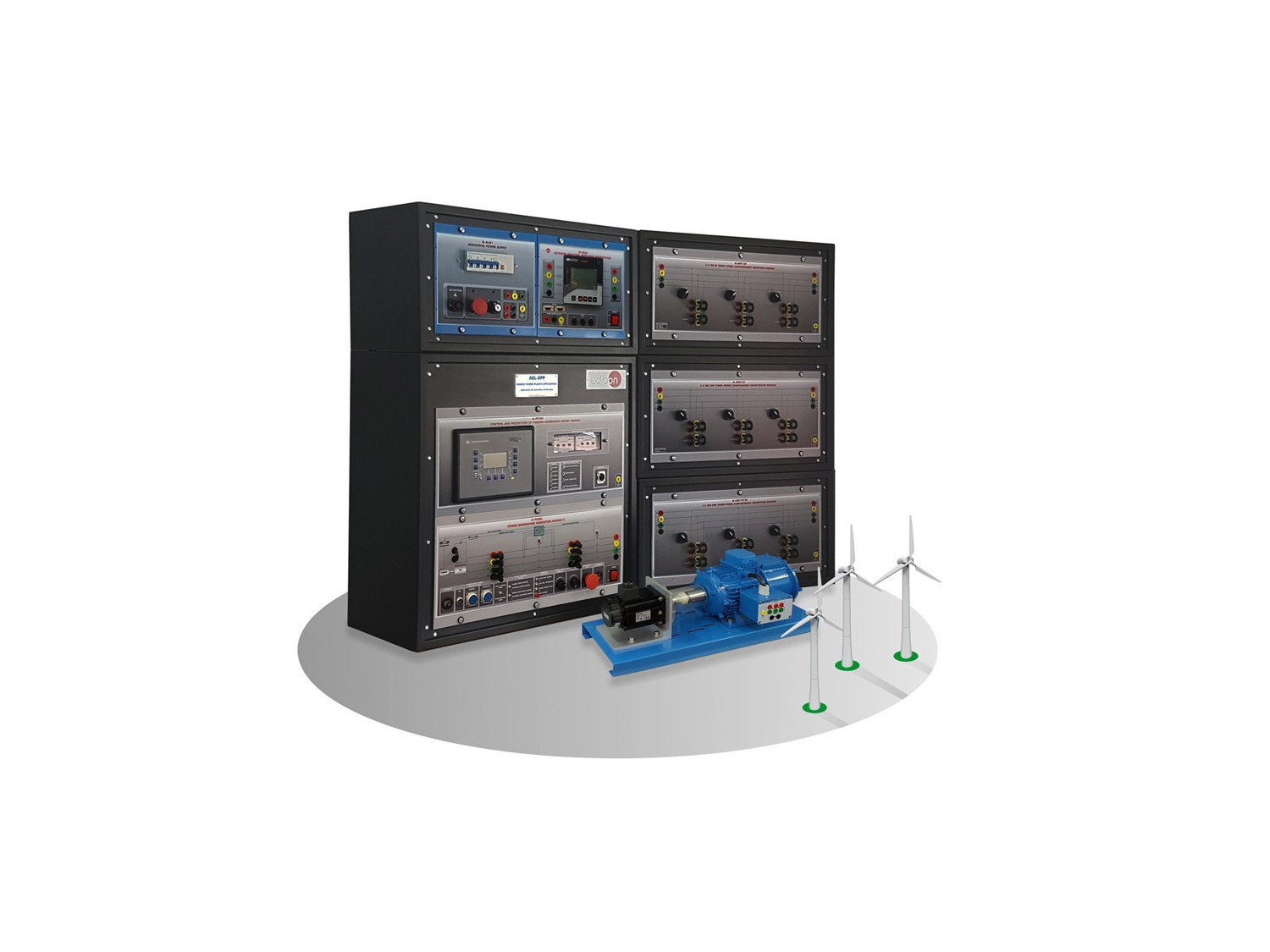

The purpose of this application is the study of wind power plants in the context of microgrids. It consists of an induction turbine-generator group whose purpose is to provide energy to the micro grid by making an intelligent energy distribution based on the decisions of the operator (user). For this, the application includes a network analyzer to measure in real time the energy produced by the wind power plant.

For the control of the turbine-generator group, a digital multifunction controller (AVR and ASC) is included, which will allow an optimal regulation of all its electrical and mechanical parameters. Among many parameters, it is possible to control the "set point" of active power to automatically select how much power we want to inject into the micro grid. The multifunction controller is of vital importance, since it is the one in charge of managing the distribution of power between the different energy sources.
