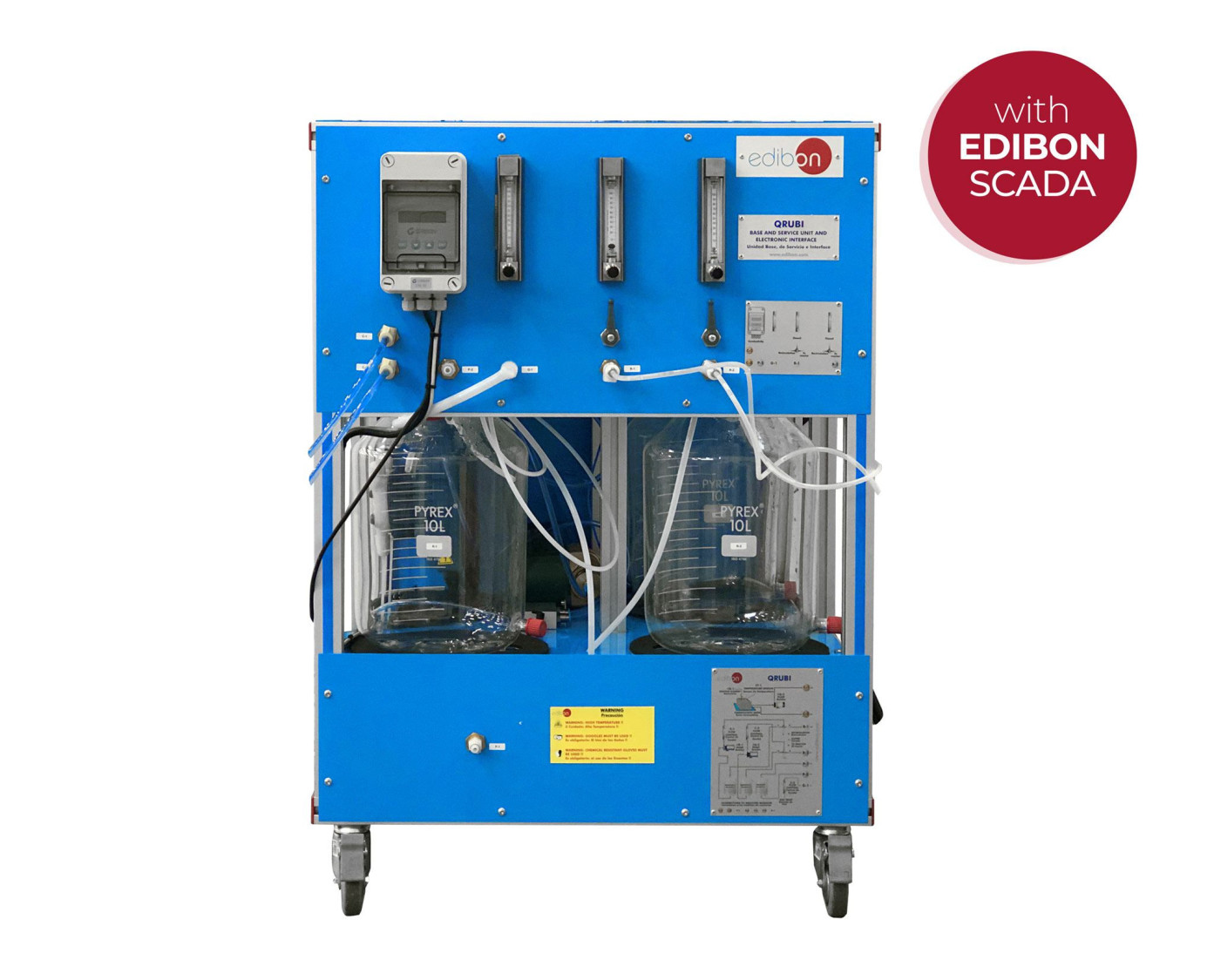

QRUBI Base and Service Unit for QRQC
INNOVATIVE SYSTEMS
The Base Service Unit, "QRUBI", provides the necessary elements for the operation of the different reactor modules.
Laboratories
RELATED NEWS
General Description
The Base Service Unit, "QRUBI", provides the necessary elements for the operation of the different reactor modules.
It performs the following functions:
- Liquid reagent feeding: comprised of two 10-liter glass tanks, two dosing pumps with a capacity of up to 7 liters per hour, and all necessary connections.
- Gas feeding: consisting of a flow meter, manual regulation valve, and all necessary connections. This allows for the addition of gaseous reagents to the reactor or the introduction of an inert gas.
- Temperature control: comprising a thermostatic bath and a circulation pump.
- Product collection system: Enables the quick and easy transfer of products obtained in the reactors to the base module and their deposition in a 10-liter glass tank.
- Reaction monitoring system: consists of a conductivity cell and a conductivity meter installed on the front panel of the base module.
- This unit allows for reagent feeding, product collection, and temperature control in reactors with a volume of up to 2 liters or more.
These Computer Controlled Units are supplied with EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
