UDDB Batch Distillation Unit

11.1.4.- DISTILLATION AND CRACKING
BATCH DISTILLATION UNIT - UDDB

INNOVATIVE SYSTEMS

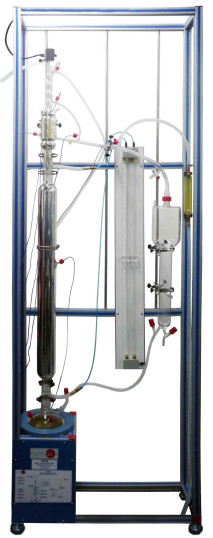

The Batch Distillation Unit, "UDDB", designed by EDIBON, is a powerful laboratory tool for the study of variables affecting the distillation process. The student can investigate the principles that govern the transfer of matter and energy, as well as determine the optimum operating point for carrying out a large number of separations.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Read more

General Description

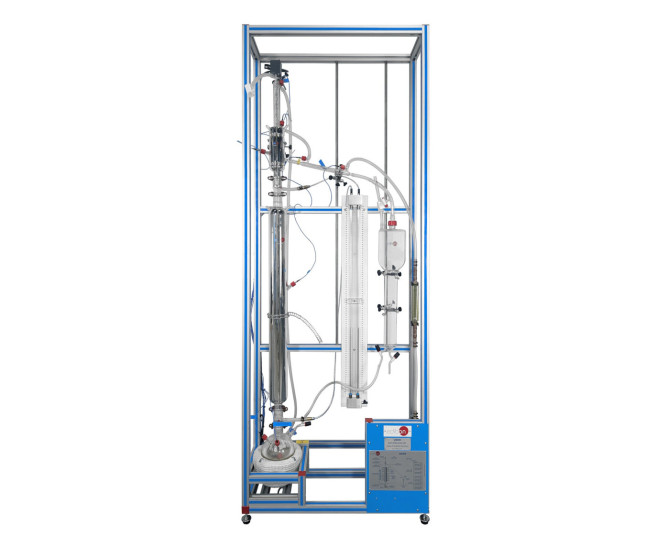

The Batch Distillation Unit, "UDDB", is basically composed by a boiler on which different types of interchangeable columns can be adapted (plate columns and Raschig Rings column). An eight plate column, a reflux system and a tank for the distillation are included.

The steam that goes to the head of the column is sent to a total condenser. The cooling water flow that crosses the condenser is regulated and indicated in a flow meter.

The pressure loss in the column can be measured with a manometer.

The temperatures of the system are measured by temperature sensors placed in strategic positions.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Preparation of solutions.
  2. Analytic valuation techniques.
  3. Filling of the column.
  4. Batch operation.
  5. Obtaining the McCabe-Thiele diagram. Without reflux.
  6. Obtaining the number of plates. Without reflux.
  7. Efficiency calculations. Without reflux.
  8. Variation of the composition of the distilled product: constant reflux ratio.
  9. Constant composition of the distilled product: variation of reflux ratio.
  10. Constant composition of the distilled product: constant reflux ratio.
  11. Mass and energy balances across the system.
  12. Plates fluid dynamics studies, including load loss and column flooding.
  13. Calculation of the theoretical number of floors in the plates columns, and the equivalent height of the theoretical floor (HEPT) in the Raschig rings columns.
  14. Pursuit of the temperatures in all plates in the column (Plates columns).
  15. Study of the rectification efficiency.
  16. Demonstration of azeotropic distillation.
  17. Studies of heating interchange in glass refrigerators

SIMILAR UNITS AVAILABLE

COMPUTER CONTROLLED CONTINUOUS DISTILLATION UNIT - UDCC
  • UDCC
Available
11.1.4.- DISTILLATION AND CRACKING
UDCC
Computer Controlled Continuous Distillation Unit
The Computer Controlled Continuous Distillation Unit, "UDCC", is basically composed by a boiler on which different types of columns can be adapted (plate columns and Raschig rings column). An eight plate column, a reflux system, a tank for...
View Unit
COMPUTER CONTROLLED BATCH DISTILLATION UNIT - UDDC
  • UDDC
Available
11.1.4.- DISTILLATION AND CRACKING
UDDC

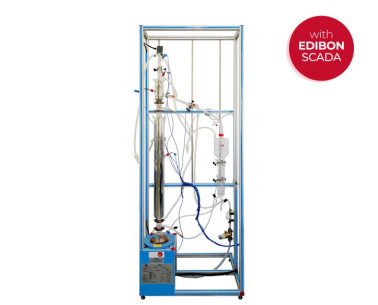

Computer Controlled Batch Distillation Unit
