BELT FRICTION UNIT - MCF

INNOVATIVE SYSTEMS

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

7TV
 Mechanical, Automotive and Materials Laboratory for Technical and Vocational Education
7HE
 Mechanics, Automotive and Materials Laboratory for Higher Education

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Read more

General Description

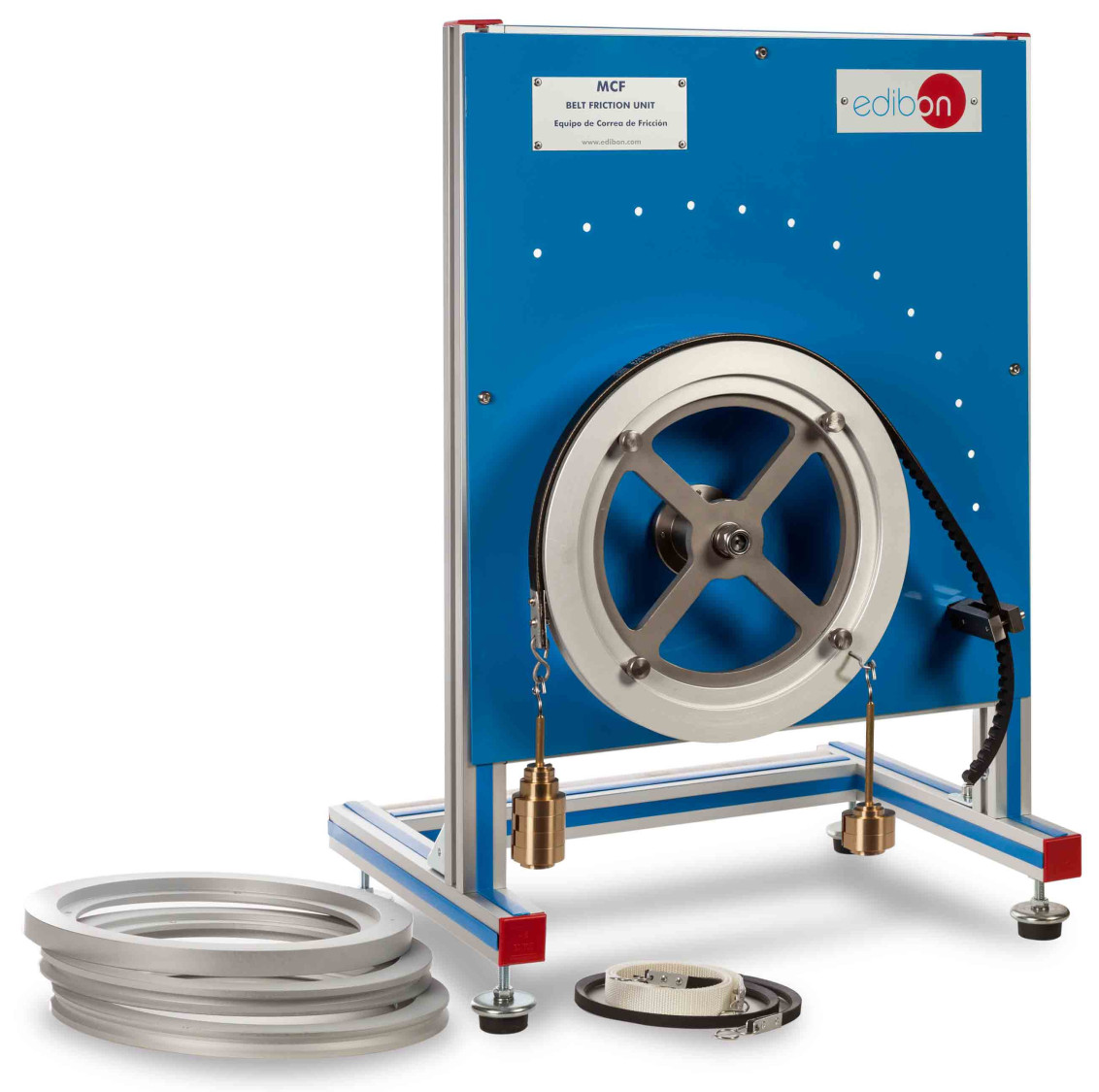

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.

With this unit the relationship between the tensions in the two sides of a belt can be observed, to evaluate the differences between flat (leather or rope) and V belts and to investigate the effect of the angle lap, among others.

Tension is introduced into the belt by hanging masses or weights. The slipping torque is determined by the addition of suitable masses attached to a cord wrapped round the drum.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Investigation of the relationship between the belt tensions and the angle of lap for a flat belt.
  2. Comparison of the driving torque for a given angle of lap.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Evaluation of the differences between flat belts and V-shaped belts.
  2. Evaluation of the differences between V-shaped toothed and flat belts.
  3. Determination of the coefficient of friction between the pulley and belt for the belt sections.
  4. Verification of the belt tension equation.

SIMILAR UNITS AVAILABLE

BELT FRICTION UNIT WITH DYNAMOMETERS - MCF/A
  • MCF/A
Available
7.1.5.- TRIBOLOGY (FRICTION, WEAR, LUBRICATION)
MCF/A

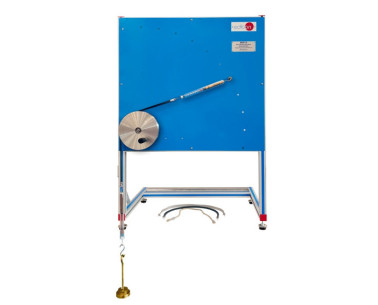

Belt Friction Unit with Dynamometers
The Belt Friction Unit with Dynamometers, "MCF/A", allows studies and investigations to compare the friction coefficient for a given contact angle of a flat belt and a V-belt.With this unit it is possible to observe the relationship between...
View Unit
