The Bluetooth Unit "EBL" is a complete unit to study a Bluetooth communication network between two autonomous devices and a computer through a Bluetooth Dongle.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

Laboratories

3TV
 Technical and Vocational Education Telecommunications Laboratory
3HE
 Higher Education Telecommunications Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Communication aspects of Unmanned Aircraft System (UAS)
Communication aspects of Unmanned Aircraft System (UAS)
The Unmanned Aircraft System (UAS) sector is currently expanding, particularly in the civil or commercial sector, although the UAS government sector has been experiencing a high growth rate in the last few years.
Read more

General Description

The Bluetooth Unit, "EBL", operates in conjunction with a computer, which is connected with the Bluetooth Dongle, that allows communicating and programming the Bluetooth Devices to perform a simple Bluetooth network.

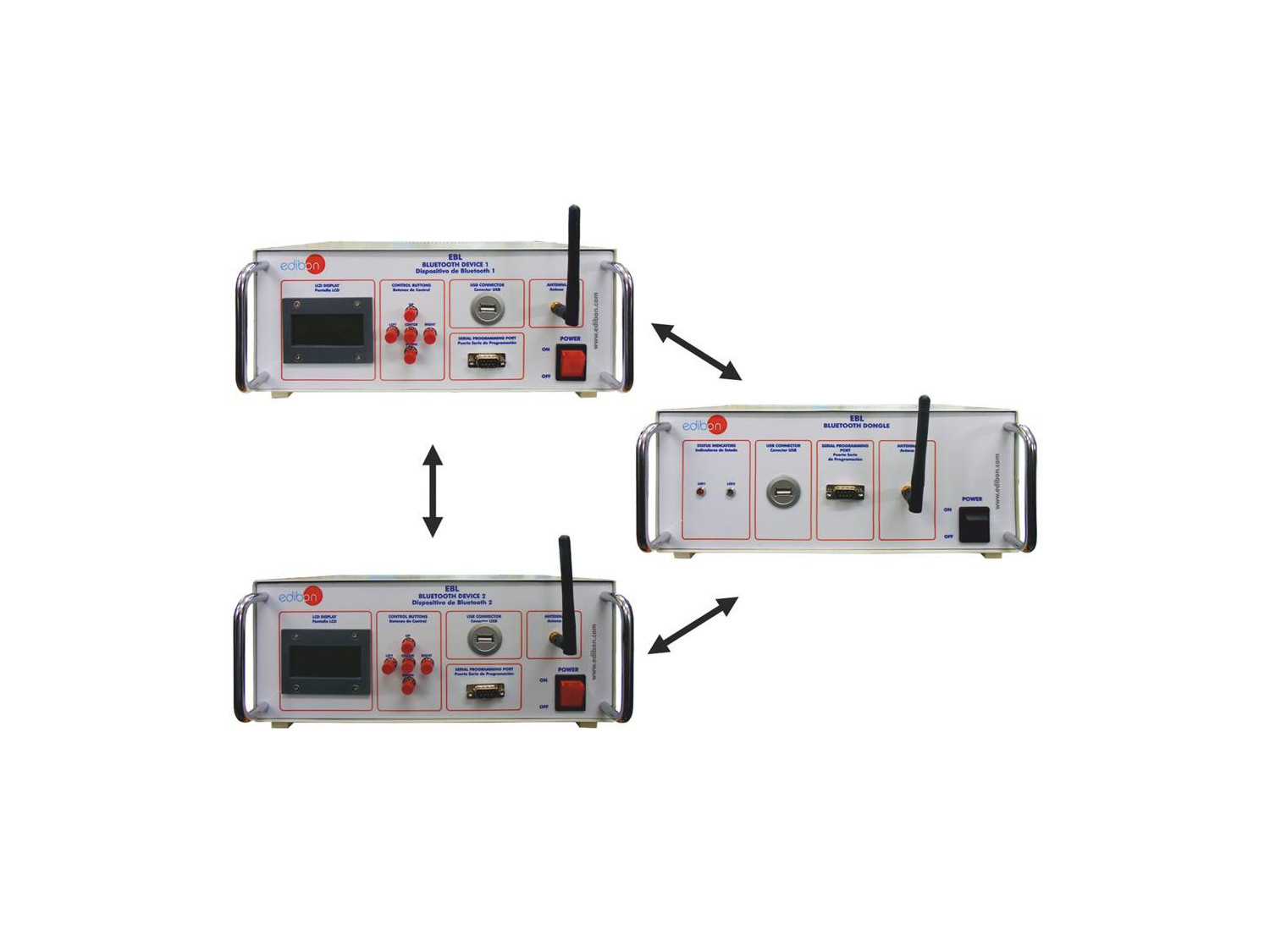

The two Bluetooth Devices (included in the supply) have a LCD display that shows the current state of the devices (linking status, input messages, output messages, etc).

The "EBL" allows to perform a complete Bluetooth link between the computer and the Bluetooth Devices and to get familiar with all the procedure involved in the configuration of a Bluetooth link (configuring the link, scanning new devices, configuring the communication parameters, programming the Bluetooth Devices, encrypting the communication, etc).

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Familiarization with the trainer.
  2. Study of the different Bluetooth profiles.
  3. Establish a connection between master and slave devices.
  4. Analysis of the received signal strength indicator (RSSI) of a Bluetooth low energy (BLE) connection.
  5. Analysis of the writing and reading of a character in a Bluetooth communication.
  6. Familiarization with Bluetooth low energy packet sniffer.
  7. Use the Bluetooth low energy packet sniffer to analyze the advertising and discovery events.
  8. Use the Bluetooth low energy packet sniffer to analyze the start and termination of a link.
  9. Use the Bluetooth low energy packet sniffer to analyze the reading and writing of a character between devices.
  10. Familiarization with Bluetooth control software.
  11. Establish a connection between the computer and two Bluetooth slaves.
  12. Configure the connection parameters of a Bluetooth communication.
  13. Read and Write characters from an established Bluetooth network.
  14. Protect the Low Energy Bluetooth communication from MITM (Man in the middle) attacks by encrypting the connection with a passcode.
