CAM AND FOLLOWER MECHANISM - MEX

INNOVATIVE SYSTEMS

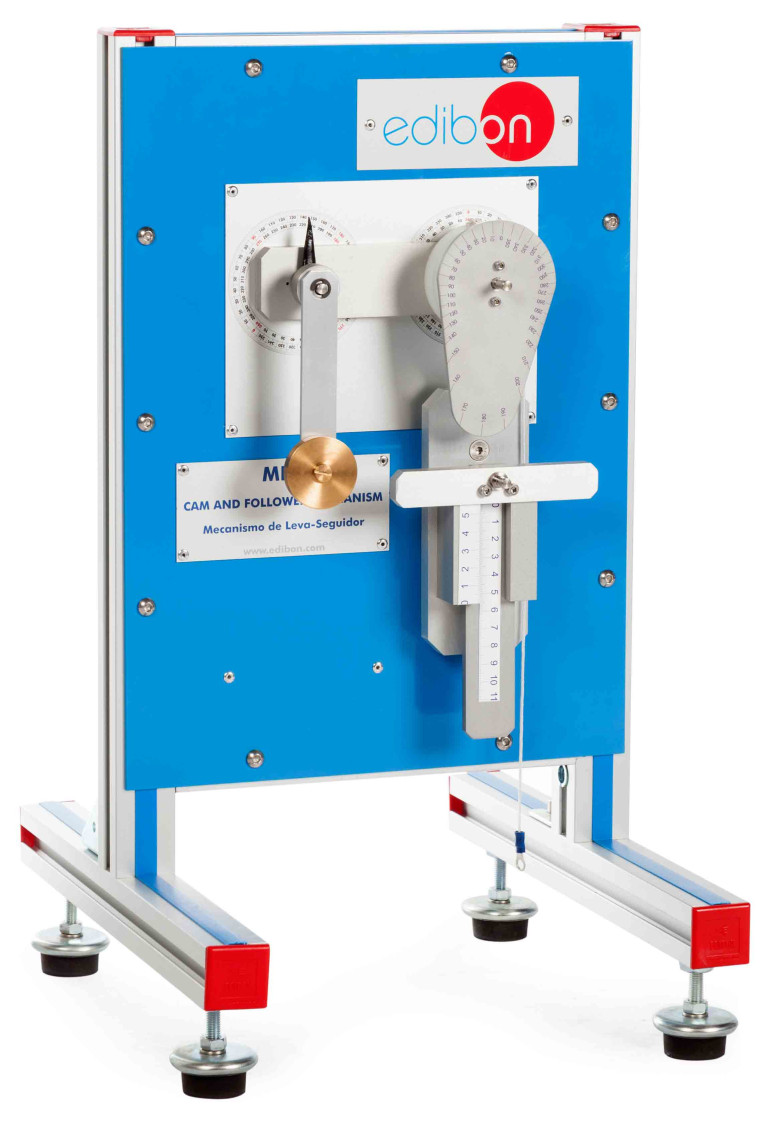

The Cam and Follower Mechanism, "MEX", designed by EDIBON, allows to demonstrate the operation of a cam-follower mechanism in a clear way.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

7TV
 Mechanical, Automotive and Materials Laboratory for Technical and Vocational Education
7HE
 Mechanics, Automotive and Materials Laboratory for Higher Education

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Read more

General Description

The Cam and Follower Mechanism, "MEX", allows to study the cam-follower and eccentric-follower mechanisms. For that purpose, several plate cam models in different forms, one eccentric and several roller-shaped, flat-shaped, wedge-shaped and oscillating followers models are supplied.

A plate cam, also called disc cam, consists of a plate which rotates around an axis perpendicular to its plane. Its profile is designed to give a reciprocating or oscillating motion to a follower, which touches the edge of the cam.

The unit comprises five followers which depend on the geometrical characteristics of the edge in contact with the cam.

Two of them are roller-shaped followers with different diameters to study the influence of the diameter, other one is flat-shaped, other one is wedge-shaped and the last one is oscillating.

Such followers constitute cam-follower mechanisms, which transform the circular motion of the cam into a linear or angular motion of the follower. One or the other motion will depend on the configuration of the mechanism and, specifically, on the position of the follower with regard to either the cam or eccentric profile.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Demonstration of the action of plate cams and an eccentric with geometrical profiles variation in the conversion of the circular motion of these cams to a linear or angular motion of the follower.
  2. Study of the influence of the roller follower's diameter in the conversion of the circular motion of the plate cam into linear motion or angular motion.
  3. Determination and graphical illustration of the relationship between the displacement of the follower and the angular displacement of the cam for several types of cams and followers.
  4. Measurement of the force needed to be overcome in order to rotate a cam at different angular positions. ("B type" set required).

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Determination of the velocity and acceleration by graphical differentiation and compared with values obtained by the equations of motion.

Quality

AFTER-SALES SERVICE
