FME19 Cavitation Phenomenon Demonstration

8.1.4.- HYDRODYNAMICS

CAVITATION PHENOMENON DEMONSTRATION - FME19

Complete FME19 Unit

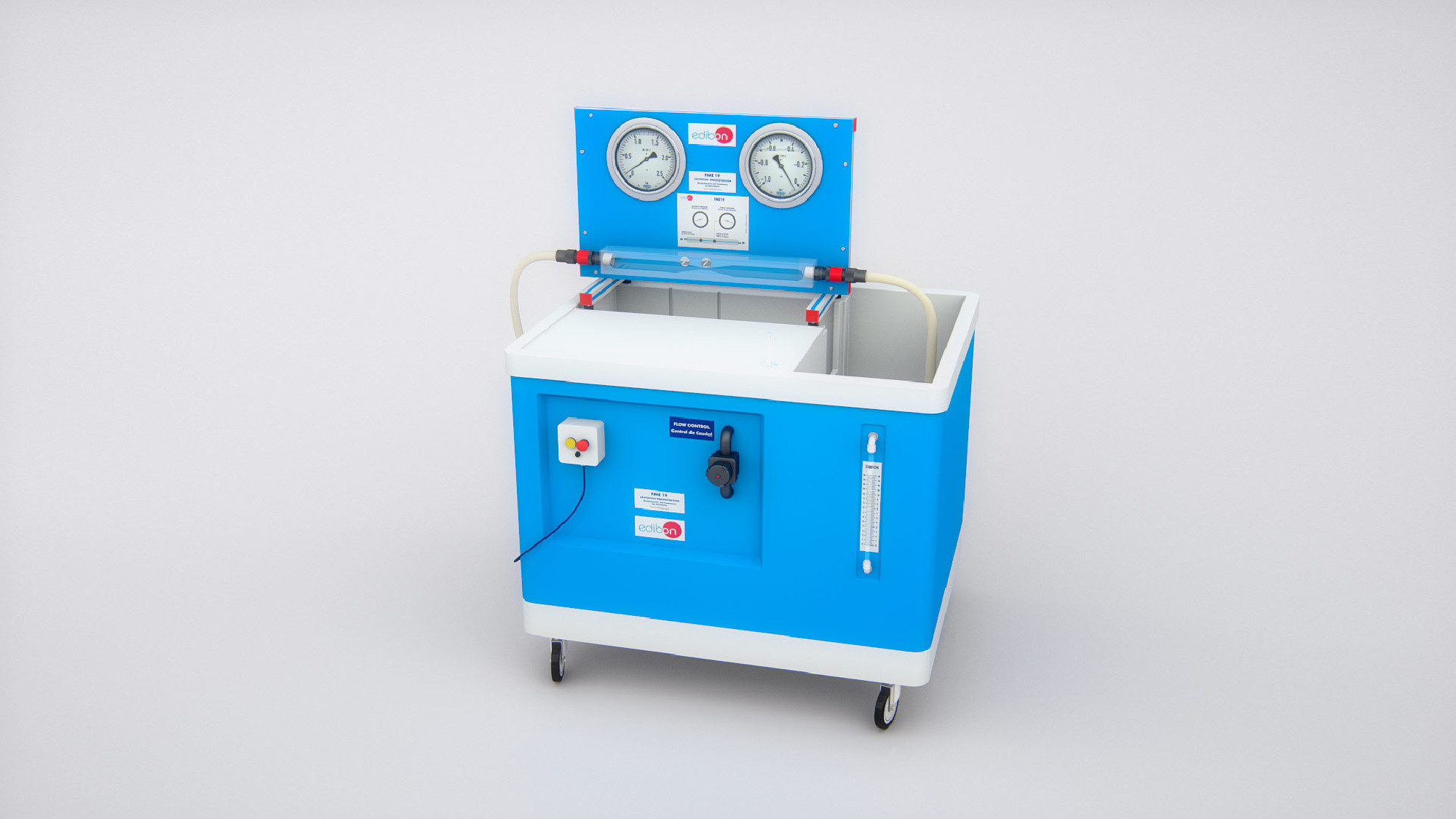

FME19 Unit with service unit FME00

INNOVATIVE SYSTEMS

The Cavitation Phenomenon Demonstration unit, "FME19", designed by EDIBON is composed of a Venturi tube with a rectangular cross section, one of its sides being transparent, allowing a better visualization of the cavitation phenomenon.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

MSAC

Modular System for Acquisition and Control

Laboratories

8TV

Technical and Vocational Education Fluid Mechanics Laboratory

8HE

Higher Education Fluid Mechanics Laboratory

General Description

It includes a manometer and a vacuum meter that are respectively connected to the inlet section and to the reduction throat section.

The existing pressure in the Venturi sections is transmitted by thin capillary tubes placed at the back of the frame.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Study of cavitation.
Visualization of the cavitation phenomenon with forced conduction.

REQUIRED ELEMENTS
