CGU Centrifugal Governor Unit

7.1.3.- STATICS AND DYNAMICS 14.1.3.- STATICS AND DYNAMICS

INNOVATIVE SYSTEMS

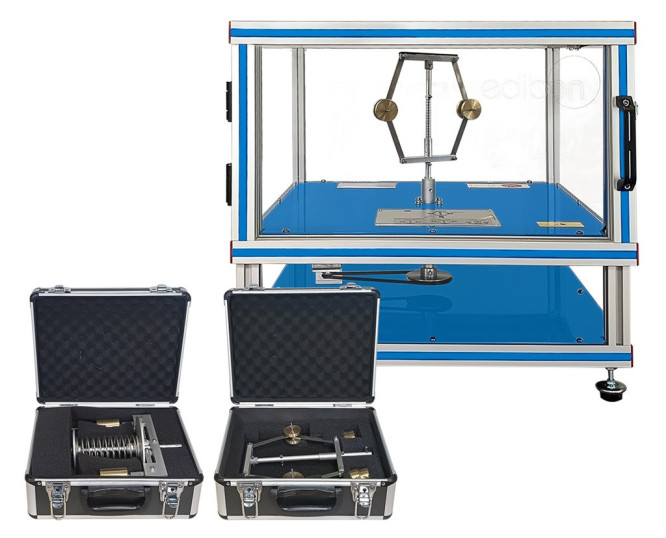

The Centrifugal Governor Unit, "CGU", has been designed to study the operating mode of different centrifugal governors, including three interchangeable governors: Porter governor, Hartnell governor and Proell governor.

See general description

Catalog

Tender Specifications

General Description

Interchangeable governors rotate using a variable speed motor. The centrifugal masses of each governor move away from the pivot axis and the governors compensate for this deviation. The Porter and Proell governors include different centrifugal masses to perform studies with different rotating masses and different mass or force of the sleeve.

The preload of the spring can also be regulated in the Hartnell governor.

A transparent protective cover provides protection against rotating parts and enables different experiments to be observed. The opening of this cover automatically stops the electrical motor.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Study of the operating mode of a Porter type centrifugal governor.
Study of the operating mode of a Proell type centrifugal governor.
Study of the operating mode of a Hartnell type centrifugal governor.
Adjustment of different types of centrifugal governors.
Construction of characteristic curves of different centrifugal governors.
Study of the effect of changing the centrifugal mass.
Study of the effect of changing the preload of the spring.
Study of the effect of changing the mass or force of the central sleeve.
Comparison of the sensitivity, stability and stress of different types of centrifugal governors.
