FME13 Centrifugal Pump Characteristics

8.1.6.- HYDRAULIC MACHINES: PUMPS
CENTRIFUGAL PUMP CHARACTERISTICS - FME13

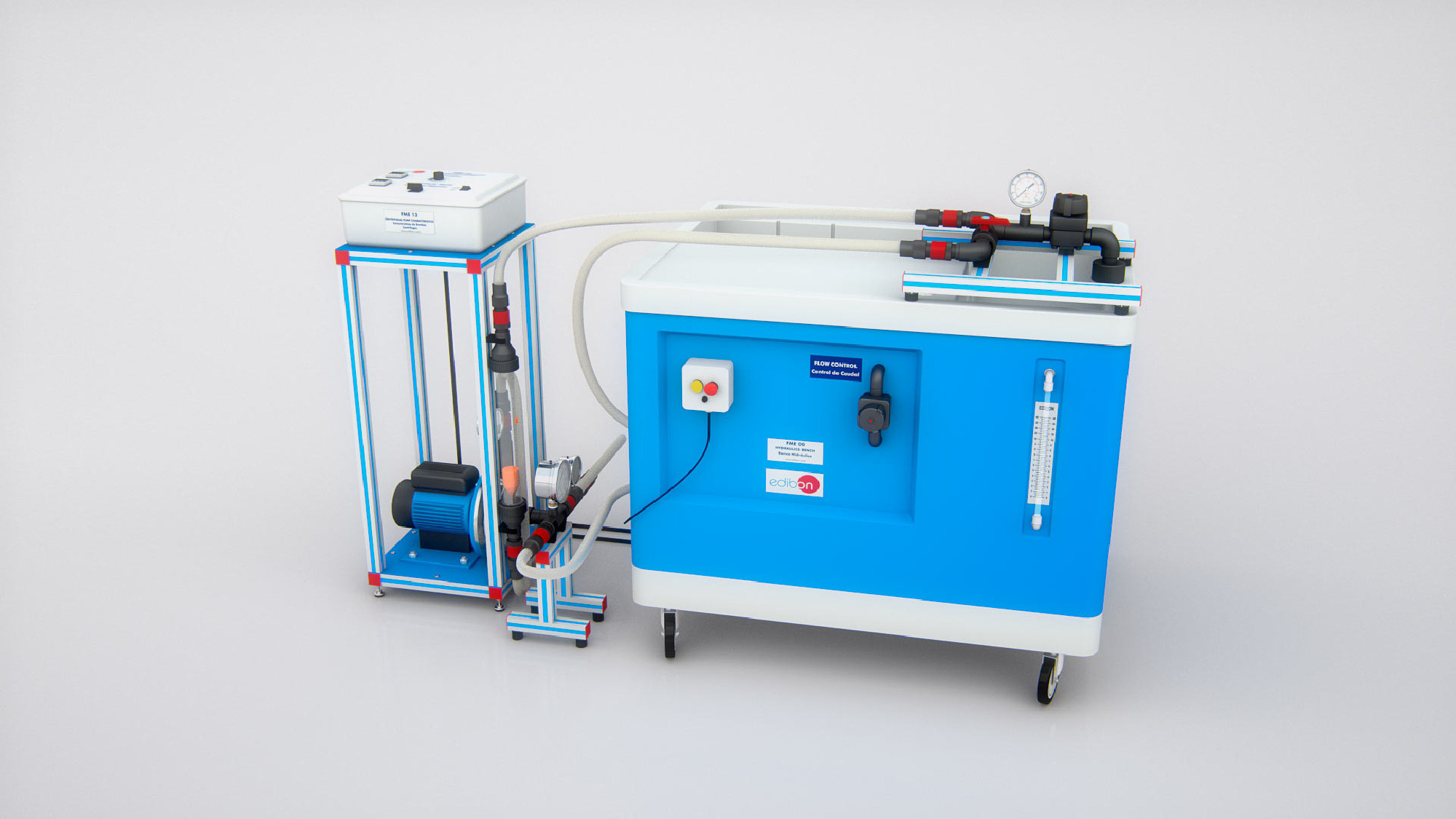

Complete FME13 Unit

CENTRIFUGAL PUMP CHARACTERISTICS - FME13

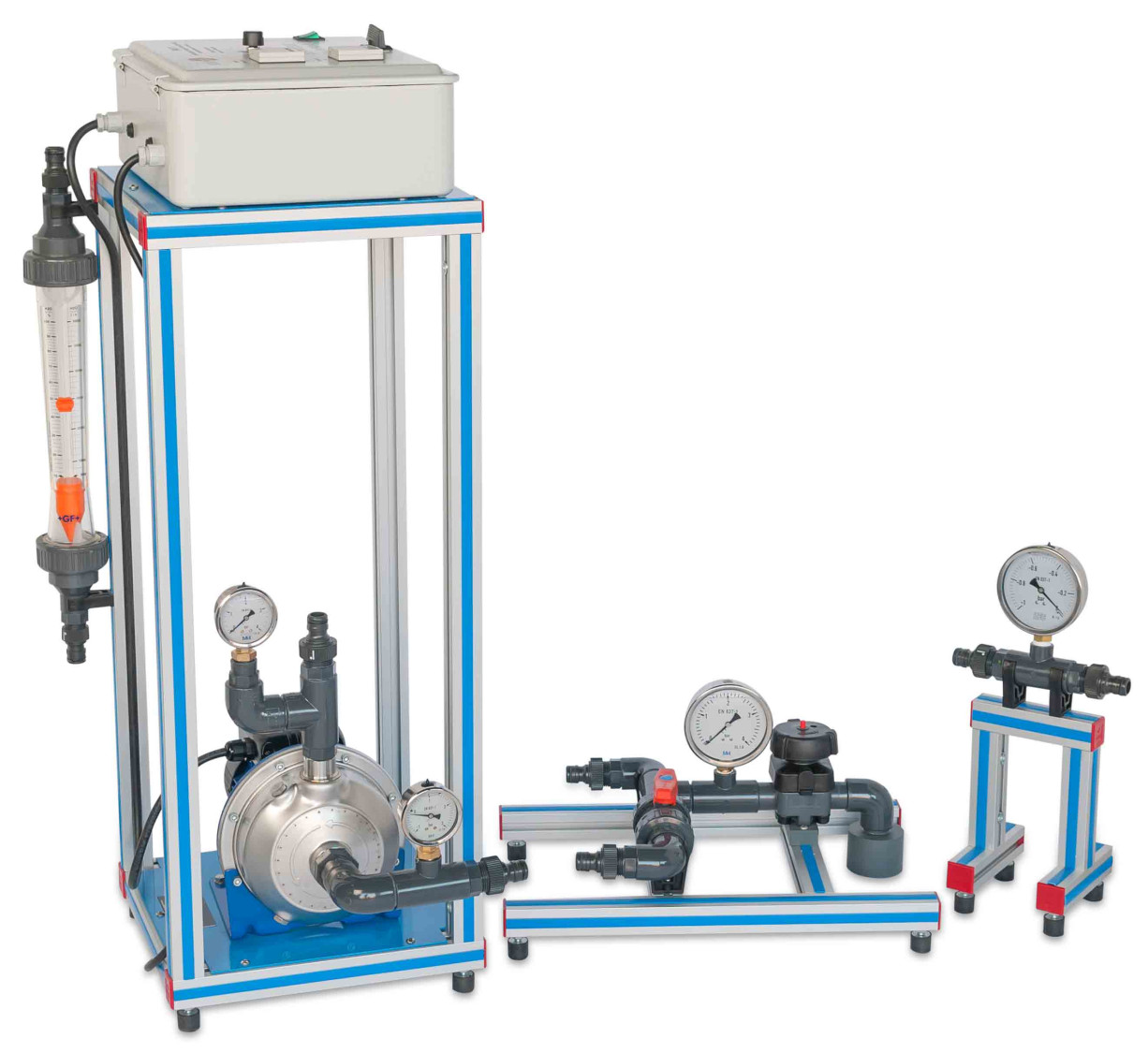

FME13 Unit with service unit FME00

CENTRIFUGAL PUMP CHARACTERISTICS - FME13
CENTRIFUGAL PUMP CHARACTERISTICS - FME13

INNOVATIVE SYSTEMS

The Centrifugal Pump Characteristics, "FME13", designed by EDIBON, allows the study of several centrifugal pump characteristics such as efficiency, series/parallel couplings, etc.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

8TV
 Technical and Vocational Education Fluid Mechanics Laboratory
8HE
 Higher Education Fluid Mechanics Laboratory
11PTC
 Petroleum Training Center Laboratory
