EEICI Charpy and Izod Impact Testing Unit

7.3.2.1.- MECHANICAL TEST 14.1.8.- MECHANICAL TESTS
CHARPY AND IZOD IMPACT TESTING UNIT - EEICI

INNOVATIVE SYSTEMS

The Charpy and Izod Impact Testing Unit, "EEICI", is a unit designed for carrying out resilience or impact tests on plastic materials. The resilience test is a type of destructive test that gives us the toughness measure of a material and indirectly its ductility.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

7TV
 Mechanical, Automotive and Materials Laboratory for Technical and Vocational Education
7HE
 Mechanics, Automotive and Materials Laboratory for Higher Education

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Read more
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Read more

General Description

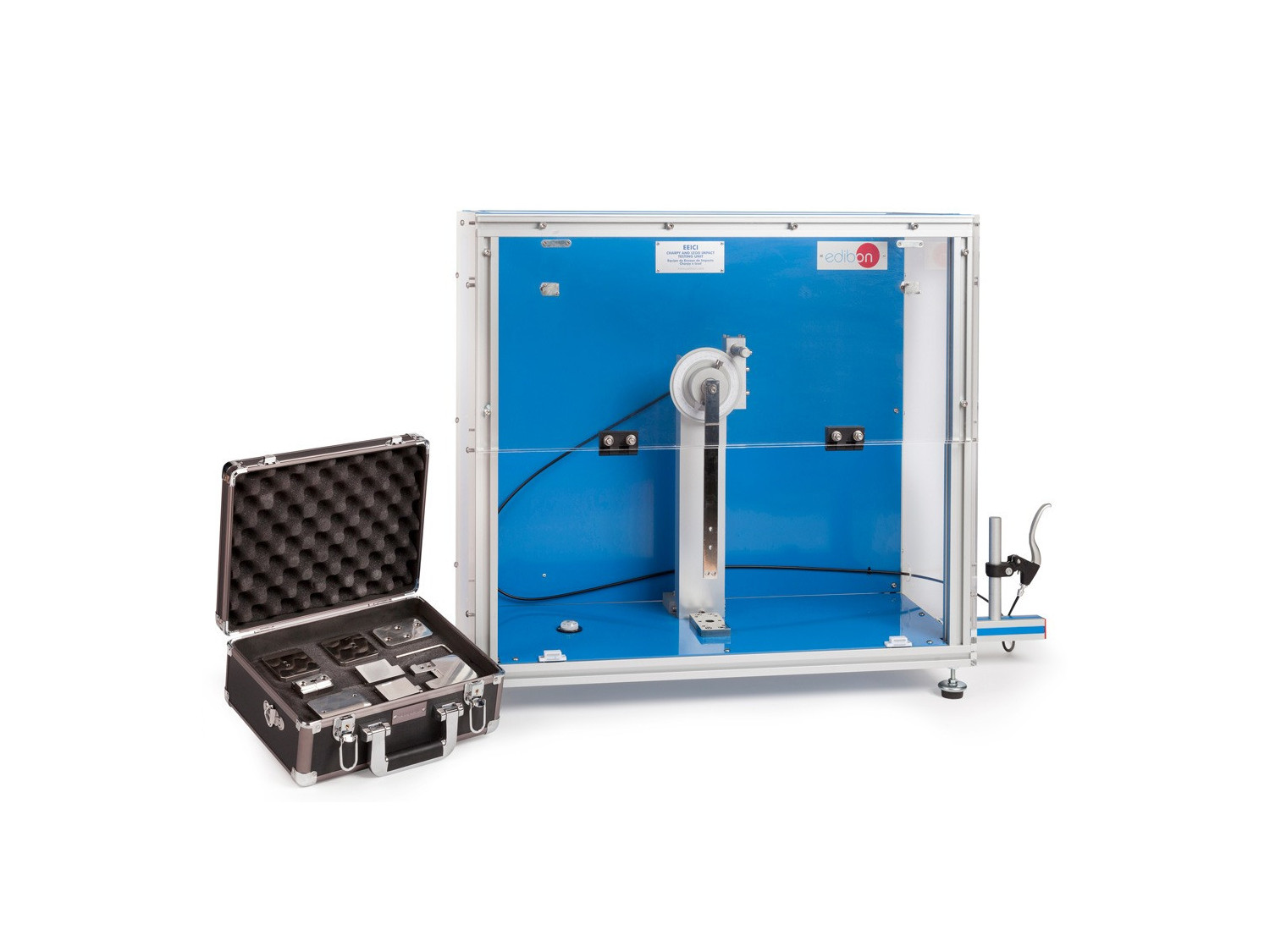

The Charpy and Izod Impact Testing Unit, "EEICI", consists of a pendulum supported on bearings with an arm of 330 mm long and a fastening system in the initial position of the test. The suitable hammer either for Charpy or Izod test is screwed to one of its ends.

The Charpy hammer is "C" shaped and is used for impact tests on specimens horizontally supported at both ends and the Izod hammer is used to strike on vertically fixed specimens.

The unit has clamps for each hammer, formed by two supports located in the center of the base to put the specimen, being supported at their two ends in case of the Charpy clamp and fixed and vertical in case of the Izod clamp

The energy employed to break the specimen will be indicated by the displacement of the pointer of a graduated disc.

The test specimens have notches for an easier breakage and are made of PVC, teflon and methacrylate according to the standards:

  • Charpy method: ISO 179.
  • Izod method: ISO 180.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Experimental determination of the energy needed in order to break specimens of different materials using the Charpy method.
  2. Experimental determination of the energy necessary to break specimens of different materials using the Izod method.
  3. Experimental determination of the pendulum’s friction losses.

Quality

AFTER-SALES SERVICE

Ask for information
