COMPUTER CONTROLLED AXIAL PUMP BENCH - PBAC

INNOVATIVE SYSTEMS

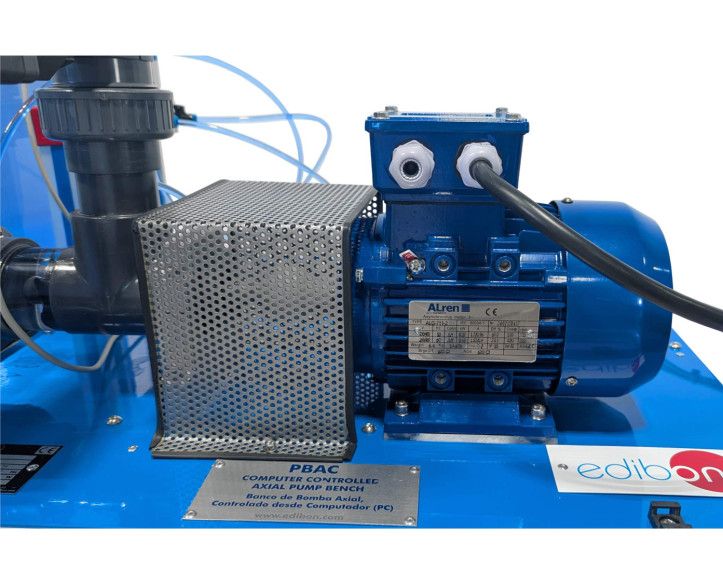

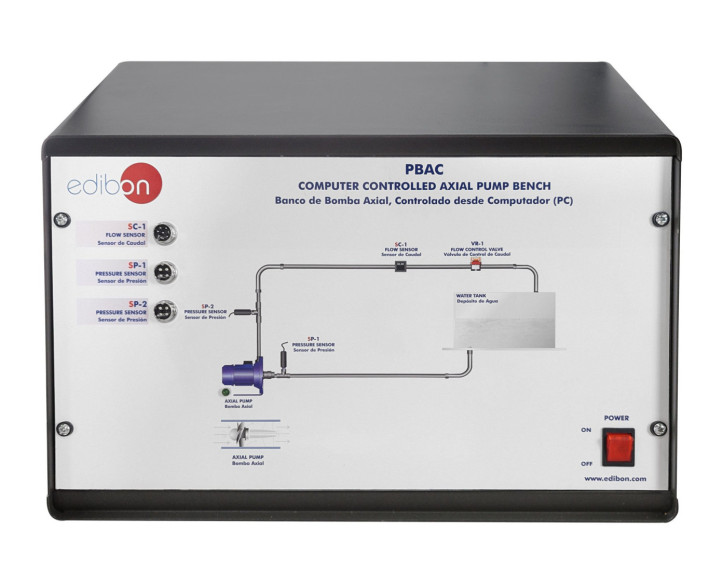

The Computer Controlled Axial Pump Bench, "PBAC", is designed to study this type of pumps. It is a bench-top unit that consists of a computer controlled axial pump, a water tank and circulation pipes with a flow regulation valve. Besides, it includes the control elements required for the pump’s testing: two pressure sensors and one flow sensor.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
FSS

Fault Simulation System
PLC

PLC Industrial Process Control
PLCHMI

IIoT local/remote Control and Monitoring with HMI
ELK

EDIBON Software Development KIT, Powered by NI LabVIEW™
ECR

EDIBON Industrial Modular System with NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

Laboratories

11PTC
 Petroleum Training Center Laboratory
8TV
 Technical and Vocational Education Fluid Mechanics Laboratory
8HE
 Higher Education Fluid Mechanics Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Read more

General Description

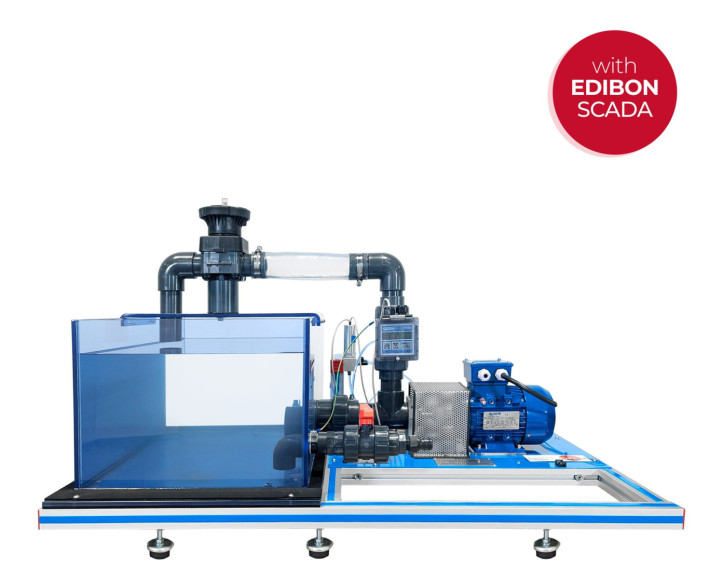

The Computer Controlled Axial Pump Bench, "PBAC", is designed to study this type of pumps. It is a bench-top unit that consists of a computer controlled axial pump, a water tank and circulation pipes with a flow regulation valve. Besides, it includes the control elements required for the pump’s testing: two pressure sensors and one flow sensor.

A frequency inverter for the pump, computer controlled, provides the possibility of regulation and measuring the pump motor speed, as well as the measurement of the torque transferred.

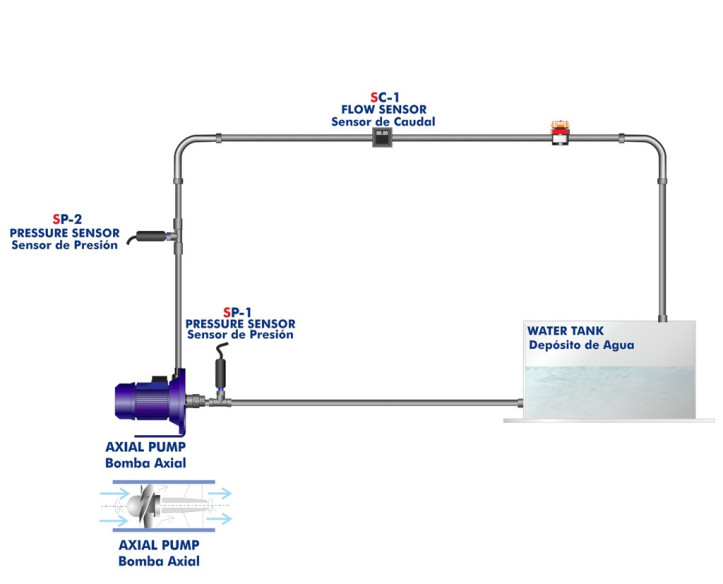

The pump is installed in a system of pipes. As the circuit is closed, it prevents a continuous waste of water when working with it.

The Computer Controlled Axial Pump Bench, "PBAC", unit has instrumentation and sensors to allow the measurement, from the computer, of the most typical parameters of the pumps:

  • Motor turn speed.
  • Total impelled flow.
  • The admission and discharge pressure.
  • Torque.
  • Calculated values:
  • Total height.
  • Hydraulic and mechanic power.
  • Efficiency.

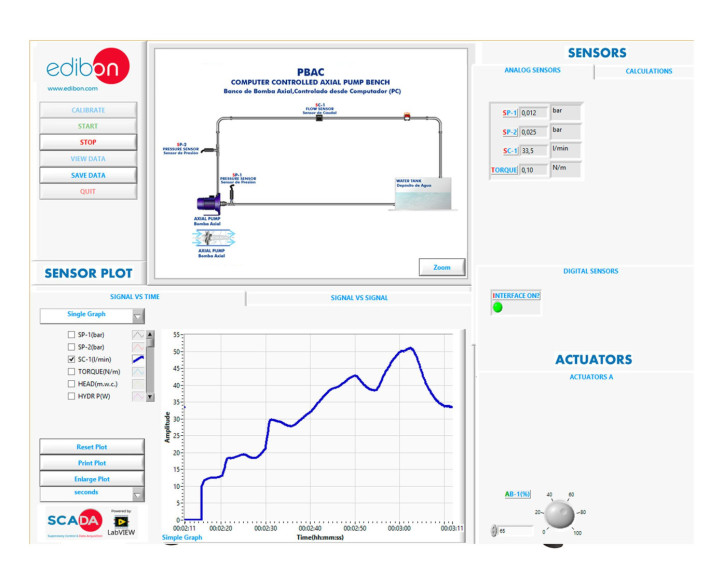

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
