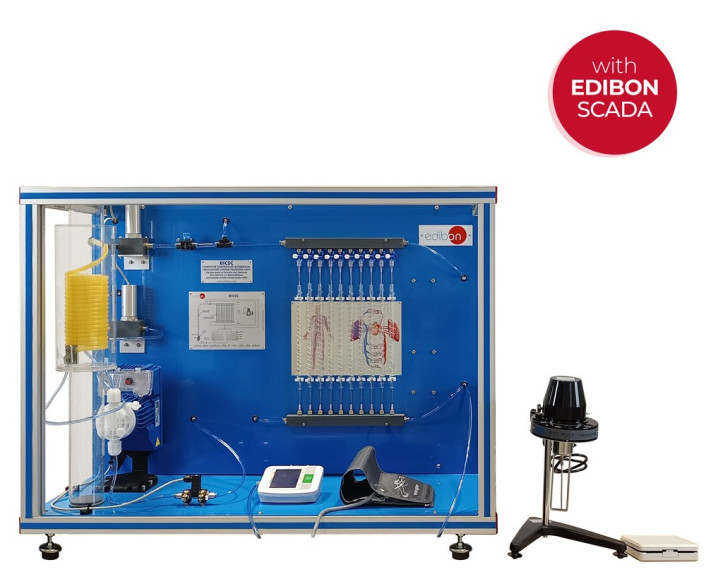

BICSC Computer Controlled Biomedical Circulatory System Unit

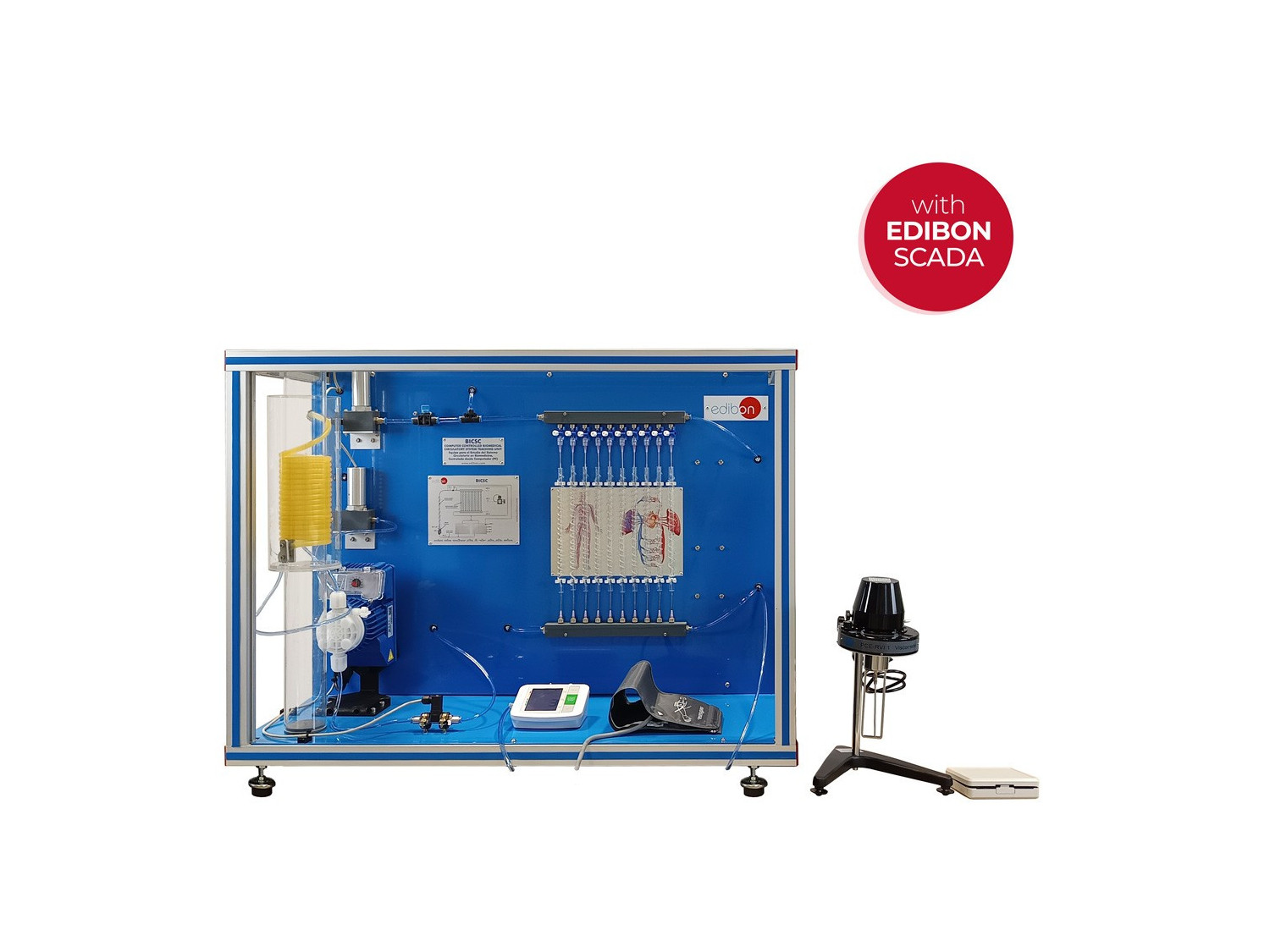

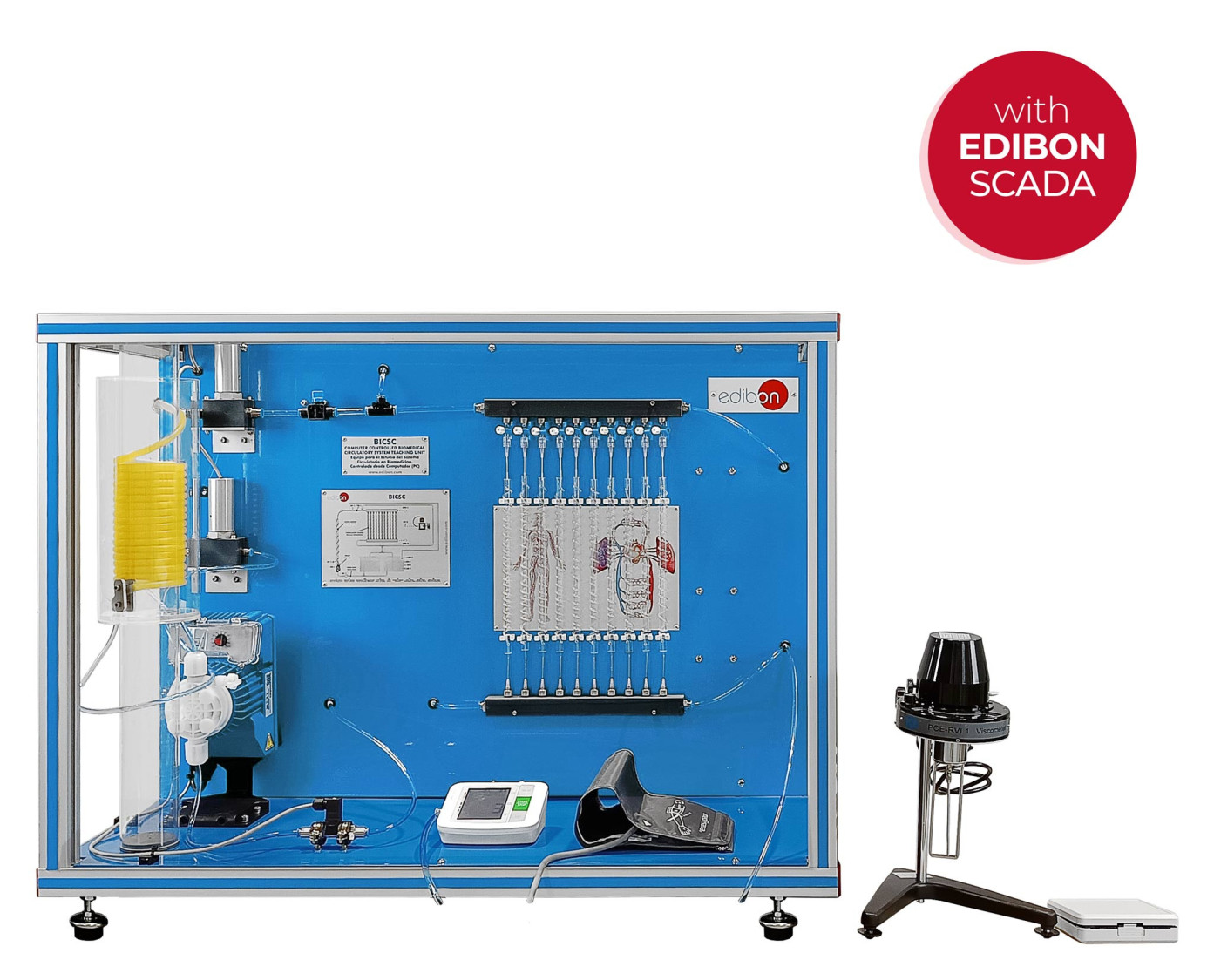

The Computer Controlled Biomedical Circulatory System Teaching Unit, "BICSC", allows the students to learn how to interpret the results obtained by the viscometer and pressure sensors, and apply them for the diagnosis of circulatory problems.

The unit has two tanks: one for water and the other for a fluid of viscosity similar to blood.

A computer controlled heating element varied the temperature of the fluid (PID Control).

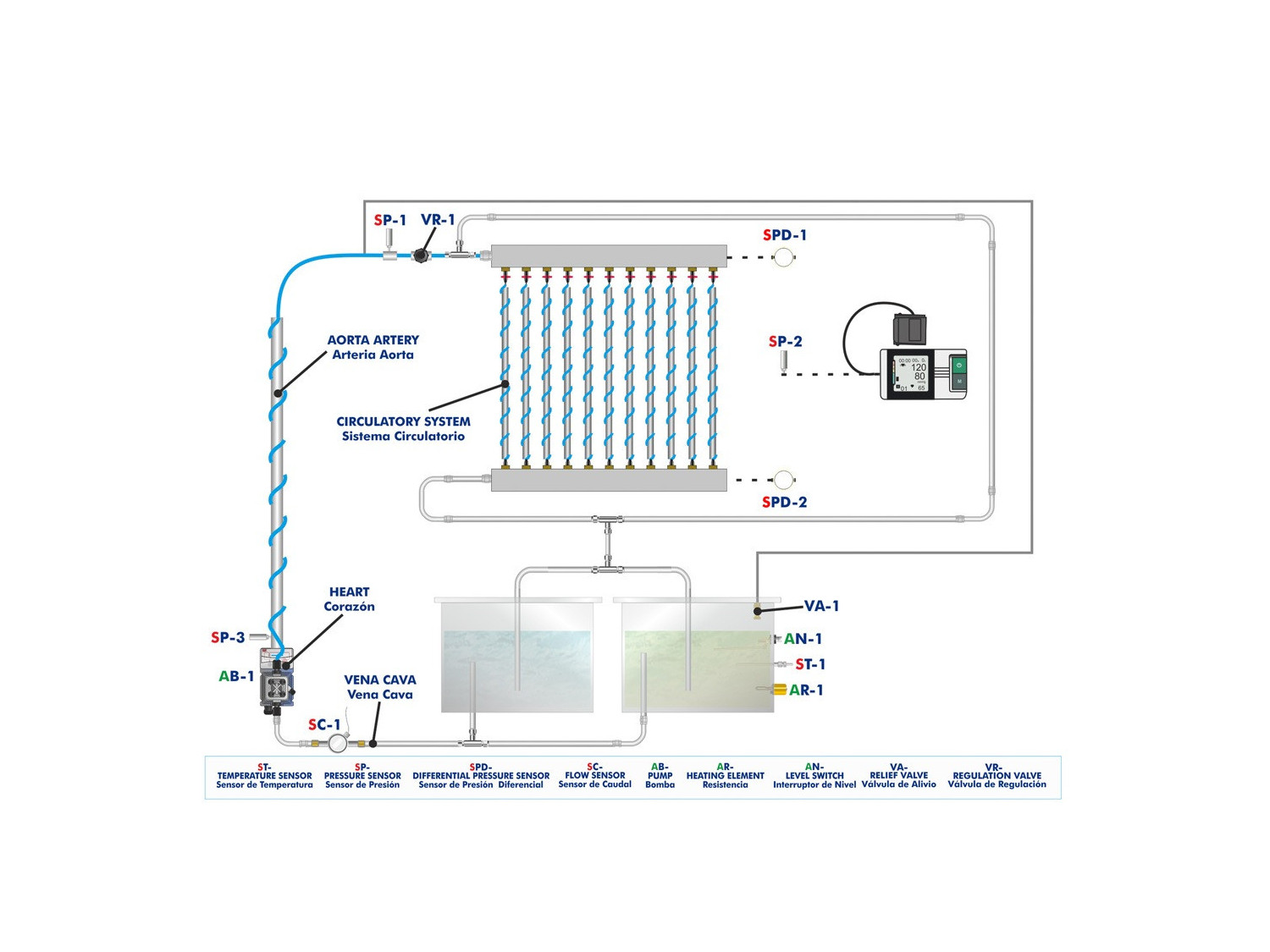

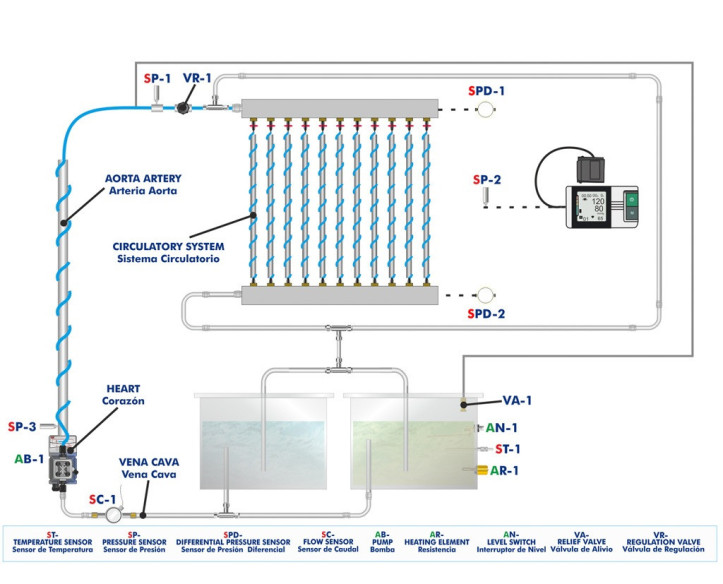

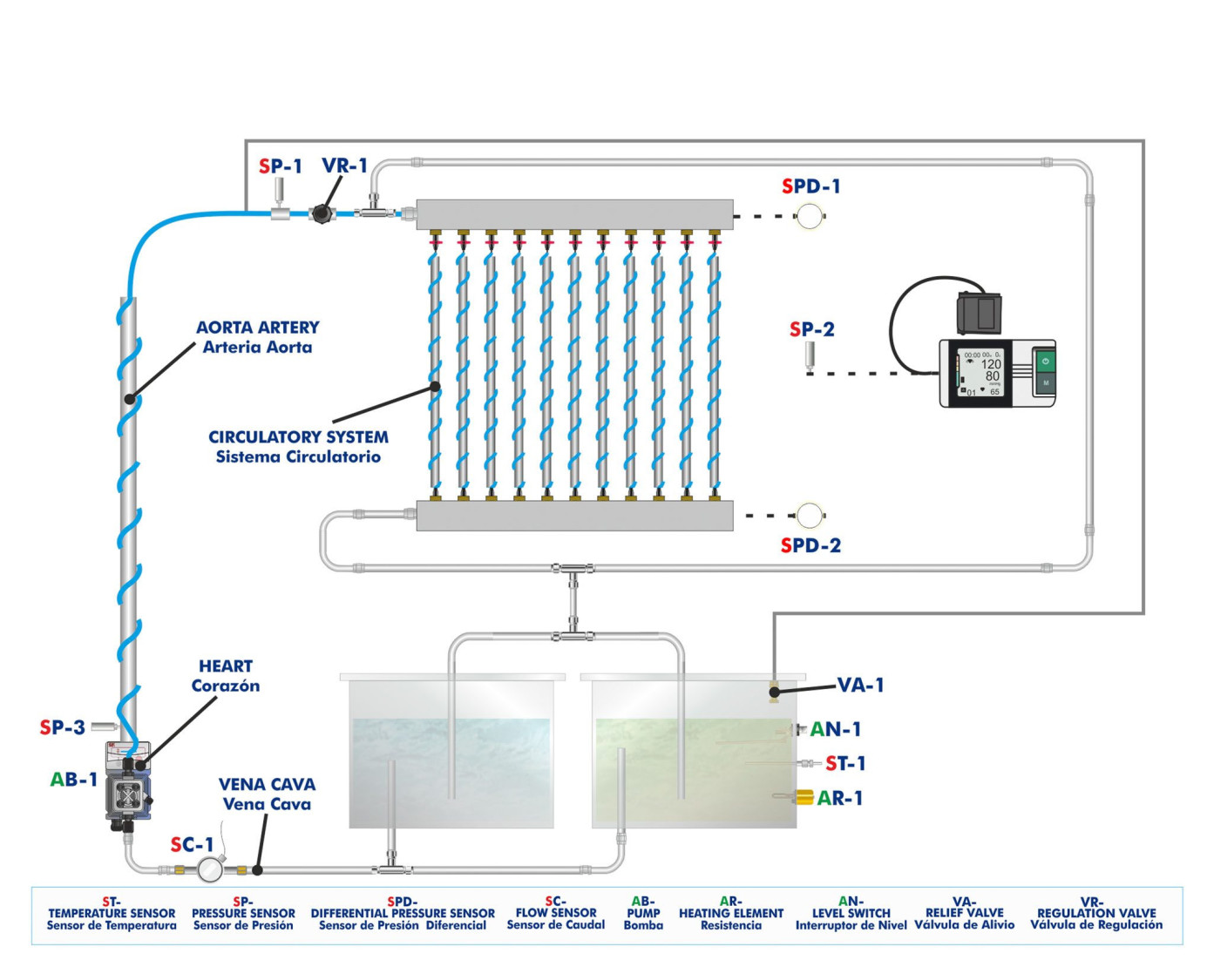

A computer controlled pump simulates the function of the heart, impelling fuid selected from the tank, through a pipe that simulates the vena cava and another pipe of greater diameter that represents the aorta towards a network of tubes (arteries).

There is a pressure sensor in this pipe (aorta) that provides a representative measurement of both the diastolic and systolic slood pressure.

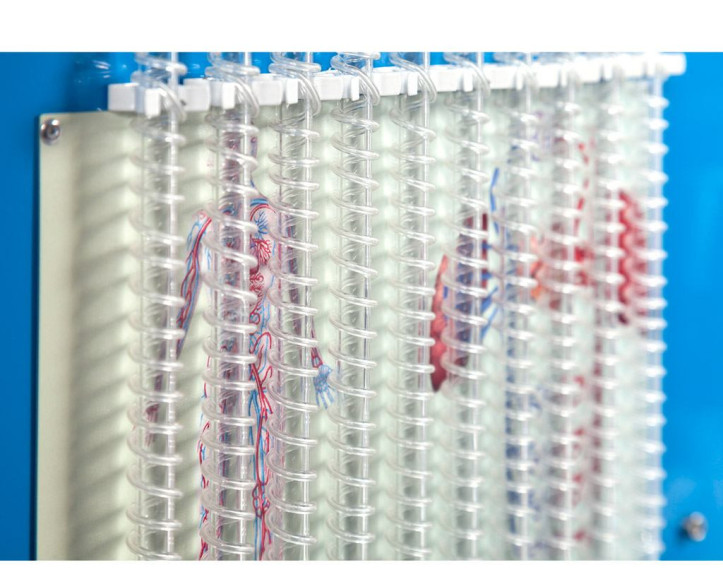

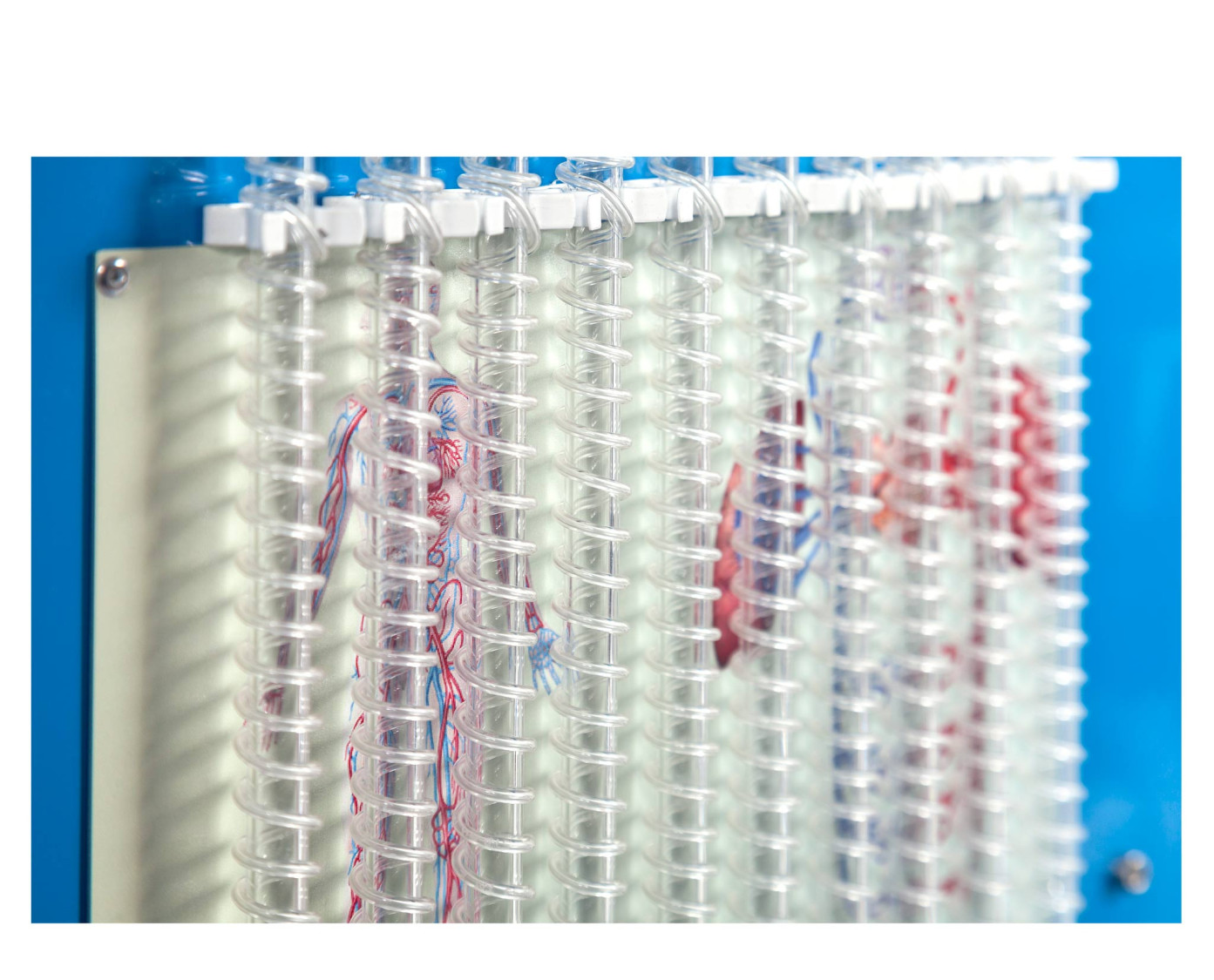

The aorta artery ends in a network of pipes that simulate the arteries that communicate the blood with the different parts of the human body. In this point there are two pressure sensors, used to take measures before and after the arteries and study the pressure drop in them.

Finally, the fluid leaving the circuit of arteries discharges again in the storage tanks.

In addition, a digital blood pressure monitor connected to a pressure sensor, is included to take blood pressure measurements and collect pressure changes.

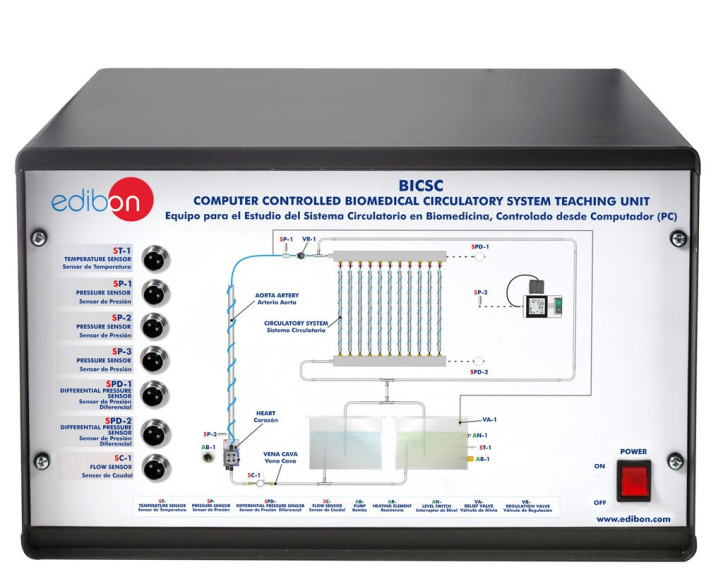

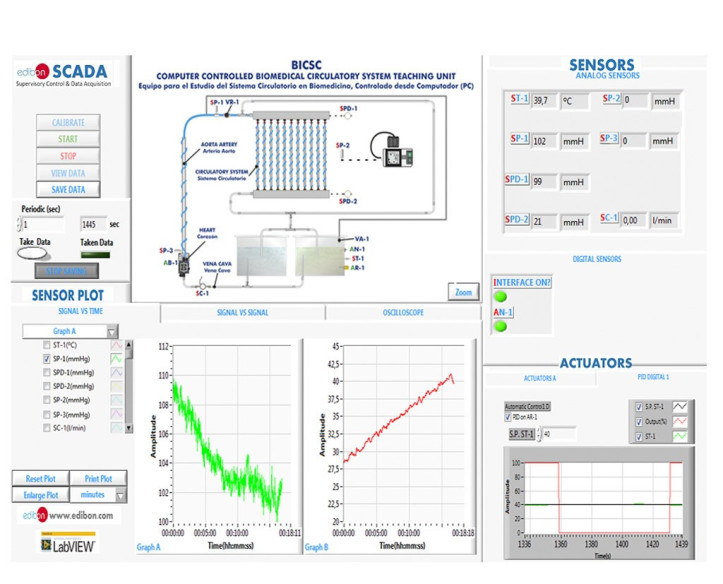

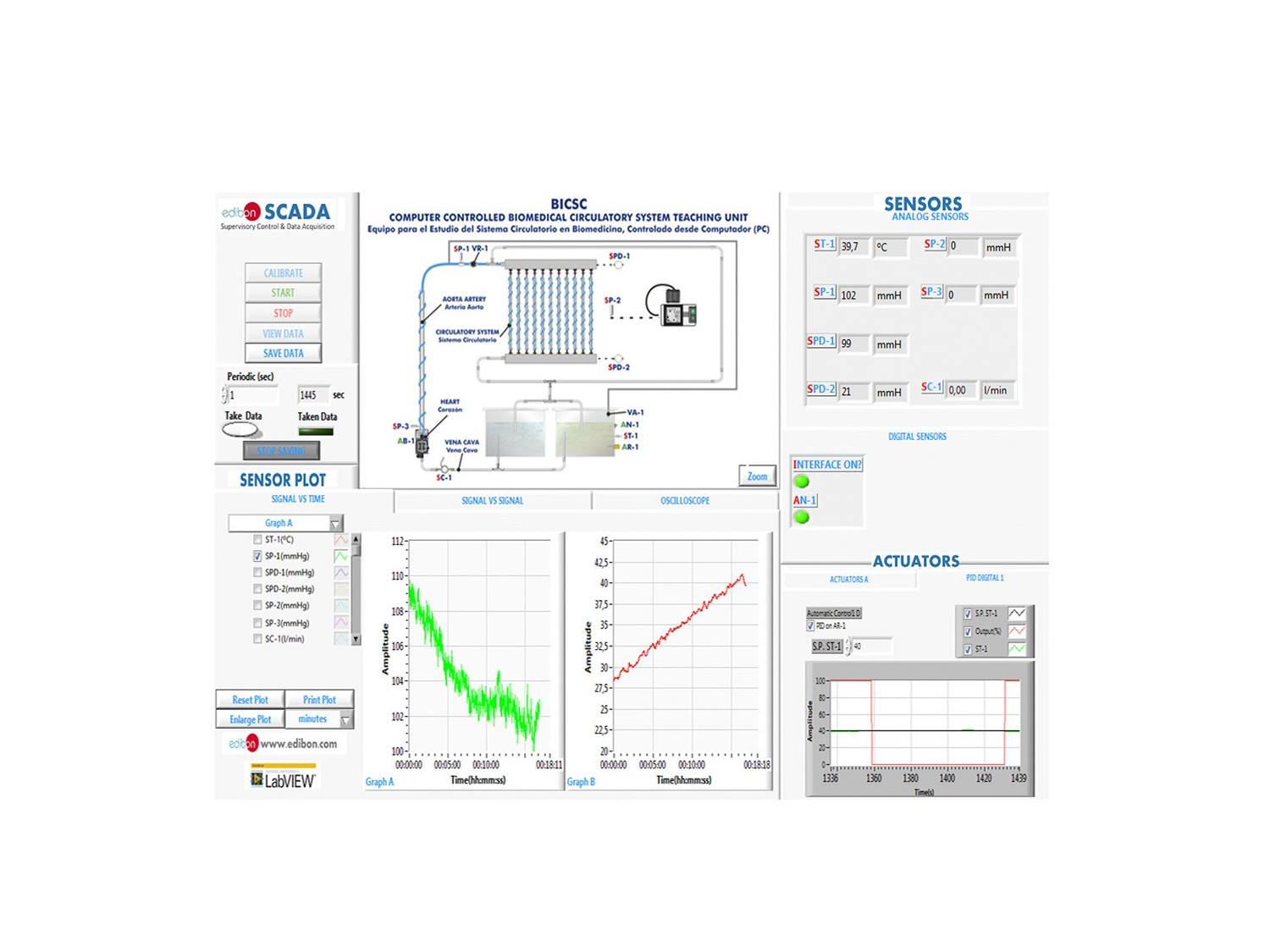

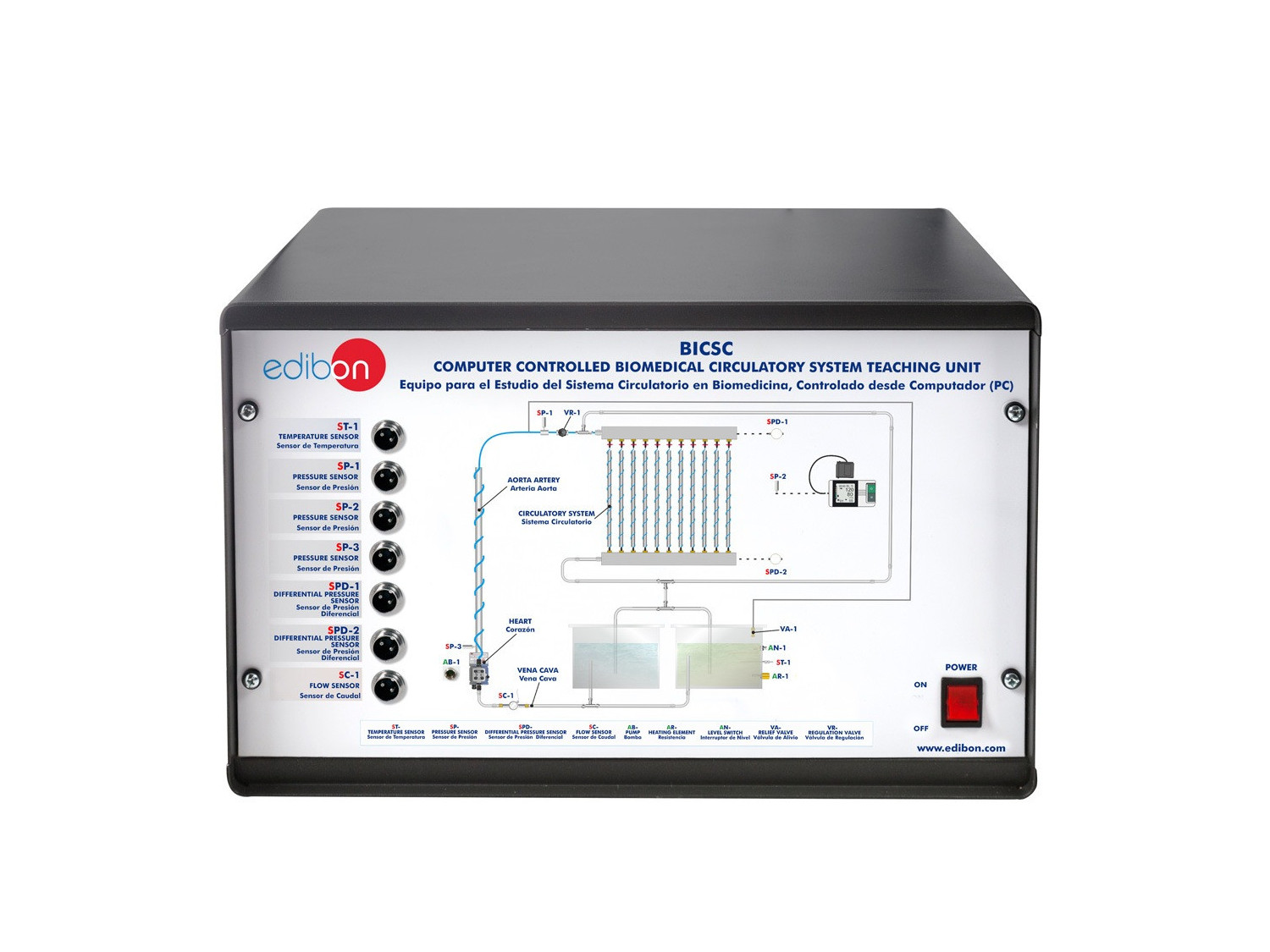

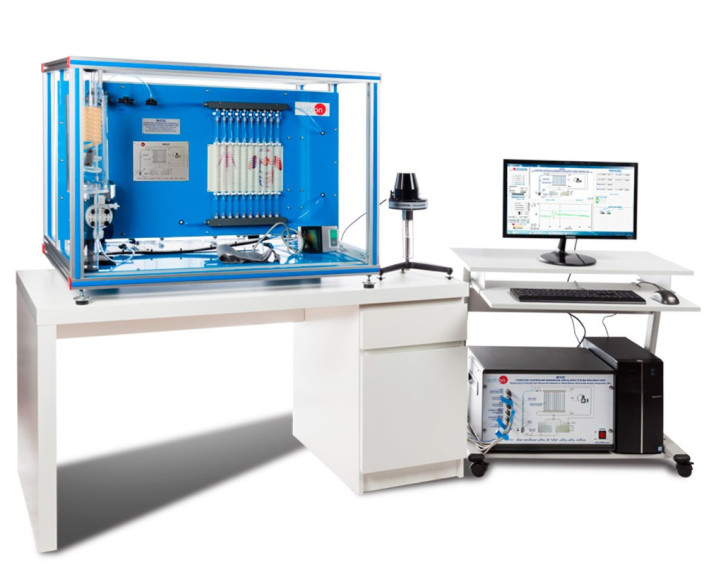

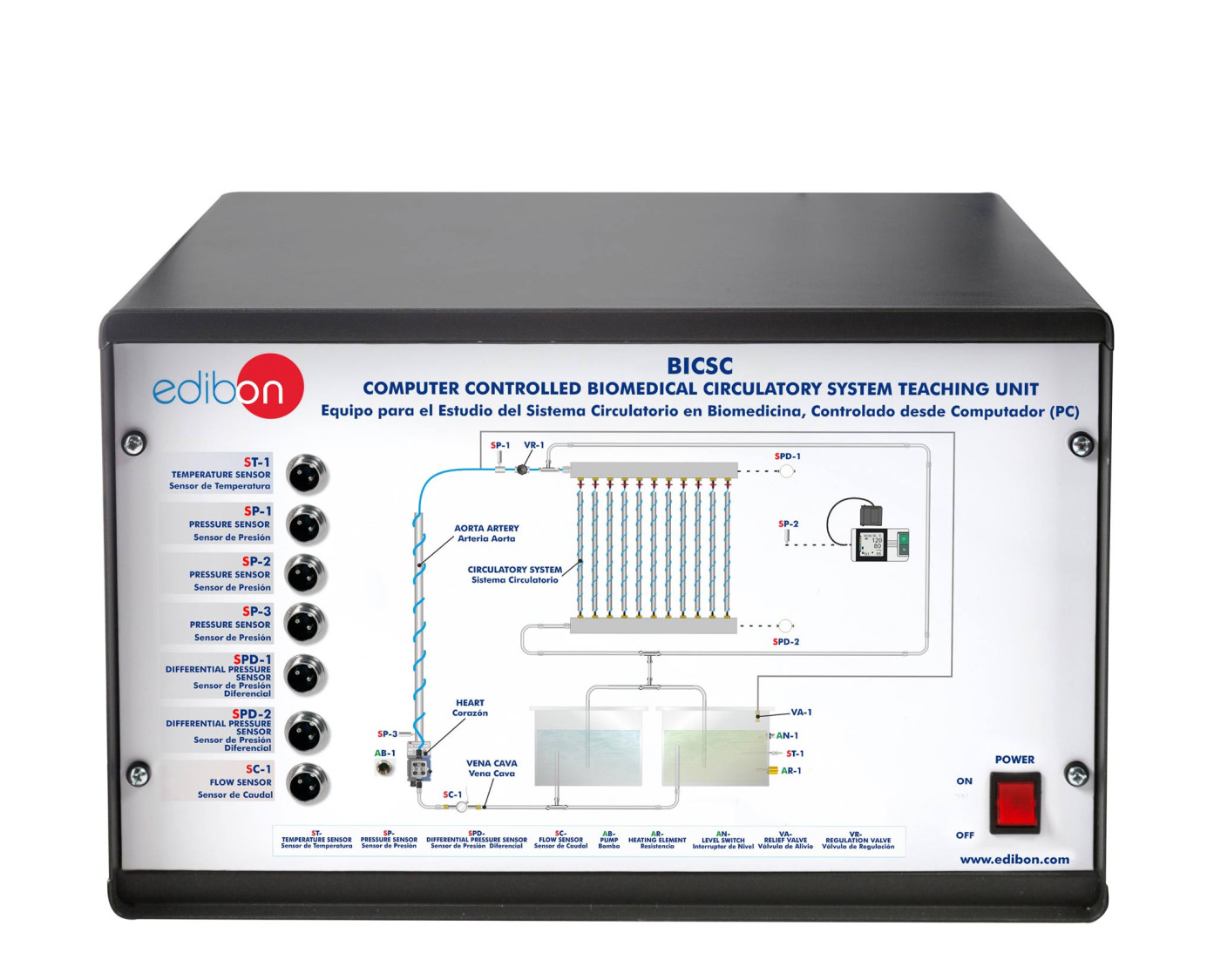

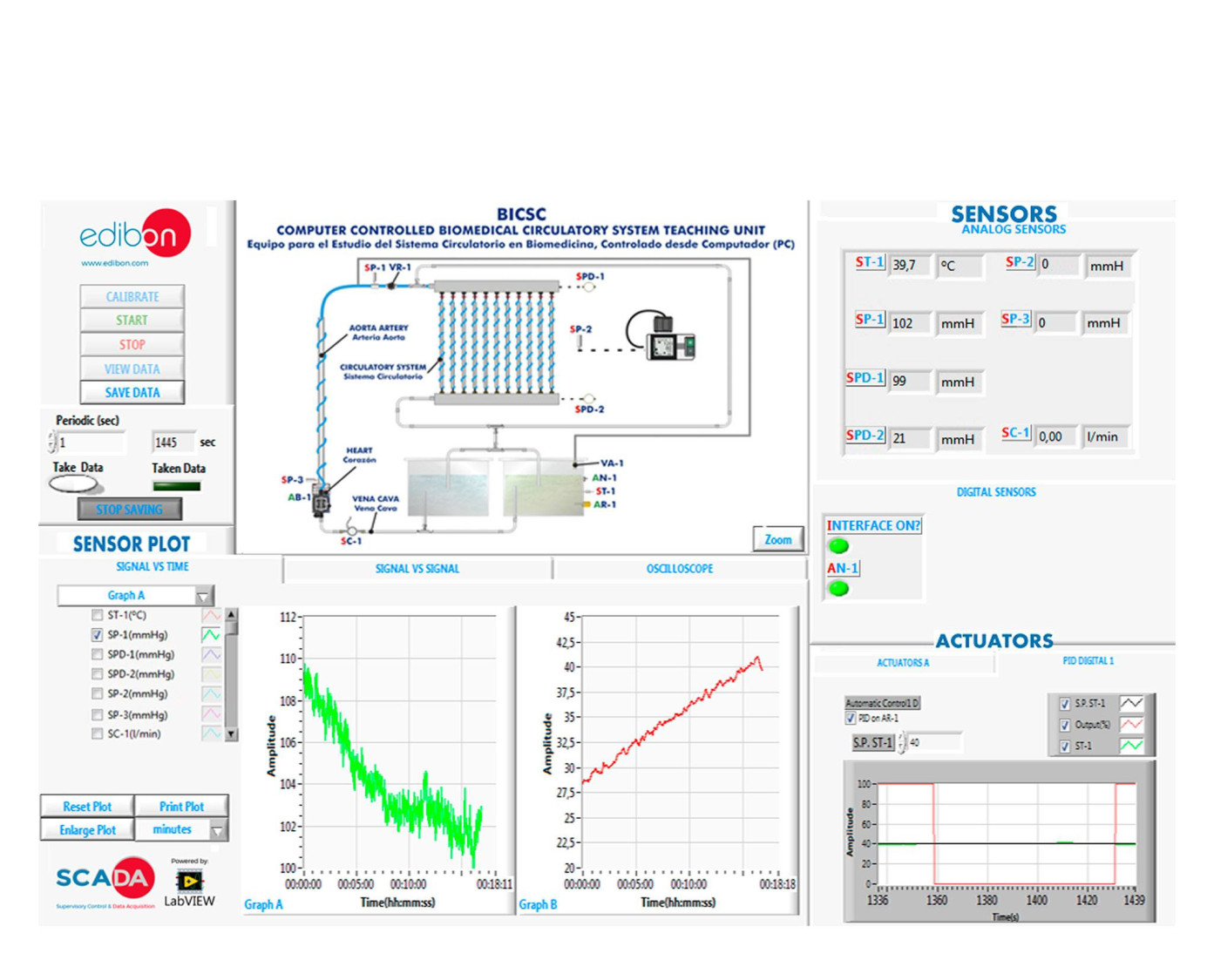

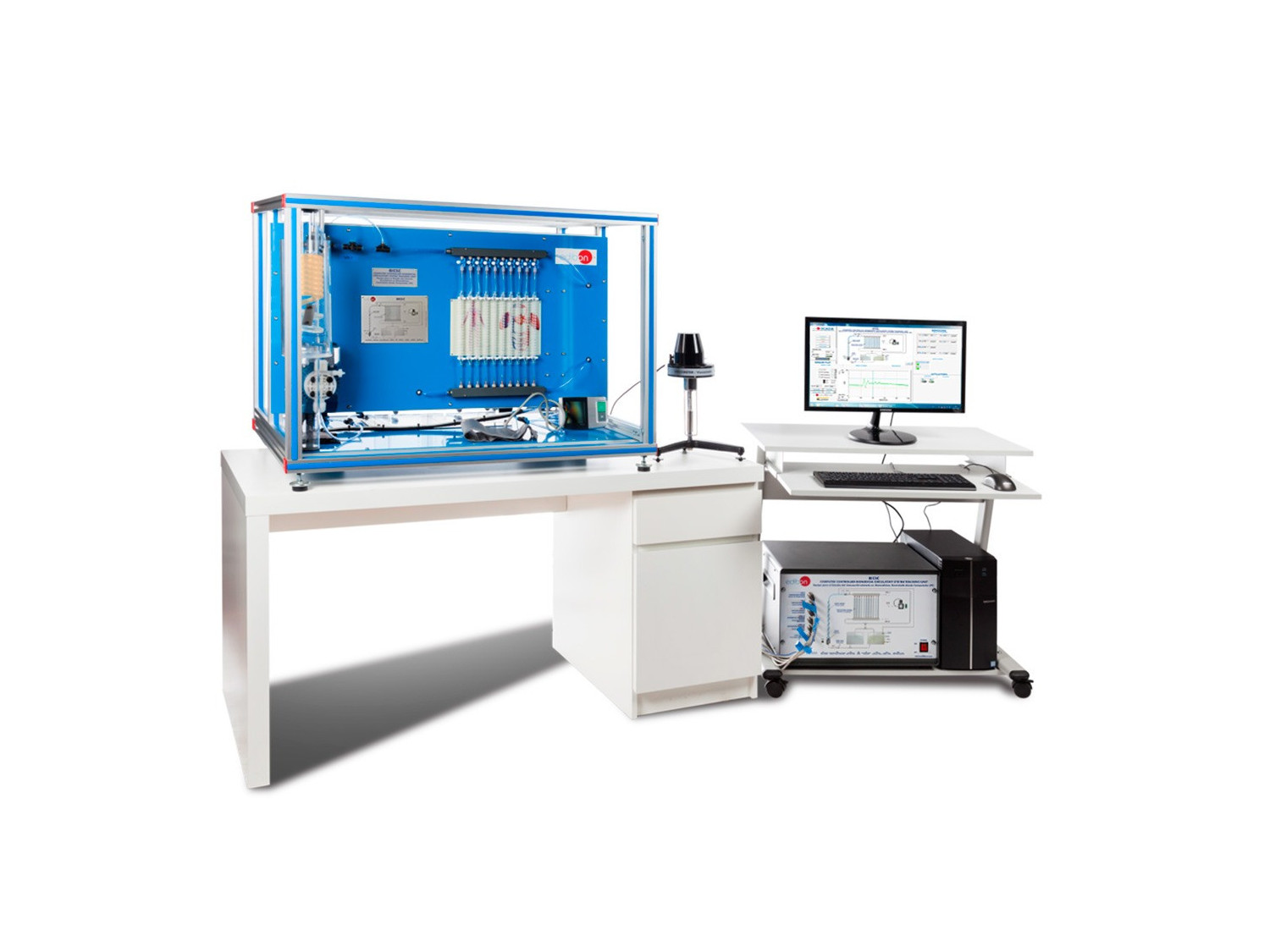

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
