BISBC Computer Controlled Biomedical Spirometry Unit

14.3.- BIOMEDICAL EQUIPMENT
COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC

Unit: BISBC. Computer Controlled Spirometry Teaching Unit

COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC

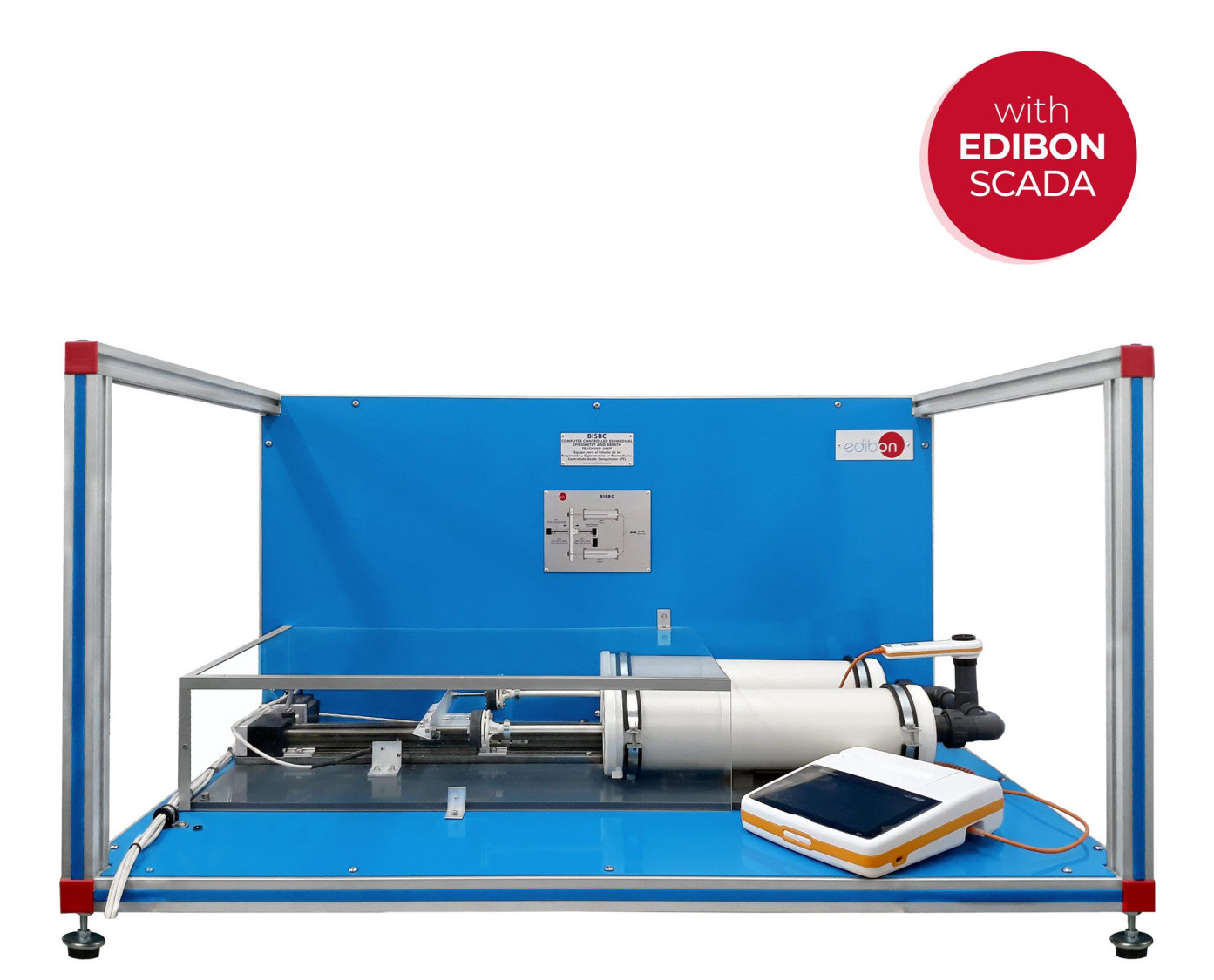

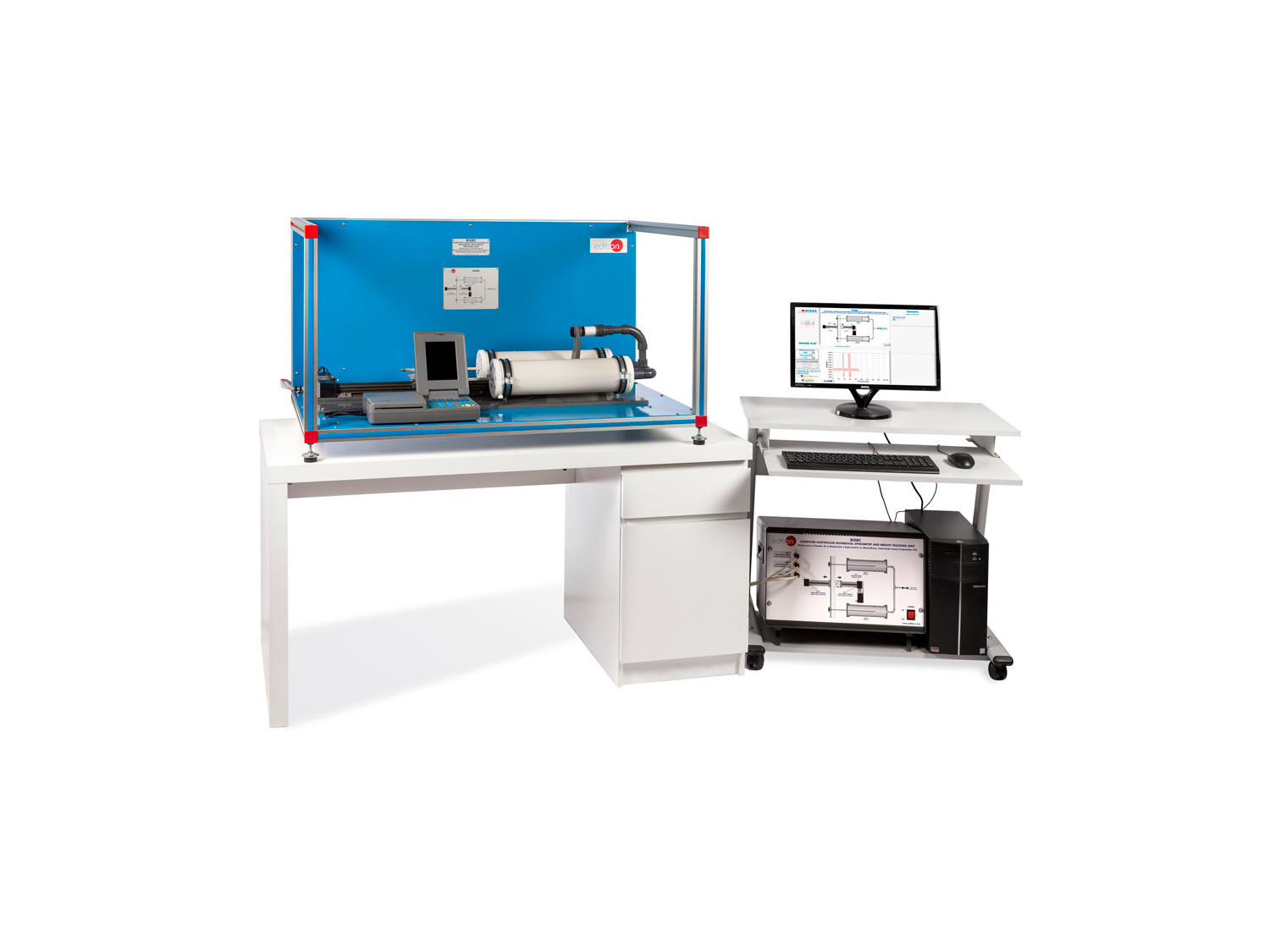

Complete BISBC unit

COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC

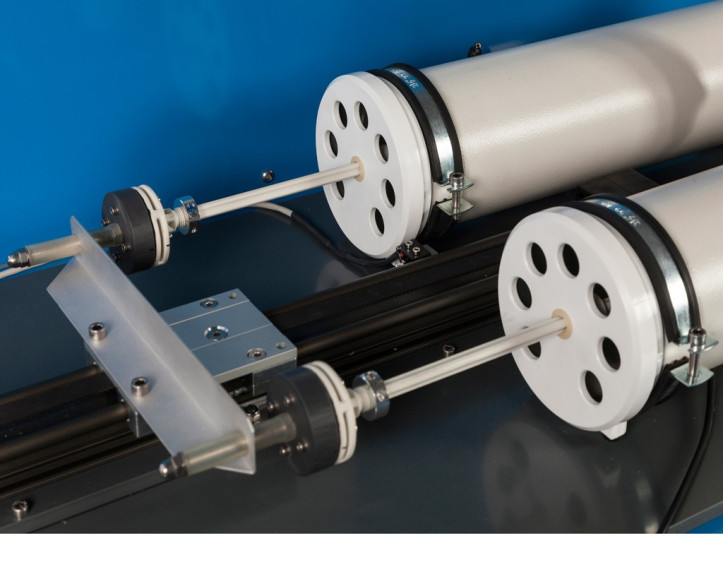

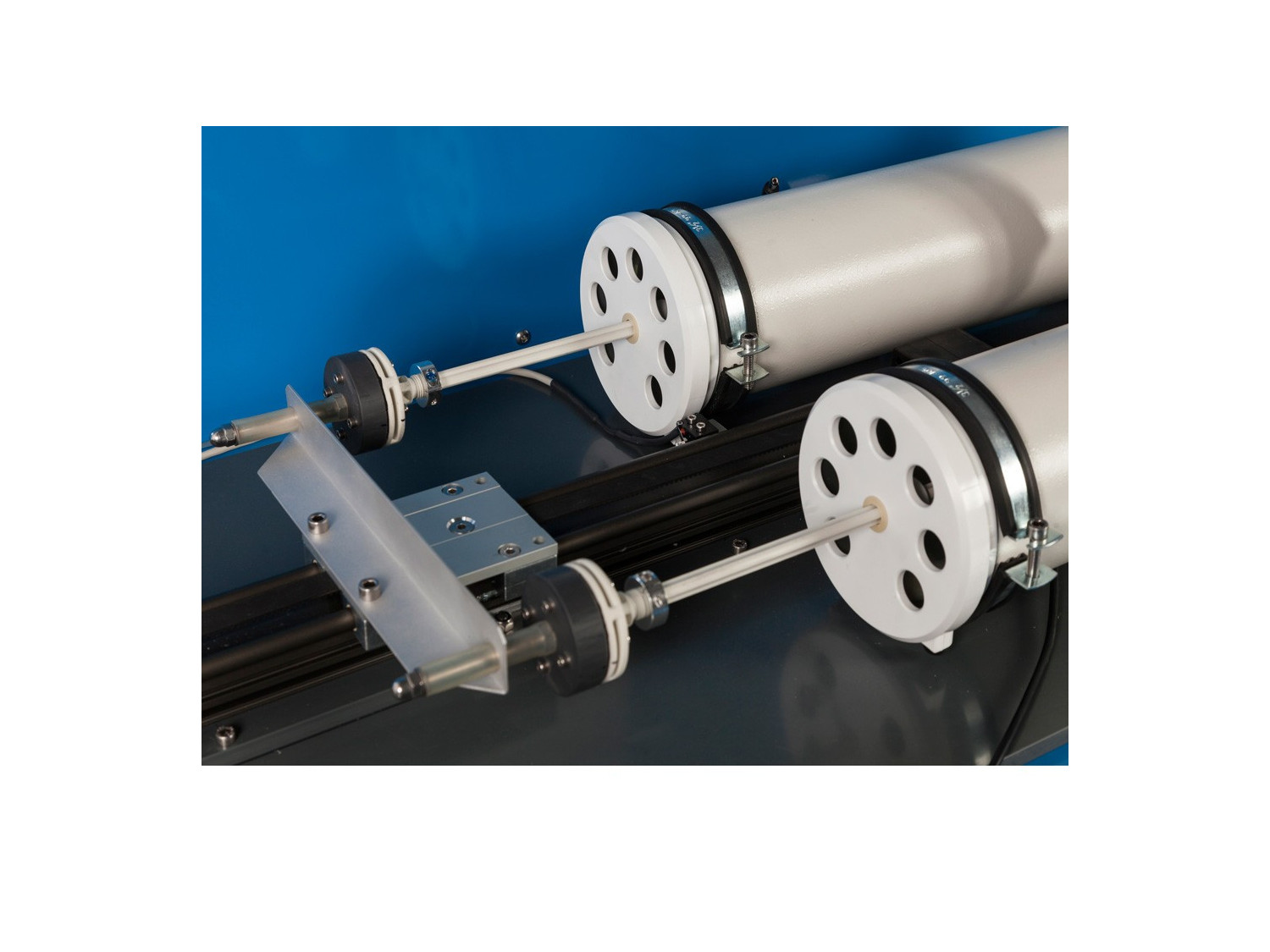

Unit details

COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC

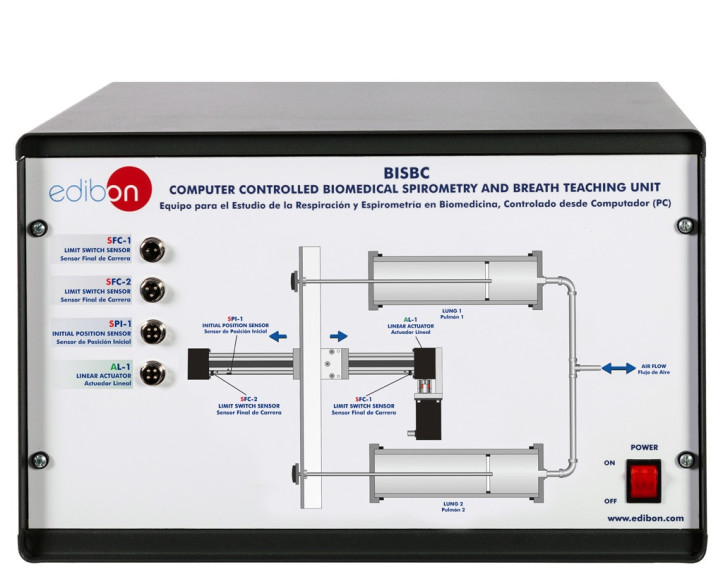

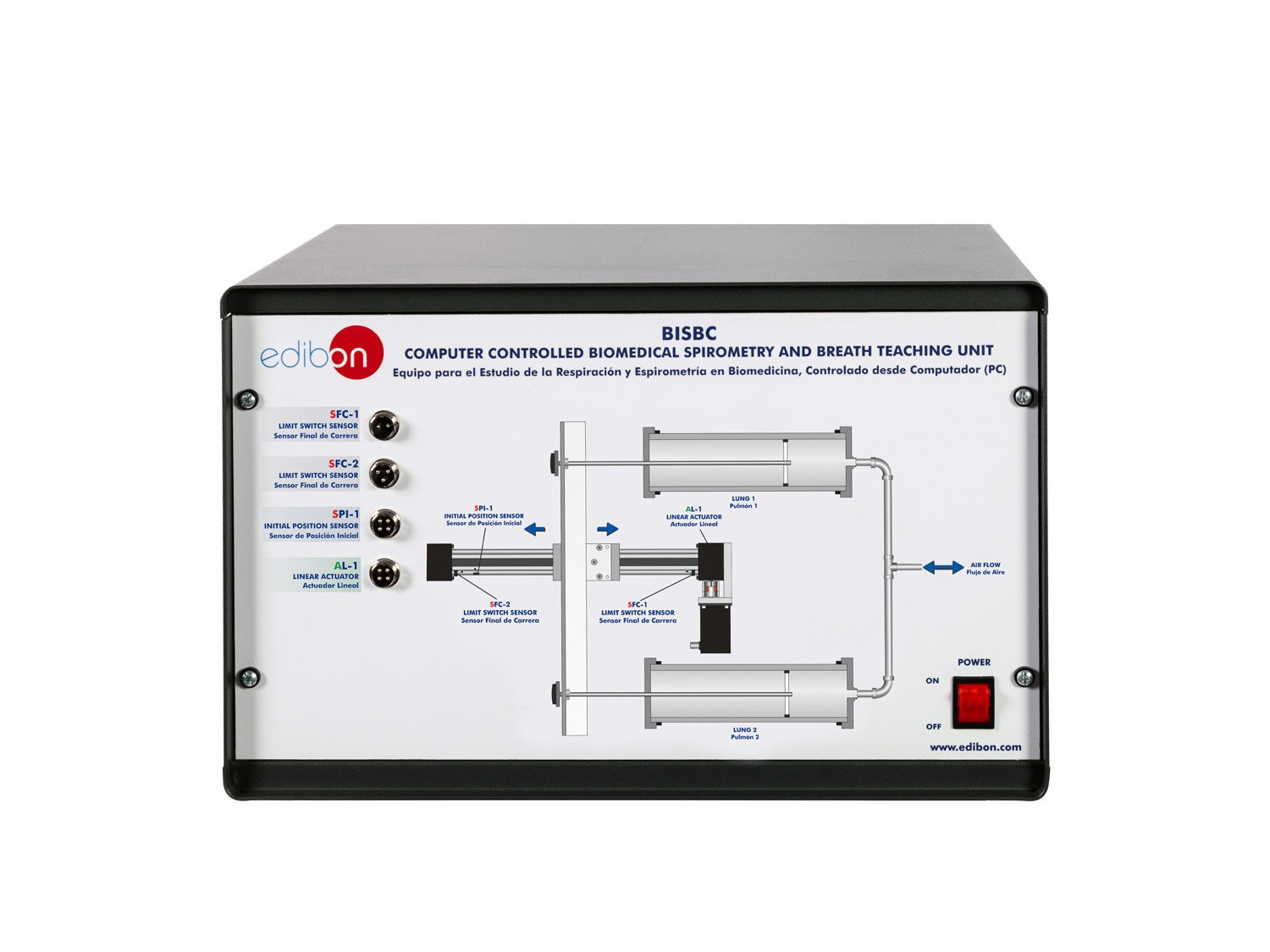

BISBC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC

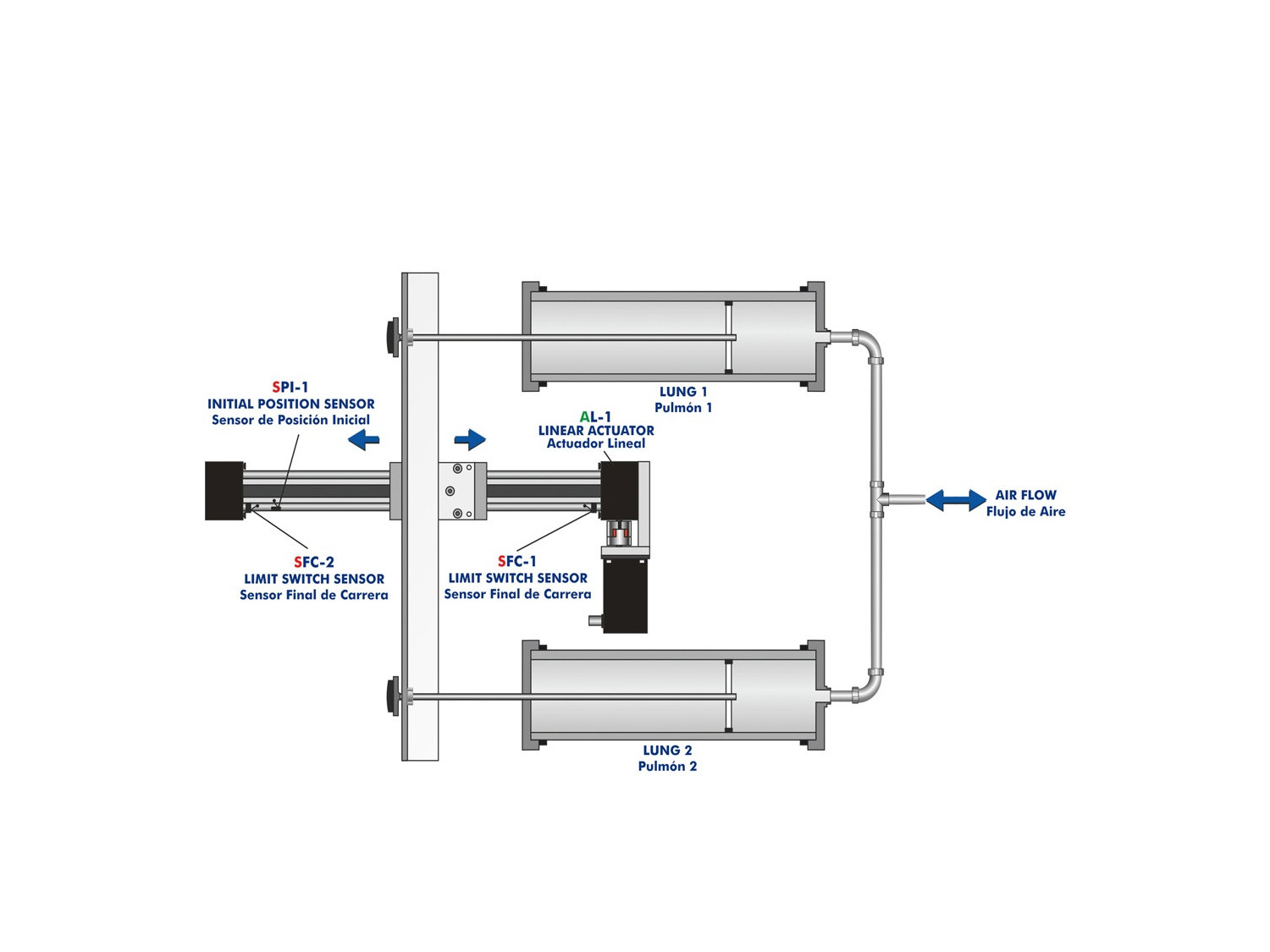

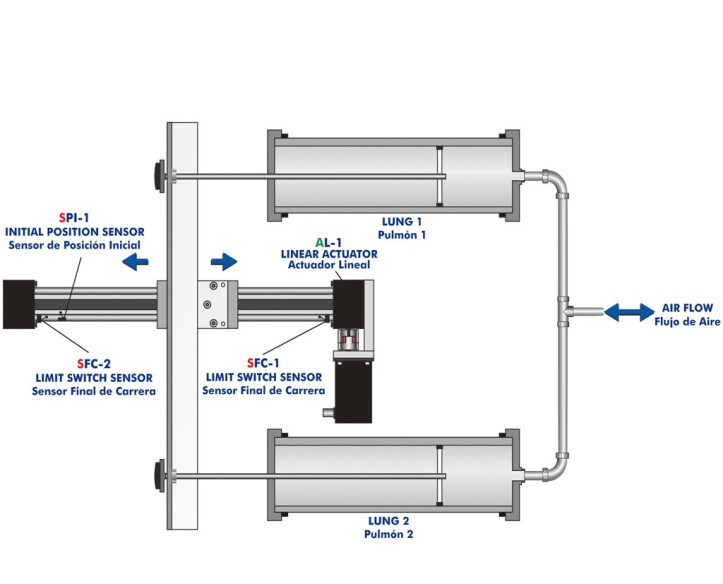

Process diagram and unit elements allocation

COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC

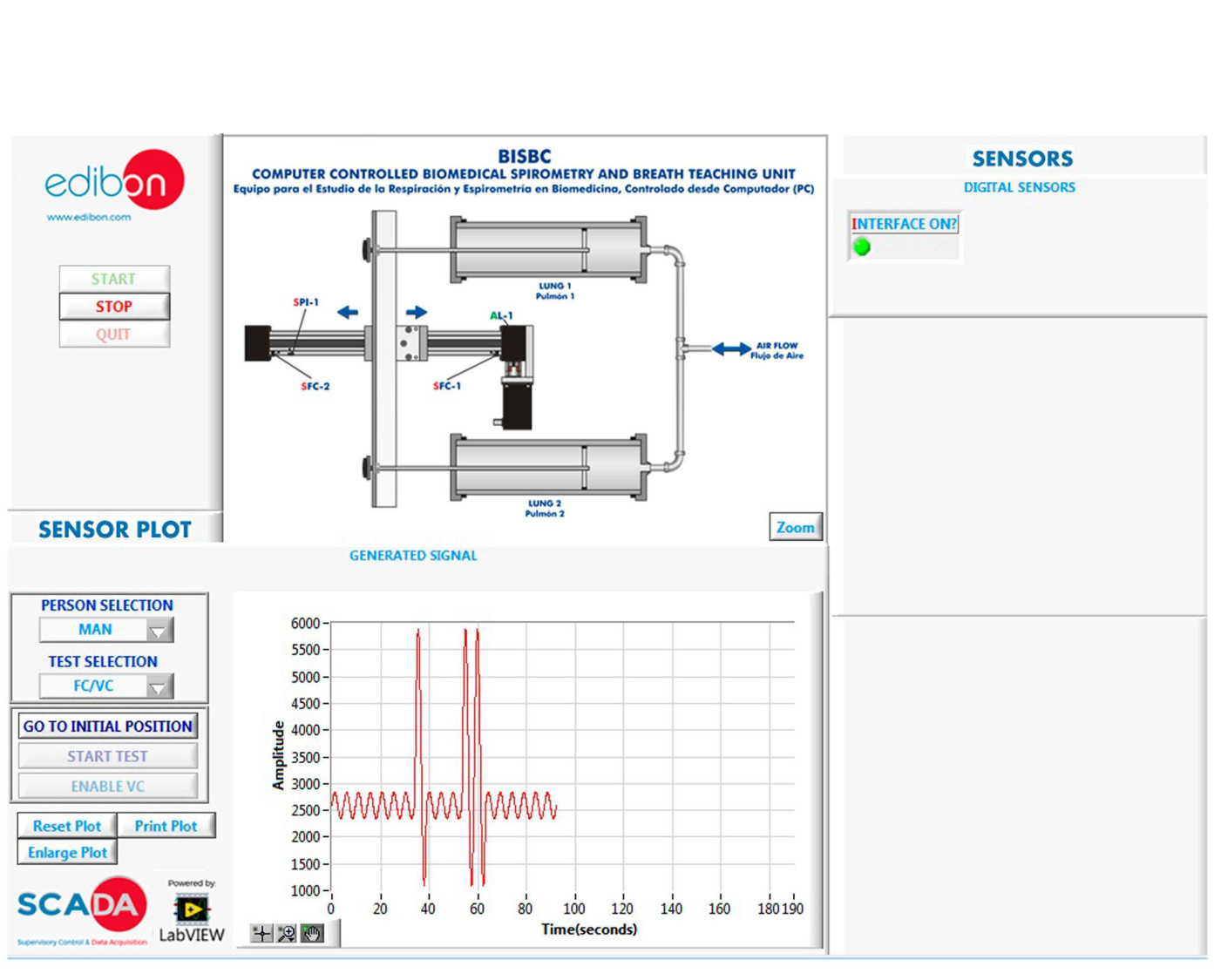

BISBC/SOF. BISBC Software. Main Screen

COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC
COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC
COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC
COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC
COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC
COMPUTER CONTROLLED BIOMEDICAL SPIROMETRY UNIT - BISBC

INNOVATIVE SYSTEMS

The Computer Controlled Biomedical Spirometry and Breath Teaching Unit, "BISBC", performs a spirometry test and displays its results with a diagnostic aim. It also includes a breath simulator that reproduces the test performed by different types of patients. The BISBC allows the respiratory function parameters and all the parameters related to the spirometry tests to be understood in an easy and comprehensive way.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
ESN

EDIBON Scada-Net

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Biomedical engineering and its importance for the medical sector.
Biomedical engineering and its importance for the medical sector.
Biomedical engineering is an interdisciplinary field that synergizes principles from both engineering and biology to design, develop, and sustain technological solutions tailored for medical and healthcare applications.
Read more
Setting up at Universidade de Vigo.
Setting up at Universidade de Vigo.
A few days ago we carried out our last installation at Universidade de Vigo. It was a pleasure to share time with the electronic engineering department, who will now be able to enjoy the benefits of studying and researching with the new equipment installed: the Computer Controlled Biomedical...
Read more

General Description

The Computer Controlled Spirometry Teaching Unit, "BISBC", consists of a professional spirometer and a breath simulator composed by an electrical linear actuator and two lung simulators. The lung simulators have similar volumes to the human lungs and allow for reproducing the air flow and volume of different patients during the spirometry test.

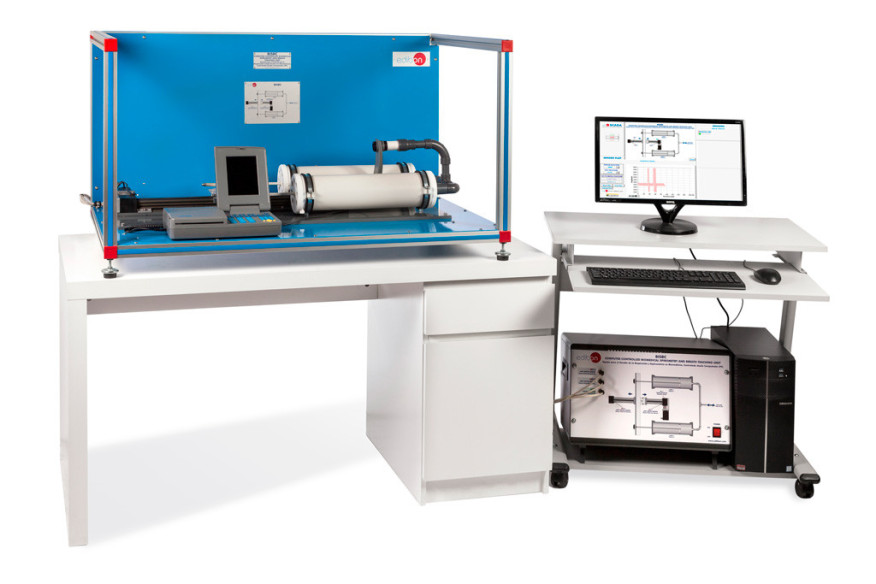

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Study of the respiratory function.
  2. Analysis of changes in the respiratory function.
  3. Study of the main respiratory parameters.
  4. Basic principles of spirometry.
  5. Understanding of the normal static lung volume.
  6. Interpretation of changes in the static lung volume.
  7. Understanding of the normal dynamic lung flow.
  8. Interpretation of obstructive changes in the dynamic lung flow.
  9. Interpretation of restrictive changes in the dynamic lung flow.
  10. Study of respiratory diseases that can be diagnosed with a spirometry test.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the BISBC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the BISBC unit process.
  9. Several other exercises can be done and designed by the user.
