EFLPC Computer Controlled Deep Bed Filter Unit

11.1.11.- FILTRATION, SEDIMENTATION AND MIXING 12.3.- DRINKING WATER TREATMENT 13.3.- WASTEWATER TREATMENT
COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC

Unit: EFLPC. Computer Controlled Deep Bed Filter Unit

COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC

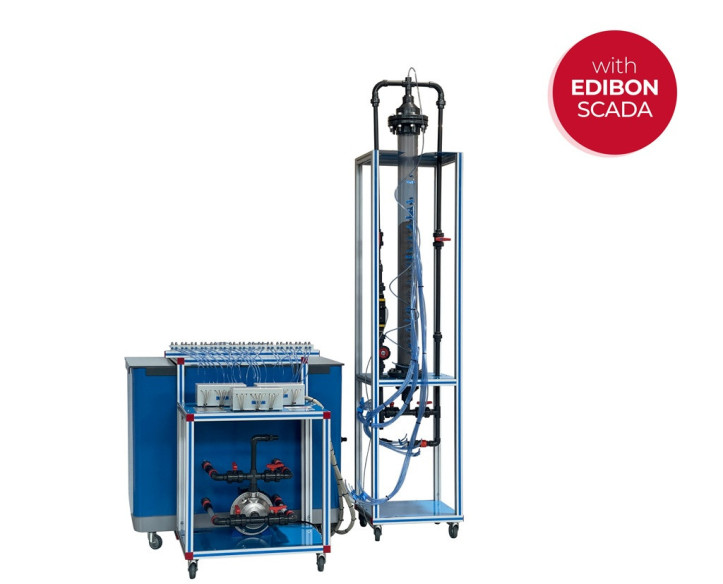

Unit details

COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC

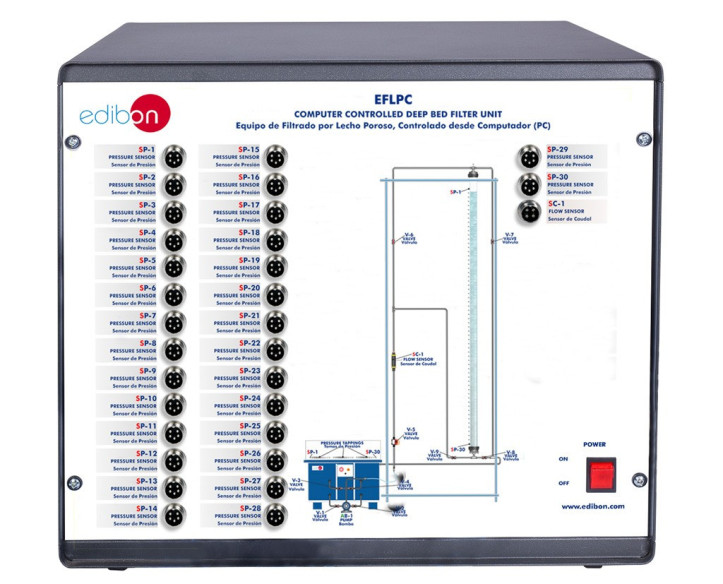

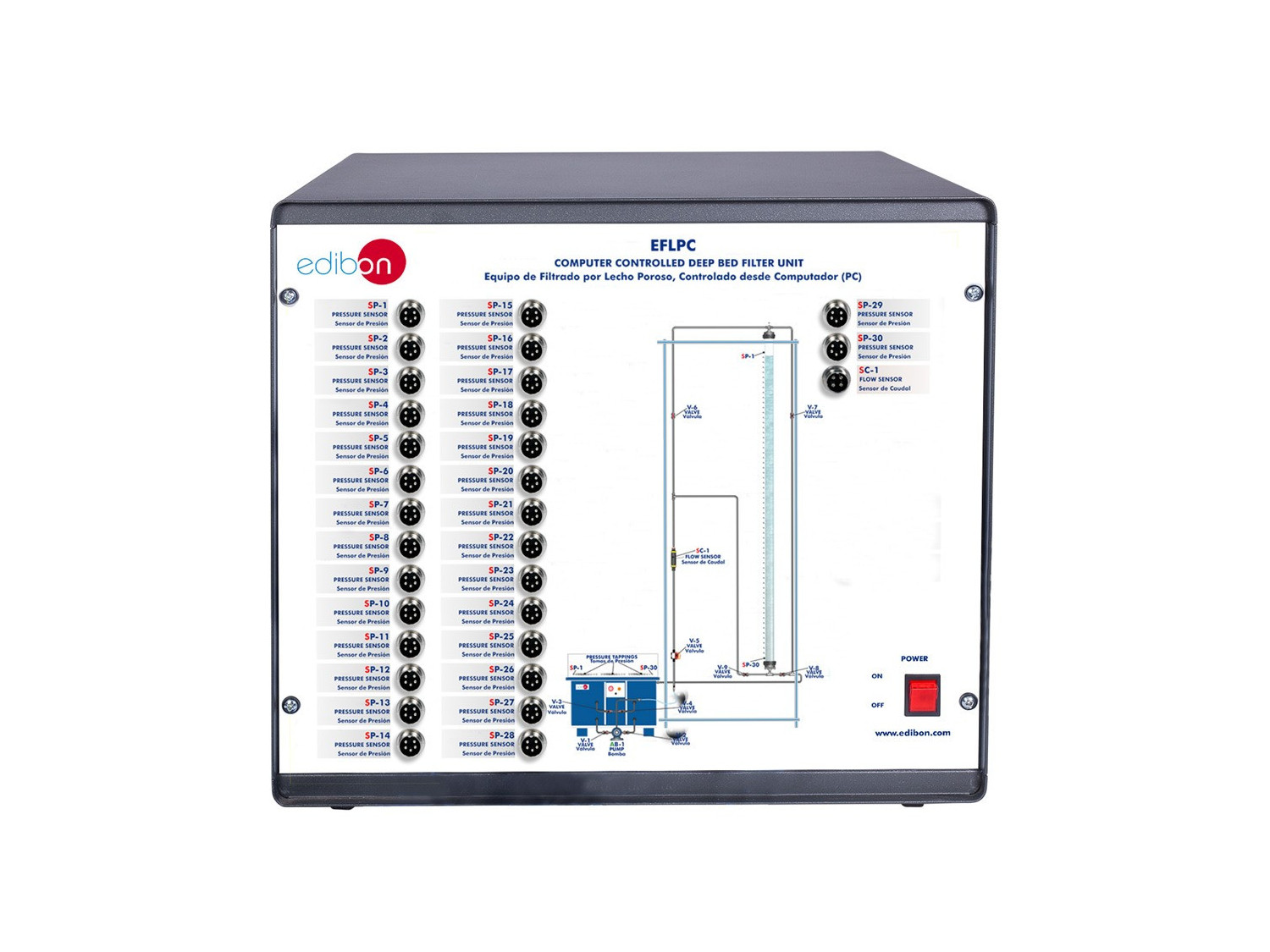

EFLPC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC

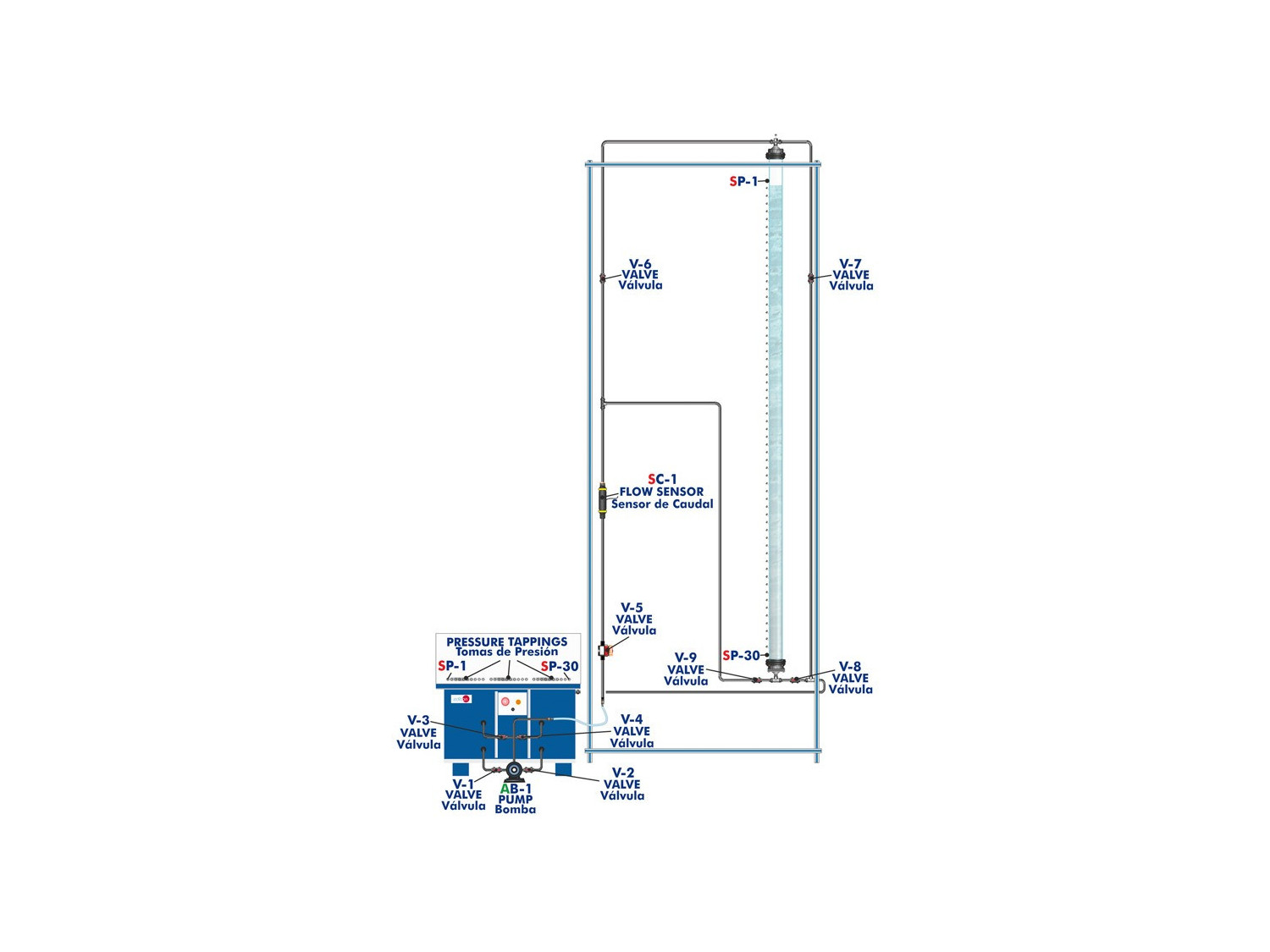

Process diagram and unit elements allocation

COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC

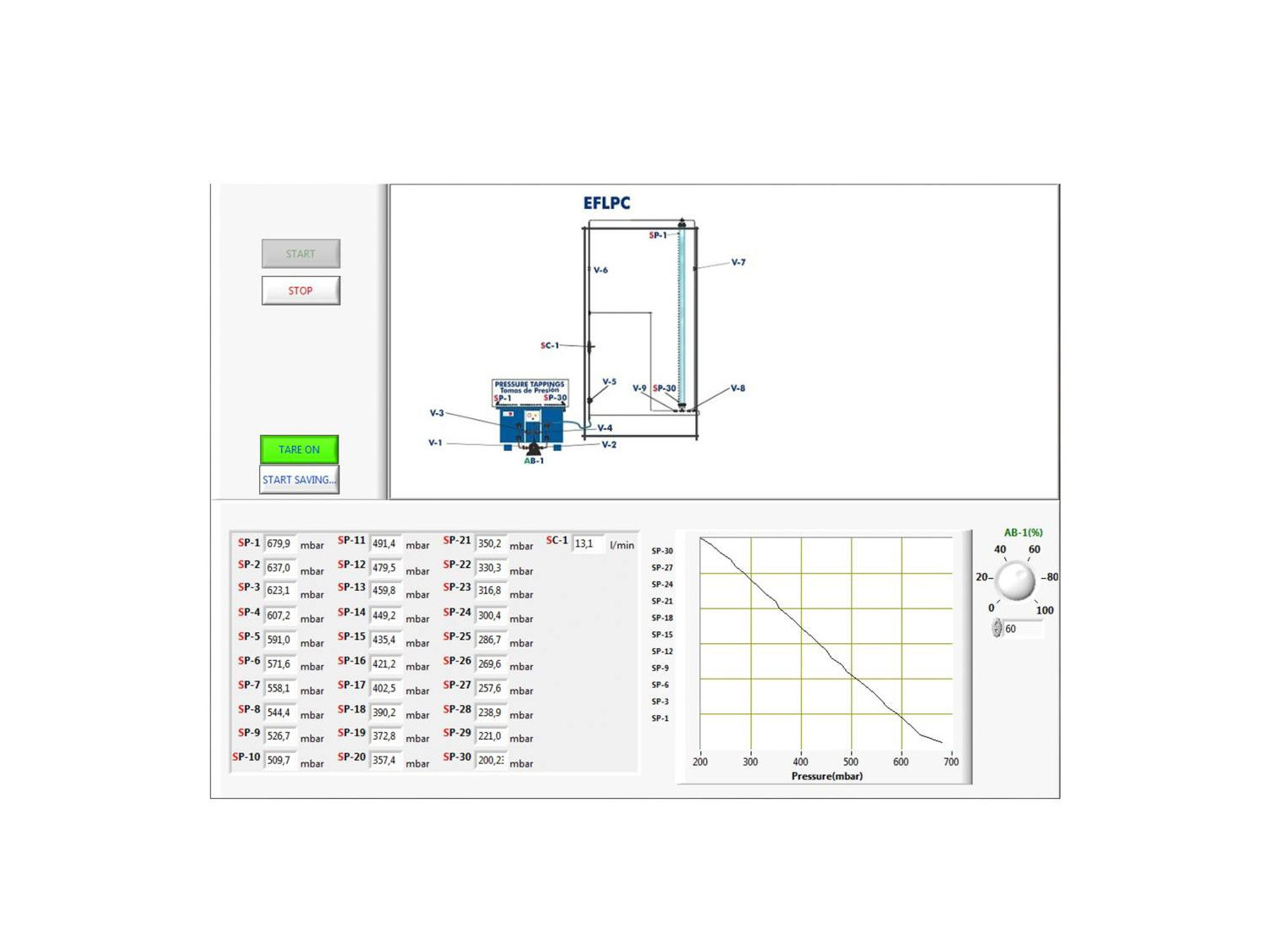

EFLPC/SOF. EFLPC Software. Main Screen

COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC
COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC
COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC
COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC
COMPUTER CONTROLLED DEEP BED FILTER UNIT - EFLPC

INNOVATIVE SYSTEMS

The Computer Controlled Deep Bed Filter Unit, "EFLPC", enables to study filtration in open and closed circuit, as well as to visualize the bed washing process.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
FSS

Fault Simulation System
PLC

PLC Industrial Process Control
PLCHMI

IIoT local/remote Control and Monitoring with HMI
ELK

EDIBON Software Development KIT, Powered by NI LabVIEW™
ECR

EDIBON Industrial Modular System with NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

Laboratories

11TV
 Technical and Vocational Education Chemical Engineering Laboratory
11HE
 Higher Education Chemical Engineering Laboratory
11PTC
 Petroleum Training Center Laboratory
13TV
 Environmental Laboratory for Vocational and Technical Education
13HE
 Environmental Laboratory for Higher Education

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Read more
Everything You Need to Know About Direct Air Capture (DAC) and Its Impact on Climate Change
Everything You Need to Know About Direct Air Capture (DAC) and Its Impact on Climate Change
Direct Air Capture (DAC) is an innovative technology that removes CO₂ directly from the air using chemical reactions with liquid solvents or solid absorbents. Despite challenges such as high costs and energy consumption, DAC offers a potential solution to reduce atmospheric CO₂ concentrations and...
Read more
Understanding and improving drinking water treatment systems
Understanding and improving drinking water treatment systems
Ensuring access to safe drinking water involves complex processes and advanced technologies. Key components of a treatment plant include intake structures, coagulation, flocculation, sedimentation, filtration, disinfection, storage, and distribution. Modern systems use reverse osmosis, UV...
Read more
Food and Water Technology: A Journey through Engineering and Innovation
Food and Water Technology: A Journey through Engineering and Innovation
Food and water technology stands as a fundamental pillar in modern society, addressing crucial challenges and providing ingenious solutions. In this journey, we will unravel the mysteries of this multifaceted field, exploring its key areas of study, the significance of food and water engineering...
Read more
Setting up at Centre de Formation des Metiers de l´Industrie (CFMI) in Togo
Setting up at Centre de Formation des Metiers de l´Industrie (CFMI) in Togo
We have returned to the Cfmi_togo to install some of our equipment. These units belong mainly to the areas of Environment, Chemical Engineering, Thermodynamics & Thermotechnics, Energy and Mechanics.
Read more
Setting up at the Centre de formation et des métiers (CFMI) in Togo (Africa)
Setting up at the Centre de formation et des métiers (CFMI) in Togo (Africa)
We recently had the honor of installing a complete laboratory at the Centre de formation et des métiers (CFMI) in Togo (Africa).This complete laboratory now has the following EDIBON units
Read more
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
Read more

General Description

The Computer Controlled Deep Bed Filter Unit, "EFLPC", allows us to filter a fluid in order to eliminate particles in suspension, to have it in more adequate conditions for its subsequent use or consumption.

The pump takes raw water from one of the reservoirs of the unit and propels it towards the upper part of the column. That raw water passes through a diaphragm valve that controls the inlet flow rate of the column and a flow sensor that measures such flow rate.

The liquid to be filtered goes down the column, crossing the filtering media settled as a bed and the pressure along the entire bed is measured at 30 points. It enables the measurement of the pressure drop that is visualized by the increase of the resistance that the filter opposes to the fluid.

The filtration process can be performed in closed or open circuit.

The solids settled in the filter can be removed by countercurrent washing.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Determination of the initial head loss of a deep bed.
  2. Evolution through time of the head loss of the deep bed.
  3. Measuring pressure drop profiles through the bed.
  4. Demonstration of reversed flow and backwashing fluidisation.
  5. Filtering in open and closed circuit.
  6. Sensors calibration.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

Additional practical possibilities:

  1. The column may be readily adapted for absorption and ion exchange studies.
  2. Measuring suspension concentration profiles through the filter bed.
  3. Filtration efficiency. Clarification.

Other possibilities to be done with this unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the EFLPC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the EFLPC unit process.
  9. Several other exercises can be done and designed by the user.
