LFFC Computer Controlled Fixed and Fluidized Bed Unit

11.1.1.- FLUIDIZATION
COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC

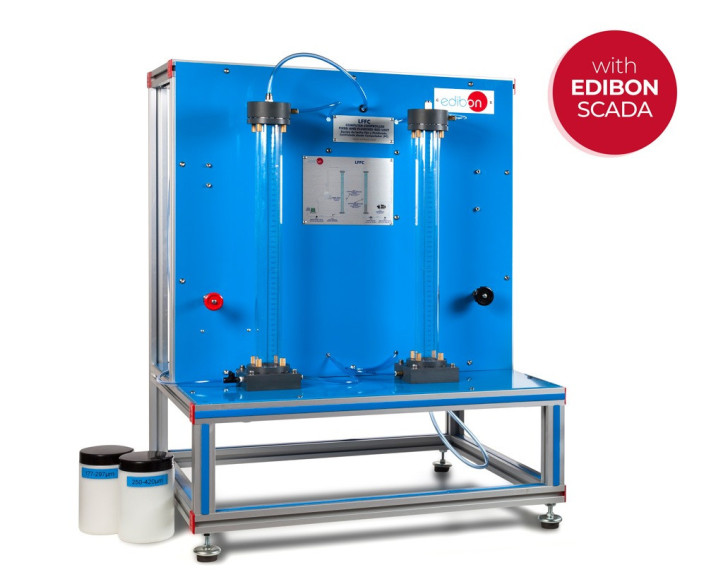

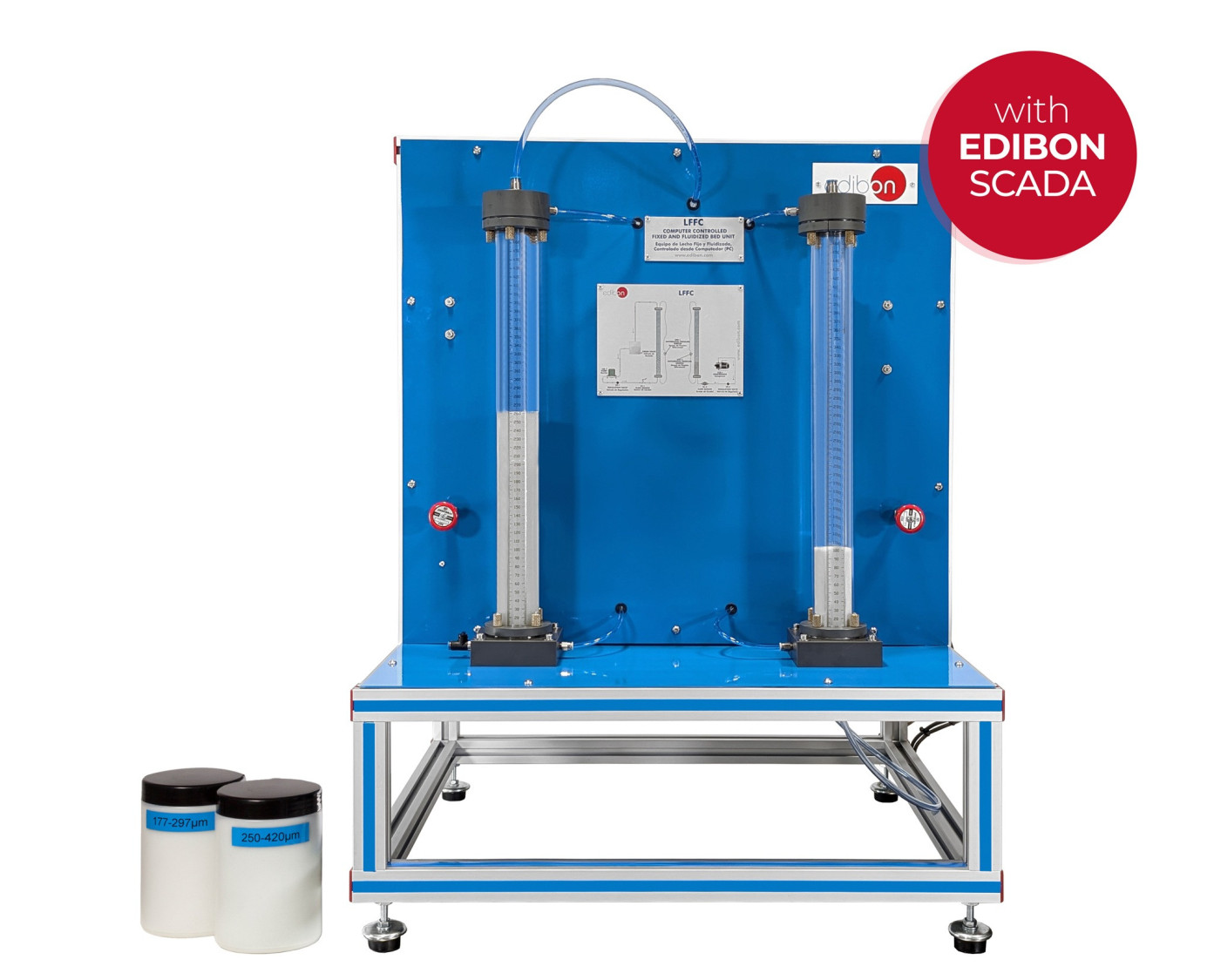

Unit: LFFC. Computer Controlled Fixed and Fluidized Bed Unit

COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC

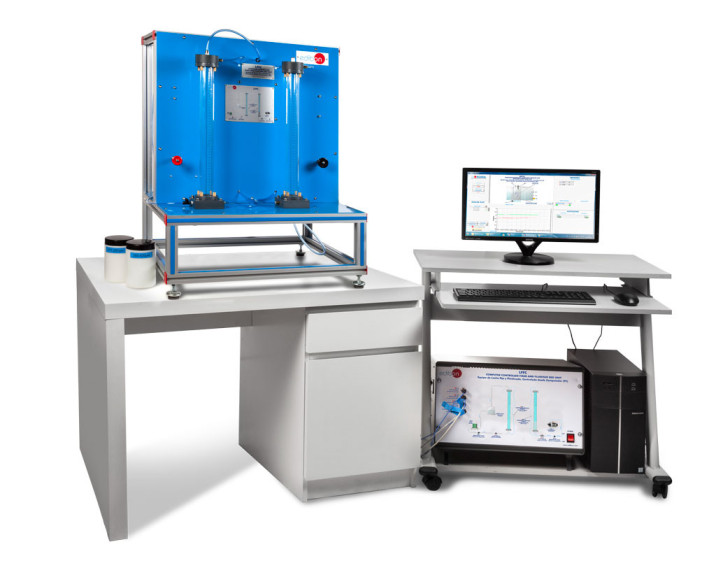

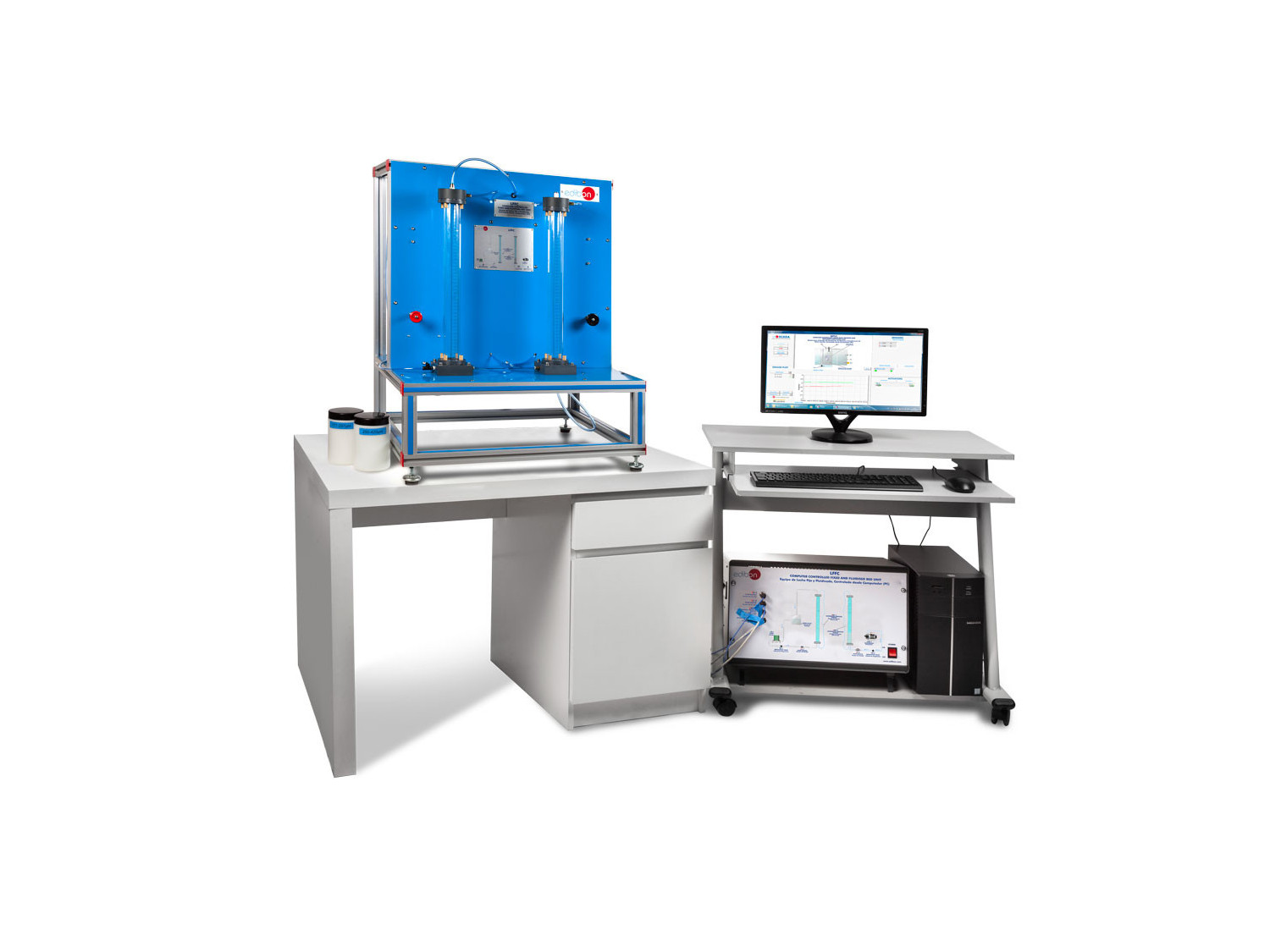

Complete LFFC unit

COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC

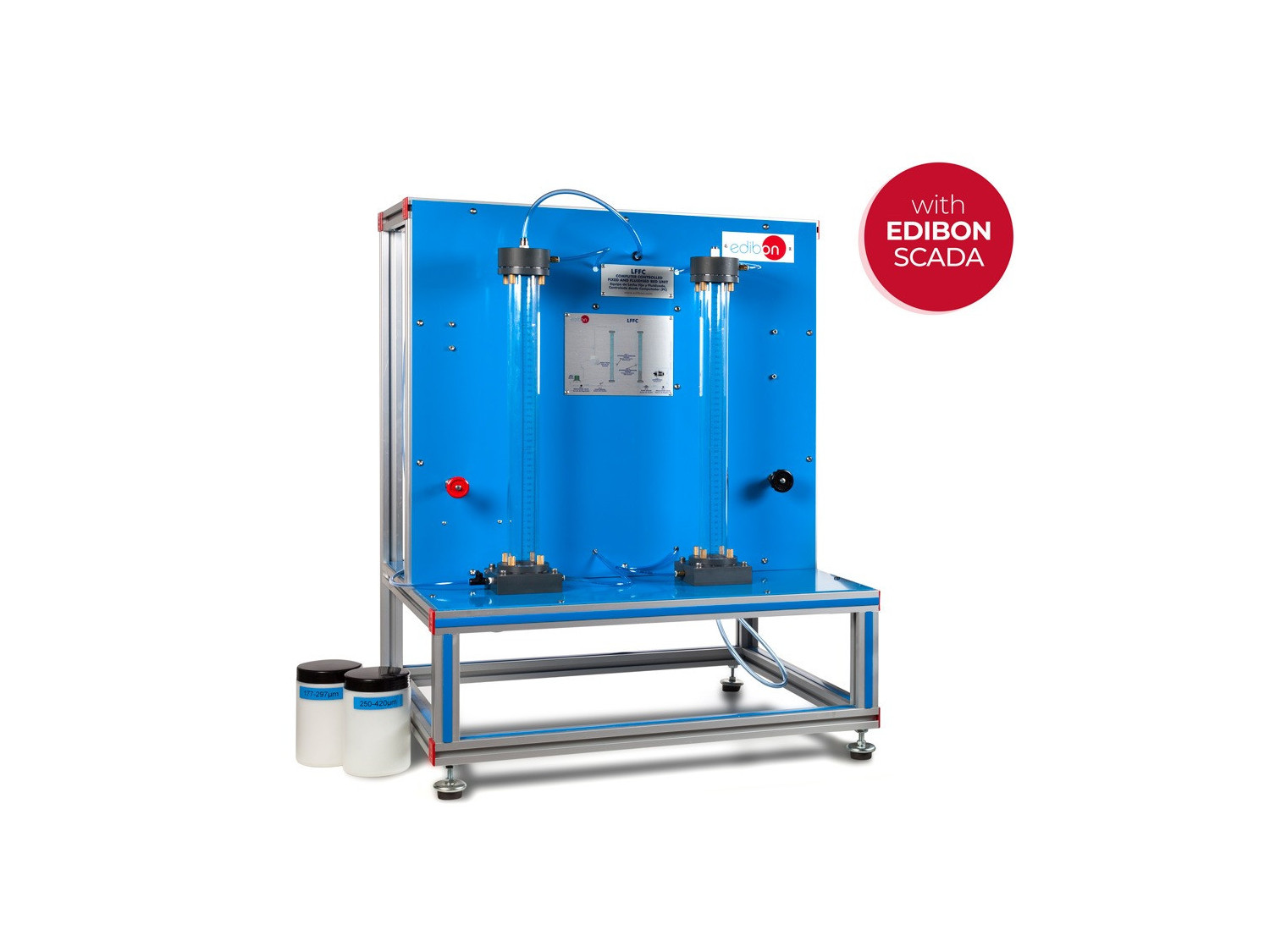

Unit details

COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC

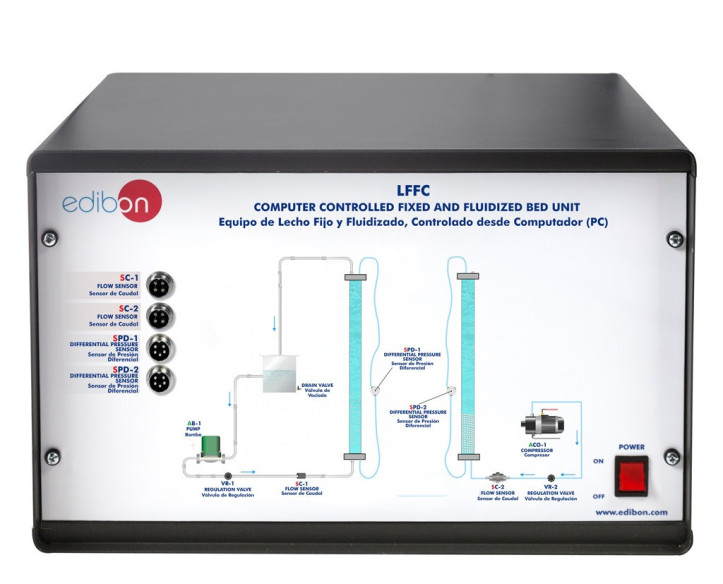

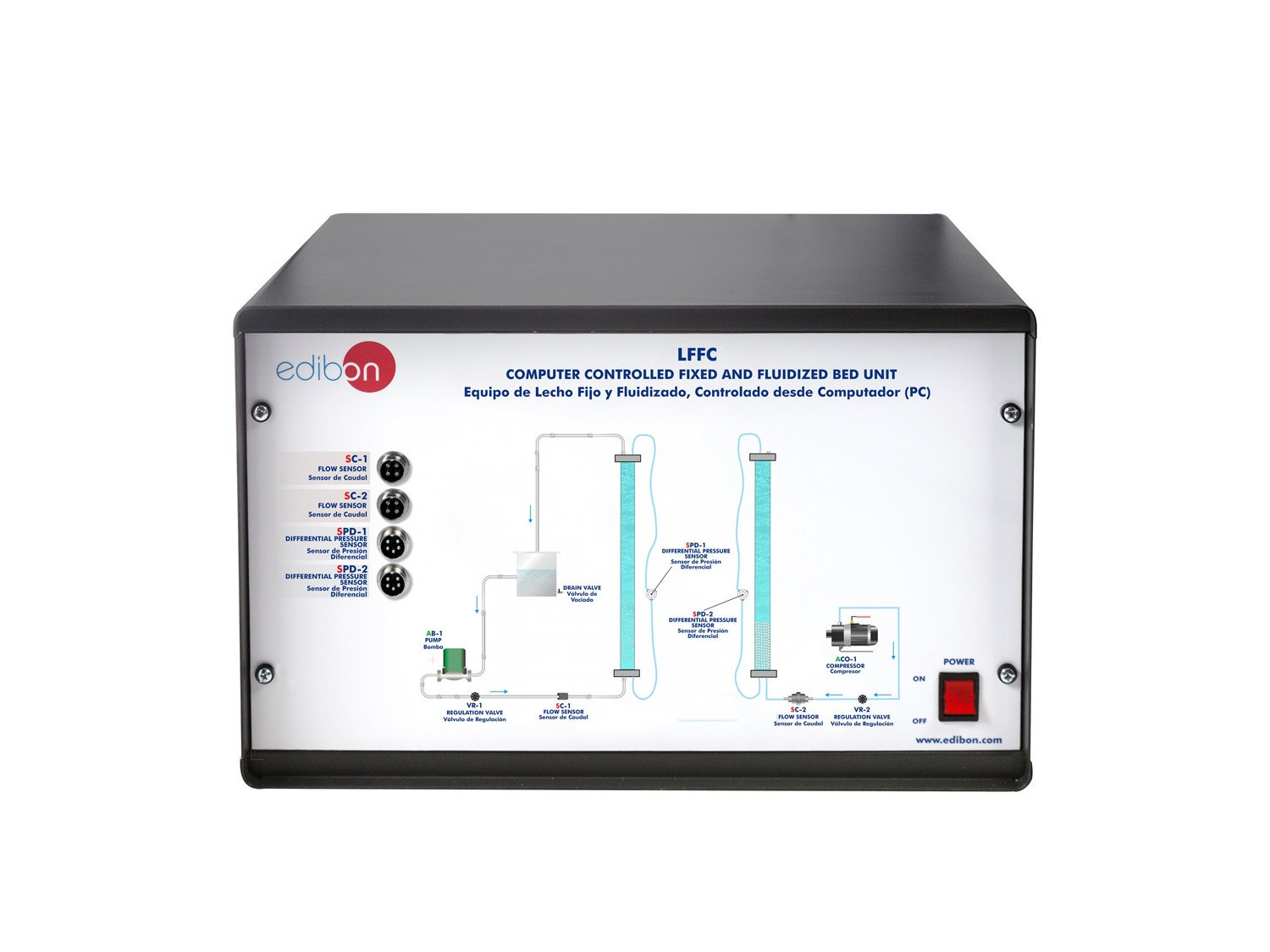

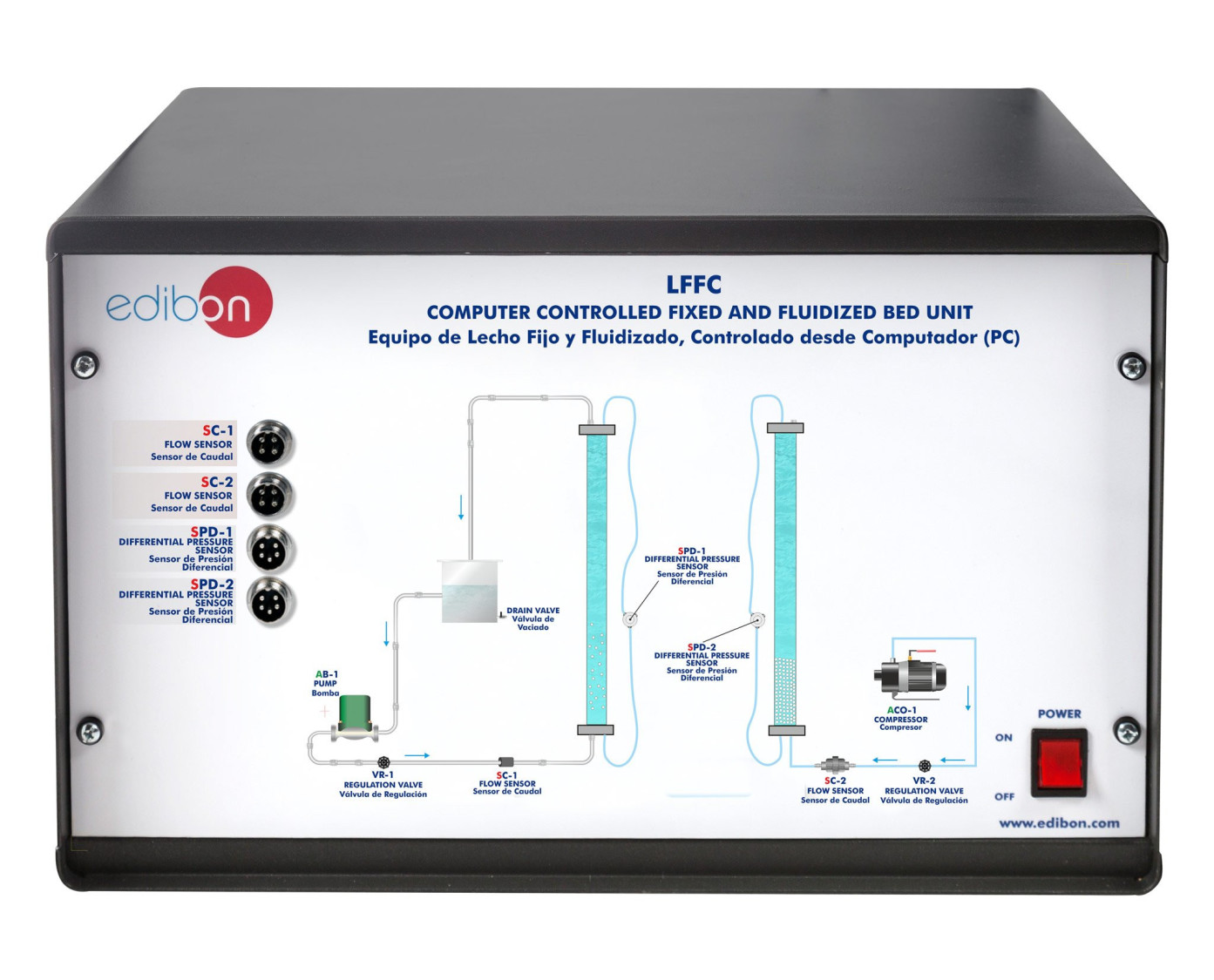

LFFC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC

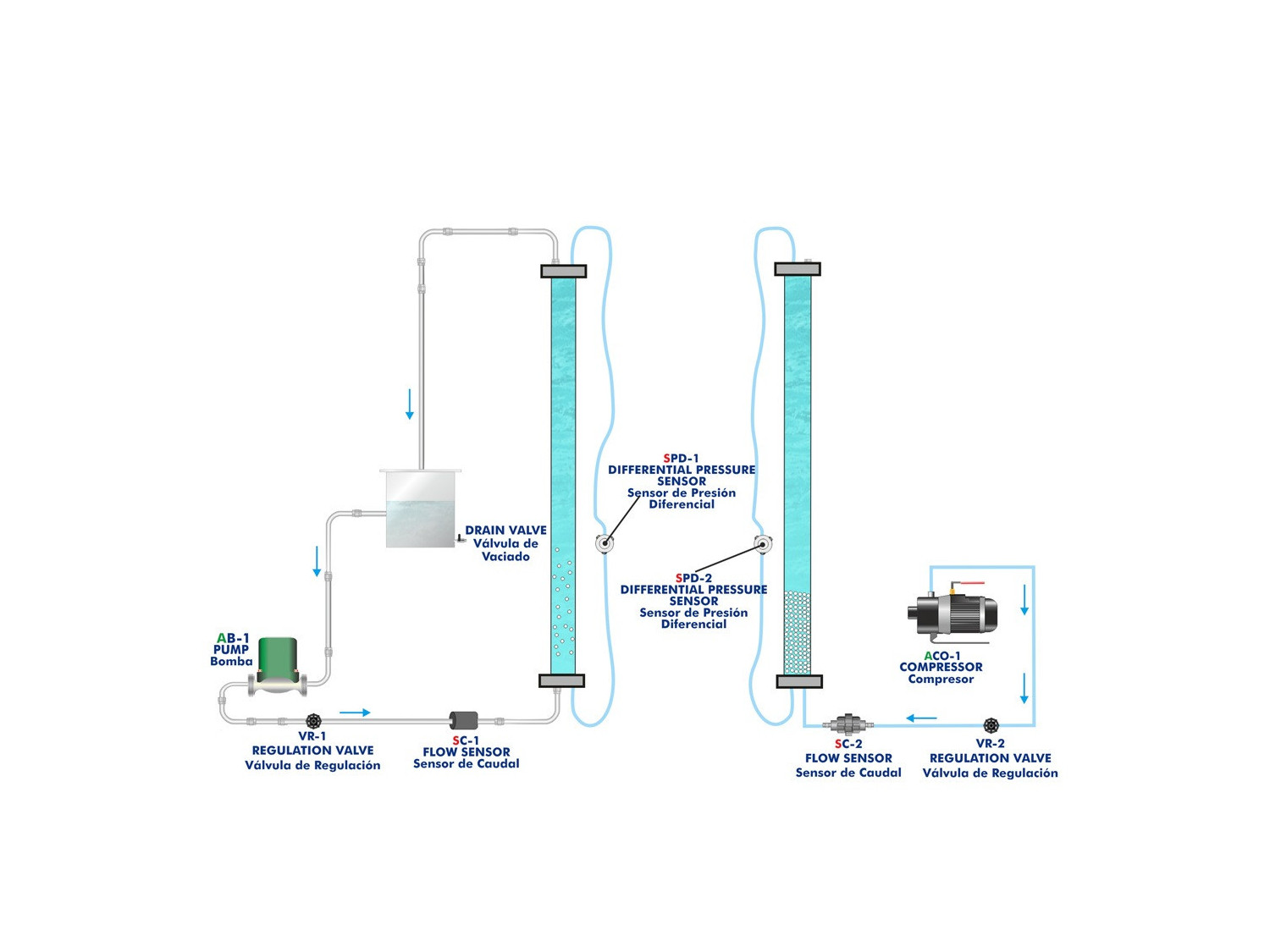

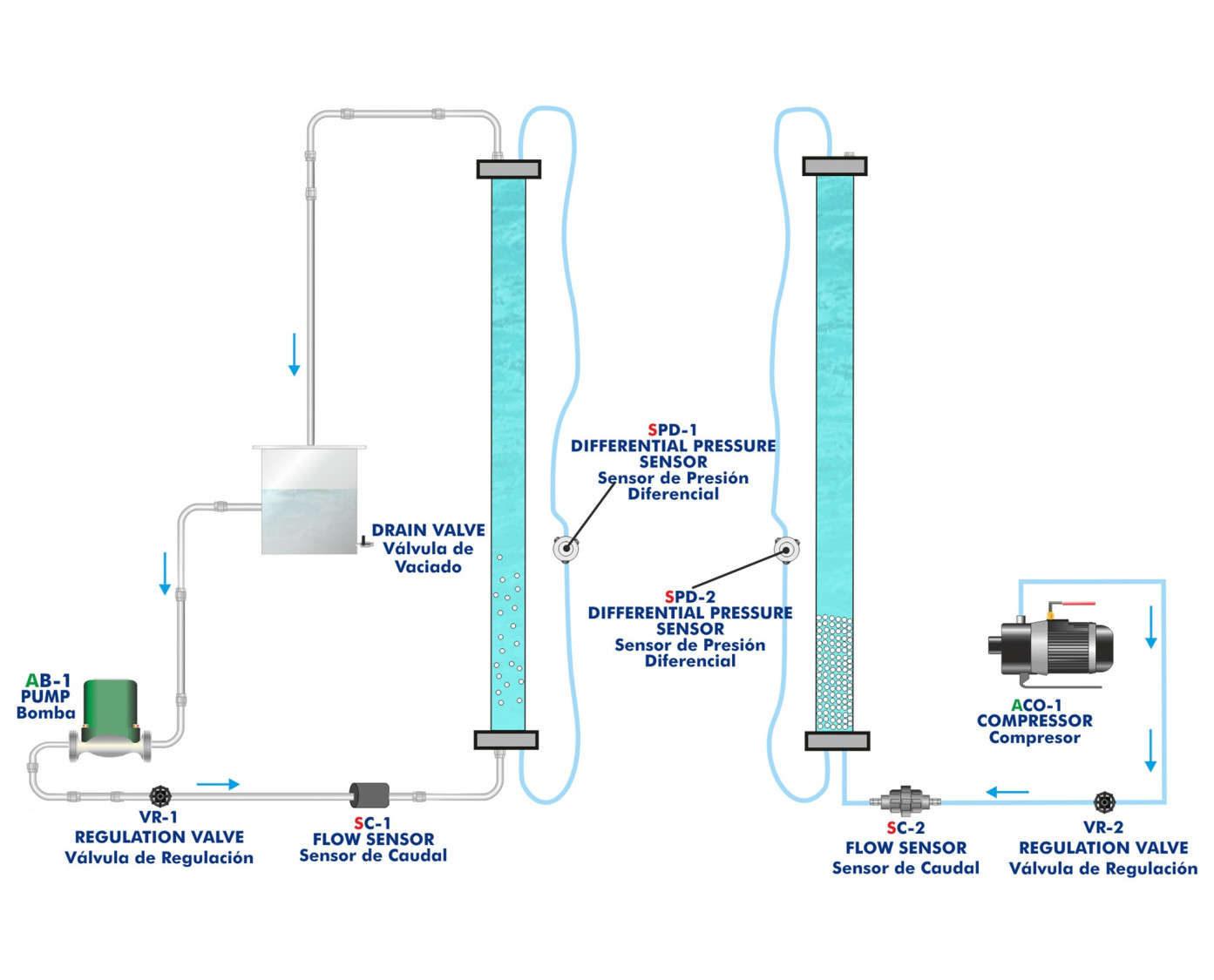

Process diagram and unit elements allocation

COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC

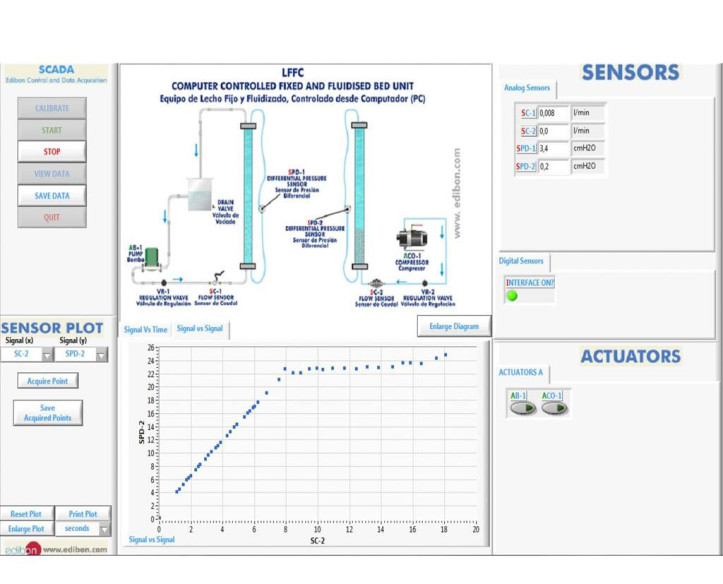

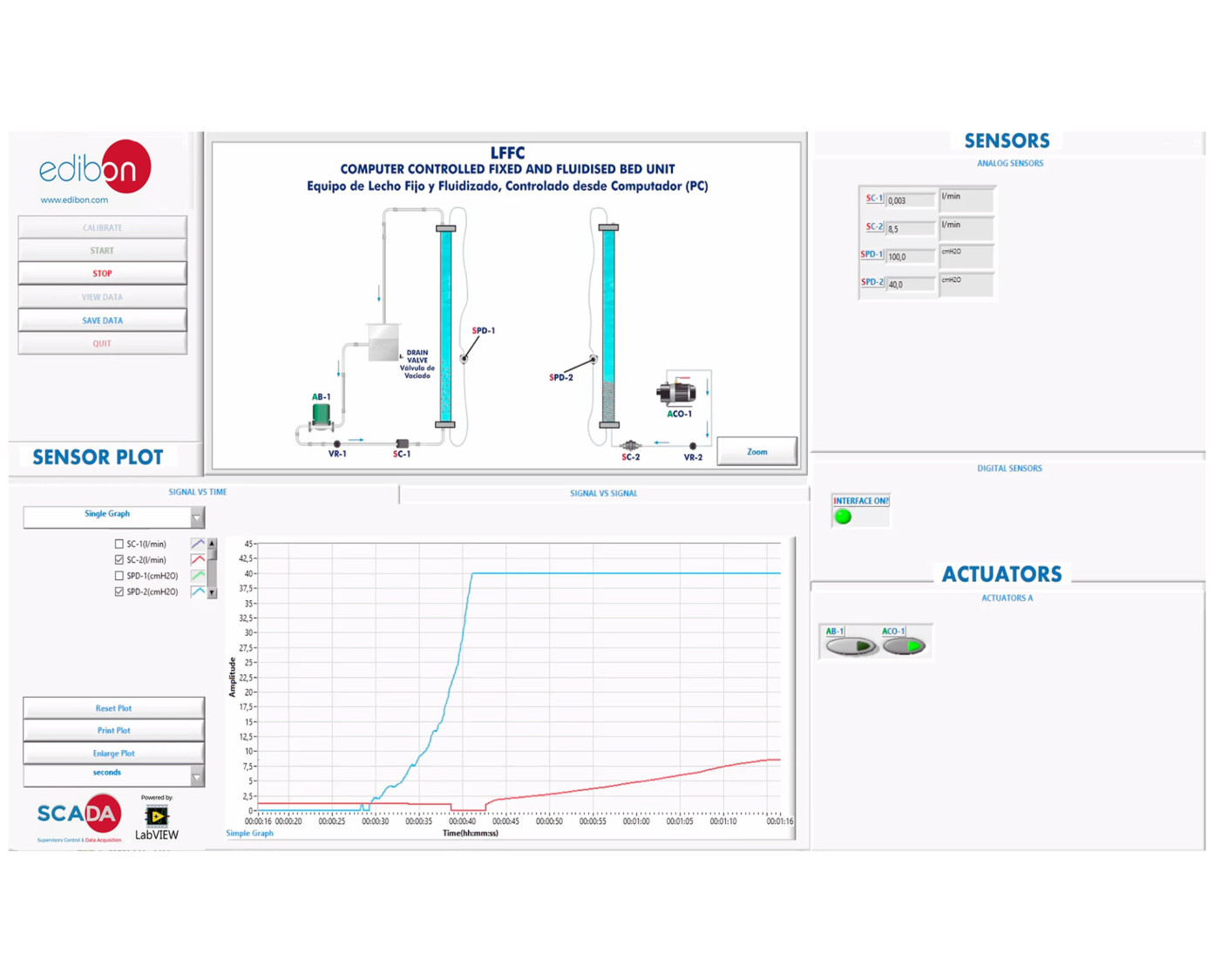

LFFC/SOF. LFFC Software. Main Screen

COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC
COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC
COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC
COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC
COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC
COMPUTER CONTROLLED FIXED AND FLUIDIZED BED UNIT - LFFC

INNOVATIVE SYSTEMS

The Computer Controlled Fixed and Fluidized Bed Unit, "LFFC", allows a full study about everything concerning the flow of a fluid through a particles bed, both fixed and fluidized.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
FSS

Fault Simulation System
PLC

PLC Industrial Process Control
PLCHMI

IIoT local/remote Control and Monitoring with HMI
ELK

EDIBON Software Development KIT, Powered by NI LabVIEW™
ECR

EDIBON Industrial Modular System with NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

Laboratories

11TV
 Technical and Vocational Education Chemical Engineering Laboratory
11HE
 Higher Education Chemical Engineering Laboratory
11PTC
 Petroleum Training Center Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Read more
Setting up at University of the Punjab, Pakistan.
Setting up at University of the Punjab, Pakistan.
Our local representative just completed an installation at University of the Punjab, Pakistan. There we installed equipment like the TPTV/1.5KW/CTS; HCMP; AFTC; PBSPC; HVCC; EMLS; LFFC; LIFLUBA; FME00; TMTC; TSTCC; EESTC; EESFC; EE-KIT; EEEC; EEF; EBEC; EBDC; TTEC; SFU; RETU, among others. Our...
Read more
Chemical Engineering and its Processes
Chemical Engineering and its Processes
Chemical engineering is a fascinating discipline that merges chemical science with engineering to create and optimize processes that transform raw materials into valuable products. In this journey into the heart of chemical engineering, we will explore various key aspects, from chemical reactors...
Read more

General Description

The Computer Controlled Fixed and Fluidised Bed Unit, "LFFC", allows a full study about everything concerning the flow of a fluid through a particles bed, both fixed and fluidised.

The unit is composed of two transparent removable columns for the simultaneous study of the air and water flow through the bed.

In the Computer Controlled Fixed and Fluidised Bed Unit, "LFFC", the pressure drop caused by the bed is measured by a differential pressure sensor connected to each column.

Water is pumped from a tank, located at the back side of the unit, to the bottom of the first column, passing through a flow control valve and a flow sensor.

Air is supplied to the second column through a compressor located at the back of the unit. The air flow is measured by a differential pressure sensor and an orifice plate.

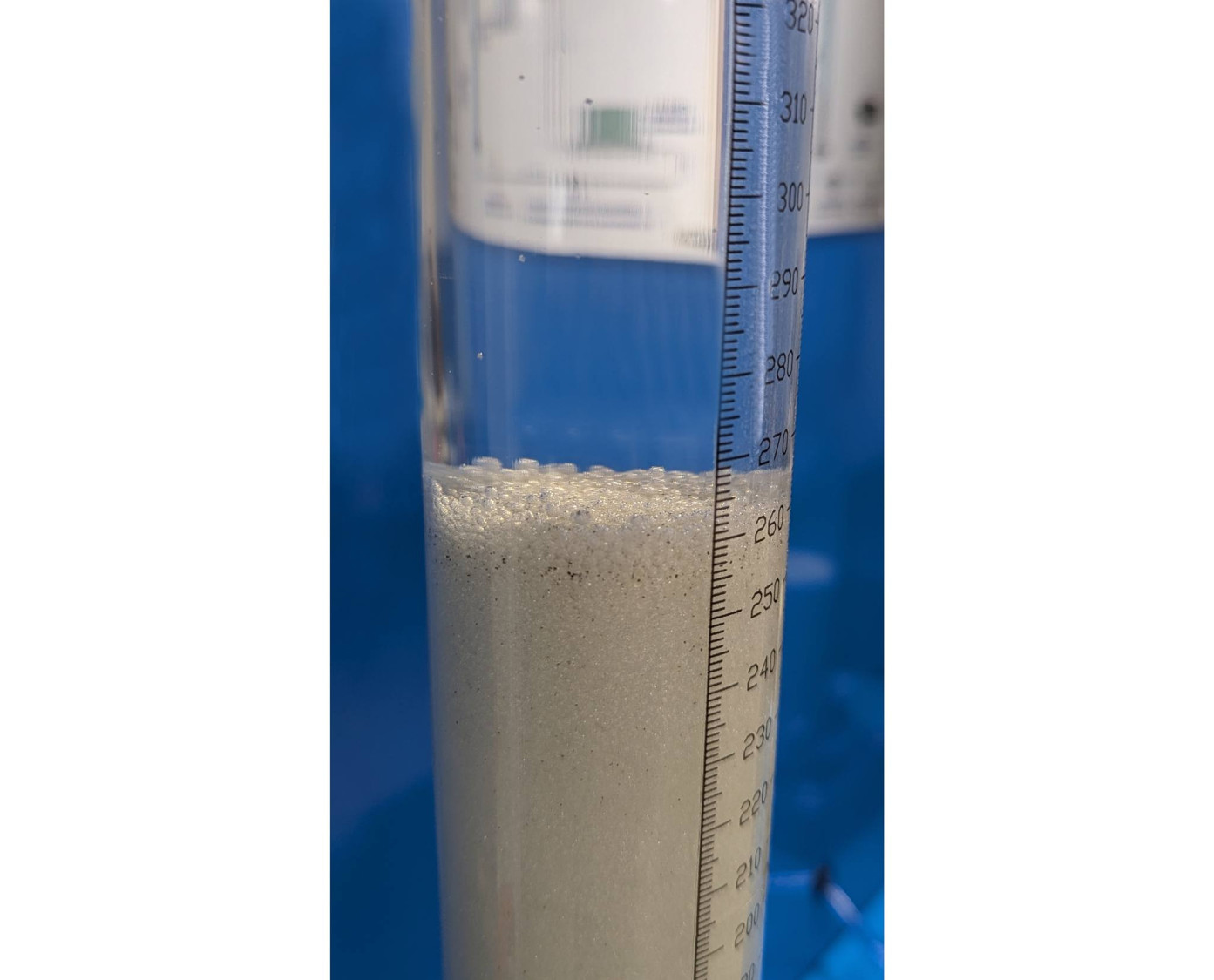

There are glass beads of two different sizes for the bed.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Study of the basis of fixed bed fluidisation.
  2. Comparison of the fluidisation process in water and air currents.
  3. Study of the pressure drop through fixed and fluidised beds in function of:
  • The flow speed.
  • The size of the bed particles.
  • Type of fluid: air or water.
  1. Verification of Carman-Kozeny equation.
  2. Study and determination of the minimum fluidisation speed.
  3. Study and determination of the fluidisation speed and comparison with theoretical calculated values (Ergun equation).
  4. Study of differences between particulate and aggregative fluidisation.
  5. Observation of the "bubbling" fluidisation phenomenon.
  6. Sensors calibration.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the LFFC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the LFFC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
