SSPC Computer Controlled Spray Drier

11.1.7.- DRYING AND COOLING 12.1.- FOOD TECHNOLOGY
COMPUTER CONTROLLED SPRAY DRIER - SSPC

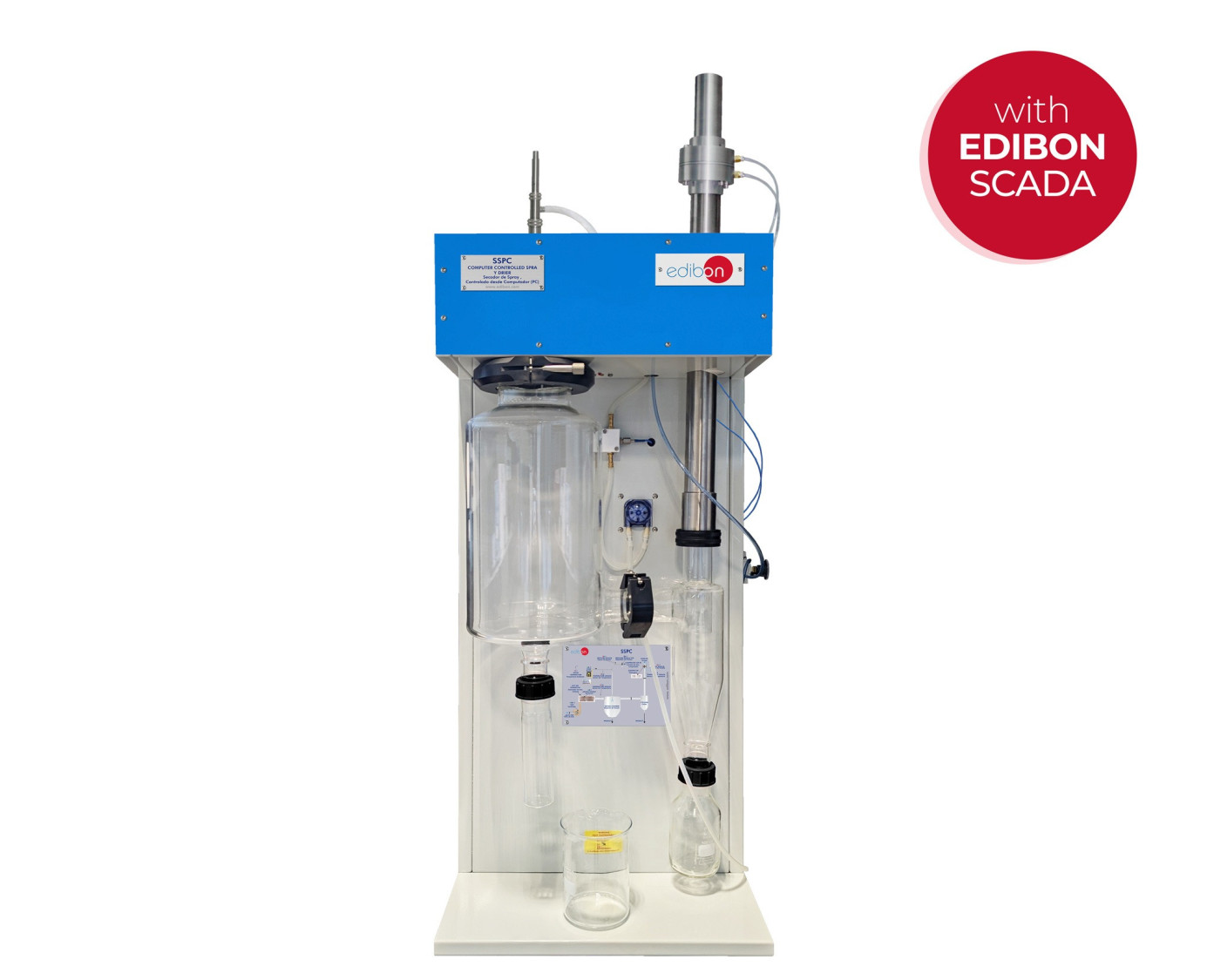

Unit: SSPC. Computer Controlled Spray Drier

COMPUTER CONTROLLED SPRAY DRIER - SSPC

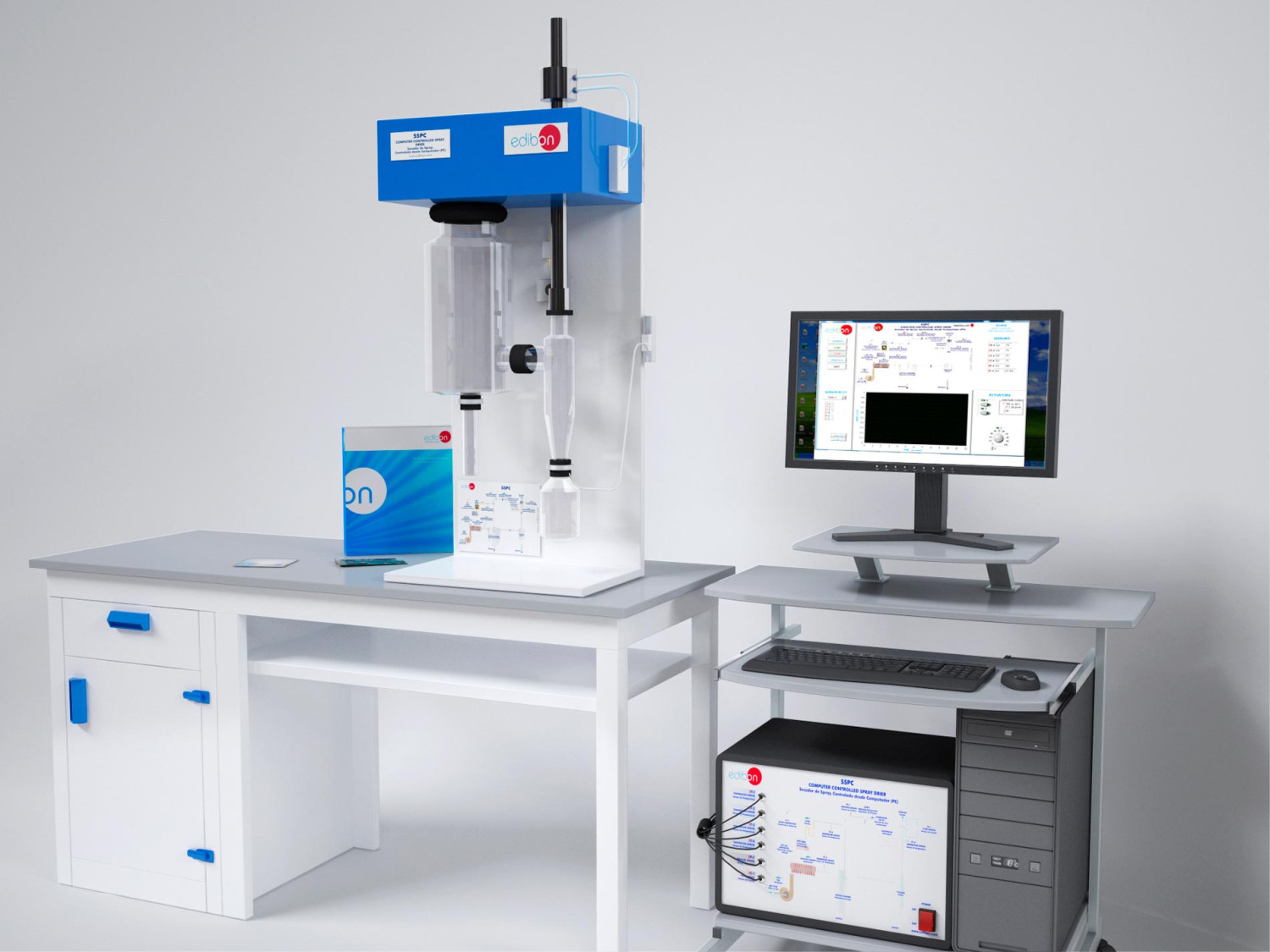

Complete SSPC Unit

COMPUTER CONTROLLED SPRAY DRIER - SSPC
COMPUTER CONTROLLED SPRAY DRIER - SSPC

INNOVATIVE SYSTEMS

The Computer Controlled Spray Drier, "SSPC", allows to study processes that involve aqueous emulsions, solutions, suspensions andcolloidal solutions.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
FSS

Fault Simulation System
PLC

PLC Industrial Process Control
PLCHMI

IIoT local/remote Control and Monitoring with HMI
ELK

EDIBON Software Development KIT, Powered by NI LabVIEW™
ECR

EDIBON Industrial Modular System with NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

Laboratories

11TV
 Technical and Vocational Education Chemical Engineering Laboratory
11HE
 Higher Education Chemical Engineering Laboratory
11PTC
 Petroleum Training Center Laboratory
12TV
 Technical and Vocational Education Food Technology Laboratory
12HE
 Higher Education Food Technology Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Read more
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
Read more

General Description

The Computer Controlled Spray Drier, "SSPC", allows to study processes that involve aqueous emulsions, solutions, suspensions andcolloidal solutions.

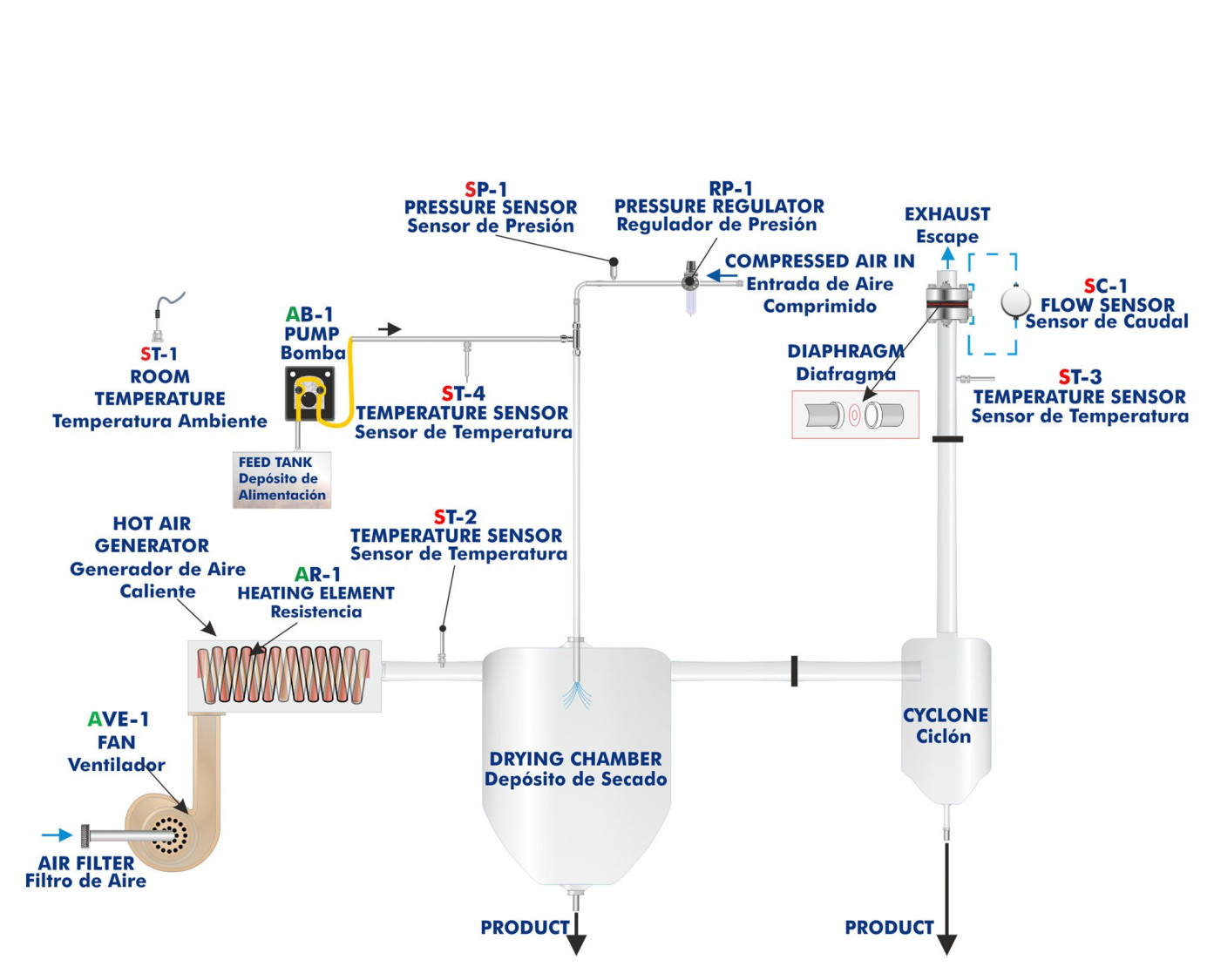

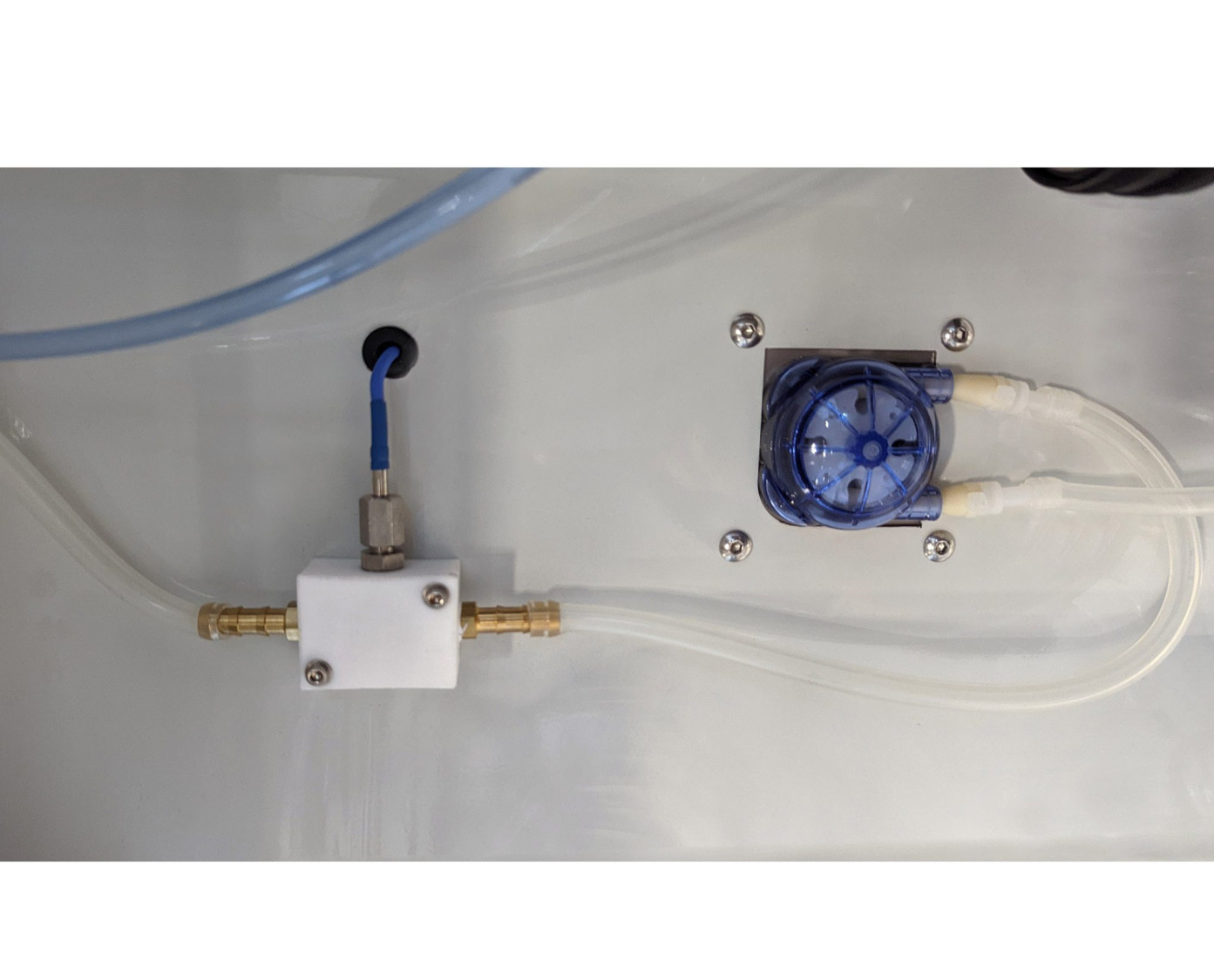

Peristaltic pump delivers the liquid sample from a container through a small diameter jet into the drying chamber. At the same timecompressed air enters the outer tube of the jet which causes the liquid to emerge as a fine atomized spray into the drying chamber. Heatedair is blown through the drying chamber evaporating the liquid content of the atomized spray.

The solid particles of the material are separated from the exhaust air flow by a cyclone and collected in the sample collection bottle. Theexhaust airflow is directed to the atmosphere or to an extraction system existing in the laboratory.

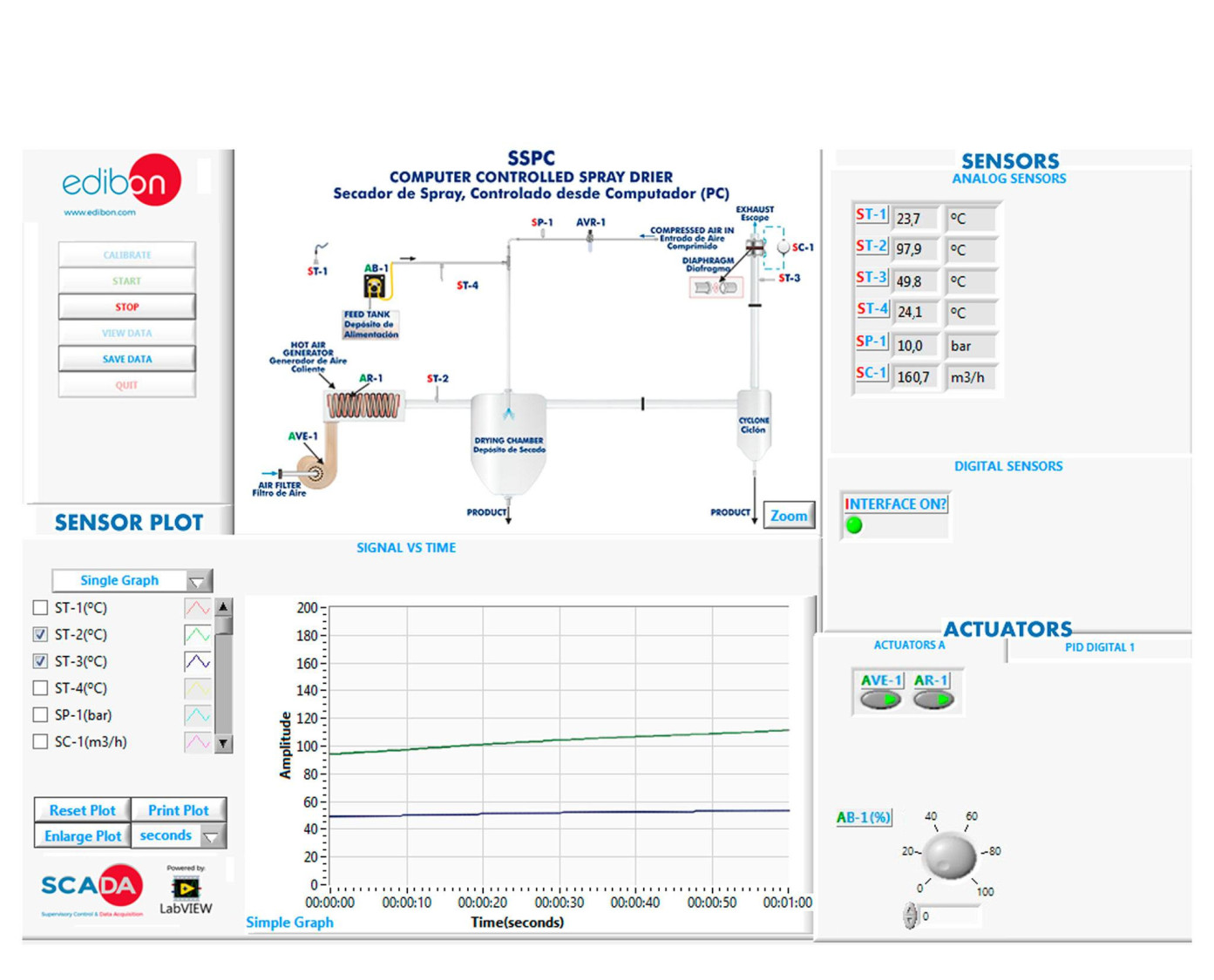

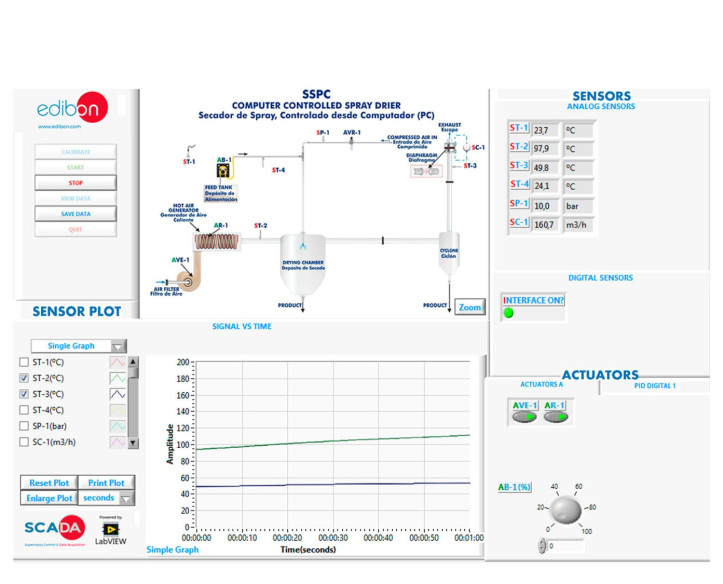

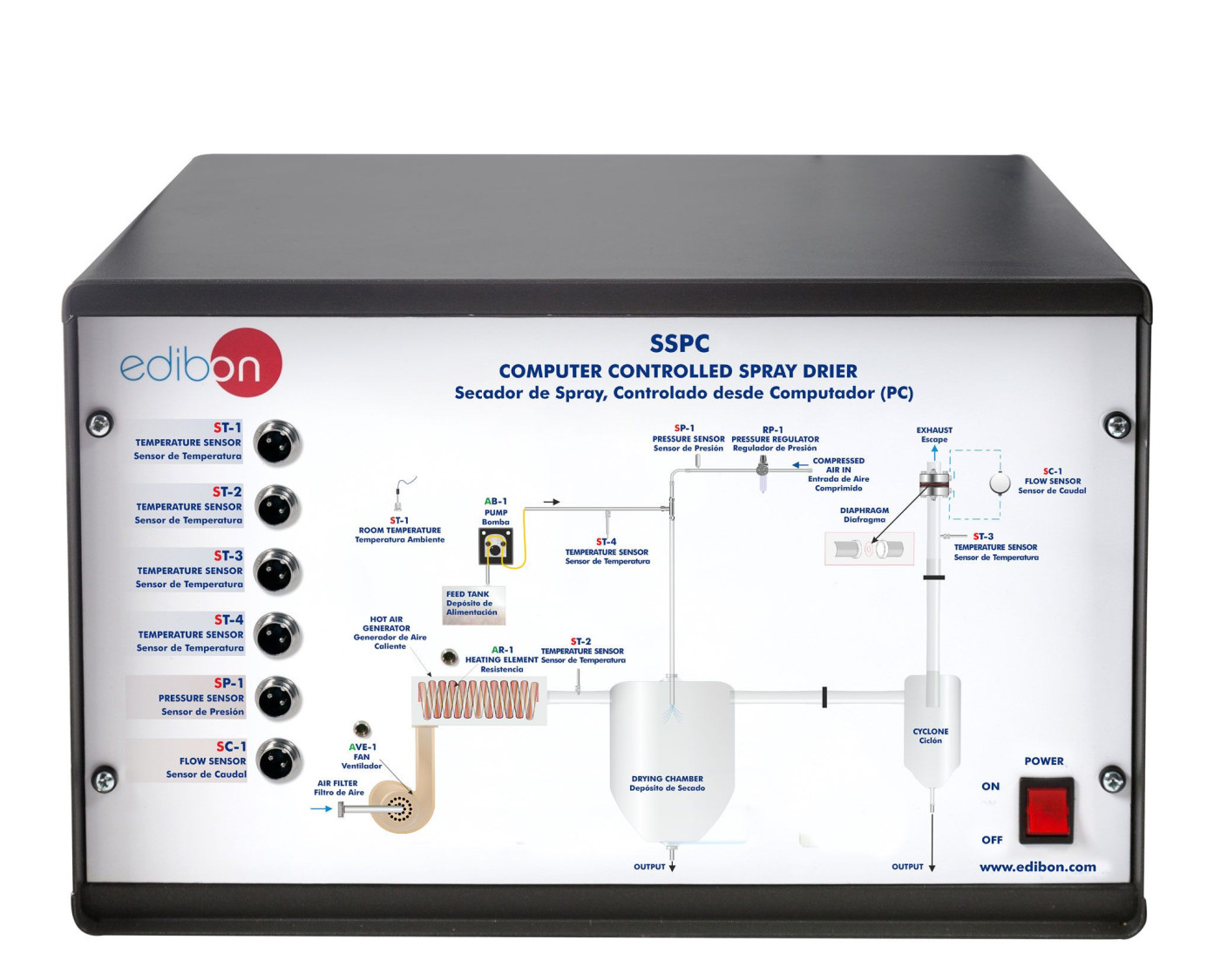

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + aControl Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, forcontrolling the process and all parameters involved in the process.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Operation principle of a spray drier.
  2. Effect of the drop size on the drying process.
  3. Effect of the air input temperature on the drying process.
  4. Effect of the feed flow of the product on the drying process.
  5. Mass balance of a spray drier.
  6. Spray drier efficiency.
  7. Sensors calibration.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Energy balance of a spray drier.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the SSPC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the SSPC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
