COMPUTER CONTROLLED TEACHING UNIT FOR THE STUDY OF REGULATION AND CONTROL - RYC

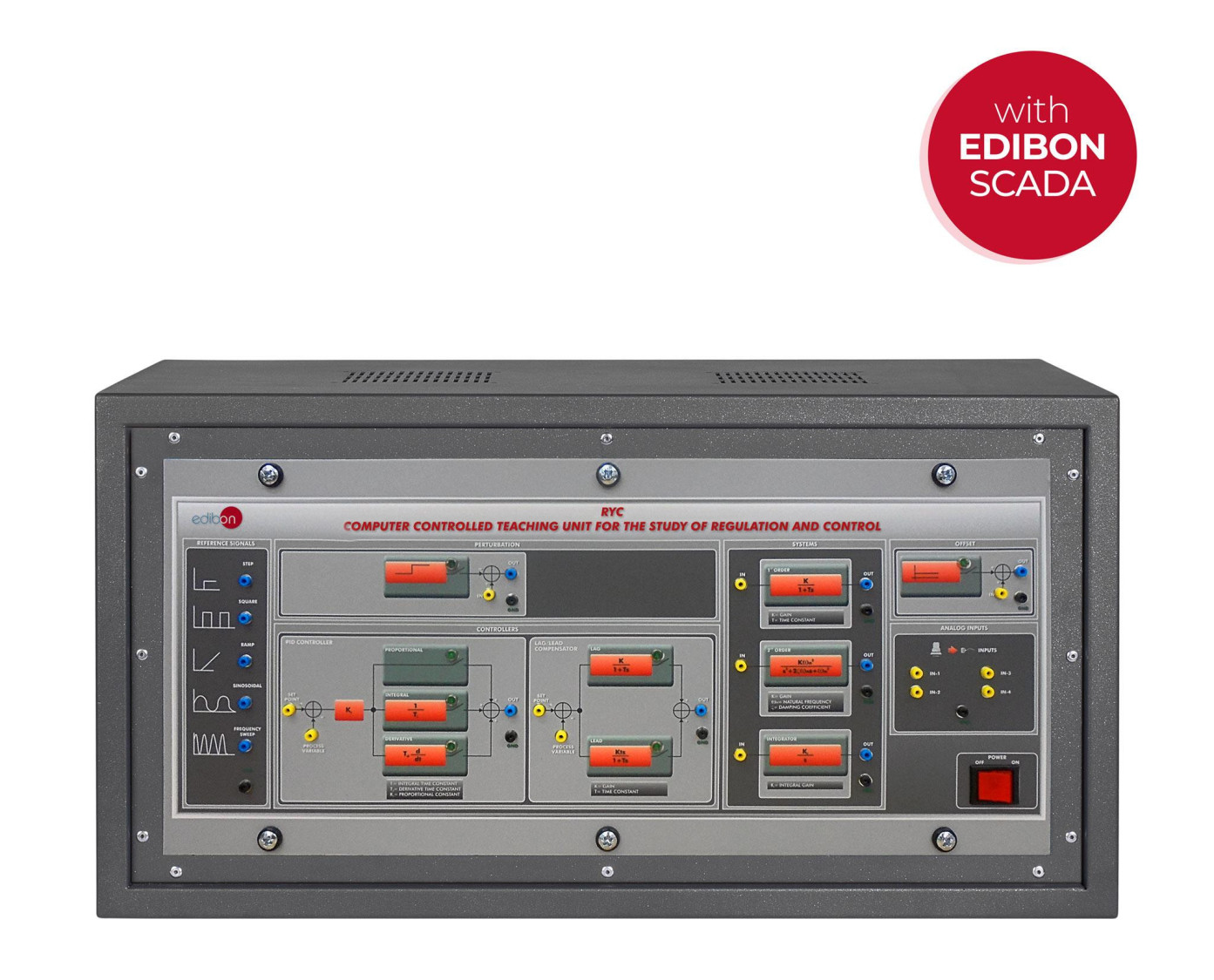

Unit: RYC. Computer Controlled Teaching Unit for the Study of Regulation and Control

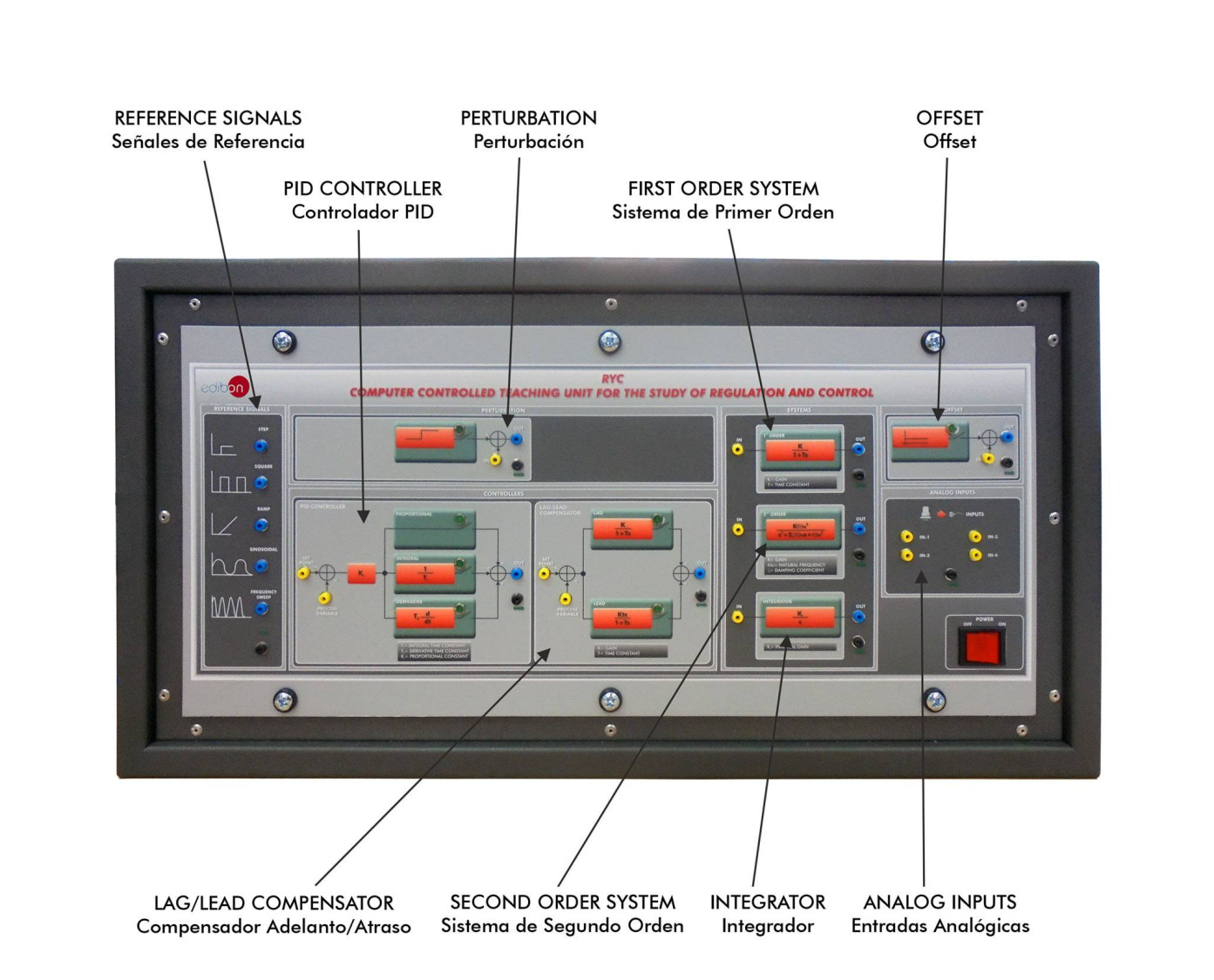

Process diagram and unit elements allocation

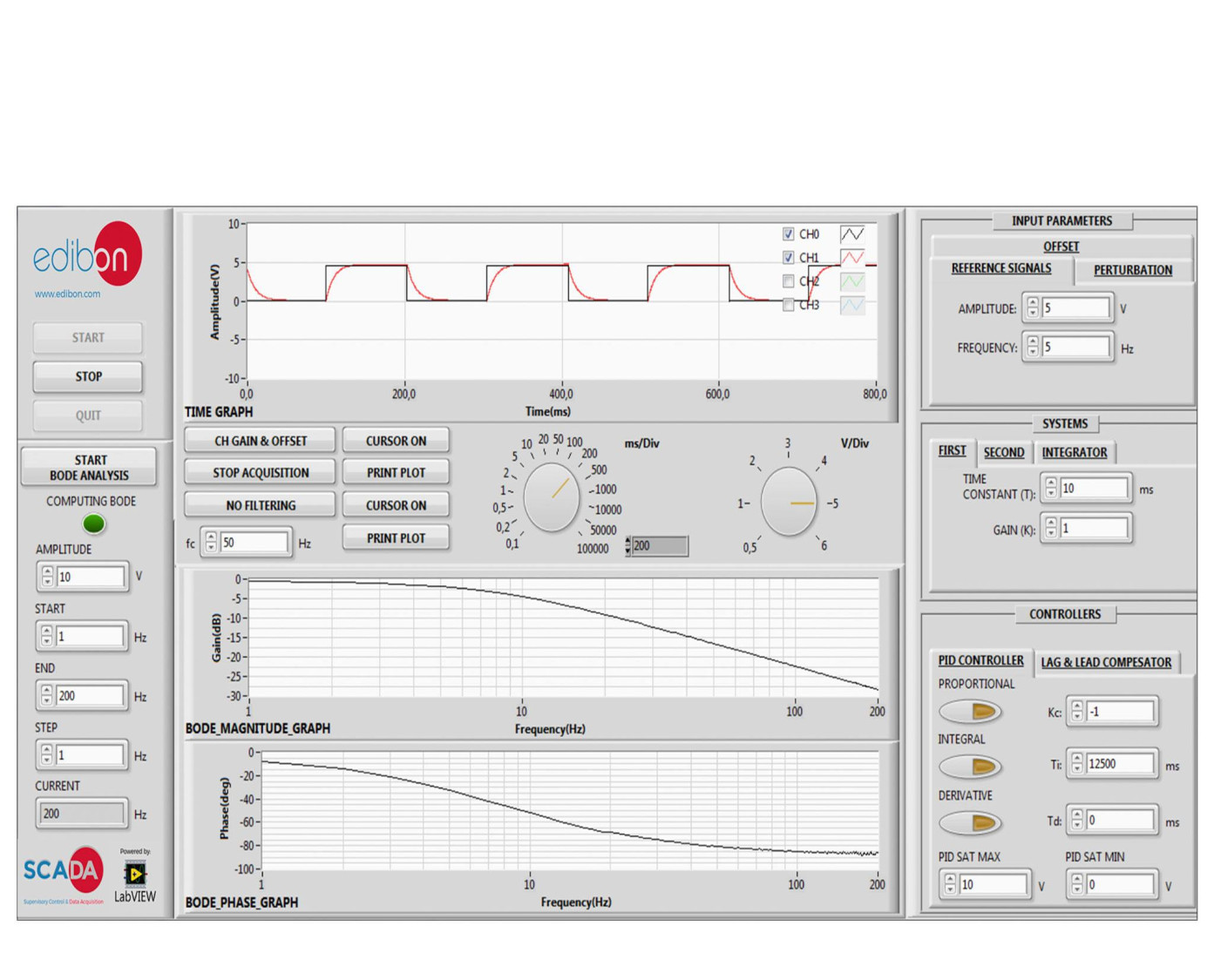

RYC/SOF. RYC Software. Main Screen

COMPUTER CONTROLLED TEACHING UNIT FOR THE STUDY OF REGULATION AND CONTROL - RYC

INNOVATIVE SYSTEMS

The Teaching Unit for the Study of Regulation and Control, "RYC", is designed by EDIBON. It allows students to learn the most important concepts about Regulation and Control in an easy and comprehensive way.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
EMAK

EDIBON Matlab Kit
ECR

EDIBON Industrial Modular System with NI CompactRIO
ESN

EDIBON SCADA-Net
ECL

EDIBON Cloud Learning

Laboratories

6TV
 Mechatronics and Automation Laboratory for Technical and Vocational Education
6HE
 Mechatronics and Automation Laboratory for Higher Education
2TV
 Technical and Vocational Education Electronics Laboratory
2HE
 Electronics Laboratory for Higher Education
11PTC
 Petroleum Training Center Laboratory

RELATED NEWS

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
Read more
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
Read more
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Setting up at Béjaia University
Setting up at Béjaia University
We have traveled to the Béjaia University to install several of our equipment in the areas of Electrical Engineering and Heat Transfer.
Read more
Setting up at Universidad Politécnica de Madrid
Setting up at Universidad Politécnica de Madrid
The Civil Engineering department of Universidad Politécnica de Madrid (Oficial) can now enjoy our Computer Controlled Teaching Unit for the Study of Regulation and Control (RYC) and its level control module (RYC-N).
Read more
Setting up at Escuela Técnica Superior De Ingenieros De Telecomunicación (URJC)
Setting up at Escuela Técnica Superior De Ingenieros De Telecomunicación (URJC)
We are pleased to announce our latest installation at URJC, specifically for the department of signal theory and communications and telematic systems and computing of the Higher Technical School of Telecommunications Engineers in Fuenlabrada (Spain), including BDAS/BMA, MTP or RYC, among others...
Read more
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Read more
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Read more

General Description

Regulation and control theory is divided into two major divisions in, namely, classical and modern. The implementation of classical controller designs as compared to systems designed using modern control theory is easier and these controllers are preferred in most industrial applications. The most common controllers designed using classical control theory, are PID controllers.

The Teaching Unit for the Study of Regulation and Control, "RYC", allows the students to simulate an integrator system, a first order system and a second order system and regulate them with a PID controller or Lead and Lag compensator. The unit also allows to simulate perturbations and offsets to analyze the response of the system.

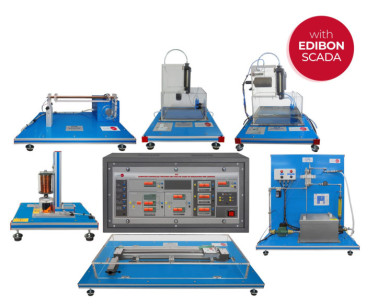

A wide range of applications: PID Control and Regulation Unit for a DC Servomotor, PID Control and Regulation Unit for a Ball and Beam System, etc. for working with the unit are available to study a real control systems response to complement the Study of regulation and control in real time.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Practical possibilities to be done with the Unit for the Study of Regulation and Control (RYC):

  1. Response of a first order system in time domain. (Step response).
  2. Response of a first order system in time domain. (Ramp response).
  3. Response of a first order system in time domain. (Sine response).
  4. Response of a first order system in frequency domain. (Sine response).
  5. Response of a second order system in time domain. (Step response).
  6. Response of a second order system in time domain. (Ramp response).
  7. Response of a second order system in time domain. (Sine response).
  8. Response of a second order system in frequency domain (Sine response).
  9. Phase Lead Compensator experiment.
  10. Phase Lag Compensator experiment.
  11. Structure of a PID controller. (Proportional-Integrative- Derivative blocks).
  12. PID control of a first order system in open-loop.
  13. PID control of a second order system in open-loop.
  14. PID control of a first order system in closed-loop. (Mathematical tuning).
  15. PID control of a first order system in closed-loop. (Experimental tuning).
  16. PID control of a first order system in closed-loop. (Ziegler-Nichols tuning).
  17. PID control of a second order system in closed-loop. (Mathematical tuning).
  18. PID control of a second order system in closed-loop. (Experimental tuning).
  19. PID control of a second order system in closed- loop. (Ziegler-Nichols tuning).

Practical possibilities to be done with the additional recommended elements (Not included), for working with RYC unit:

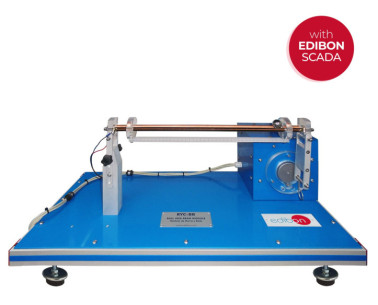

PID Control and Regulation of a Ball and Beam System Unit (RYC-BB):

  1. DC motor position control with a PID controller.
  2. Ball and Beam control (RYC-BB) with a lead compensator and a PID controller (cascade control).

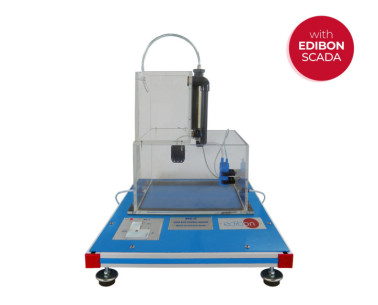

PID Flow Control and Regulation Unit (RYC-C):

  1. Familiarization with the main unit components.
  2. Analyze the transient response of the system.
  3. Analyze the system response in open loop.
  4. Analyze the system response in closed loop.
  5. Flow rate control with a P, PI, PD and PID controller.
  6. Setting and optimizing the parameters of the PID control.
  7. Analysis of the different responses of the system to modifications of PID parameters.
  8. Study of the disturbances in a controlled system with a PID controller.

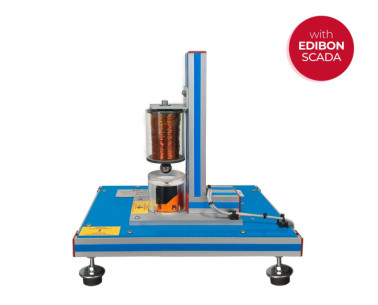

PID Magnetic Levitation Control and Regulation Unit (RYC-CLM):

  1. Characterization of the electrical subsystem.
  2. PID control of the electrical subsystem.
  3. PID control of the ball position.

PID Position Control and Regulation of a Motor Unit (RYC-CP):

  1. Characterization of a speed control system.
  2. PID control of the motor speed.
  3. Characterization of a position control system.
  4. PID control of the carriage position.

PID Control and Regulation of Light Intensity Unit (RYC-I):

  1. Familiarization with the main unit components.
  2. Study the photoresistor characteristics.
  3. Study the phototransistor characteristics.
  4. Study the photodiode characteristics.
  5. Analyze the transient response of the system.
  6. Analyze the system response in open loop.
  7. Analyze the system response in closed loop.
  8. Luminosity control with a P, PI, PD and PID controller.
  9. Setting and optimizing the parameters of the PID control.
  10. Analysis of the different responses of the system to modifications of PID parameters.
  11. Study of the disturbances in a controlled system with a PID controller.

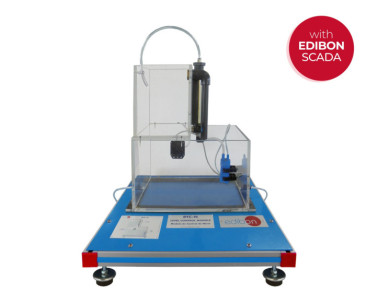

PID Level Control and Regulation Unit (RYC-N):

  1. Characterization of the level in a tank.
  2. Control of the level of a tank using a PID controller.
  3. Disturbance rejection using a PID controller.

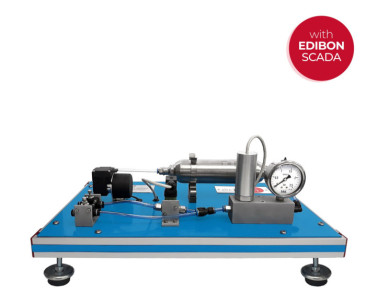

PID Control and Regulation of Pressure Level Unit (RYC-P):

  1. Characterization of the PID Control and Regulation of Pressure Level Unit (RYC-P).
  2. PID Control and Regulation of Pressure Level Unit (RYC-P) with a PID control.

PID Control and Regulation of pH Level Unit (RYC-pH):

  1. Familiarization with the main unit components.
  2. Analyze the transient response of the system.
  3. Analyze the system response in open loop.
  4. Analyze the system response in closed loop.
  5. pH level control with a P, PI, PD and PID controller.
  6. Setting and optimizing the parameters of the PID control.
  7. Analysis of the different responses of the system to modifications of PID parameters.
  8. Study of the disturbances in a controlled system with a PID controller.

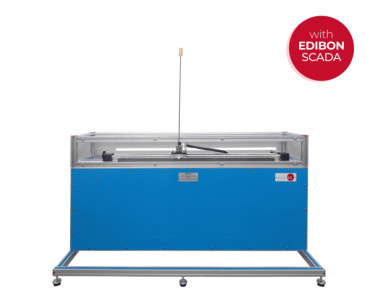

PID Control and Regulation of an Inverted Pendulum Unit (RYC-PI):

  1. Characterization of a speed control system.
  2. PID control of the motor speed.
  3. Characterization of a position control system.
  4. PID control of the cart position.
  5. PID control of the pendulum position.

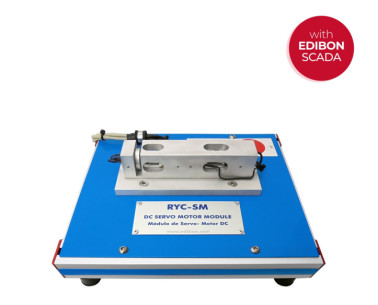

PID Control and Regulation of a DC Servomotor Unit (RYC-SM):

  1. Characterization of a DC motor (speed).
  2. DC motor speed control with a PID controller: open-loop.
  3. DC motor speed control with a PID controller: closed-loop.
  4. Characterization of a DC motor (position).
  5. DC motor position control with a PID controller: closed-loop.

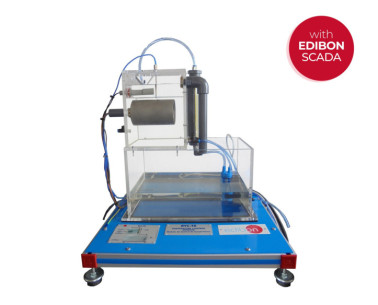

PID Temperature Control and Regulation Unit (RYC-TE):

  1. Characterization of the temperature in a tank.
  2. Control of the temperature of a tank using a PID controller.

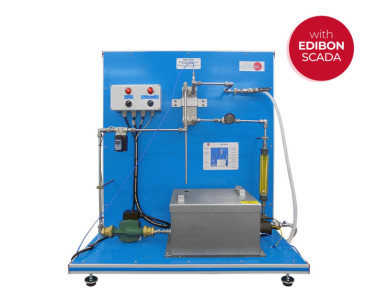

PID Temperature Control and Regulation of Water Flow Unit (RYC-TAG):

  1. Characterization of the PID Temperature Control and Regulation of Water Flow Unit (RYC-TAG).
  2. Water Flow Temperature Control with a PID control.

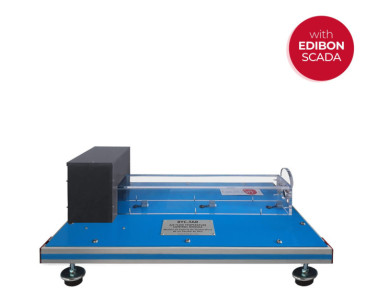

PID Temperature Control and Regulation of Air Flow Unit (RYC-TAR):

  1. Characterization of the PID Temperature Control and Regulation of Air Flow Unit (RYC-TAR).
  2. PID Temperature Control and Regulation of Air Flow Unit (RYC-TAR) with a PID control.
View more

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  4. This unit can be used for doing applied research.
  5. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  6. Control of the RYC unit process through the control interface box without the computer.
  7. Visualization of all the sensors values used in the RYC unit process.
  8. Several other exercises can be done and designed by the user.
