FPCC Computer Controlled Unit to Study Flow through Packed Columns

11.1.8.- ABSORPTION AND ADSORPTION
COMPUTER CONTROLLED UNIT TO STUDY FLOW THROUGH PACKED COLUMNS - FPCC

INNOVATIVE SYSTEMS

The main element of the "FPCC" unit is a transparent packed column, which can be used with water, air or both fluids, simulating an absorption column.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
FSS

Fault Simulation System
PLC

PLC Industrial Process Control
PLCHMI

IIoT local/remote Control and Monitoring with HMI
ELK

EDIBON Software Development KIT, Powered by NI LabVIEW™
ECR

EDIBON Industrial Modular System with NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Read more

General Description

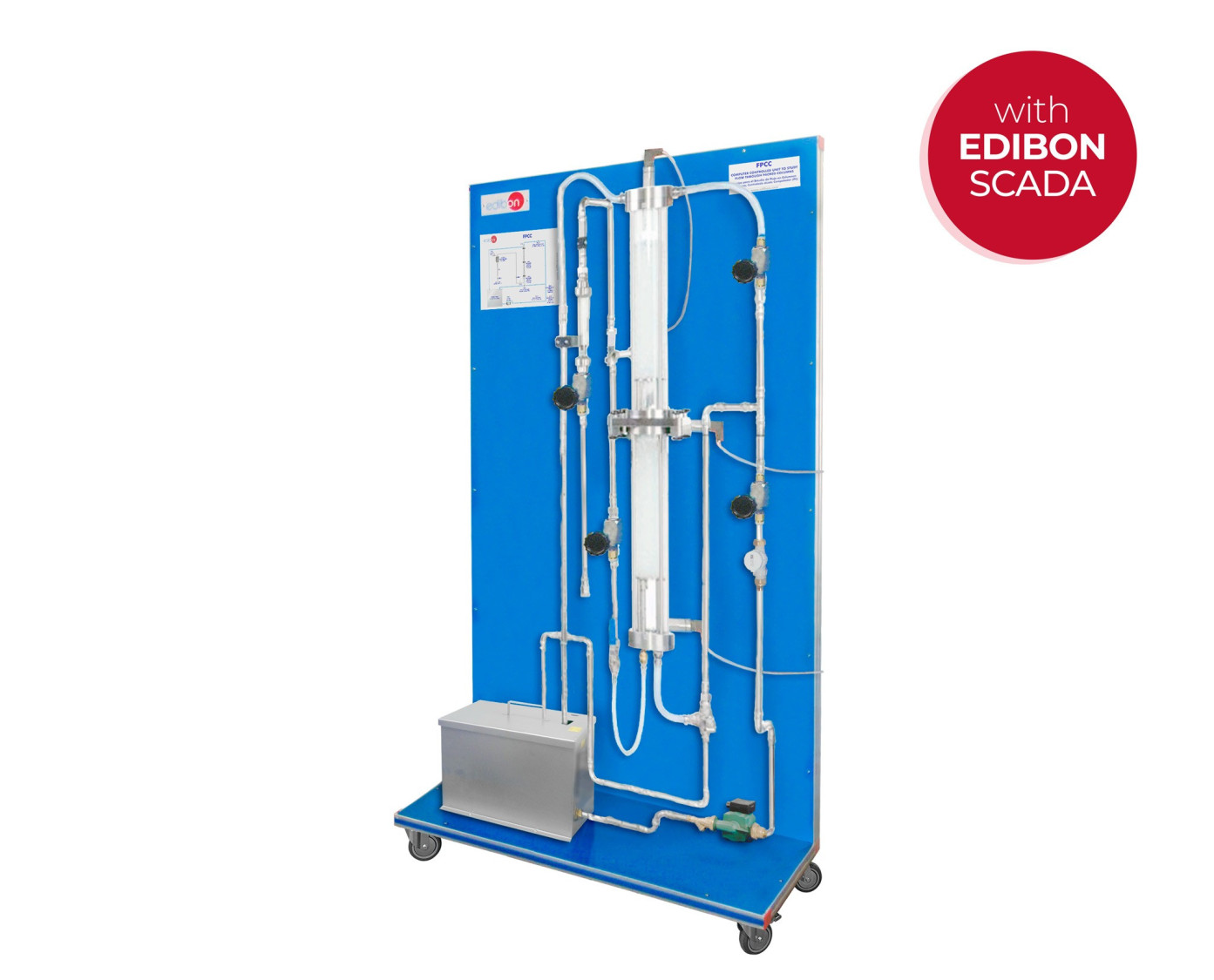

The main element of the "FPCC" unit is a transparent packed column, which can be used with water, air or both fluids, simulating an absorption column.

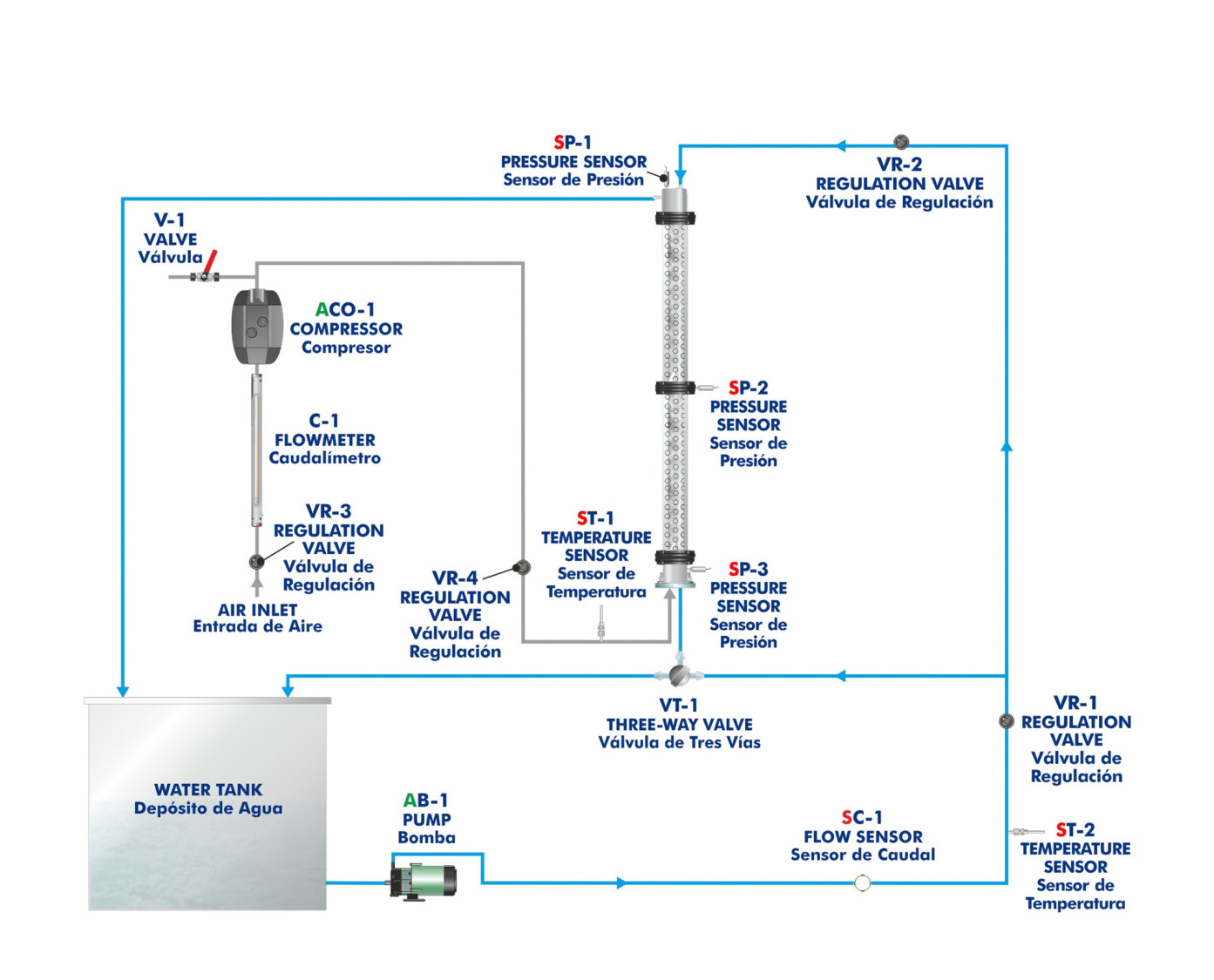

When working with water, the unit includes a computer controlled speed pump to impel the water from the storage tank to the upper side of the column (or lower side of the column if valves are arranged), passing through a flow sensor.

The air circuit includes a compressor that impels air to the lower side of the column for a countercurrent or parallel operation with water. The air flow is measured with a flowmeter.

The packing material in the column can be exchanged to study the influence of different types of contact.

There are pressure sensors at the upper, middle and lower part of the column to determine pressure drops in the fixed bed and two "J" type temperature sensors to measure the air and water temperatures.

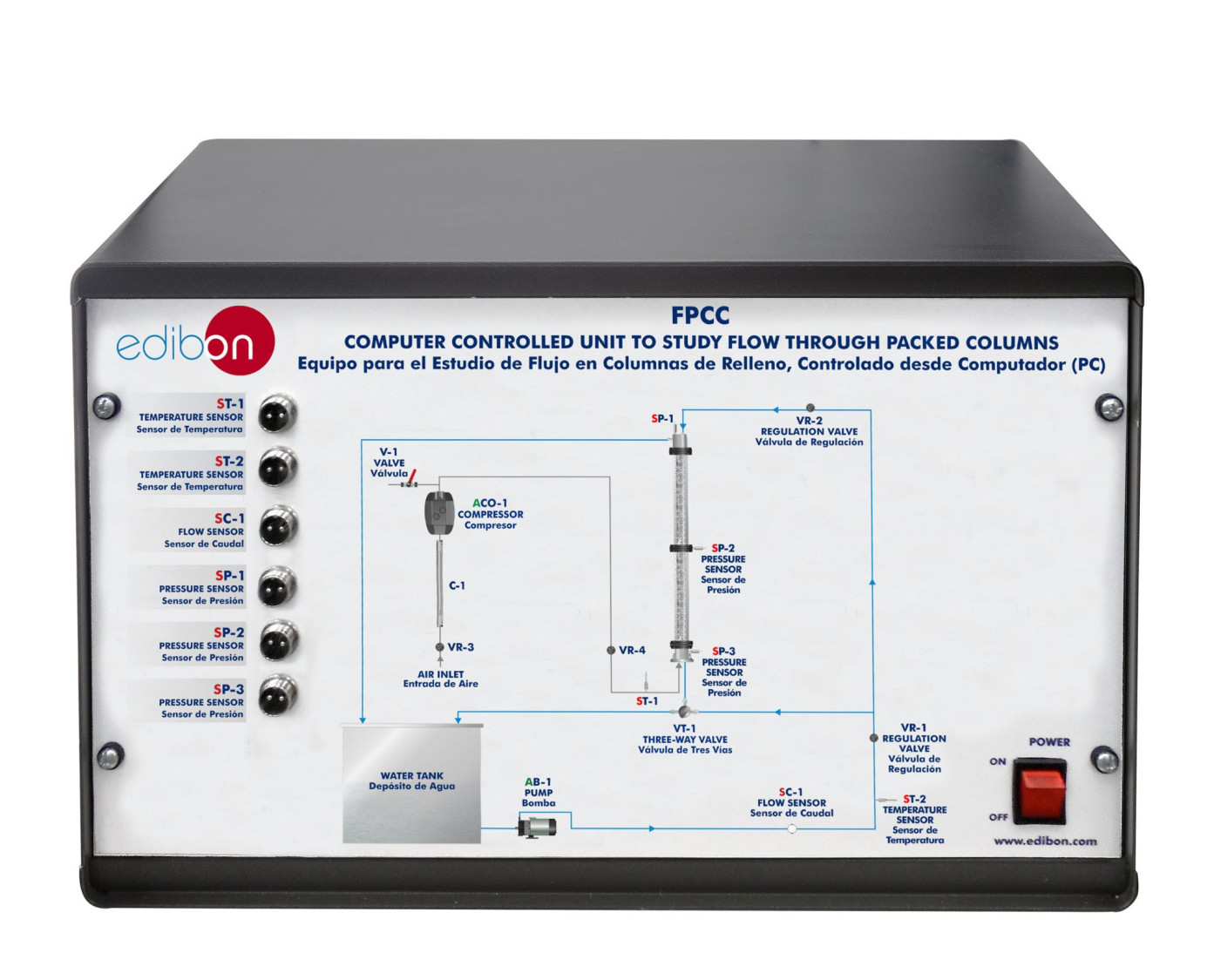

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Study of a packed column operation.
  2. Analysis of a packed column operation working with countercurrent water-air.
  3. Analysis of a packed column operation working with water-air in parallel.
  4. Analysis of a packed column operation working with water-water.
  5. Study of the wall effect.
  6. Study of pressure drops.
  7. Study and determination of the flooding point in the packed column.
  8. Study and determination of the loading point in the packed column.
  9. Representation of the holdup diagram.
  10. Representation of the pressure drop diagrams.
  11. Sensors calibration.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the FPCC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the FPCC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
