TIFCB Cross Flow Heat Exchanger

9.7.- HEAT EXCHANGERS
CROSS FLOW HEAT EXCHANGER - TIFCB

INNOVATIVE SYSTEMS

The Cross Flow Heat Exchanger (TIFCB) basically consists of a rectangular wind tunnel made of stainless steel, resistant to corrosion.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

RELATED NEWS

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Read more
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Performance of Diffusion Absorption Refrigerators with Variable Input Power
Performance of Diffusion Absorption Refrigerators with Variable Input Power
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Read more

General Description

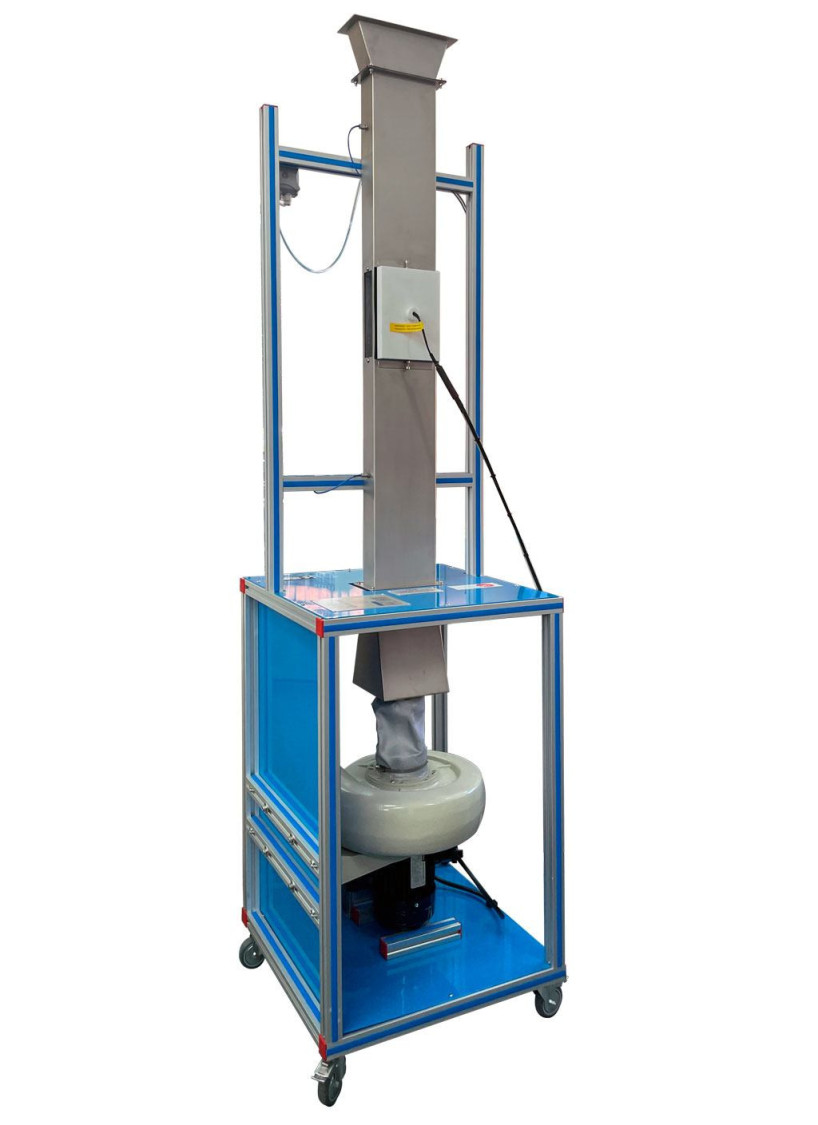

The Cross Flow Heat Exchanger (TIFCB) basically consists of a rectangular wind tunnel made of stainless steel, resistant to corrosion. It has a bellshaped inlet and a central opening arranged longitudinally with two supporting elements made of stainless steel to retain the plates with the different exchangers.

The tunnel is installed over the inlet of a powerful centrifugal fan and connected to it by an elastic coupling flange. This fan aspirates air from the tunnel and expels it outside, making air flow along the tunnel. There is a variable speed drive to control the air flow through the tunnel with the fan control.

The TIFCB unit includes two types of exchangers: a pinned (multi-tube) exchanger and a single tube exchanger, where the heating element is lodged.

To perform all the practical exercises the unit has two temperature sensors to measure the air temperature in the tunnel, before and after passing through the heat exchanger, a control temperature sensor lodged in the heating element and a speed sensor that allows the user to determine the air speed along the tunnel.

Available two optional exchangers: Local Heat Transfer Exchanger (TIFCB/A) and Finned Tube Exchanger (TIFCB/F).

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Investigation of convective processes.
  2. Determination of heat transfer in a single tube exchanger.
  3. Determination of heat transfer in a pinned (multi-tube) exchanger.
  4. Determination of the average heat transfer in a pinned (multi-tube) exchanger.
  5. Deduction of the relationship between Nusselt, Reynolds and Prandtl numbers.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

Practical possibilities with the optional TIFCB/A exchanger:

  1. Determination of the existing relationship between Nusselt and Reynolds number using the direct heat transfer element.
  2. Determination of the local variation in the convective heat transfer coefficient, using the direct heat transfer element.

Practical possibilities with the optional TIFCB/F exchanger:

  1. Effect produced by the external fins in the heat transfer process.
  2. Determination of the heat transfer in a finned tube exchanger.
