FME26 Depression Measurement System (vacuum gauge)

8.1.2.- MEASUREMENT

DEPRESSION MEASUREMENT SYSTEM (VACUUM GAUGE) - FME26

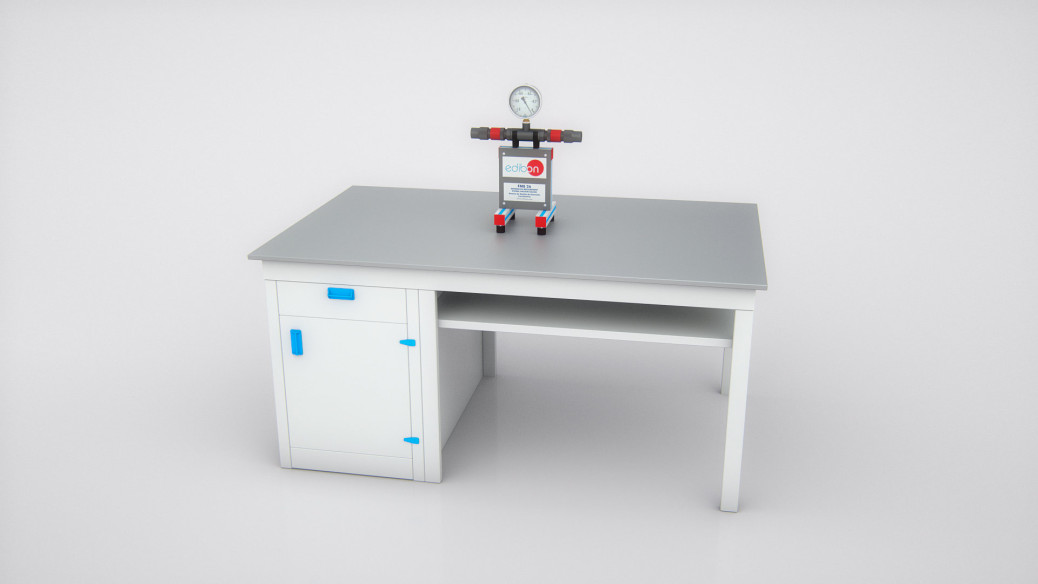

Complete FME26 Unit

FME26 Unit with service unit FME00

INNOVATIVE SYSTEMS

The depression measurement system, in pressure fall, FME 26, is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

MSAC

Modular System for Acquisition and Control

Laboratories

8TV

Technical and Vocational Education Fluid Mechanics Laboratory

8HE

Higher Education Fluid Mechanics Laboratory

General Description

The Depression Measurement System (vacuum gauge), "FME 26", is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system. Such system will be usually a water pump that takes out some liquid from a tank.

Anodized aluminum structure that supports a vacuum gauge whose reading gives us the measurement.

Two quick connections at both sides of the vacuum gauge allow connecting reinforced flexible pipes.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

To measure the depression caused for the fluid aspiration by an hydraulic pump.
We can observe the different negative readings due to the different methods of fluid aspiration for its subsequent impulsion.
