MTE3 Epicyclic Gear Unit (3 elements)

7.2.2.- GEARS, DIFFERENTIALS AND TRANSMISSIONS
EPICYCLIC GEAR UNIT (3 ELEMENTS) - MTE3

INNOVATIVE SYSTEMS

The Epicyclic Gear Unit (3 elements), "MTE3", consists of three coupled epicyclic gears sets. It will allow the students to carry out experiments of different gear ratios, as well as the torque conversions.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

7TV
 Mechanical, Automotive and Materials Laboratory for Technical and Vocational Education
7HE
 Mechanics, Automotive and Materials Laboratory for Higher Education

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more

General Description

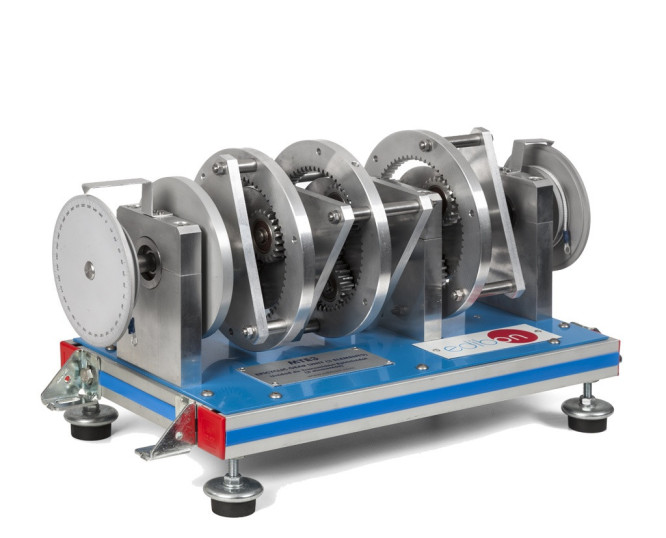

The Epicyclic Gear Unit (3 elements), "MTE3", consists of three coupled epicyclic gears sets. It will allow the students to carry out experiments of different gear ratios, as well as the torque conversions.

The epicyclic gears installed in the "MTE3", unit are the same and they consist of the following elements:

  • Sun gears (Z=21).
  • Satellite gears set (Z=21).
  • Ring (Z=63).

The unit has two graduated discs located at the input and output shafts, which will allow to check the velocity and torque ratios according to the application of the different brakes.

The power arrives to the epicyclic gears through the sun gears.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Demonstration of the function of an epicyclic gear system.
  2. To determine and verify the velocity and torque ratios between the input and output shafts.
  3. Study of the mechanical advantage and efficiency of a planetary system.
  4. Determination of the angular displacement at the input and output and comparison with calculated ratios.
  5. Determination of the minimum force at the input to move a weight at the output.

Gears selection:

  1. First gear.
  2. Second gear.
  3. Third gear.
  4. Reverse gear.
  5. Neutral.

Power Transmission:

  1. Checking the relation between the input motor torque and the output motor torque.
