MECA5 Friction Experiments

7.1.1.- MECHANICS FUNDAMENTALS KITS 14.1.1.- MECHANICS FUNDAMENTALS KITS

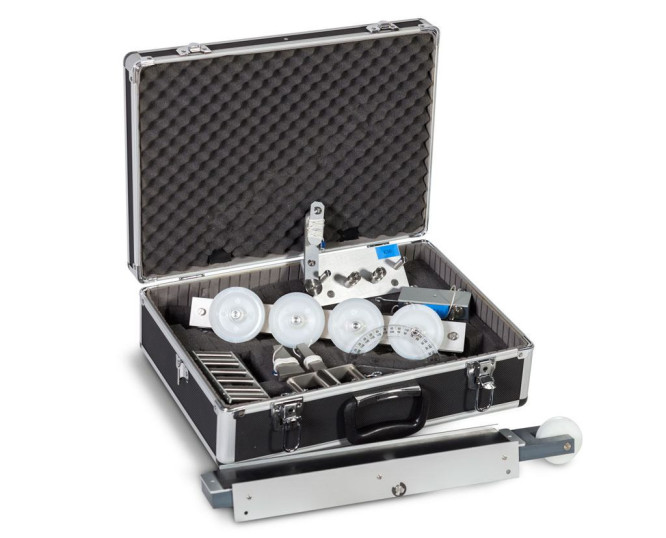

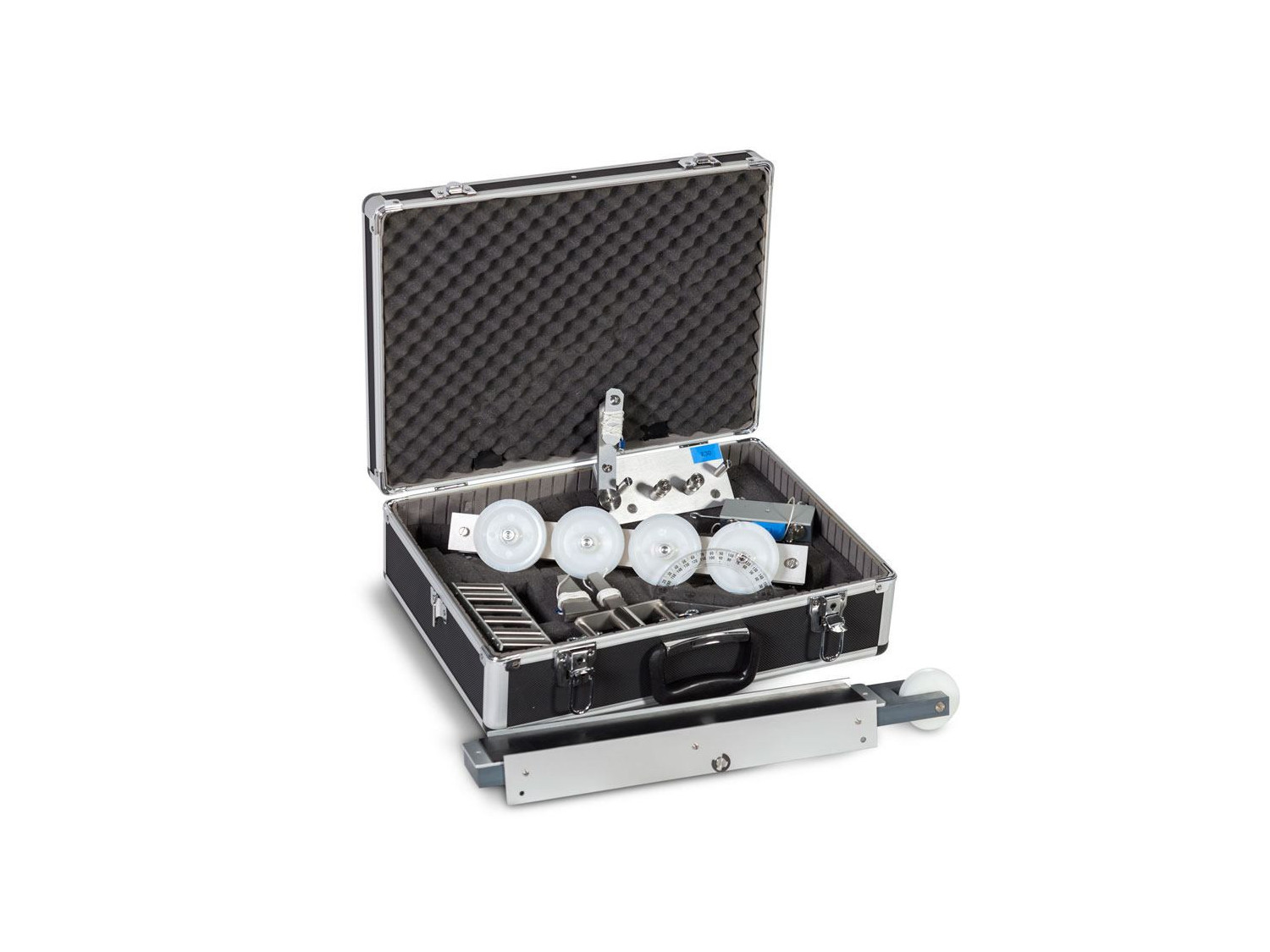

FRICTION EXPERIMENTS - MECA5

INNOVATIVE SYSTEMS

This module considers the most important phenomenon of Dynamics: Friction. It is a manifestation of the energy loss due to contact, effect that happens in every real-world mechanism.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

Laboratories

7TV
 Mechanical, Automotive and Materials Laboratory for Technical and Vocational Education
7HE
 Mechanics, Automotive and Materials Laboratory for Higher Education

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Read more

General Description

This module considers the most important phenomenon of Dynamics: Friction. It is a manifestation of the energy loss due to contact, effect that happens in every real-world mechanism.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Sliding friction. Verification of the laws of friction and to measure the coefficient of friction for different materials.
  2. Inclined plane (Inclined plane (I) and Inclined plane (II)). Analysis of the forces acting on an inclined plane due to a weighted of a roller supported on the plane. Calculation of the starting force needed for dragging a block on the plane.
  3. Angle of friction. Measurement of the angle of friction and from it find the coefficient of friction. To show that the coefficient of friction is equal to tangent of the angle of friction.
  4. Friction. To show the extent to which friction is reduced by using wheels and rollers and to compare the effects of different bearing surfaces.
  5. The wedge. Determine mechanical advantage and efficiency obtained using two different wedges, and to show that overhauling may be prevented if the angle of inclination of a wedge is small.
  6. Bearings. Comparison of the resistance to turning due to friction of four bearings made of different materials, and to show something of the progress made in bearing development.

REQUIRED ELEMENTS
