AEL-FCLL Fuel Cell Energy Application

5.3.9.- HYDROGEN FUEL CELLS
FUEL CELL ENERGY APPLICATION - AEL-FCLL

INNOVATIVE SYSTEMS

The Fuel Cell Energy Application, "AEL-FCLL", has been designed by EDIBON to demonstrate how fuel cells work.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

RELATED NEWS

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Read more
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Read more
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more

General Description

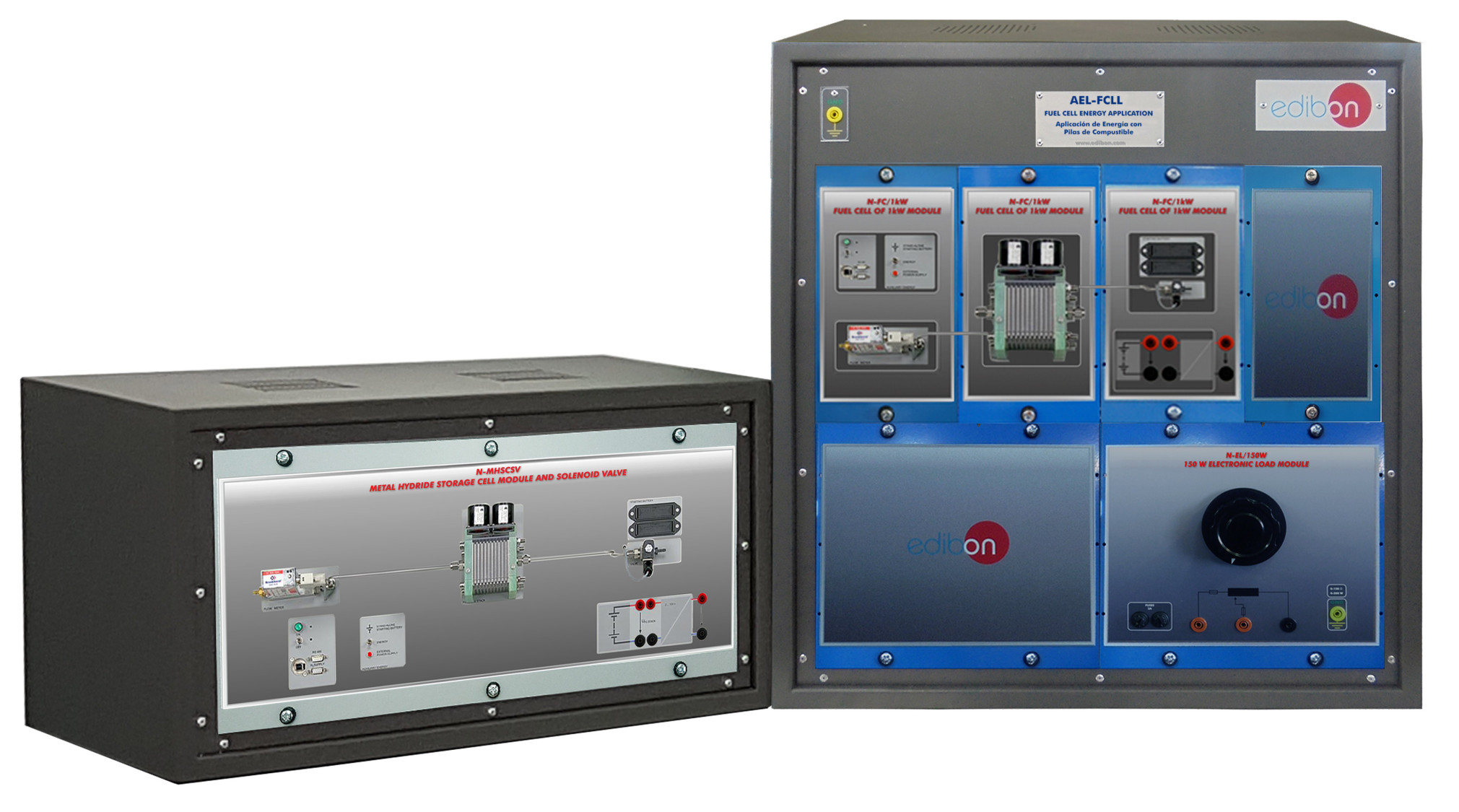

The Fuel Cell Energy Application, "AEL-FCLL", has been designed by EDIBON to demonstrate how fuel cells work.

This application includes a proton exchange membrane (PEM) fuel cell stack composed of several cells in the shape of a ribbed plate that allow air flow across the membrane. The membrane facilitates the flow of hydrogen, generating the release of electrons. There are separate plates that conduct electricity, allowing the flow of electrons, between each pair of cells. In addition, protection systems, electronic charging and solenoid valve are included. EDIBON offers the possibility of including an electrolyzer so as not to depend on a hydrogen cylinder.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Basic fuel cell operations.
  2. Design and operation of a metal hydride storage cell.
  3. Calculation of the efficiency of a PEM fuel cell.
  4. Study of the influence of the air consumption and the hydrogen consumption on the efficiency of a PEM fuel cell.
  5. Study of the energy density of a PEM fuel cell.
  6. Representation of the polarisation curve of a PEM fuel cell.
  7. Determination of the voltage and current density characteristics of a PEM fuel cell.
  8. Study of the influence of hydrogen consumption in the generation of electrical energy.
  9. Study of the influence of the power generated on the efficiency of a PEM fuel cell.
  10. Study of the influence of the flow of reagents in the generation of electricity.
  11. Study of voltage conversion.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

Additional practical exercises with the electrolyser:

  1. Study of electrolyser.
  2. Study the standalone power supply.

Additional practical exercises:

  1. Several other exercises can be done and designed by the user.

SIMILAR UNITS AVAILABLE

COMPUTER CONTROLLED PEM FUEL CELL ADVANCED UNIT - EC6C
  • EC6C
Available
5.3.9.- HYDROGEN FUEL CELLS

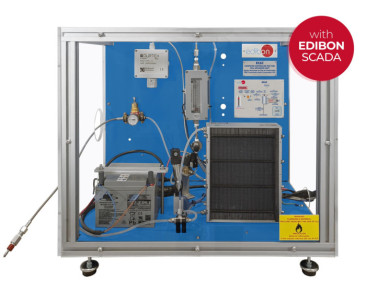

EC6C
Computer Controlled PEM Fuel Cell Advanced Unit
The Computer Controlled PEM Fuel Cell Advanced Unit, "EC6C", has been designed by EDIBON to allow the students to understand the fuel cells technology, especially that of a proton exchange membrane fuel cell (PEM). It also enables to calculate...
View Unit
COMPUTER CONTROLLED PEM FUEL CELL UNIT - EC5C
  • EC5C
Available
5.3.9.- HYDROGEN FUEL CELLS
EC5C
Computer Controlled PEM Fuel Cell Unit
The Computer Controlled PEM Fuel Cell Unit, "EC5C", has been designed by EDIBON to allow the students to understand the fuel cells technology, especially that of a proton exchange membrane fuel cell (PEM). It also enables to calculate several...
View Unit
PEM FUEL CELL UNIT - EC5B
  • EC5B
Available
5.3.9.- HYDROGEN FUEL CELLS

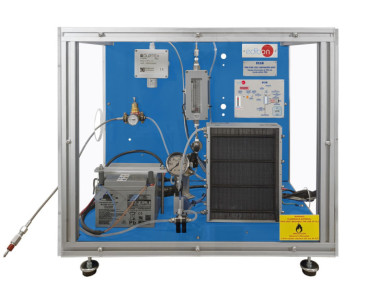

EC5B
PEM Fuel Cell Unit
The PEM Fuel Cell Unit, "EC5B", has been designed by EDIBON to allow the students to understand the fuel cells technology, especially that of a proton exchange membrane fuel cell (PEM). It also enables to calculate several fundamental parameters...
View Unit
PEM FUEL CELL ADVANCED UNIT - EC6B
  • EC6B
Available
5.3.9.- HYDROGEN FUEL CELLS

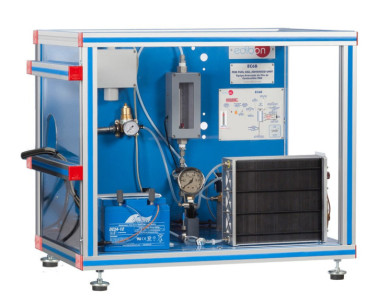

EC6B
PEM Fuel Cell Advanced Unit
The PEM Fuel Cell Advanced Unit, "EC6B", has been designed to allow the students to understand the fuel cells technology, especially that of a proton exchange membrane fuel cell (PEM). It also enables to calculate several fundamental parameters of...
View Unit
