FME08 Hydrostatic Pressure

8.1.3.- HYDROSTATICS

INNOVATIVE SYSTEMS

The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

MSAC

Modular System for Acquisition and Control

Laboratories

8TV

Technical and Vocational Education Fluid Mechanics Laboratory

8HE

Higher Education Fluid Mechanics Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills

At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.

Setting up at the University of Trinidad and Tobago

Recently, we have had the pleasure of making an installation at the University of Trinidad and Tobago

Setting up at Slippery Rock University

We are very pleased that we have recently completed an installation in the department of Physics and Engineering at the Slippery Rock University. It's always a pleasure to work on projects like this!

NEW Fluid Mechanics Course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.

General Description

The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.

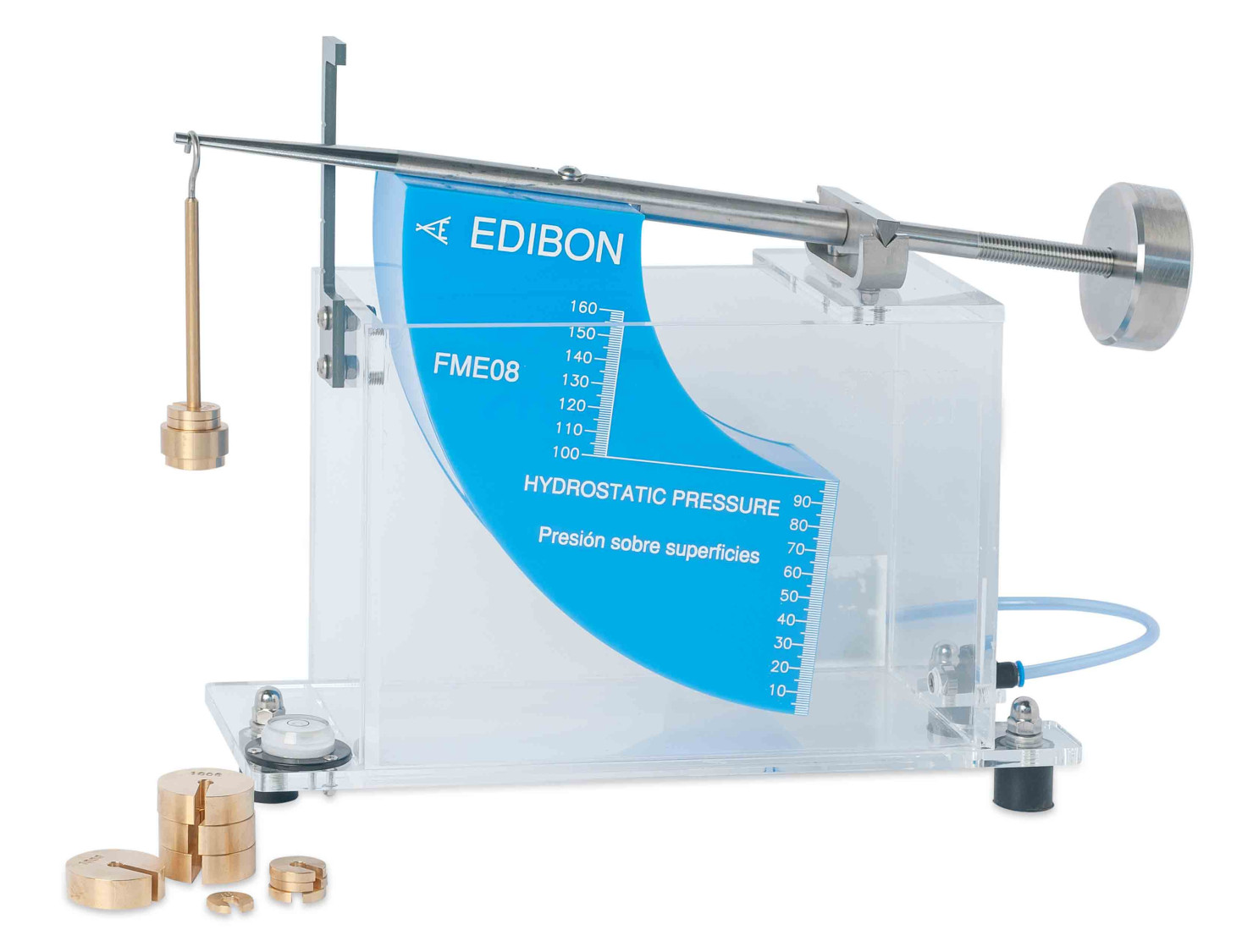

This unit consists of a quadrant mounted on the arm of a balance that pivots around an axis.

When the quadrant is immersed in the water tank, the force acting on the flat, rectangular front surface will create a moment with relation to the support axis.

The tilting arm incorporates a pan and an adjustable counterweight.

The tank has adjustable legs that determine its correct leveling.

It has a drain valve.

The level reached by the water in the tank is indicated on a graduated scale.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Determination of the center of pressures with an angle of 90°, partially submerged.
Determination of the resultant force with an angle of 90°, partially submerged.
Determination of the center of pressures, angle <> 90° partially submerged.
Determination of the equivalent force with an angle <>90° partially submerged.
Determination of the center of pressures with an angle of 90° totally submerged.
Determination of the resultant force with an angle of 90° totally submerged.
Determination of the center of pressures, angle <>90° totally submerged.
Determination of the resultant force, angle <>90° totally submerged.
Balance of momentum.
