MIF Inertia Flywheel Unit

7.1.3.- STATICS AND DYNAMICS 14.1.3.- STATICS AND DYNAMICS

INNOVATIVE SYSTEMS

The Inertia Flywheel Unit, "MIF", consists of an inertia disc with a rotation shaft at the center of the disc.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

MSAC

Modular System for Acquisition and Control

General Description

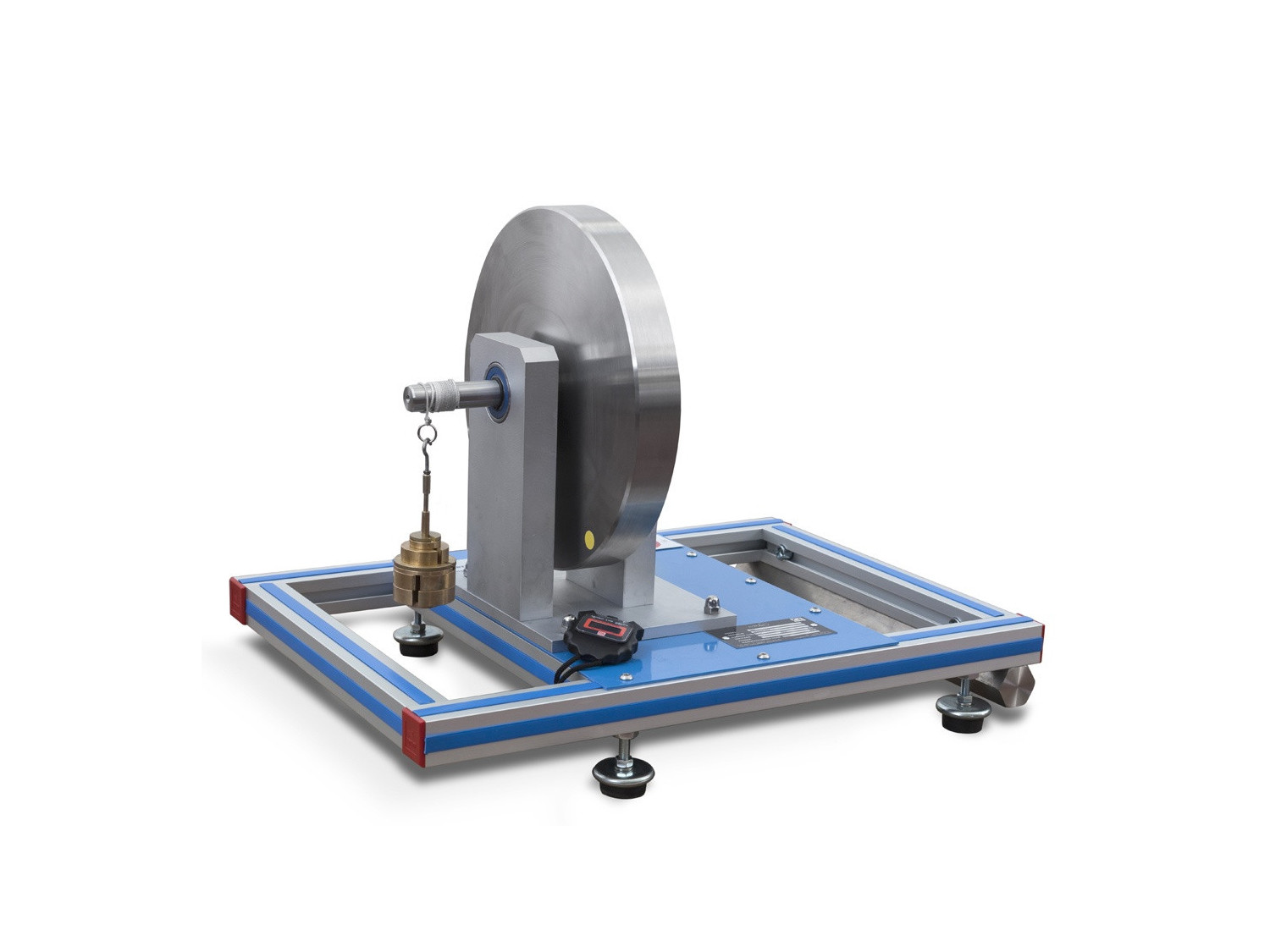

The Inertia Flywheel Unit, "MIF", consists of an inertia disc with a rotation shaft at the center of the disc.

The shaft is supported at two points by bearings.

A cord is attached by one of the ends to the shaft and wound around it. At the other end a hanger is available, to adjust the weight. It will make the flywheel have a uniform acceleration movement.

A chronometer is provided to measure the time required by the rope to unwind as a function of the weight applied and, thus, determine the moment of inertia of the flywheel in function of the weight applied.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Study and analysis of the inertia of a flywheel.
Experimental determination of the moment of inertia.
Study of the influence of the weight on the moment of inertia.
Study of the law of dynamic rotational movement.
Generate a uniformly accelerated rotational movement.
Measure the time and the acceleration distance.

SUPPLEMENTARY EQUIPMENT

UNIT FOR STUDYING EQUILIBRIUM OF MOMENTS ON A TWO ARM LEVER - MEMB2

MEMB2

Available

7.1.3.- STATICS AND DYNAMICS

MEMB2

Unit for studying Equilibrium of Moments on a Two Arm Lever

The Unit for studying Equilibrium of Moments on a Two Arm Lever,"MEMB2", allows to study the fundamentals of the equilibrium of moments and the application of the law of levers on a two-arm lever.A pivoted beam in the extreme of a vertical support...

COMPUTER CONTROLLED BALANCE OF RECIPROCATING MASSES UNIT - MBMRC

MBMRC

Available

7.1.3.- STATICS AND DYNAMICS

MBMRC

Computer Controlled Balance of Reciprocating Masses Unit

The Computer Controlled Balance of Reciprocating Masses Unit, "MBMRC", is a bench-mounting unit that allows to investigate and examine the free masses and moments of a reciprocating engine with a single cylinder, with two cylinders or with four...

MEAL

Available

7.1.3.- STATICS AND DYNAMICS

MEAL

Cam Analysis Unit

The Cam Analysis Unit "MEAL" allows to observe the effect of the profile of a cam, the study of the displacement, velocity and acceleration profiles of the cam and the identification of the factors that can modify the dynamics of the cam. This...

CORIOLIS FORCE DEMONSTRATION UNIT - MDFC

MDFC

Available

7.1.3.- STATICS AND DYNAMICS

MDFC

Coriolis Force Demonstration Unit

The Coriolis Force Demonstration Unit, "MDFC", is used to observe the deflection of a jet of water generated by a pump attached to a rotating arm that rotates to different speeds in a horizontal plane. An electronically controlled motor rotates...

MFCE

Available

7.1.3.- STATICS AND DYNAMICS

MFCE

Centrifugal Force Unit

The Centrifugal Force Unit, "MFCE", is used to demonstrate the relationship between centrifugal force, rotational speed, mass of a rotating body and distance from the axis. The unit consists of a vertical axis of rotation and a rotating arm....

Available

7.1.3.- STATICS AND DYNAMICS

MGI

Gyroscope

The Gyroscope, "MGI", allows the experimental demonstration of the different rotation modes of a gyroscope and the moments generated by the gyroscopic effect. The rotor of the electric motor (rotating motor) shares a horizontally supported shaft...

Available

7.1.3.- STATICS AND DYNAMICS

CGU

Centrifugal Governor Unit

The Centrifugal Governor Unit, "CGU", has been designed to study the operating mode of different centrifugal governors, including three interchangeable governors: Porter governor, Hartnell governor and Proell governor.Interchangeable governors...

Available

7.1.3.- STATICS AND DYNAMICS

MED

Static and Dynamic Balancing Unit

The Static and Dynamic Balancing Unit, "MED", developed by EDIBON is a unit to study and analyze the oscillations and vibrations and how to eliminate or diminish them.Basically, the unit is formed by a shaft mounted on bearings. The shaft is...

Available

7.1.3.- STATICS AND DYNAMICS

MES

Simple Balancing Unit

The Simple Balancing Unit, "MES", developed by EDIBON is a unit to study and analyze the oscillations and vibrations and how to eliminate or diminish them.Basically, the unit is formed by a shaft mounted on bearings. The shaft is coupled by pulley...

MRYE1

Available

7.1.3.- STATICS AND DYNAMICS

MRYE1

Wheel and Axle Unit

The Wheel and Axle Unit, "MRYE1", is a unit which allows to investigate the mechanics of a simple wheel and axle machine and to demonstrate the laws of the formation of equilibrium of moments in static systems.Two pulleys with different diameter...

WHEEL AND DIFFERENTIAL AXLE UNIT - MRYE2

MRYE2

Available

7.1.3.- STATICS AND DYNAMICS

MRYE2

Wheel and Differential Axle Unit

The Wheel and Differential Axle Unit, "MRYE2", is a unit that allows for investigating the mechanics of a wheel and differential axle mechanism and demonstrating the force reduction on a differential pulley block.A wheel, consisting of a pulley...

MELH

Available

7.1.3.- STATICS AND DYNAMICS

MELH

Unit for studying Hooke´s Law

The Unit for studying Hooke's Law, "MELH", designed by EDIBON, demonstrates the application of Hooke's Law and allows the visualization of the deformation of tension springs under load and the performance of oscillation experiments on a spring –...
