FME11 Metacentric Height Demonstration

8.1.3.- HYDROSTATICS

METACENTRIC HEIGHT DEMONSTRATION - FME11

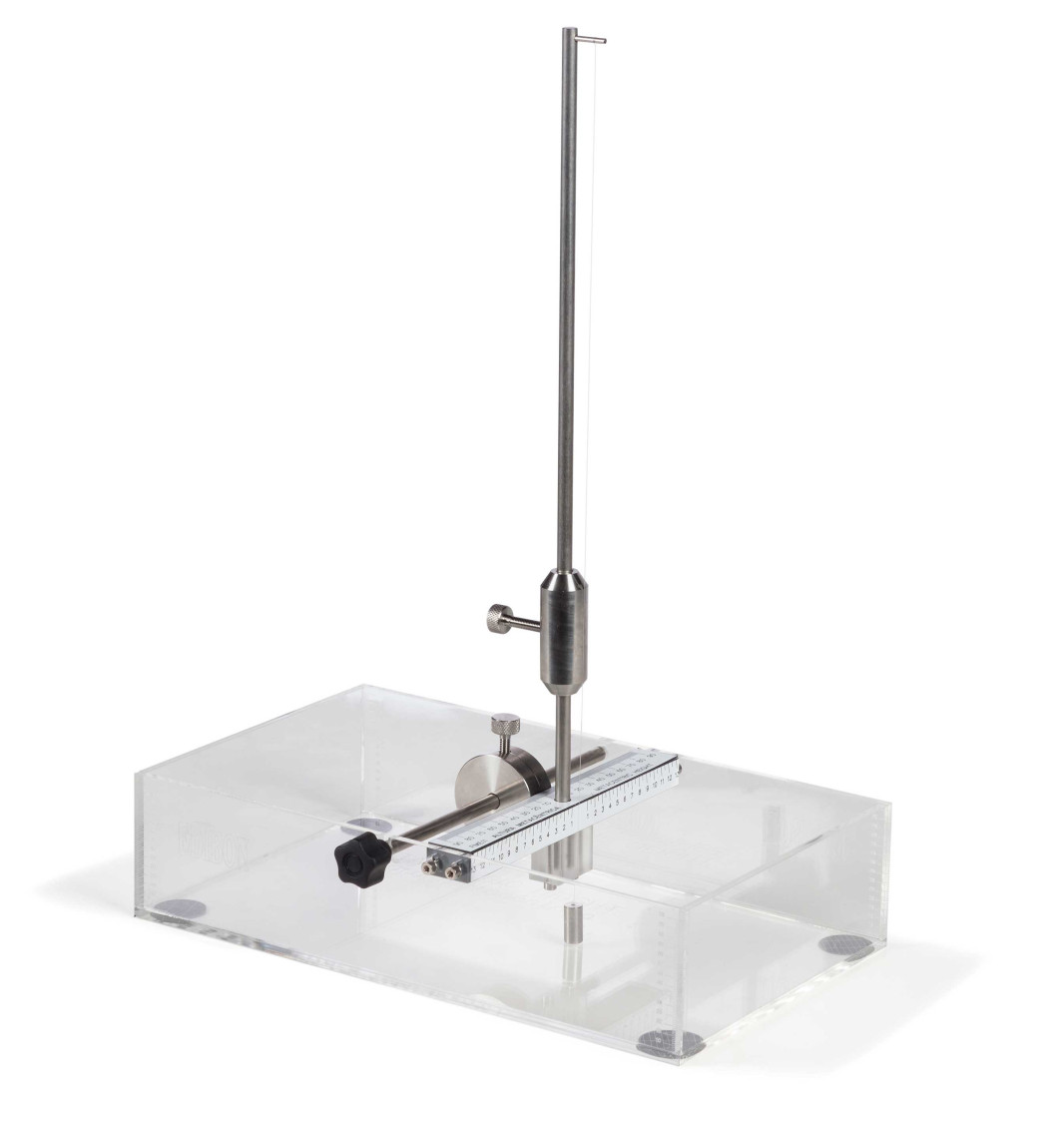

Complete FME11 Unit

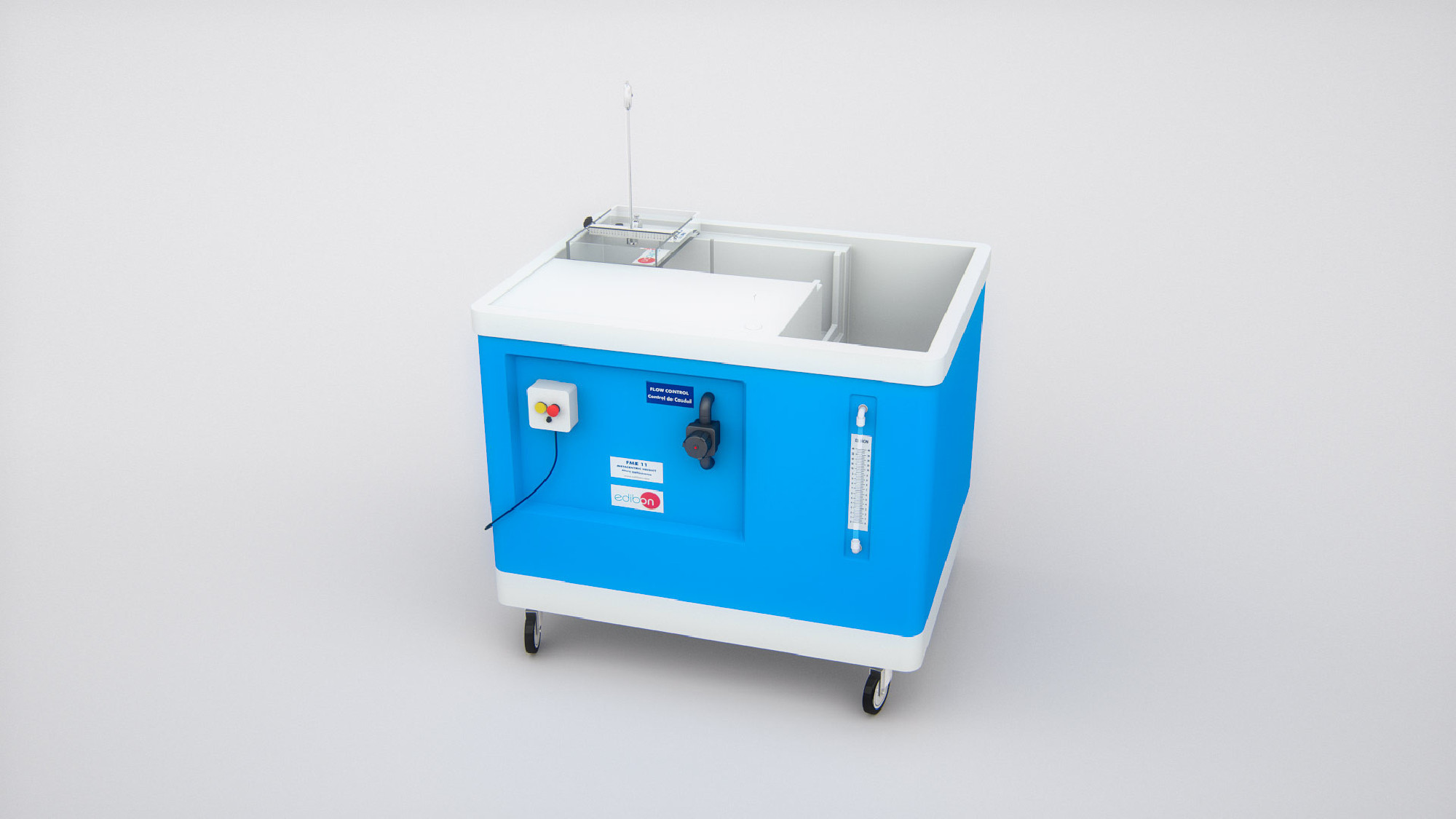

FME11 Unit with service unit FME00

INNOVATIVE SYSTEMS

The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

MSAC

Modular System for Acquisition and Control

Laboratories

8TV

Technical and Vocational Education Fluid Mechanics Laboratory

8HE

Higher Education Fluid Mechanics Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills

At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.

Setting up at the University of Trinidad and Tobago

Recently, we have had the pleasure of making an installation at the University of Trinidad and Tobago

NEW Fluid Mechanics Course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.

General Description

The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.

The unit consists of a floating methacrylate prismatic base, on which a vertical mast is supported, to which an adjustable movable mass has been added to change the gravity center.

A weight that can be horizontally and vertically displaced allows for modification of the floating base heel.

A plumb bob, attached to the upper part of the mast, is used to measure the angle of heel of the floating base with the aid of a graduated scale.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Study of the stability of a floating body. Angular displacements.
Study of the stability of a floating body. Different positions of the center of gravity.
Determination of the metacentric height.
