FME11-B Metacentric Height Demostration of a "U" Shaped Floating Body

8.1.3.- HYDROSTATICS
METACENTRIC HEIGHT DEMOSTRATION OF A "U" SHAPED FLOATING BODY - FME11-B

INNOVATIVE SYSTEMS

The Metacentric Height Demostration of a "U" Shaped Floating Object, "FME11-B", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height starting from a U-shaped floating body.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Read more

General Description

The Metacentric Height Demostration of a "U" Shaped Floating Object, "FME11-B", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height starting from a U-shaped floating body.

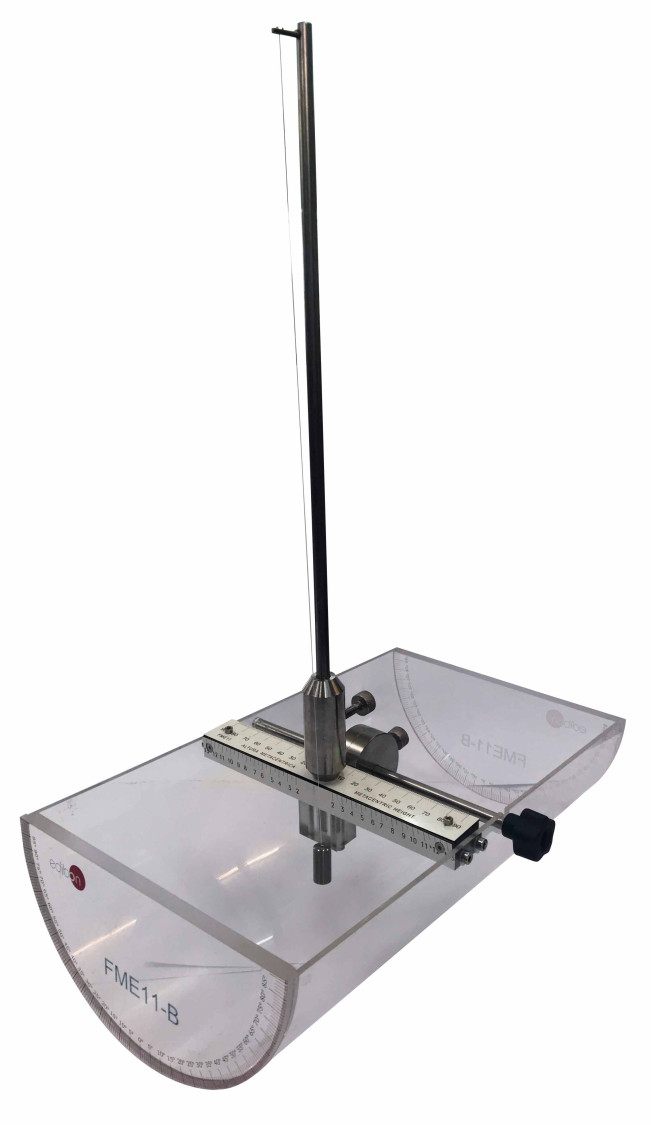

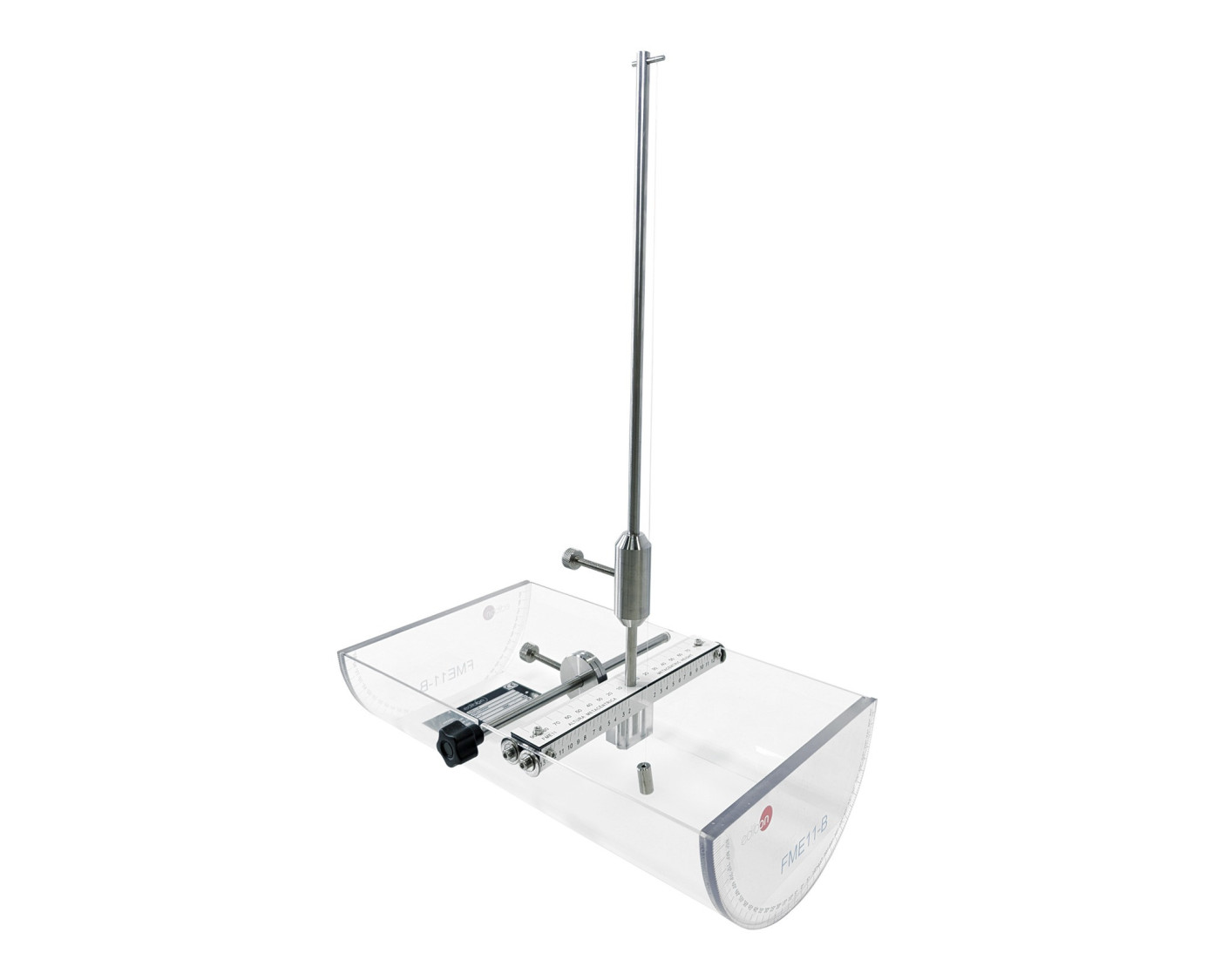

The unit consists of a floating methacrylate body with a vertical mast placed on it. An adjustable mobile mass has been added to alter the position of the center of gravity.

The base of the floating body is "U" shaped, simulating one of the different frame cross-sections of a boat.

A weight that can be horizontally and vertically displaced allows for modification of the floating base heel.

A plumb bob, attached to the upper part of the mast, is used to measure the angle of heel of the floating base with the aid of a graduated scale.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Study of the stability of a floating object with "U" shaped base. Angular displacements.
  2. Study of the stability of a floating object with "U" shaped base. Different positions of the center of gravity.
  3. Determination of the metacentric height of a floating object with "U" shaped base.
