N-EM-M Motor Control

6.2.2.4.- ELECTRICAL MACHINES CONTROL
MOTOR CONTROL - N-EM-M

INNOVATIVE SYSTEMS

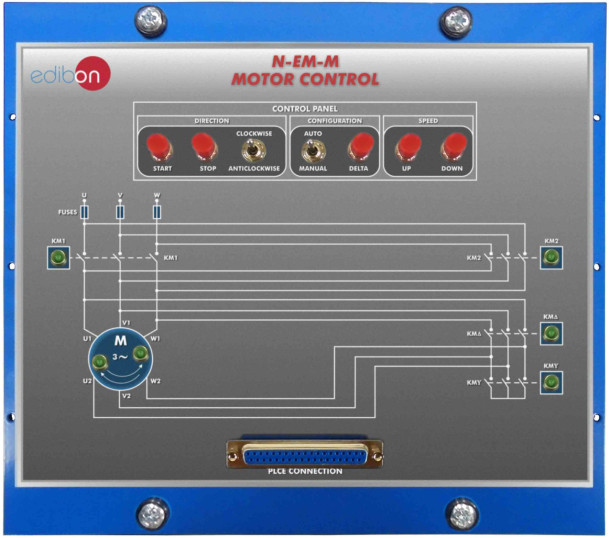

"N-EM-M" represents a three phase motor control connection.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

General Description

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

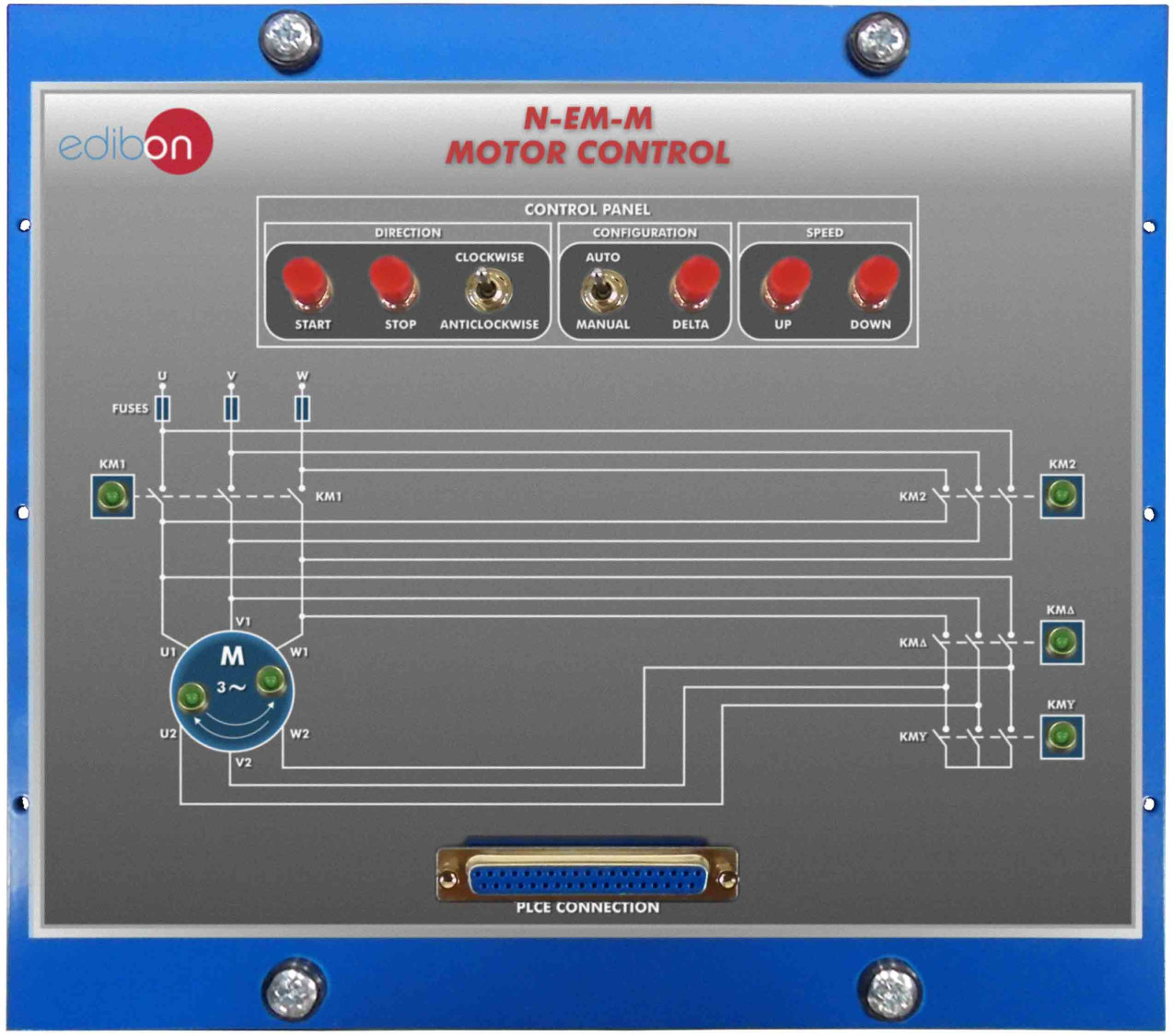

"N-EM-M" represents a three phase motor control connection. The system emulates the use of three phase contactors to change the turning direction of the motor. The motor control module also allows to connect the three phase motor in delta or star configuration.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

All "N-EM" modules allow to perform the following practical exercises:

  1. Temporization.
  2. Counting.
  3. Sequential counting.
  4. All the practical exercises include the diagrams and the flow charts of the example programs used.
