FME17 Orifice and Free Jet Flow

8.1.4.- HYDRODYNAMICS
ORIFICE AND FREE JET FLOW - FME17

Complete FME17 Unit

ORIFICE AND FREE JET FLOW - FME17

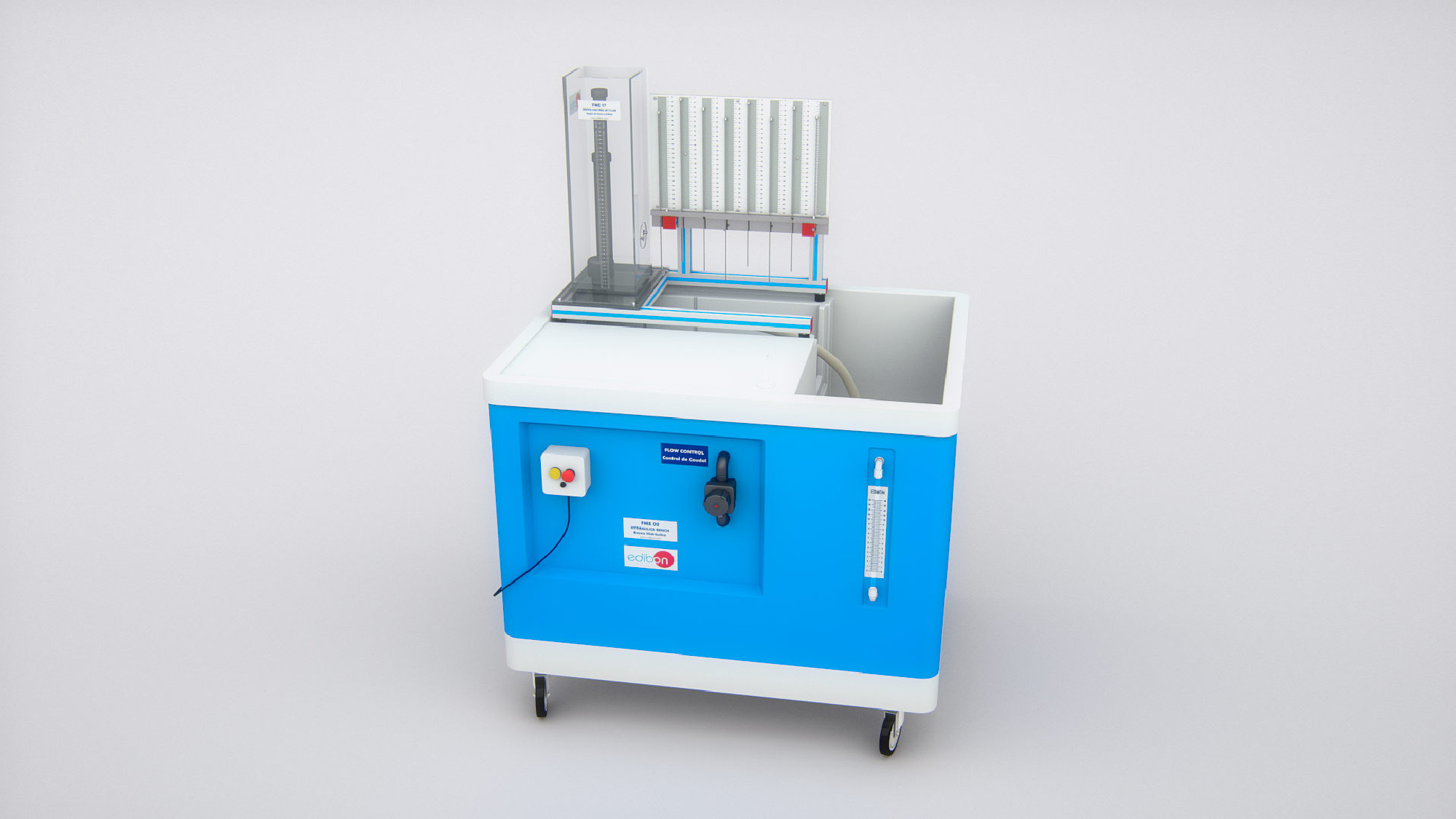

FME17 Unit with service unit FME00

ORIFICE AND FREE JET FLOW - FME17
ORIFICE AND FREE JET FLOW - FME17

INNOVATIVE SYSTEMS

The Orifice and Free Jet Flow unit, "FME17", designed by EDIBON, allows the study of the different discharge and velocity coefficients in permanent or variable regime as well as the calculation of the discharge times.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

8TV
 Technical and Vocational Education Fluid Mechanics Laboratory
8HE
 Higher Education Fluid Mechanics Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Read more

General Description

The Orifice and Free Jet Flow unit, "FME17", designed by EDIBON, allows the study of the different discharge and velocity coefficients in permanent or variable regime as well as the calculation of the discharge times.

The unit consists of a cylindrical methacrylate tank that enables to maintain a constant level and that is fed by the Hydraulics Bench (FME00) or by the Basic Hydraulic Feed System (FME00/B).

Two nozzles with orifices of different diameters are provided. They are placed in the base of the tank, and can easily be interchanged.

The trajectory of the jet can be drawn by following the position of some vertical needles placed in the annexed panel. These are adjusted by means of some command screws.

This panel includes a silk-screen scale that enables to measure the profile of the jet.

Adjustable feet permit levelling.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Determination of the orifice velocity coefficient.
  2. Obtaining of the orifice discharge coefficient in permanent regime.
  3. Obtaining of the orifice discharge coefficient in variable regime.
  4. Obtaining of the tank discharge time.
