MEC Overdrive Unit

7.2.2.- GEARS, DIFFERENTIALS AND TRANSMISSIONS
OVERDRIVE UNIT - MEC

INNOVATIVE SYSTEMS

The Overdrive Unit, "MEC", includes a set of epicyclical gears that represent an application of a simple epicyclic arrangement of the type used in a motor vehicle overdrive.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

7TV
 Mechanical, Automotive and Materials Laboratory for Technical and Vocational Education
7HE
 Mechanics, Automotive and Materials Laboratory for Higher Education

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more

General Description

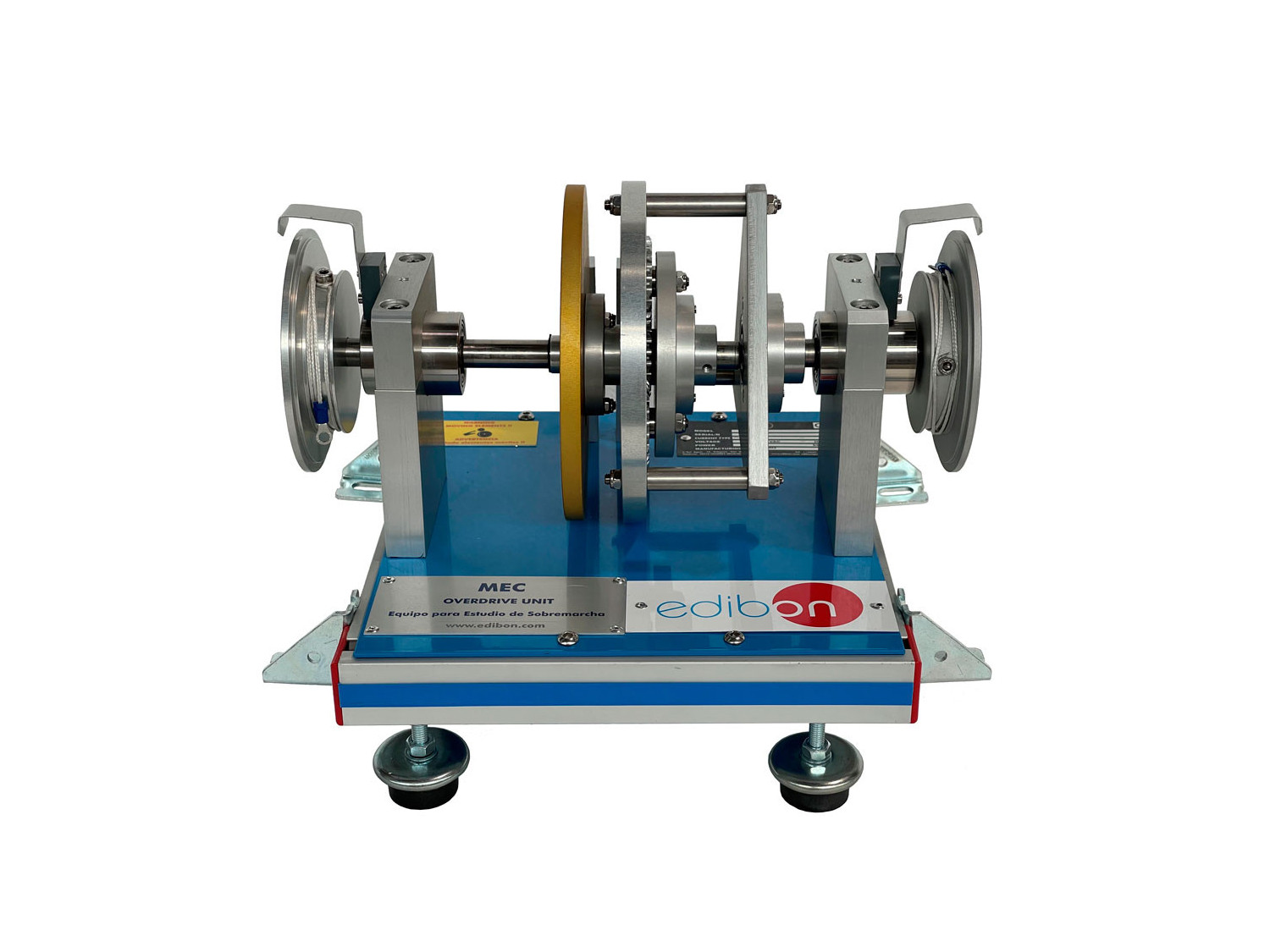

The Overdrive Unit, "MEC", includes a set of epicyclical gears that represent an application of a simple epicyclic arrangement of the type used in a motor vehicle overdrive.

Simple epicyclic set consists of:

  • Sun gear that rotates together with the input shaft.
  • Planet gears whose carrier can rotate.
  • Ring gear that rotates together with the output shaft.

In the "MEC" unit the power reaches the epicyclic gear through the central sun gear, that is to say, the input shaft is joined to the central sun pinion and the output power is obtained at the output shaft because it is joined to the ring.

This unit allows the student to study the reduction ratios of overdrive, as well as torque conversion.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. To study the overdrive speed.
  2. To demonstrate the operation of an epicyclic gears system to obtain the overdrive speed.
  3. To determine the angular displacement at the input and output and to compare it with the overdrive reduction ratio calculated.
  4. To determine the minimum effort required at the input to raise a load at the output in an overdrive reduction ratio.
  5. Power transmission: checking the ratio between input torque and output torque for an overdrive reduction ratio.
