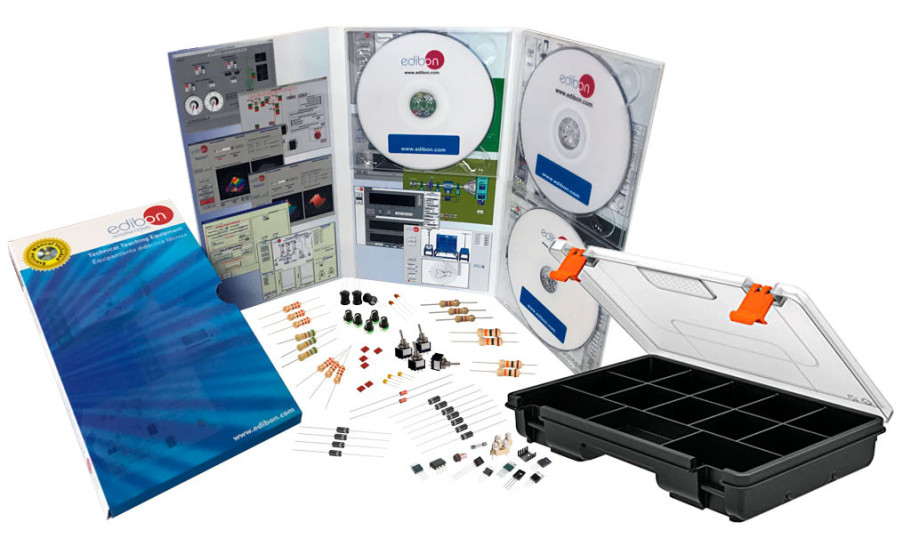

M5/KIT Power Supplies Kit

2.2.- KITS FOR CIRCUITS ASSEMBLY

INNOVATIVE SYSTEMS

With the Power Supplies Kit "M5/KIT", designed by EDIBON, symmetrical voltage regulators, operation of fixed, symmetrical and switched-mode power supplies as well as rectification (conversion of an AC voltage to a DC voltage) can be studied.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

Laboratories

2TV

Technical and Vocational Education Electronics Laboratory

General Description

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

Rectification:

Rectification.
Bridge rectifier.
Theoretical/practical exercises.

Fixed voltage sources:

Power supply with the Zener diode.
Stabilization through Zener and Transistor.
Faults study in "Stabilization through Zener and Transistor".
Protection against overcurrents.
Protection against overvoltages.
Faults study of "Protection against overcurrents".
Theoretical/practical exercises.

Symmetrical voltage power sources:

Symmetrical source: 78XX regulator.
Symmetrical source: 79XX regulator.
Theoretical/practical exercises.

Voltage regulators with integrated circuits:

Adjustable regulator: LM317.
Faults study in adjustable LM317 regulator.
Adjustable L200 regulator.
Faults study in adjustable L200 regulator.
Theoretical/practical exercises.

Introduction to switched power supplies:

Switching technique.
Switching technique. PWM.
Switching technique. Boost.
Theoretical/practical exercises.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

Voltage Feedback.
DC-DC converter.
Several other exercises can be done and designed by the user.
