PROTECTION RELAYS APPLICATION - ERP

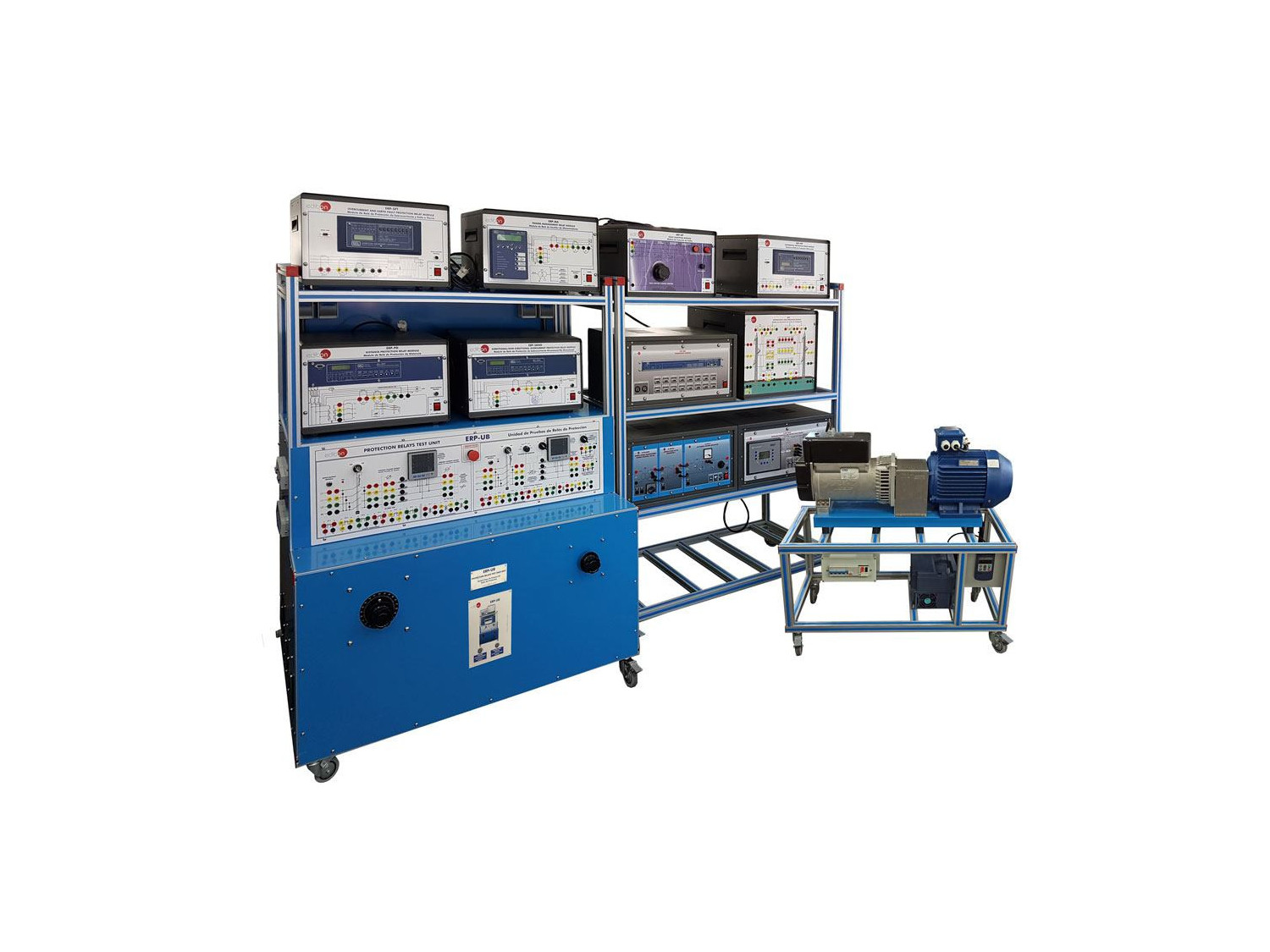

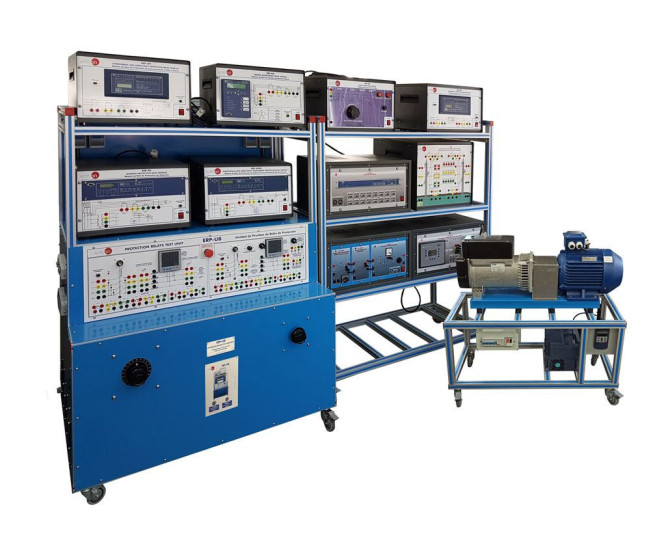

Configuration example of Protection Relays Test Base Unit, “ERP-UB”, with required and recommended elements

INNOVATIVE SYSTEMS

The Protection Relays Test Aplication, "ERP", is one of the most advanced and safe equipment in the market for studying the operation of protection relays used in real electrical substations.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
