FME21 Radial Flow Turbine

8.1.7.- HYDRAULIC MACHINES: TURBINES
RADIAL FLOW TURBINE - FME21

Complete FME21 Unit

RADIAL FLOW TURBINE - FME21

FME21 Unit with service unit FME00

RADIAL FLOW TURBINE - FME21
RADIAL FLOW TURBINE - FME21

INNOVATIVE SYSTEMS

The Radial Flow Turbine unit, "FME21", designed by EDIBON, allows the study of a turbomachine, specifically radial turbines capable of handling slower flow levels than other turbine models.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

8TV
 Technical and Vocational Education Fluid Mechanics Laboratory
8HE
 Higher Education Fluid Mechanics Laboratory
11PTC
 Petroleum Training Center Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Read more

General Description

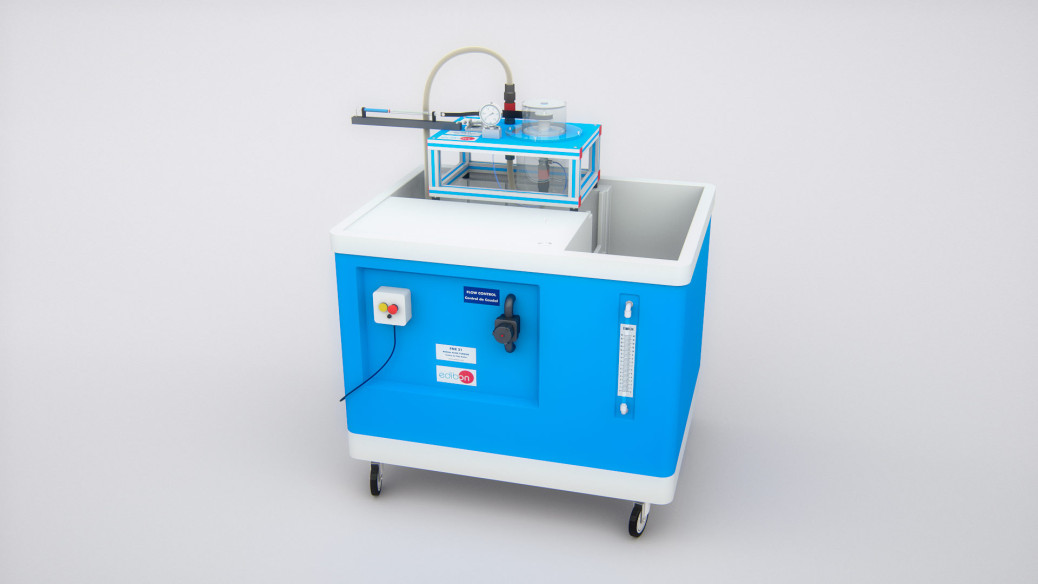

The Radial Flow Turbine unit, "FME21", designed by EDIBON, allows the study of a turbomachine, specifically radial turbines capable of handling slower flow levels than other turbine models.

This unit consist of a miniature Radial Turbine with two nozzles at 180° with respect to the perpendicular direction at the rotating axis. A Bourdon type manometer is placed at the inlet nozzle.

A band brake connected to a dynamometer allows to control the load given to the turbine.

A tachometer determines the velocity measurement.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Flow calculation.
  2. Obtaining of the M (n, Ha), N(n, Ha), h (n, Ha) curves.
  3. Obtaining of the M (n, Q), Nm (n, Q), h (n, Q) curves.
  4. Adimensionalization.

REQUIRED ELEMENTS

SIMILAR UNITS AVAILABLE

COMPUTER CONTROLLED RADIAL FLOW TURBINE - TFRC
  • TFRC
Available
