FME12 Series/Parallel Pumps

8.1.6.- HYDRAULIC MACHINES: PUMPS
SERIES/PARALLEL PUMPS - FME12

INNOVATIVE SYSTEMS

The Series/Parallel Pumps unit, "FME12", designed by EDIBON, allows the study of the coupling between two series/parallel centrifugal pumps, obtaining the characteristic curves as well as the calculation of the water flow rate.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

8TV
 Technical and Vocational Education Fluid Mechanics Laboratory
8HE
 Higher Education Fluid Mechanics Laboratory
11PTC
 Petroleum Training Center Laboratory

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
We want to present our new installation in the Faculté des Sciences at the Université d’Etat d’Haiti, specifically in the Fluid Mechanics Department. There, we have installed many of our equipment, among which are: AFT, CF80/5 (with CFAS, CFFS, CFPLR, CFPR, CFRM, CFSDL, CFTP, CFTS, CFVD, CFVEN,...
Read more
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Read more

General Description

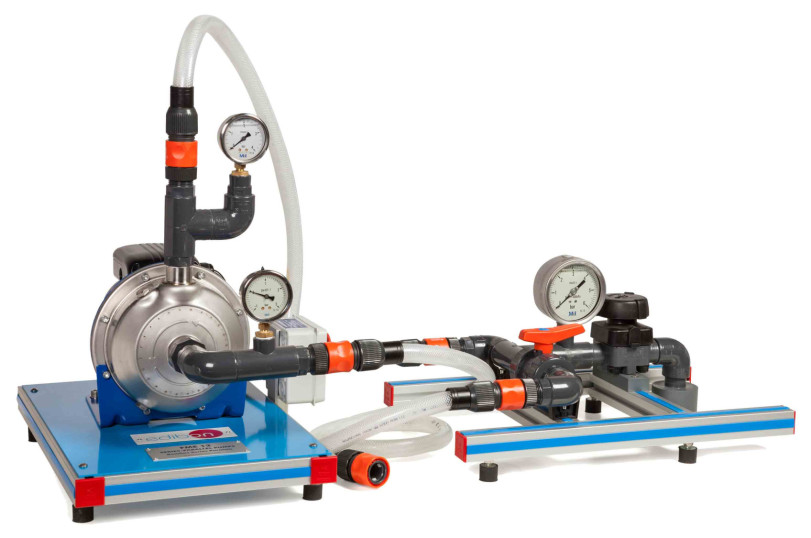

The Series/Parallel Pumps unit, "FME12", designed by EDIBON, allows the study of the coupling between two series/parallel centrifugal pumps, obtaining the characteristic curves as well as the calculation of the water flow rate.
