MEGE Strain Gauge Training Unit

7.3.1.- PHOTOELASTICITY AND STRAIN MEASUREMENT 14.1.7.- PHOTOELASTICITY AND STRAIN MEASUREMENT
STRAIN GAUGE TRAINING UNIT - MEGE

INNOVATIVE SYSTEMS

The Strain Gauge Training Unit, "MEGE", designed by EDIBON, studies the strain gauges and their application in the measurement of strain.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Read more
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Read more

General Description

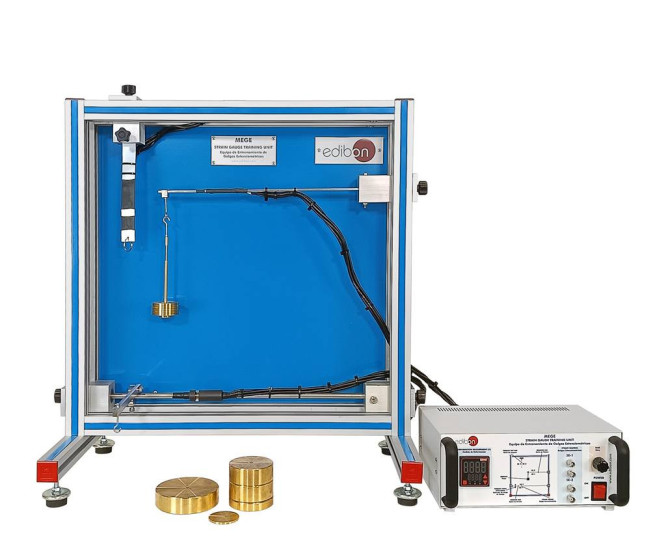

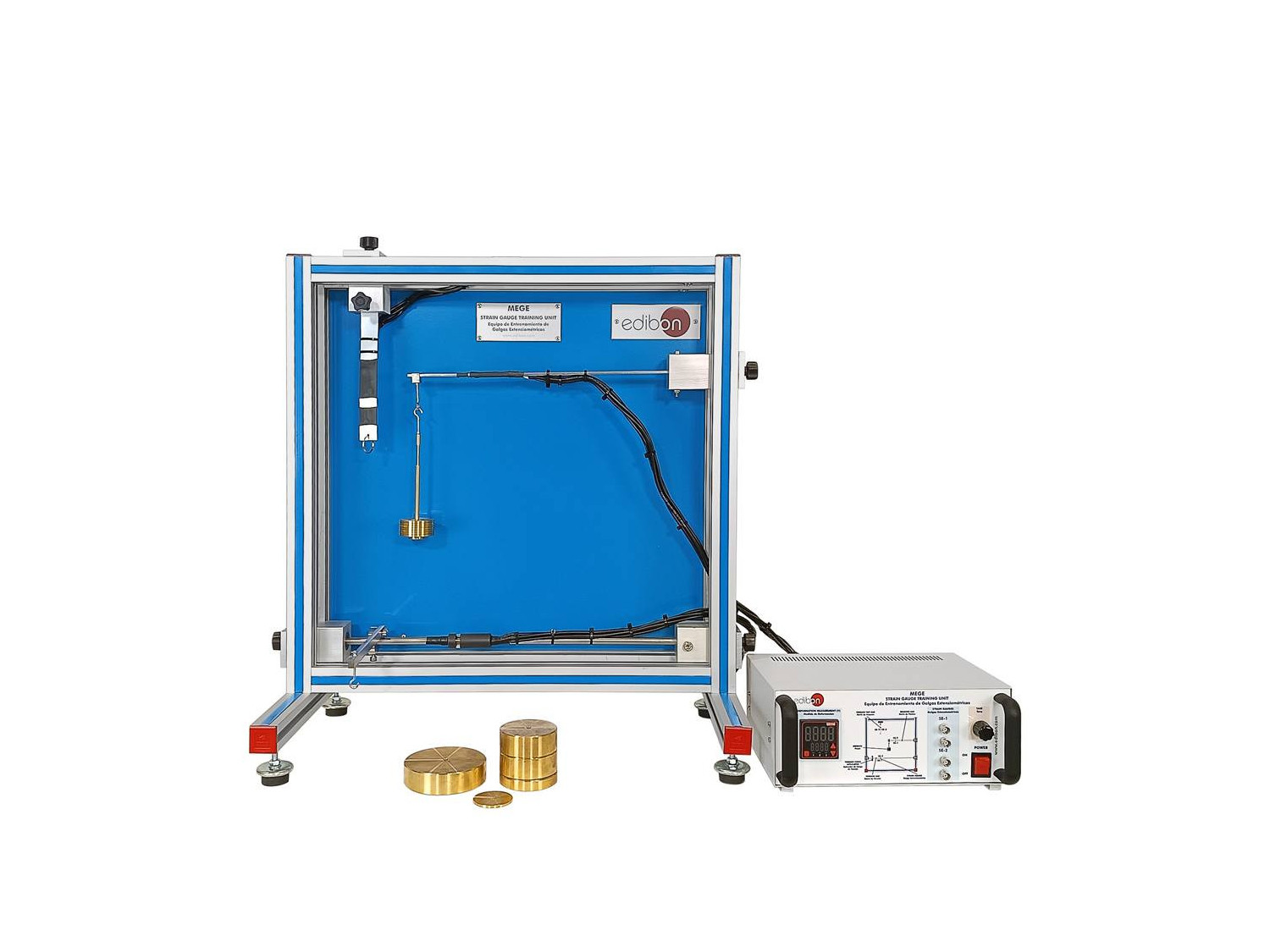

The Strain Gauge Training Unit, "MEGE", provides an introduction to the fundamentals of measurement with strain gauges, to compare how resistance strain gauges work and how they measure strains in different structures (torsion, tension and bending systems).

The unit consists of a frame, which allows to place several measuring specimens quickly and precisely.

Three test specimens (bars) for torsion, tension and bending are each fitted with four strain gauge measuring points. The bars are loaded incrementally, allowing for the strain reading to be monitored.

The strain gauges are inside a transparent cover that protects them and make them clearly visible for the visualization of the process.

The unit includes a set of weights, two weight holders to give each specimen (bar) a range of stress, and a console with an amplifier and a digital display to show all readings.

Three additional tension bars are available as accessories, made of aluminum, copper and brass, to determine the elasticity modulus (Poisson's ratio and Young's modulus) in the exercises.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Introduction to the fundamentals of measuring with strain gauges.
  2. Study of the strain gauges and application techniques.
  3. Study of the strain and stress in a torsion system.
  4. Study of the strain and stress in a tension system and the elasticity modulus (Poisson's ratio and Young's modulus).
  5. Study of the strain and stress in a bending system.
  6. Calculation of the mechanical deformations under torsion, tension and bending.
  7. Study of the correlation between mechanical strain and electrical resistance in a strain gauge.
  8. Study of the tensile strain and stress in different materials and comparison of the elasticity modulus (Poisson's ratio and Young's modulus) (additional recommended elements: "MEGE-A1", "MEGE-A2" and "MEGE-A3" are required).
  9. Comparison of different strain measurement systems and how they could measure force.
