N-EM-RT Temperature Regulation

6.2.2.2.- FLOW AND LEVEL CONTROL

INNOVATIVE SYSTEMS

"N-EM-RT" represents the temperature regulation system of a house, which allows to control the temperature using a heater element inside a tank and temperature sensors.

See general description

Catalog

Tender Specifications

Expansions

ICAI

Interactive Computer Aided Instruction Software

General Description

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

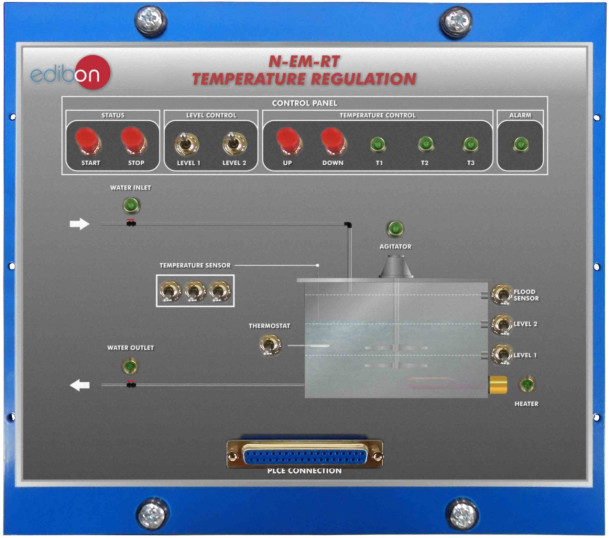

"N-EM-RT" represents the temperature regulation system of a house, which allows to control the temperature using a heater element inside a tank and temperature sensors. The different switches emulate the state of the thermostat, the level sensors, the temperature sensor, etc.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.
