MTB Torsion Unit

7.3.2.1.- MECHANICAL TEST 14.1.8.- MECHANICAL TESTS
TORSION UNIT - MTB

INNOVATIVE SYSTEMS

The Torsion Unit, "MTB", allows to verify the basis of torsion and to perform practical exercises to demonstrate: circular rods elastic torsion equation and the rigidity modulus of different materials.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

Laboratories

7TV
 Mechanical, Automotive and Materials Laboratory for Technical and Vocational Education
7HE
 Mechanics, Automotive and Materials Laboratory for Higher Education

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Read more
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Read more

General Description

The Torsion Unit, "MTB", allows to verify the basis of torsion and to perform practical exercises to demonstrate:

  • Circular rods elastic torsion equation.
  • The rigidity modulus of different materials.

To perform the tests a metallic rod is fastened by clamps and subjected to the testing force. Force is gradually applied on the rod to observe the elastic tension generated. The force moment or torque is applied by a dynamometer with a lever. Deformation generated by the torsional stress is obtained by reading a dial gauge in contact with the arm. The torsional deformation angle is obtained by a simple trigonometric identity, providing the unit with important didactic characteristics.

Steel, brass and aluminum rods are supplied to perform the practical exercises. Additionally, rods made of other materials can be employed.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Verification of the elastic torsion equation of circular rods.
  2. Experimental determination of the relationship between the torsion moment and the shaft angular determination.
  3. Experimental determination of the relationship between the test rod length and the shaft turn angle for a same torsional force.
  4. Experimental determination of the calue of the Modulus of Rigidity for steel, brass and aliminum.

SIMILAR UNITS AVAILABLE

TORSION AND BEND UNIT - MTP
  • MTP
Available
7.3.2.1.- MECHANICAL TEST
MTP
Torsion and Bend Unit
The Torsion and Bend Unit, "MTP", is a combined apparatus for the demonstration of both torsion and bend to be used in the laboratory or as a complement of the theoretical study about torsion and bend. Its size and weight facilitate its transport...
View Unit

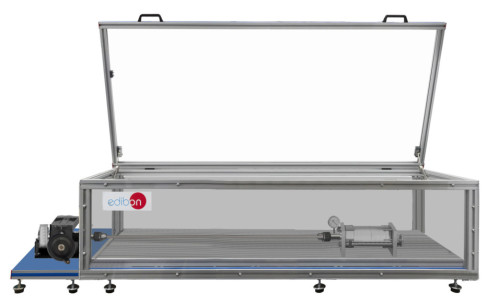

TORSION TEST UNIT (30NM) - MTT
