11.2.- CHEMICAL REACTORS

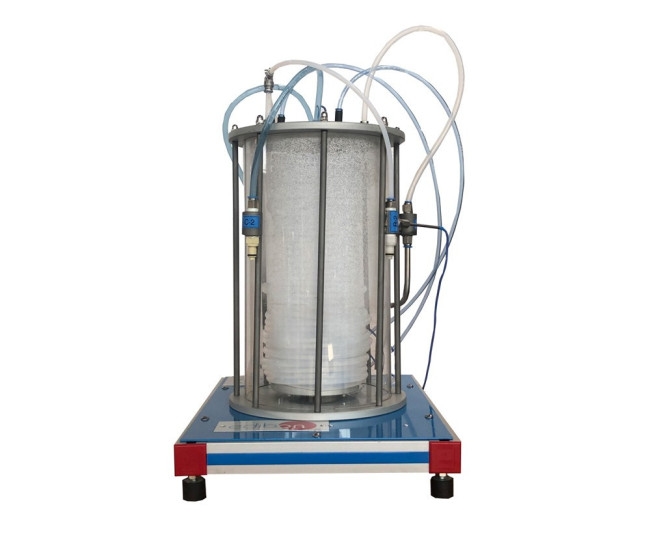

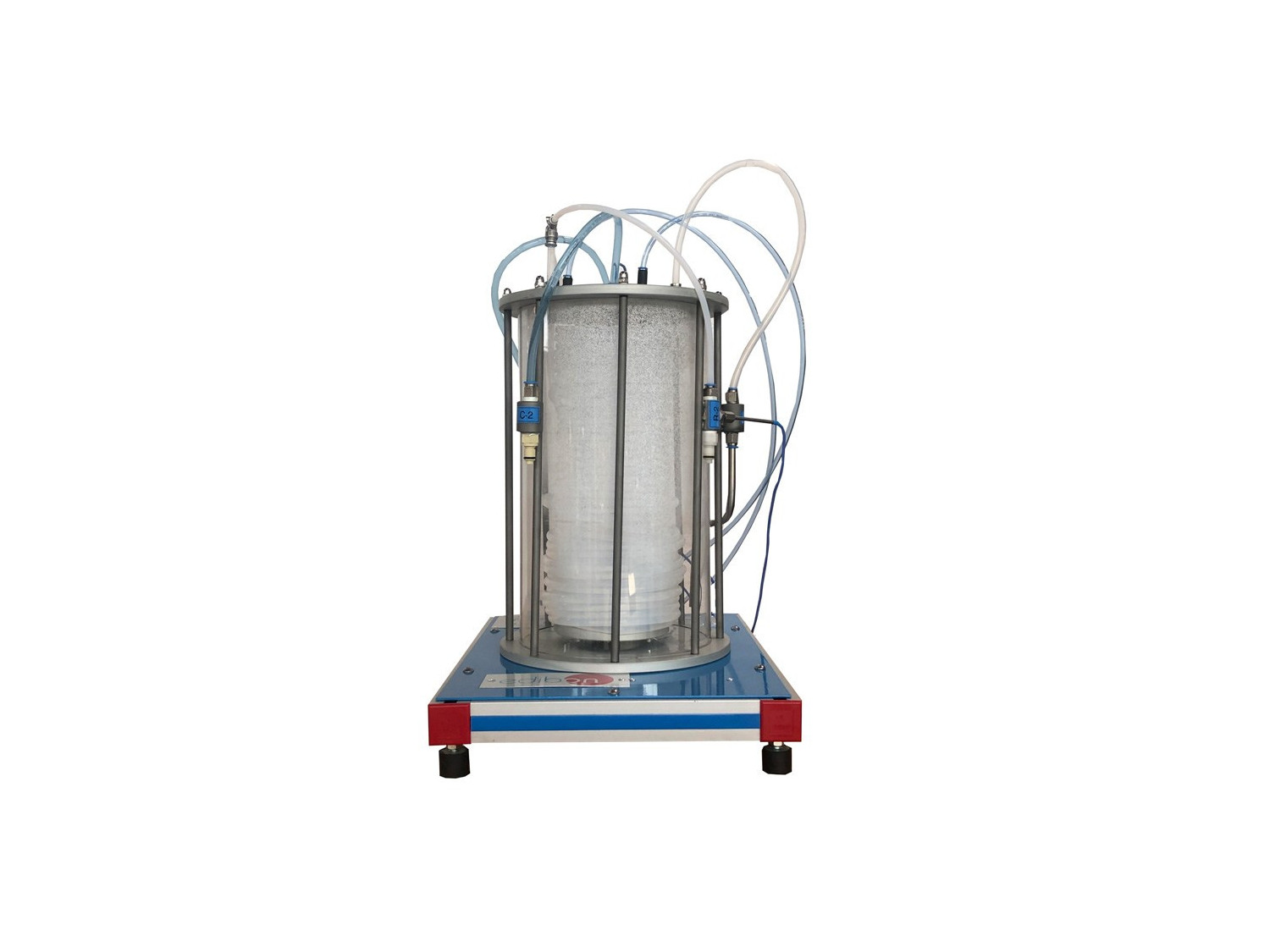

TUBULAR FLOW REACTOR FOR QR - QRT

INNOVATIVE SYSTEMS

The Tubular Flow Reactor for QR, "QRT", has been designed by EDIBON to conduct the kinetic study of homogeneous liquid-liquid reactions. In this unit, a continuous stream of reactants is passed through, which mix and react as they flow through the unit.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software

RELATED NEWS

Setting up at Institut Teknologi Sepuluh Nopember
Setting up at Institut Teknologi Sepuluh Nopember
Today, we would like to share with you the latest installation we have completed at the Chemical Engineering Department of Institut Teknologi Sepuluh Nopember in Indonesia.
Read more
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Read more

General Description

The Tubular Flow Reactor for QR, "QRT", has been designed by EDIBON to conduct the kinetic study of homogeneous liquid-liquid reactions.

In this unit, a continuous stream of reactants is passed through, which mix and react as they flow through the unit.

This unit allows for a wide range of practices, including determining kinetic equations, calculating constants, and comparing theoretical and experimental values of reactor conversion. Additionally, it enables the study of residence time effects and mixing effects on chemical reactions.

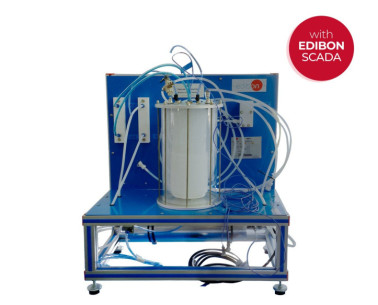

To work with this reactor, the Base and Service Unit, "QUS", is required, which supplies the necessary reagents and thermostatic water for proper operation.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Analysis of reagents and products.
  2. Ionic conductivities determination.
  3. Theoretical conversion of the tubular reactor.
  4. Experimental determination of the conversion of the tubular reactor.
  5. Dependence of the residence time.
  6. Determination of the reaction order.
  7. Dependence of the speed constant and the conversion with the temperature.
  8. Conductivity measurement system: conductimeter.
  9. Complete emptying of the unit.
  10. Determination of the reaction rate constant.
