UNIT TO STUDY A SHAFT WITH JOURNAL BEARINGS ASSEMBLY - SJBA

INNOVATIVE SYSTEMS

The Unit to Study a Shaft with Journal Bearings Assembly, "SJBA", enables the study of practical assembly and disassembly, maintenance and repair tasks of a simple slide bearing, so that the student will know perfectly both the unit operation and all of its components.

See general description

Expansions

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

RELATED NEWS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Read more

General Description

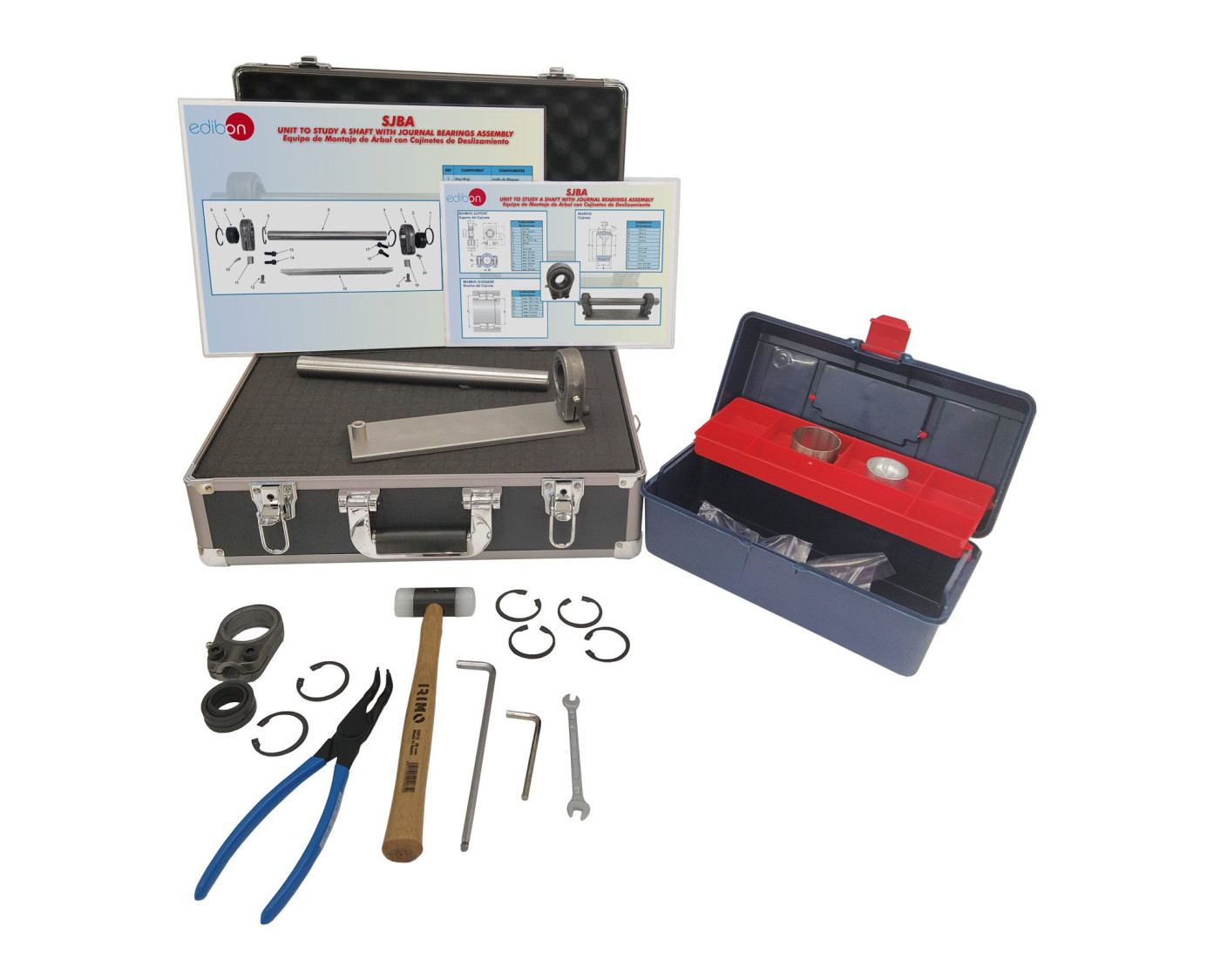

The Unit to Study a Shaft with Journal Bearings Assembly, "SJBA", unit consists of two shaft bearings at the ends and a ground steel shaft. The slide bearing consists of two parts, the bearing itself, which is the part of the assembly that is in contact with the shaft, and the support that surrounds it.

The study of bearings is intimately linked to the study of the lubricant film that is placed between the moving parts. An easy construction of the bearings is possible thanks to the lubrication. This lubrication can be provided, for example, by a grease that is supplied to the bearing through the Stauffer bushing that is screwed into a lubrication channel.

The Unit to Study a Shaft with Journal Bearings Assembly, "SJBA", unit is a mechanism with two bearings and a dismountable ground steel shaft, with which dimensional and exploded drawings are enclosed for identification of its parts. In addition, the necessary tools and a series of instructions for the correct assembly and disassembly of the unit are supplied.

A case is provided to facilitate transportation and to ensure the protection of components needed.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Study of the operation of a simple slide bearing.
  2. Analysis of the structure of a simple slide bearing.
  3. Study and understanding of the sealing components.
  4. Study and analysis of the principles and different types of lubrication.
  5. Study and performance of assembly and disassembly exercises, as well as repair and maintenance.
  6. Reading comprehension of technical drawings and instruction manuals.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Study and analysis of the sliding qualities of the slide bearing (requires ADSG).
