General Description

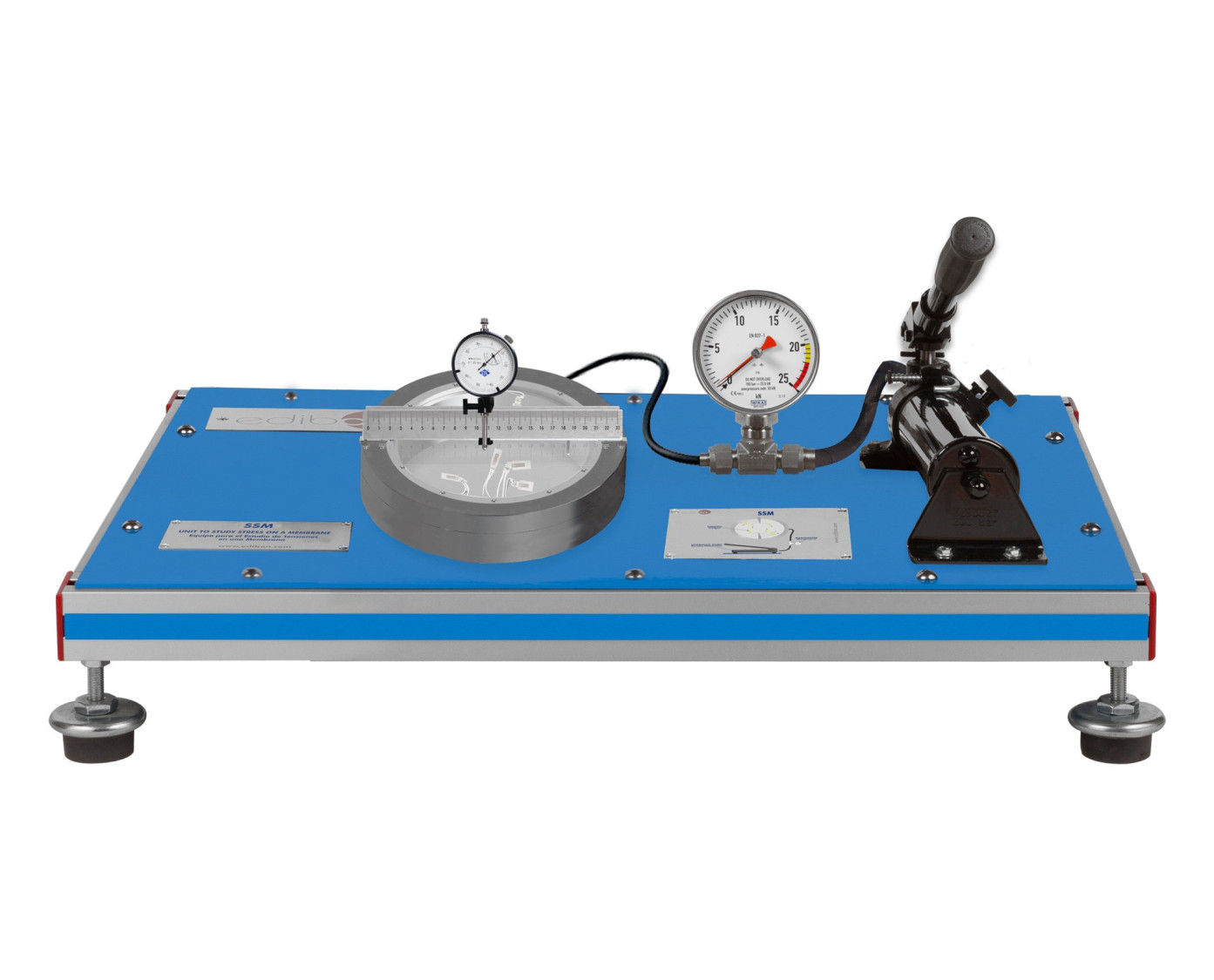

The Unit to Study Stress on a Membrane, "SSM", designed by EDIBON, allows the study of stresses and deformations in a thin disc or membrane subjected to different compressive stresses.

The main element of the equipment is a thin disc or membrane that is subjected to pressure and has eight strain gauges attached to its surface that allow the recording of the deformations produced.

A hydraulic system generates the pressure by means of a cylinder and a piston, which is measured by means of a manometer.

In addition, it is also possible to measure the deflection produced in the disc or membrane by means of a dial gauge which can be moved along the entire length of the thin disc. Curvature can be measured at any radius.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Measurement of radial and shear stresses with strain gauges.
  2. Measurement of deflections with dial gauges.
  3. Calculation of radial and shear stresses from the measured deflections.
  4. Study of the direction of principal stress.
  5. Study of deformation
