UHHS Chauffage par le Sol et/ou Source de Chaleur pour Pompe à Chaleur

9.3.- POMPES À CHALEUR
UNDERFLOOR HEATING AND/OR HEAT SOURCE FOR HEAT PUMP - UHHS

SYSTEMES INNOVANTS

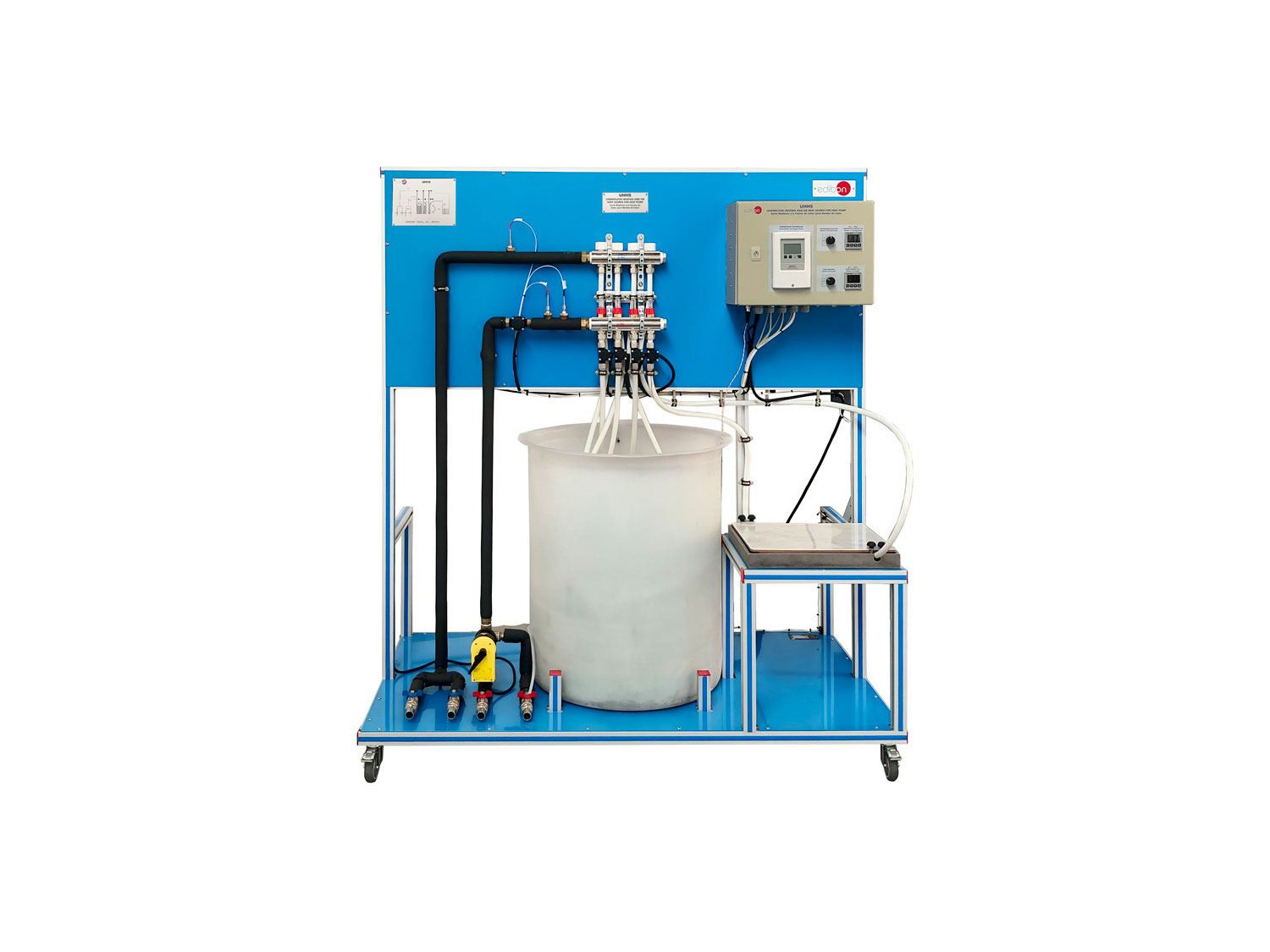

The Underfloor Heating and/or Heat Source for Heat Pump, "UHHS", designed by EDIBON, allows the visualization of a piping system that simulates a radiant floor heating system and its functions as a heat sink. It can also be used as a heat source working in conjunction with a heat pump.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

Description Générale

The Underfloor Heating and/or Heat Source for Heat Pump, "UHHS", designed by EDIBON, allows the visualization of a piping system that simulates a radiant floor heating system and its functions as a heat sink. It can also be used as a heat source working in conjunction with a heat pump.

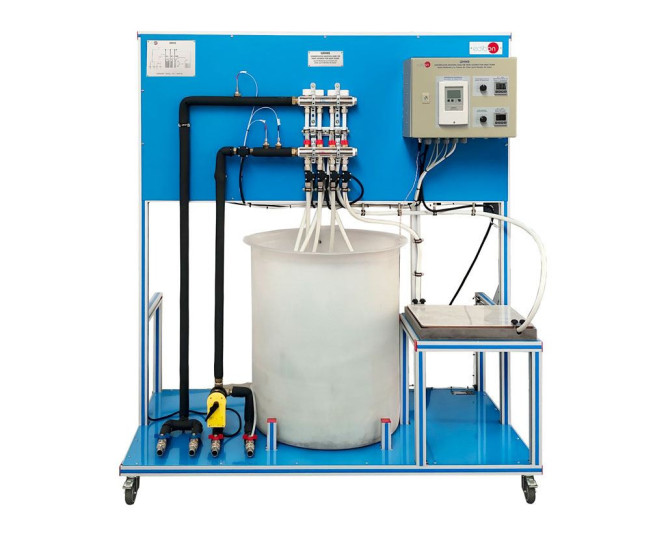

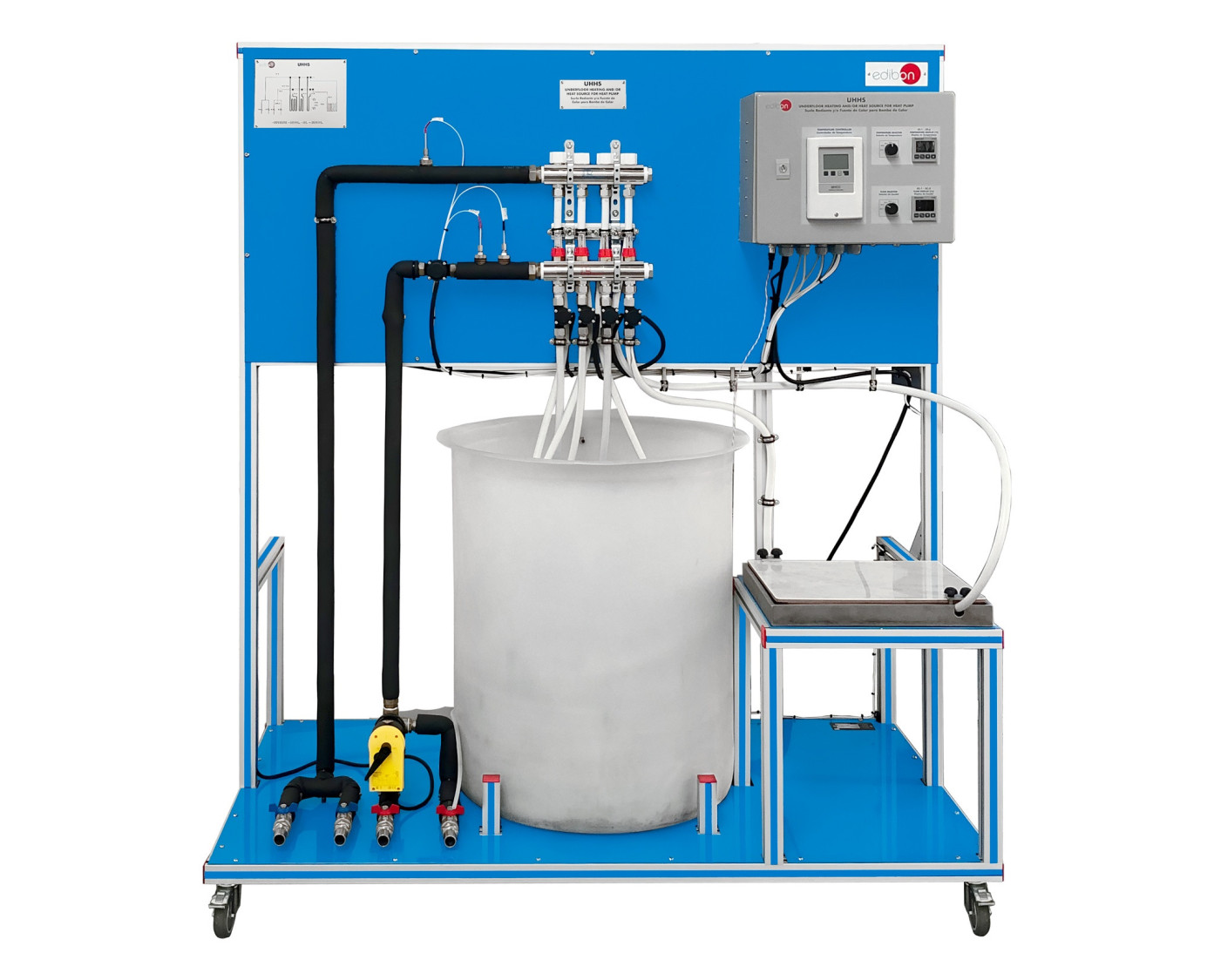

The Underfloor Heating and/or Heat Source for Heat Pump, "UHHS", consists of a tank inside which there is a system of three pipes of different lengths, allowing individualized work. It also includes two underfloor heating manifolds in the supply and return, in order to obtain several circuits starting from a single main circuit.

It has temperature sensors and a water flow sensor that allow the realization of energy balances.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of heat transfer in a radiant floor heating system.
  2. Realization of energy balances in combined heating systems.
  3. Use as a heat source to work with a heat pump.
