QCCC Colonne de Craquage, Contrôlée par Ordinateur (PC)

11.1.4.- DISTILLATION ET FISSURATION
COMPUTER CONTROLLED CRACKING COLUMN - QCCC

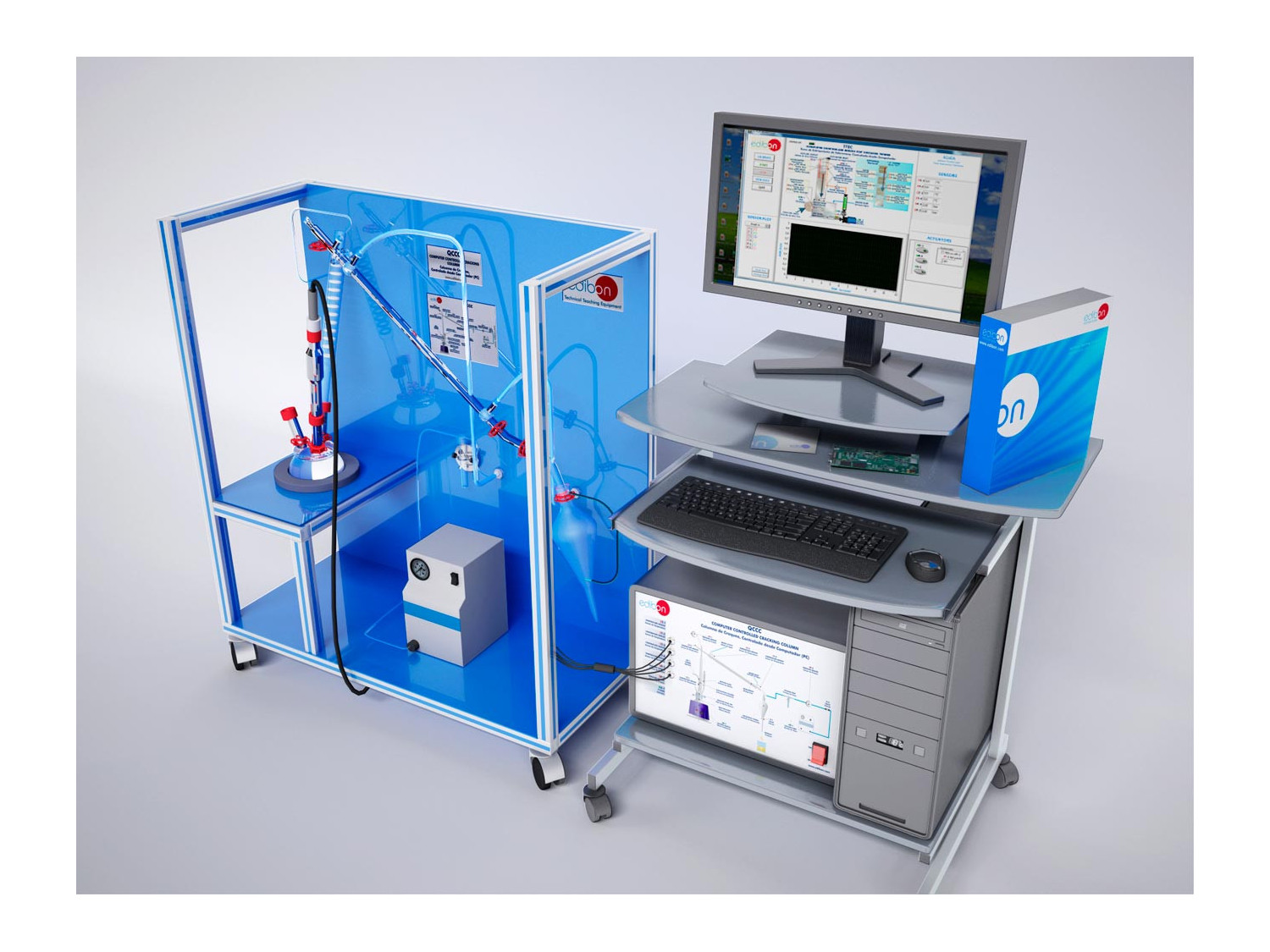

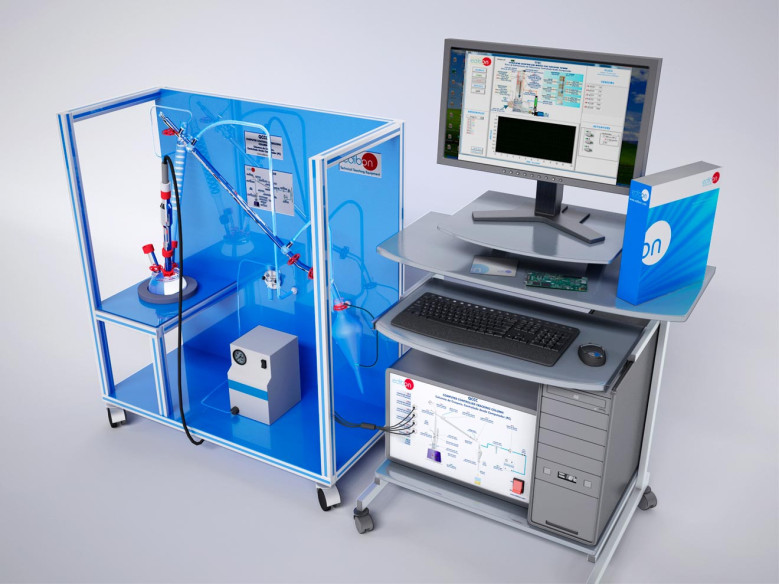

QCCC Unit. Computer Controlled Cracking Column

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

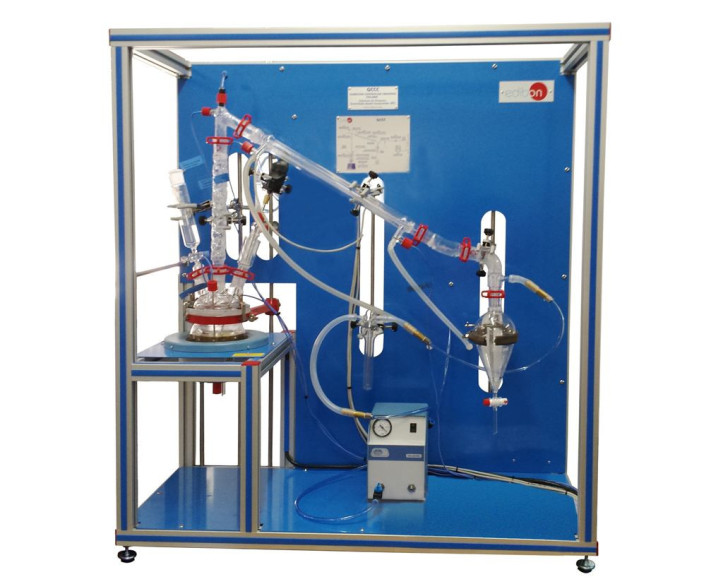

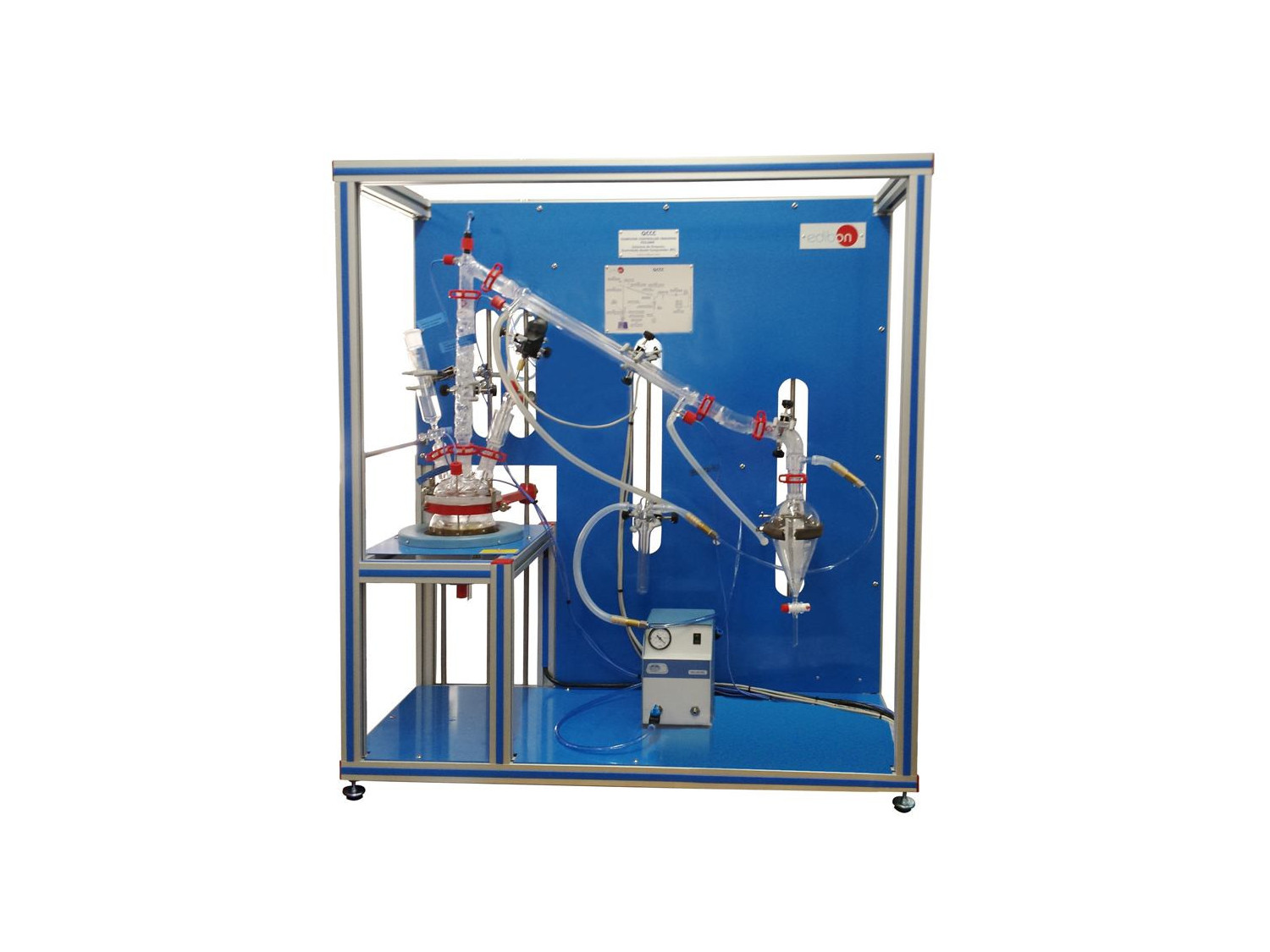

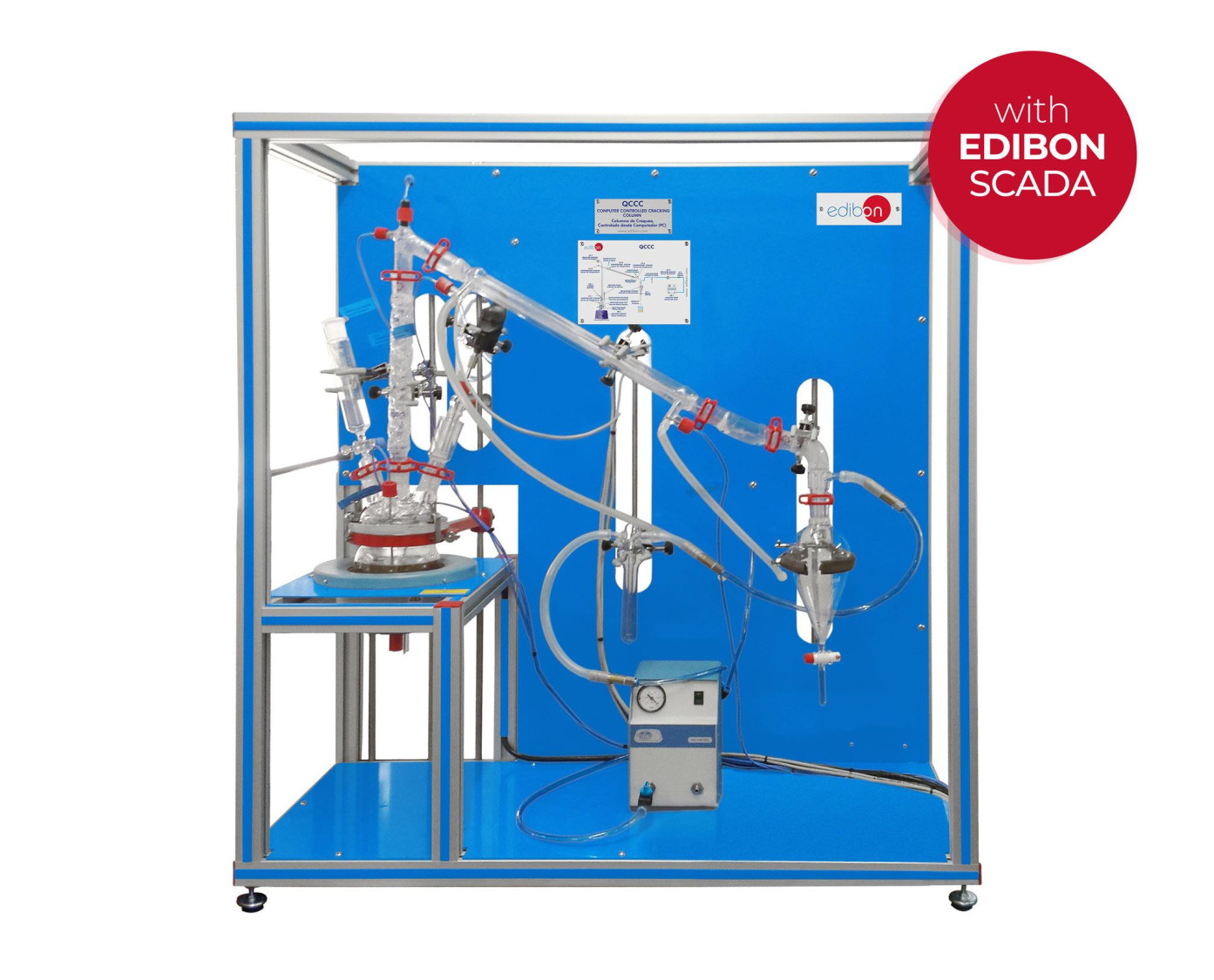

Complete QCCC Unit

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

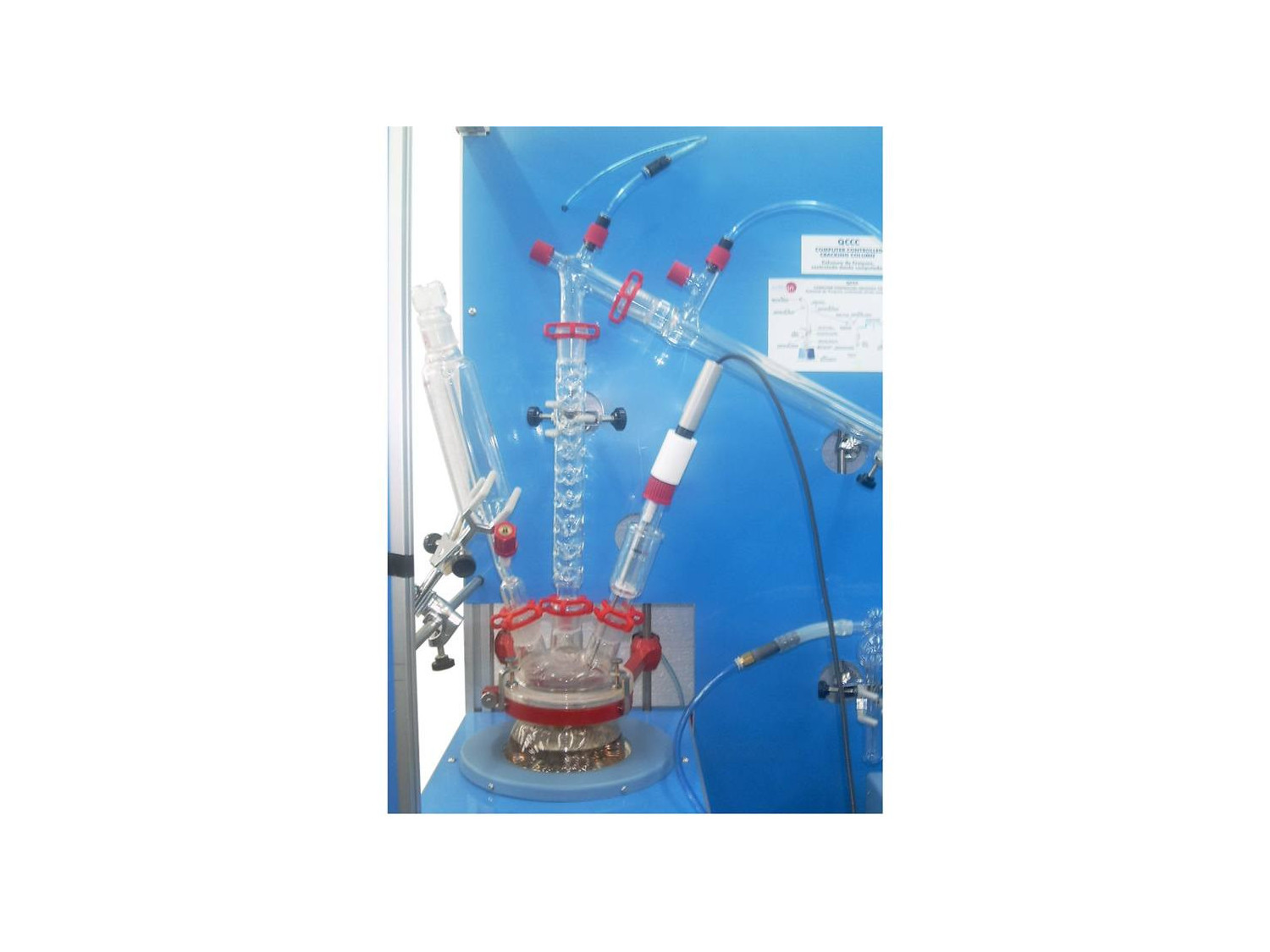

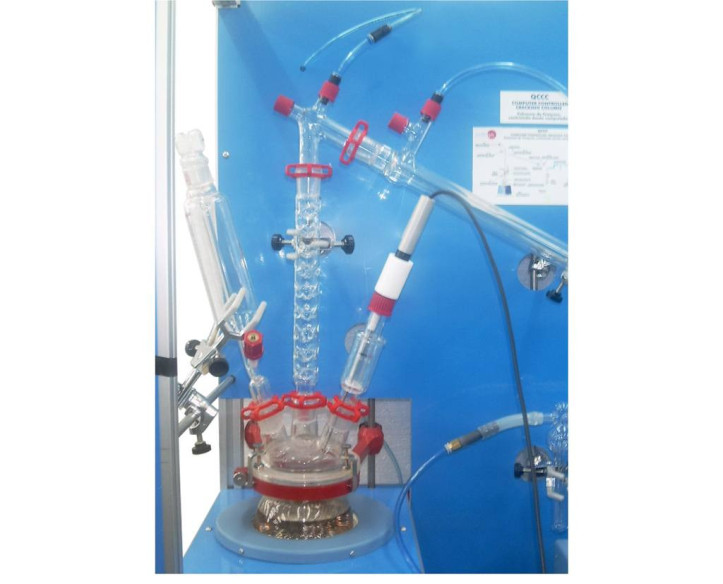

Unit details

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

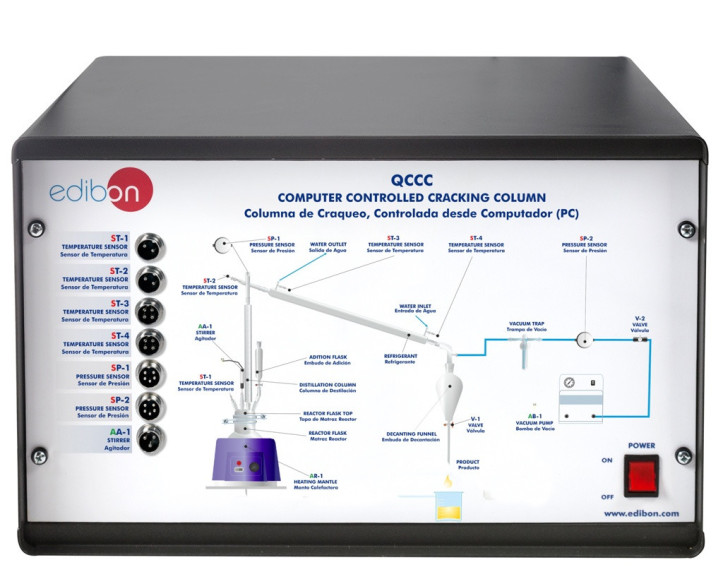

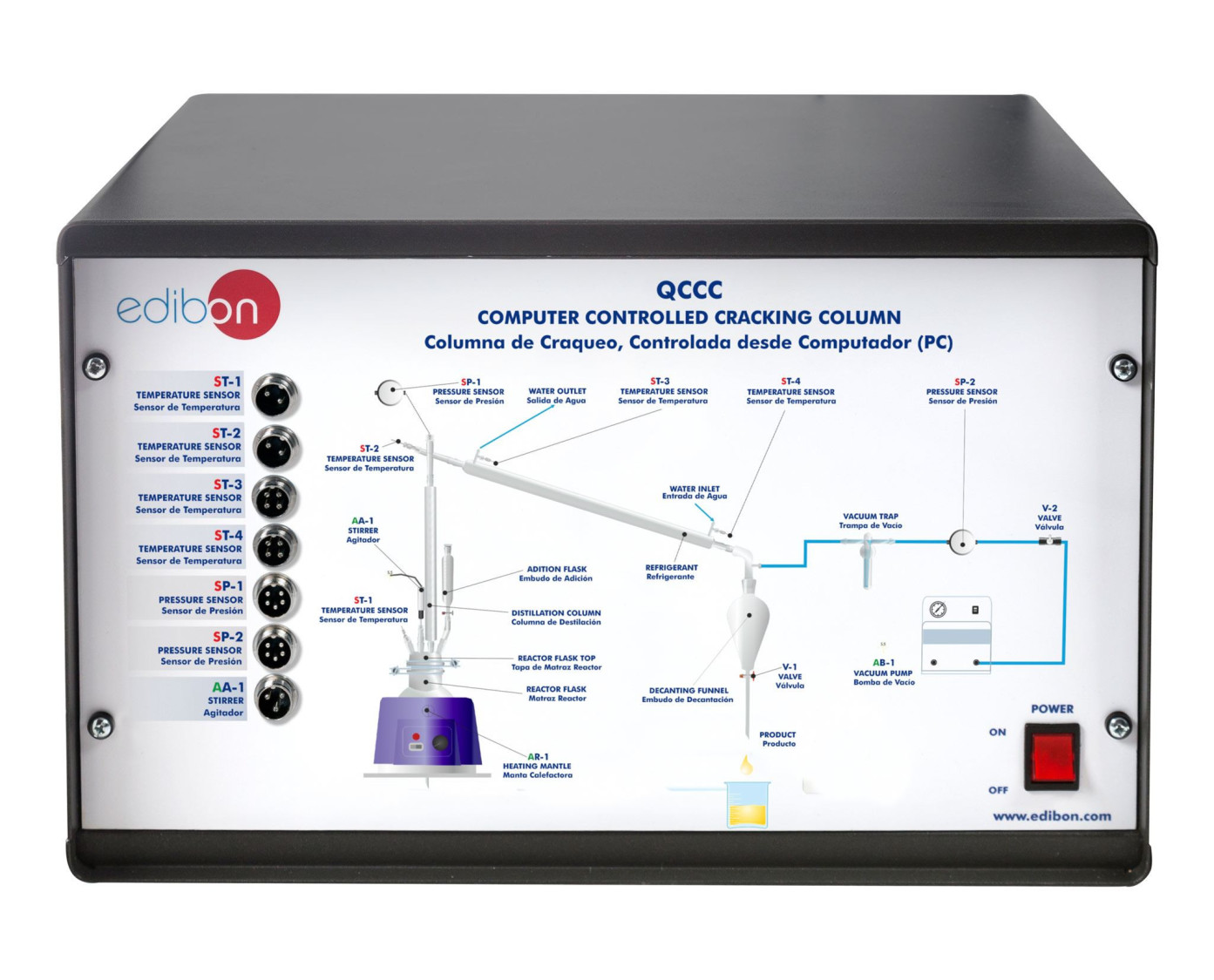

QCCC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

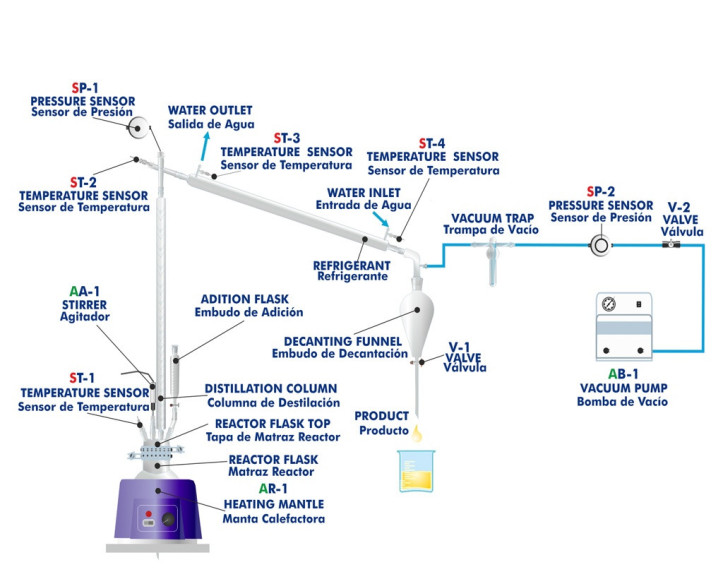

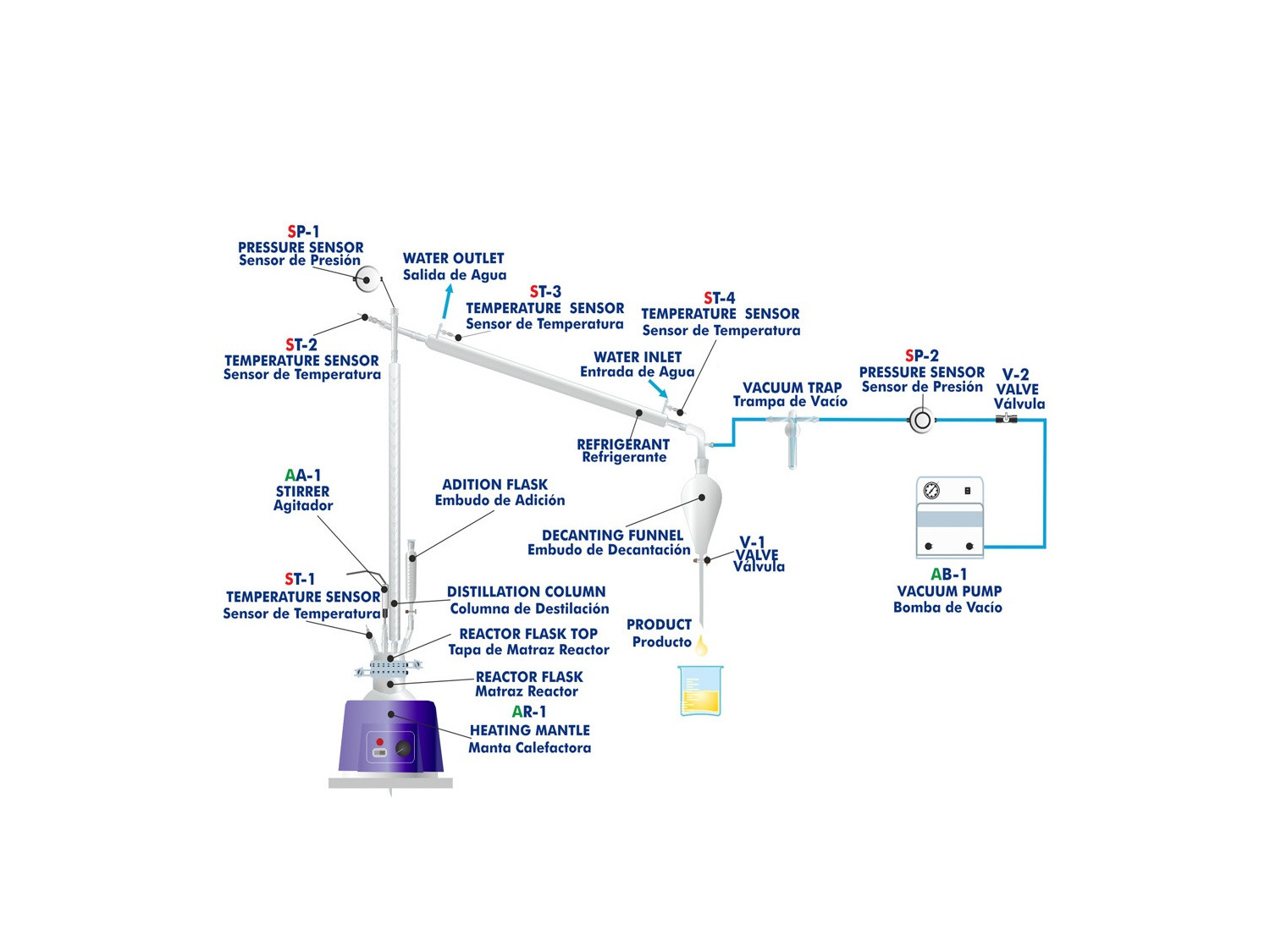

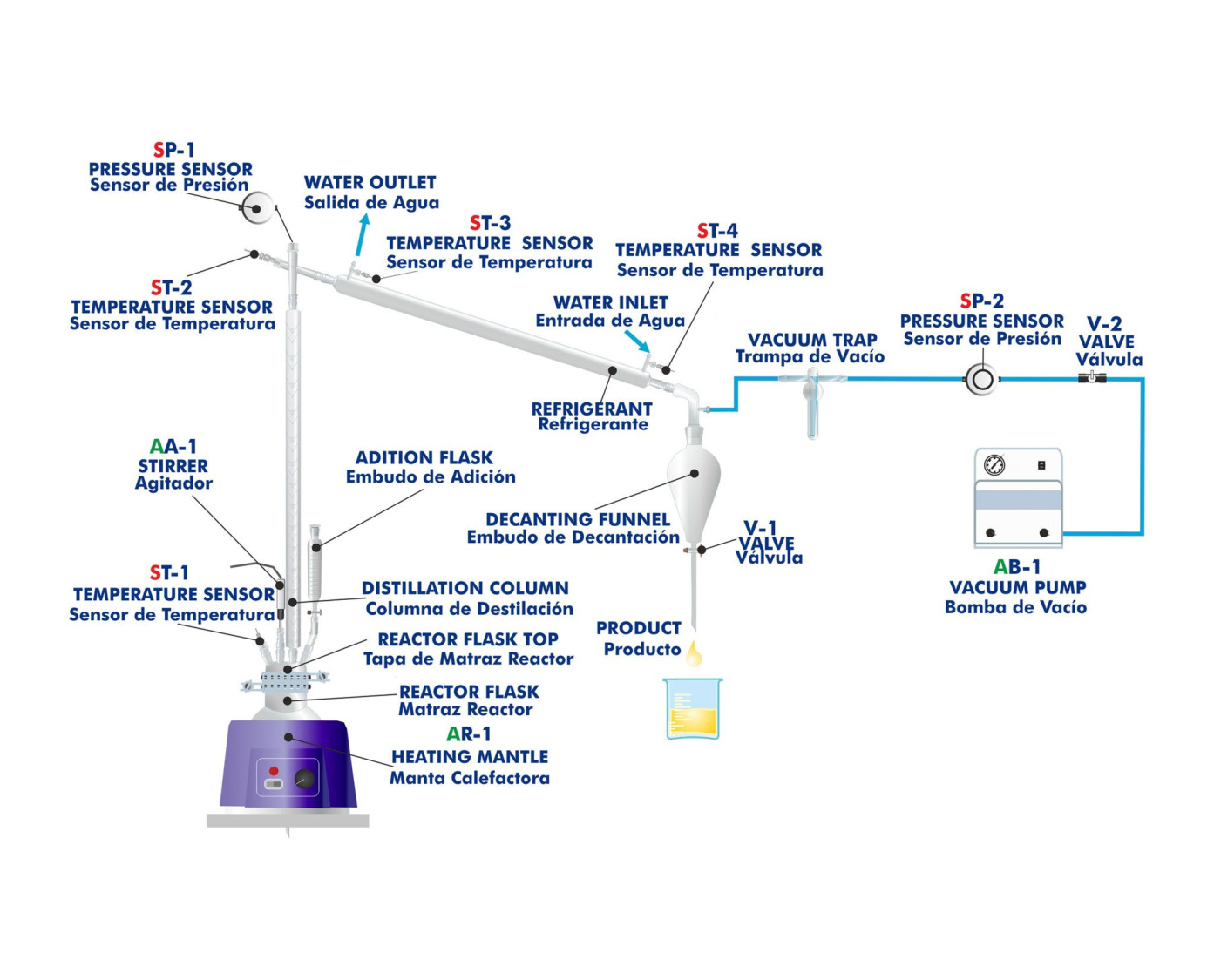

Process diagram and unit elements allocation

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

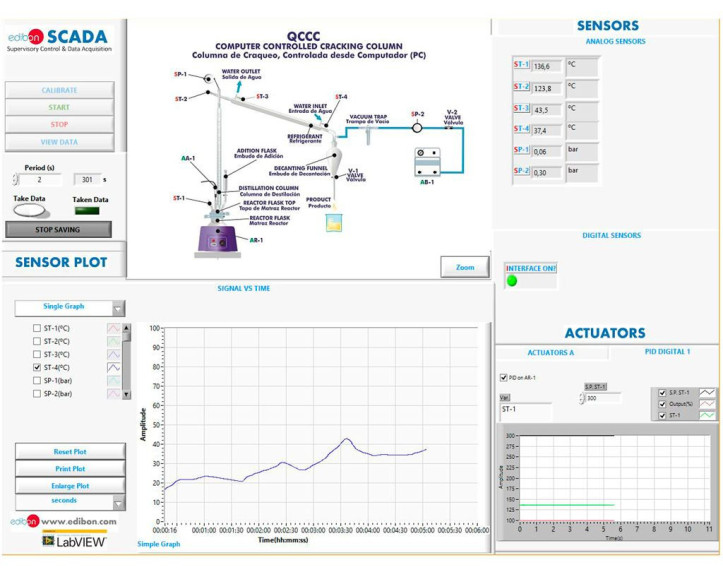

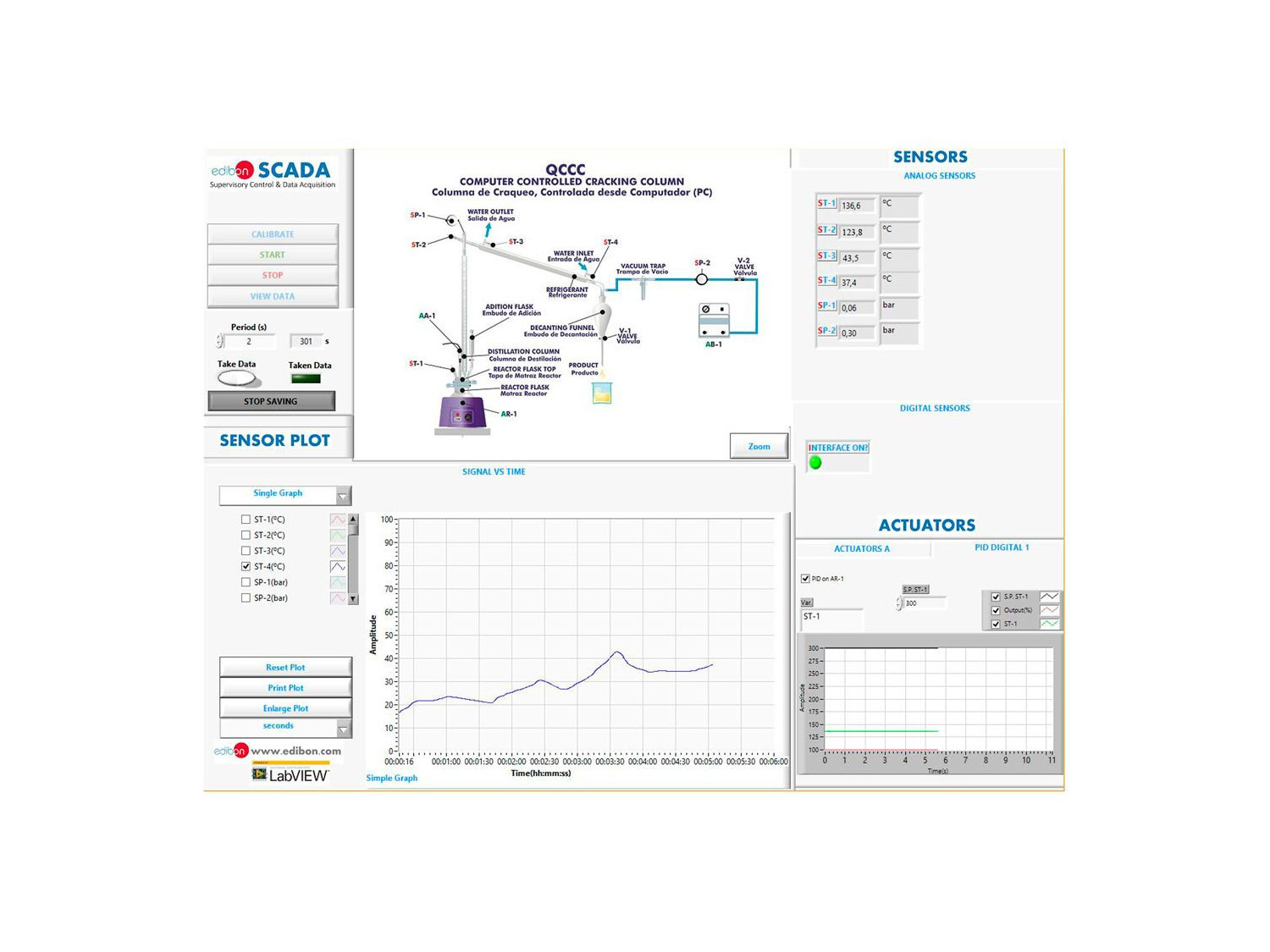

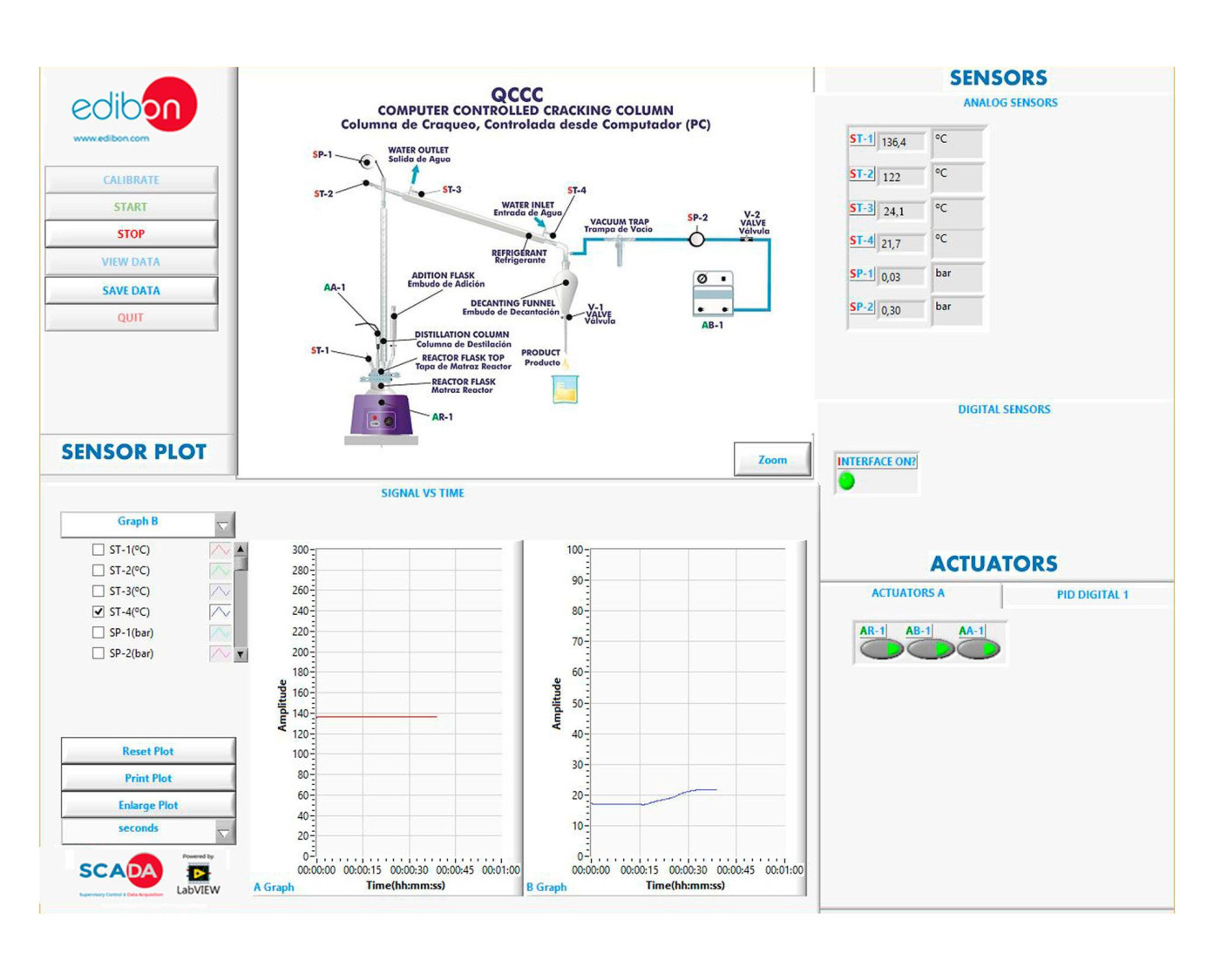

QCCC/SOF. QCCC Software. Main Screen

COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC

SYSTEMES INNOVANTS

The Computer Controlled Cracking Column, "QCCC", for cracking and distilling oil is a complete lab tool that allows to the students to carry out a cracking reaction, and the study and the control of different variables that condition it.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
FSS

Système de Simulation de Défauts
PLC

Contrôle des Processus Industriels par PLC
PLCHMI

IIoT Contrôle et surveillance local / à distance avec IHM
ELK

Kit de Développement Logiciel EDIBON, Optimisé par NI LabVIEW™
ECR

Système Modulaire Industriel EDIBON avec NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

Laboratories

11TV
 Laboratoire de Génie Chimique pour l'enseignement Technique et Professionnel
11HE
 Laboratoire de Génie Chimique pour l'enseignement Supérieur
11PTC
 Laboratoire pour le Centre de Formation Pétrolière

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
Biocarburants de seconde génération : L'avenir durable chez EDIBON
Biocarburants de seconde génération : L'avenir durable chez EDIBON
Dans un monde où la demande en énergie ne cesse d'augmenter et où les ressources non renouvelables s'épuisent rapidement, la nécessité de trouver des solutions durables et respectueuses de l'environnement n'a jamais été aussi urgente. L'économie circulaire et l'utilisation de la biomasse...
Lire plus

Description Générale

The Computer Controlled Cracking Column, "QCCC", for cracking and distilling oil is a complete lab tool that allows to the students to carry out a cracking reaction, and the study and the control of different variables that condition it. Also, the production cycle will be completed by means of a separation, purification and analysis of the obtained products in that cracking reaction.

This unit is controlled from a computer. That allows a register of temperature and pressure data and the control of the cracking and distillation processes. Control software is easy and intuitive.

It consists of a glass body, perfectly fixed to an aluminum structure, which allows its handling with complete security, and several systems that allow to control the reaction: stirring, cooling, emptying and heating.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Carry out cracking reactions.
  2. Influence of the temperature in the Ricinoleic Acid cracking reaction (gradual increment of temperature).
  3. Influence of the temperature in the Ricinoleic Acid cracking reaction (sudden increment of temperature).
  4. Influence of the pressure in the Ricinoleic Acid pyrolysis reaction (working pressure too low).
  5. Influence of pressure in the Ricinoleic Acid pyrolysis reaction (low working pressure).
  6. Work with different heating gradients, regulated through the computer.
  7. Work with different pressures, regulated through the computer.
  8. Pitch as a catalyst.
  9. Simple distillation.
  10. Separation in its components of the product mixture of cracking.
  11. Heptanal purification.
  12. Undecylenic acid purification.
  13. Application of samples on TLC plates.
  14. Thin layer chromatography plates analysis.
  15. Study of several parameters that influence the analysis by thin layer chromatography.
  16. Other simple practices as calibration of instruments, preparation of samples, etc.
  17. Sensors calibration.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Cleaning the system.
  2. Monogram of pressure.

Other possibilities to be done with this unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the QCCC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the QCCC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.

Qualité

Service après vente

Demander des informations
