COMPUTER CONTROLLED CONTACT PLATE FREEZER - TPCC

SYSTEMES INNOVANTS

The Computer Controlled Contact Plate Freezer, "TPCC", allow the student to freeze food products quickly by using an industrial freezing process.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
FSS

Système de Simulation de Défauts
PLC

Contrôle des Processus Industriels par PLC
PLCHMI

IIoT Contrôle et surveillance local / à distance avec IHM
ELK

Kit de Développement Logiciel EDIBON, Optimisé par NI LabVIEW™
ECR

Système Modulaire Industriel EDIBON avec NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

Laboratories

9TV
 Laboratoire de Thermodynamique et de Thermotechnique pour l'enseignement Technique et Professionnel
9HE
 Laboratoire de Thermodynamique et de Thermotechnique pour l'enseignement Supérieur
12TV
 Laboratoire de Technologie Alimentaire pour l'enseignement Technique et Professionnel
12HE
 Laboratoire de Technologie Alimentaire pour l'enseignement Supérieur

NOUVELLES LIÉES

La thermodynamique et la thermotechnique : Concepts clés et contribution d’EDIBON
La thermodynamique et la thermotechnique : Concepts clés et contribution d’EDIBON
La thermodynamique et la thermotechnique sont des domaines fondamentaux de l’ingénierie qui jouent un rôle crucial dans de nombreuses industries, de la production d’énergie à la climatisation. Comprendre leurs concepts de base est non seulement essentiel pour les ingénieurs, mais fournit...
Lire plus
EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
Performance des réfrigérateurs à absorption par diffusion avec une puissance d'entrée variable
Performance des réfrigérateurs à absorption par diffusion avec une puissance d'entrée variable
Nous sommes ravis de célébrer la publication de l'article du Prof. Dr. Nina Penkova intitulé 'Performance des réfrigérateurs à absorption par diffusion avec une puissance d'entrée variable'. L'étude explore comment les réfrigérateurs à absorption, qui utilisent l'énergie résiduelle ou solaire...
Lire plus
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
Lire plus

Description Générale

The Computer Controlled Contact Plate Freezer, "TPCC", allow the student to freeze food products quickly by using an industrial freezing process.

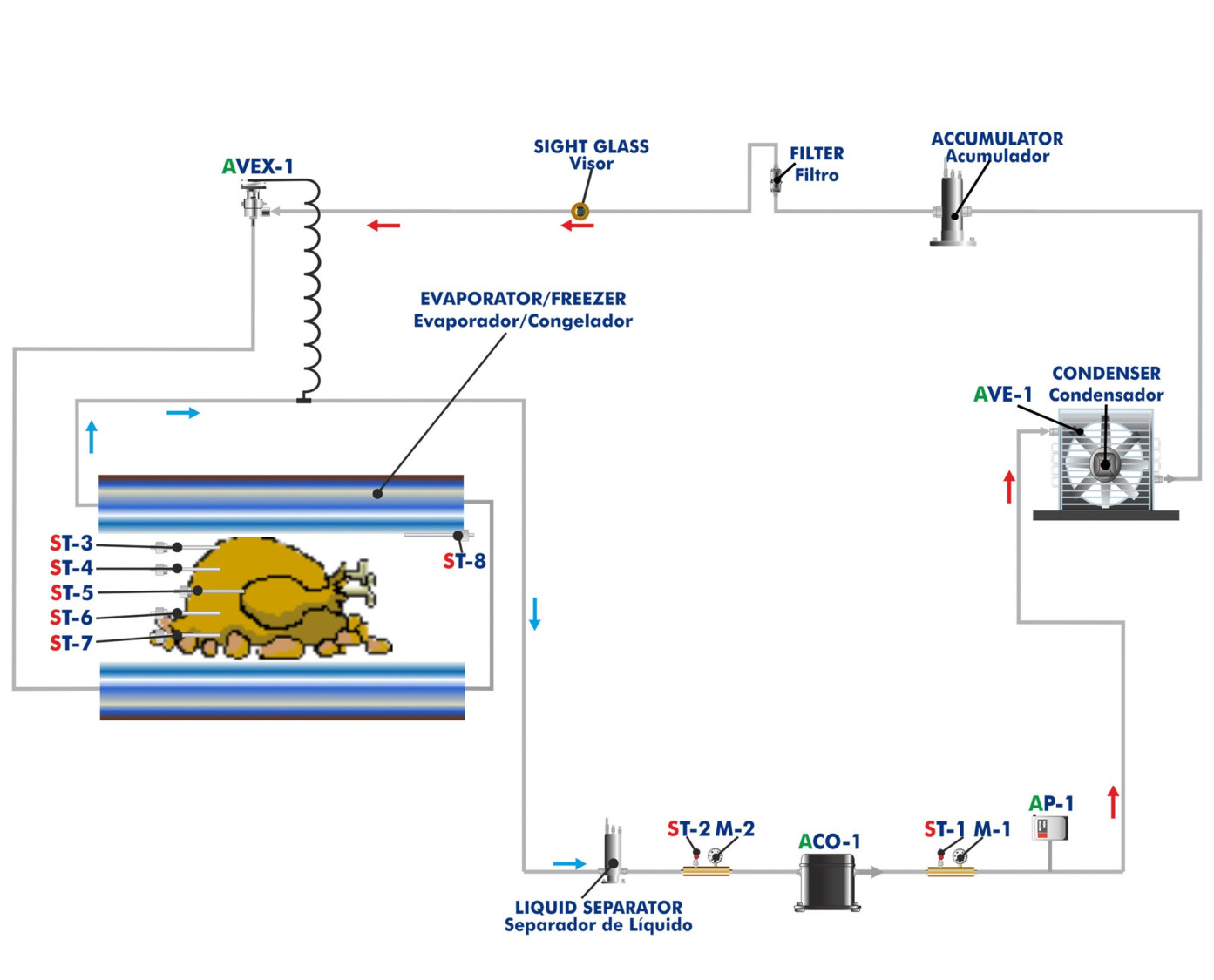

The unit includes a compression refrigeration circuit. It is based on mechanically forcing the circulation of a refrigerant through a closed circuit divided into two zones (high and low pressure), so that the fluid absorbs heat from the environment in a heat exchanger called evaporator (low pressure zone) and transfers heat in another heat exchanger called condenser (high pressure zone).

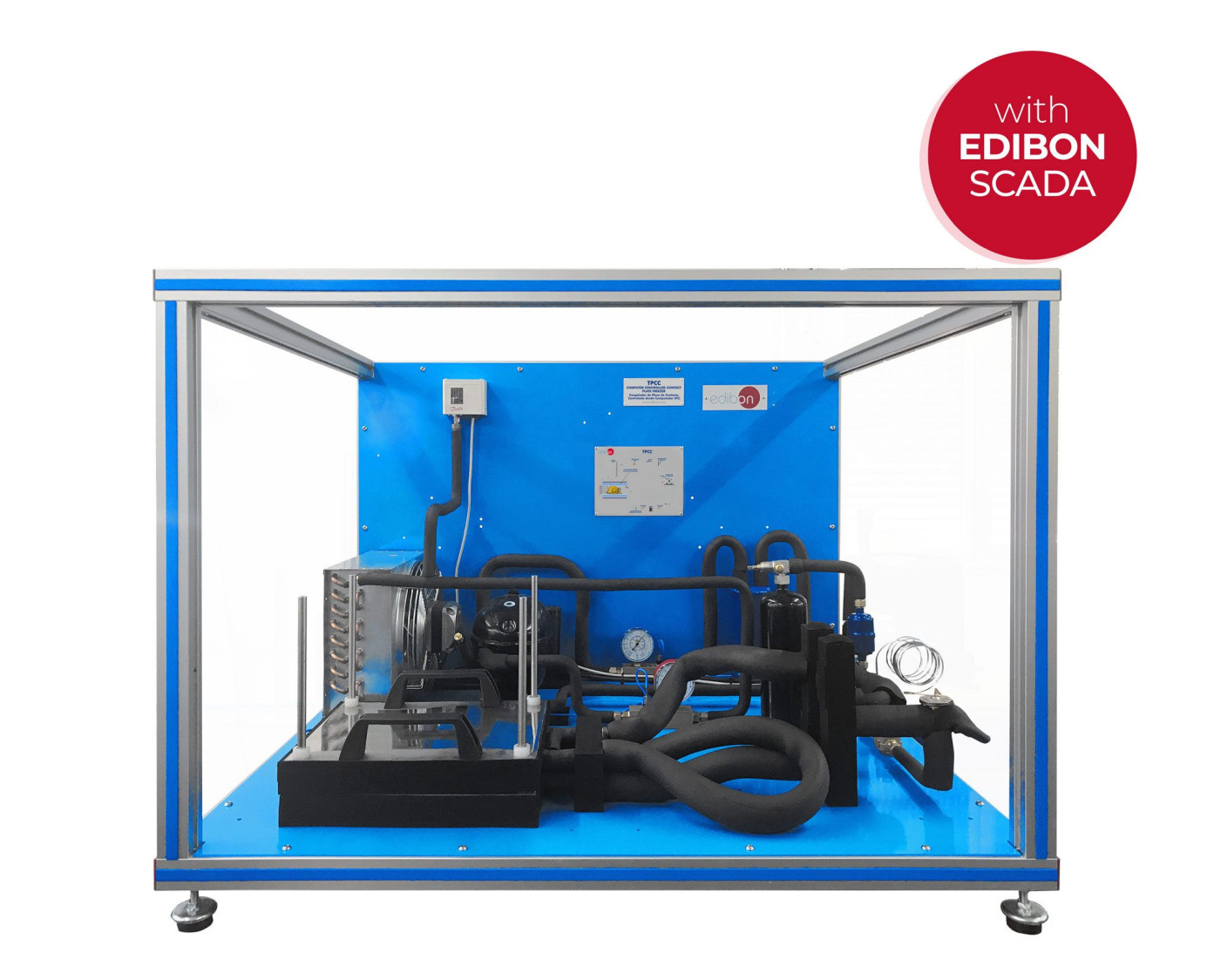

The main elements of the unit are: a hermetic compressor, a condenser with computer controlled fan, an expansion valve and a contact plate freezer-evaporator.

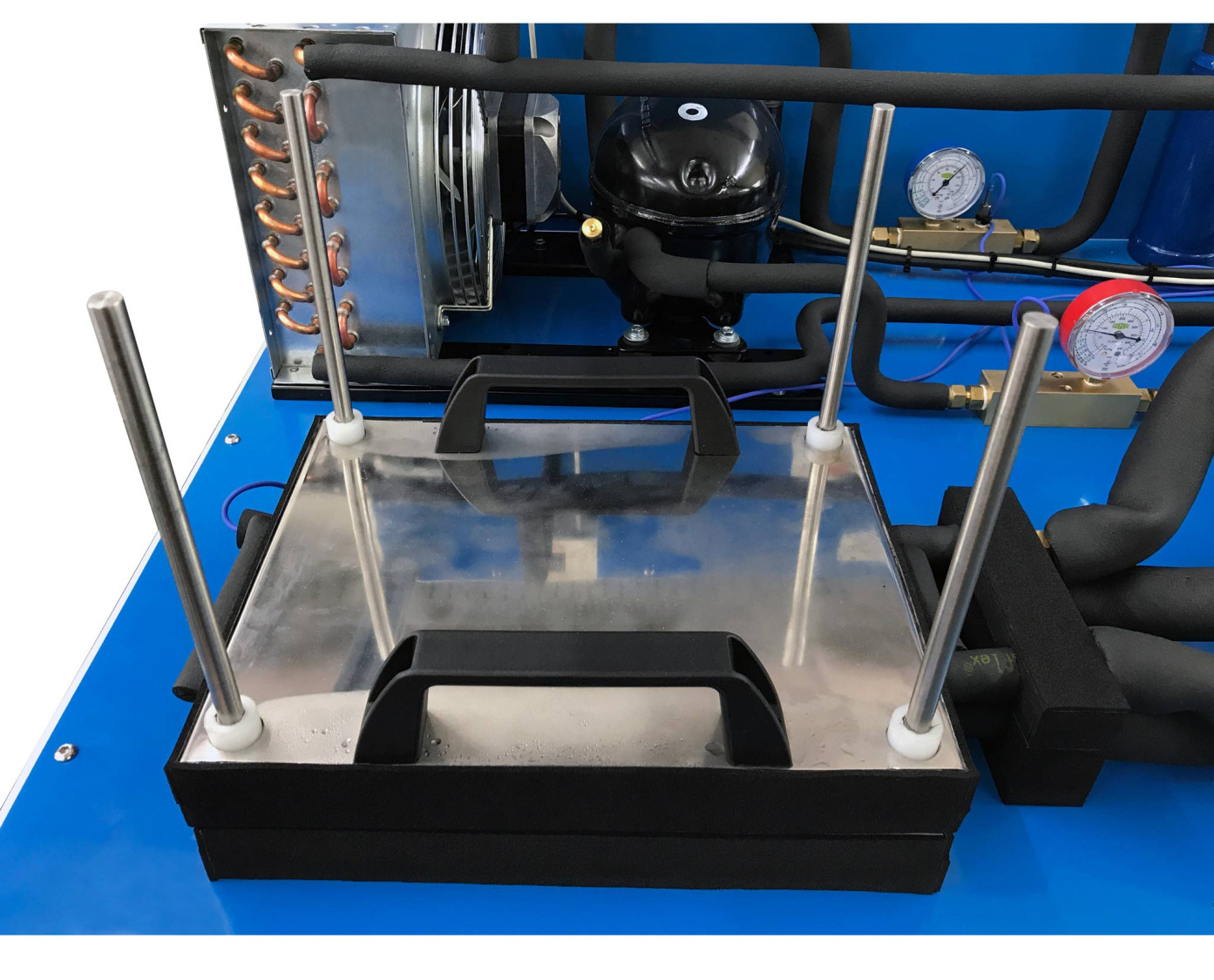

The contact plate freezer-evaporator consists of two freezing plates of 305 x178 mm. One is fixed and the other can be adjusted in height through two handles. The packaged food is placed on the fixed plate and can be frozen quickly.

Two temperature sensors and manometers are included to provide the conditions of the refrigerant at the inlet and outlet of the compressor. Besides, a temperature sensor located at the contact plate and five temperature sensors, which can be located in different points of the food product to be frozen, allow the student to monitor the product during the whole freezing process.

In addition, the circuit includes a sight glass to observe the state of the refrigerant, a filter, a storage tank to ensure a proper flow of refrigerant in the circuit and a liquid separator to prevent liquid from entering the compressor.

As a safety measure, the circuit includes a high pressure switch, which stops the cycle when the pressure is high.

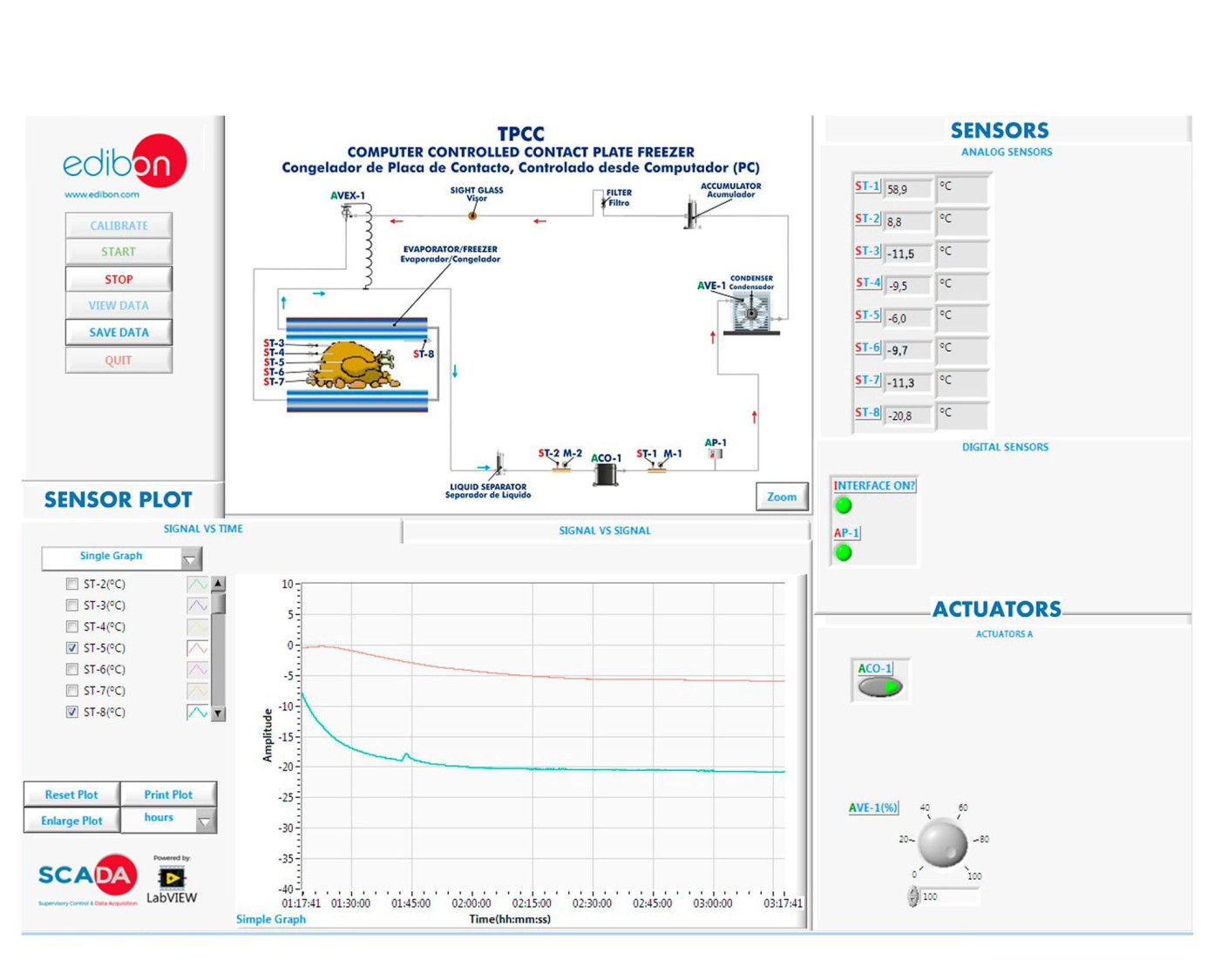

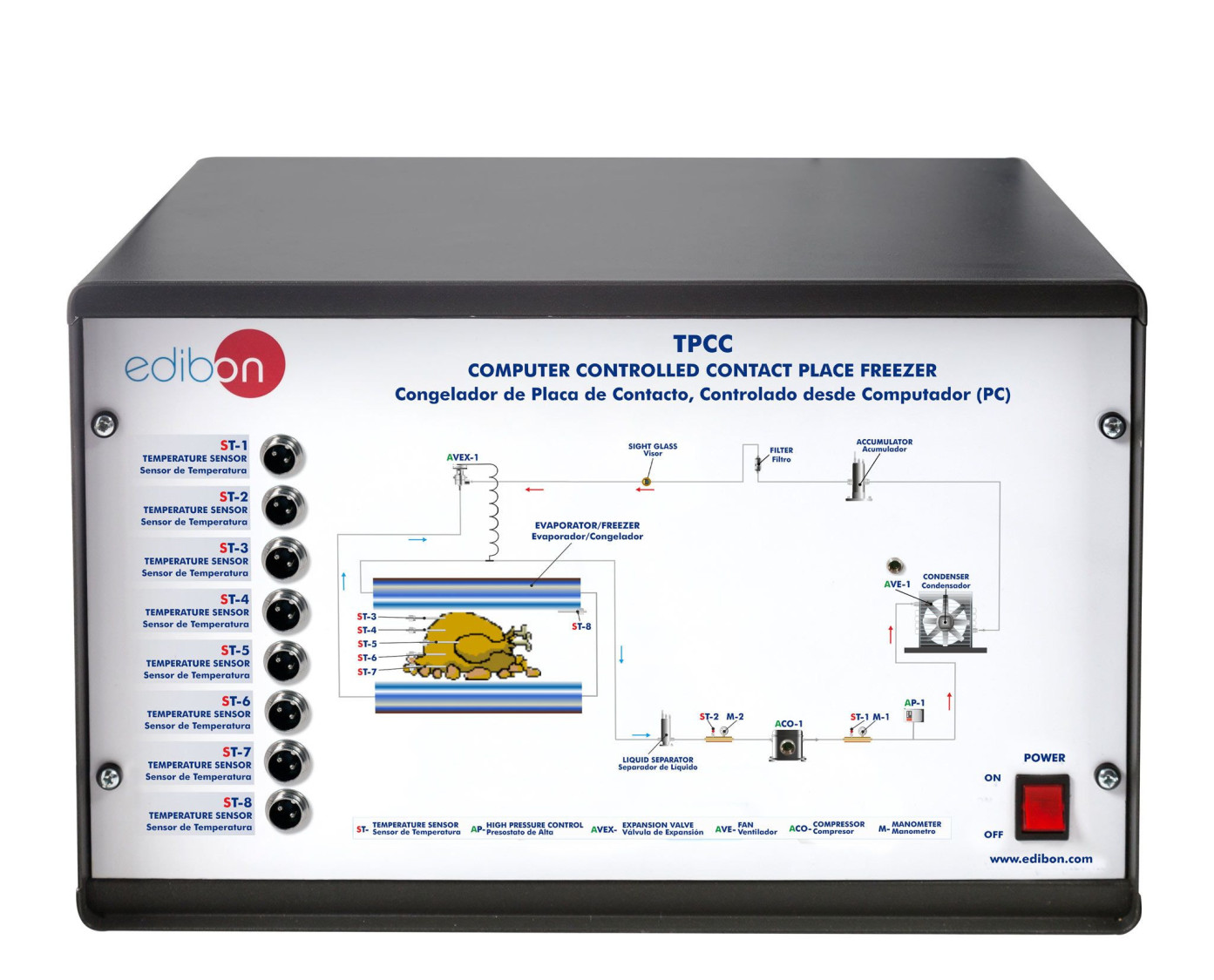

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of industrial freezing processes in terms of preservation and effects on food.
  2. Investigate the effect of the freezing process on the morphological characteristics of food: size, shape, etc.
  3. Differences between freezing at home and industrial freezing (deep-freezing).
  4. Assess the effect of freezing rates on food preservation.
  5. Thermodynamic description of the process through temperature sensors.
  6. Evaluation of taste and texture.
  7. Study of the structural, composition and sensory effects of deepfreezing and thawing process.
  8. Study of the fundamentals of a deep-freezing system.
  9. Study of the operation, structure and elements of a deep-freezing system.
  10. Analysis of the freezing curves.
  11. Analysis of the theoretical freezing times.
  12. Sensors calibration.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

Additional practical possibilities:

  1. Connections with physics (refrigeration) and biology (structure of foods).
  2. Study the effect of the temperature on bacteria.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TPCC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TPCC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
