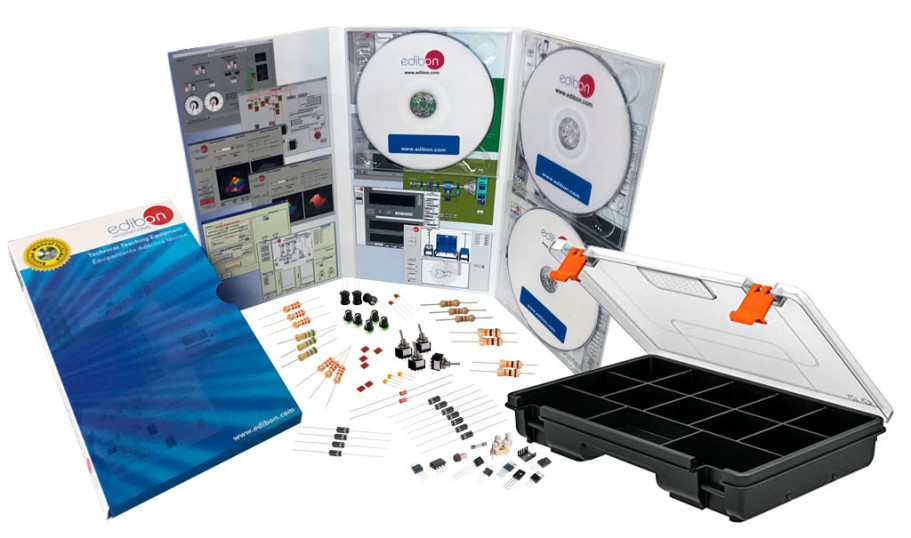

With the Power Supplies Kit "M5/KIT", designed by EDIBON, symmetrical voltage regulators, operation of fixed, symmetrical and switched-mode power supplies as well as rectification (conversion of an AC voltage to a DC voltage) can be studied.
Laboratories
NOUVELLES LIÉES
Description Générale
With the Power Supplies Kit "M5/KIT", designed by EDIBON, symmetrical voltage regulators, operation of fixed, symmetrical and switched-mode power supplies as well as rectification (conversion of an AC voltage to a DC voltage) can be studied.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
Rectification:
- Rectification.
- Bridge rectifier.
- Theoretical/practical exercises.
Fixed voltage sources:
- Power supply with the Zener diode.
- Stabilization through Zener and Transistor.
- Faults study in "Stabilization through Zener and Transistor".
- Protection against overcurrents.
- Protection against overvoltages.
- Faults study of "Protection against overcurrents".
- Theoretical/practical exercises.
Symmetrical voltage power sources:
- Symmetrical source: 78XX regulator.
- Symmetrical source: 79XX regulator.
- Theoretical/practical exercises.
Voltage regulators with integrated circuits:
- Adjustable regulator: LM317.
- Faults study in adjustable LM317 regulator.
- Adjustable L200 regulator.
- Faults study in adjustable L200 regulator.
- Theoretical/practical exercises.
Introduction to switched power supplies:
- Switching technique.
- Switching technique. PWM.
- Switching technique. Boost.
- Theoretical/practical exercises.
PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT
- Voltage Feedback.
- DC-DC converter.
- Several other exercises can be done and designed by the user.
