M3/KIT Kit de Semiconducteurs I

2.2.- KIT POUR L'ASSEMBLAGE DE CIRCUITS

SYSTEMES INNOVANTS

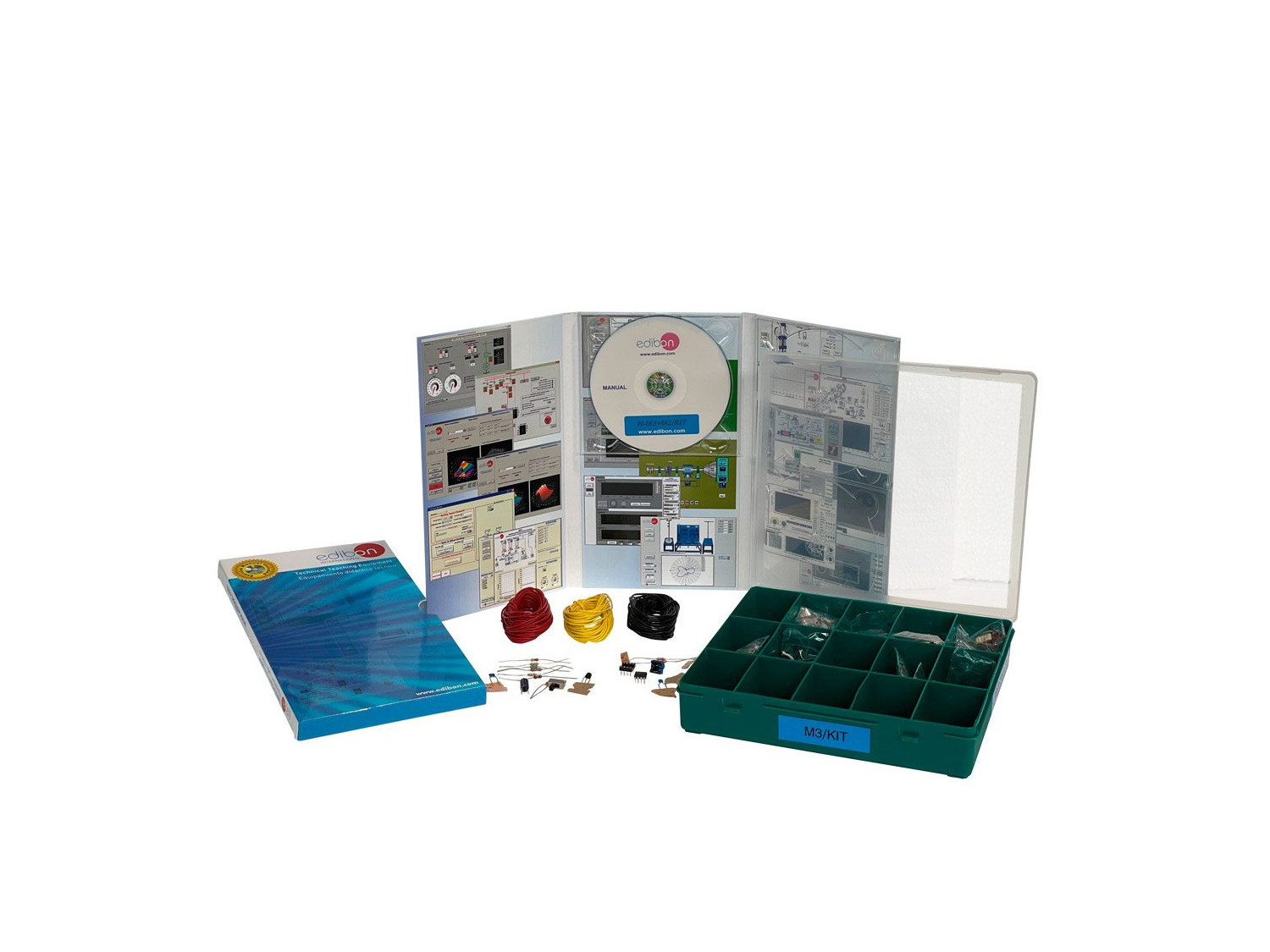

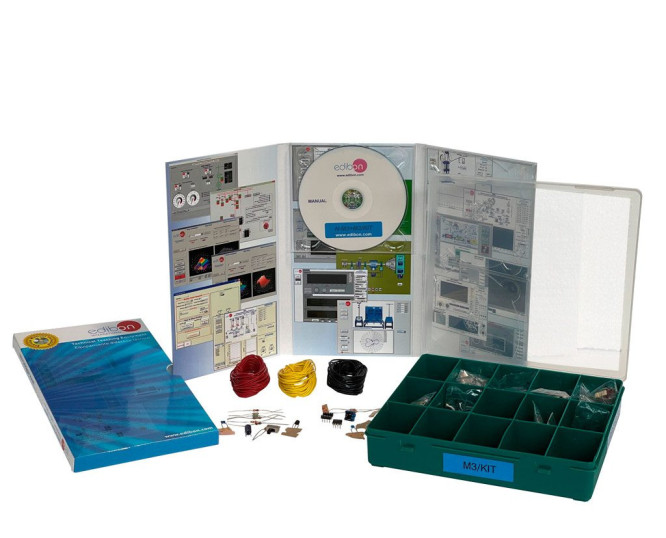

With Semiconductors I Kit, "M3/KIT", designed by EDIBON, the basic concepts of diodes can be studied, at the same time as the student will be asked to carry out a series of assemblies on the practice board to consolidate his knowledge of PN-type junctions, uses of the diode as a rectifier, Zéner diodes, etc.

Voir description générale

Catalogue

Spécifications du Concours

Laboratories

2TV

Laboratoire d'électronique pour l'enseignement Technique et Professionnel

NOUVELLES LIÉES

Description Générale

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

Characteristics of the PN junction:

Study of the diode.
Faults study in diodes.
Theoretical/practical exercises.

The diode as a rectifier element:

Half wave rectifier.
Faults study in Rectifier circuit.
Bridge rectifier.
Faults study in bridge rectifier.
Theoretical/practical exercises.

The Zener diode:

Voltage regulator with a Zener diode.
Faults study in Zener circuit.
Theoretical/practical exercises.

Study and characteristics of the transistor:

Study of the transistor.
Faults study in the transistor.
Theoretical/practical exercises.

Transistor characteristics operating as a switch:

Study of the transistor as a switch.
Theoretical/practical exercises.

Common emitter amplifier:

Study of the common emitter NPN amplifier.
Faults study in amplifier circuit.
Study of the common emitter PNP amplifier.
Theoretical/practical exercises.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

Voltage doubler.
Power supply filtering.
Several other exercises can be done and designed by the user.
