SCS/60/CTS Séparateur Centrifuge Semi-continu de 60 L, Contrôlé depuis Ordinateur (PC) et Écran Tactile
5.3.7.- BIOCARBURANTS
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
13.3.- TRAITEMENT DES EAUX USÉES
SYSTEMES INNOVANTS
The Computer Controlled and Touch Screen 60 l Semicontinuous Centrifugal Separator, "SCS/60/CTS", is able to show, for further research and study, the obtaining of lignin from lignocellulosic biomass.
NOUVELLES LIÉES
Description Générale
The Computer Controlled and Touch Screen 60 l Semicontinuous Centrifugal Separator, "SCS/60/CTS", is able to show, for further research and study, the obtaining of lignin from lignocellulosic biomass.

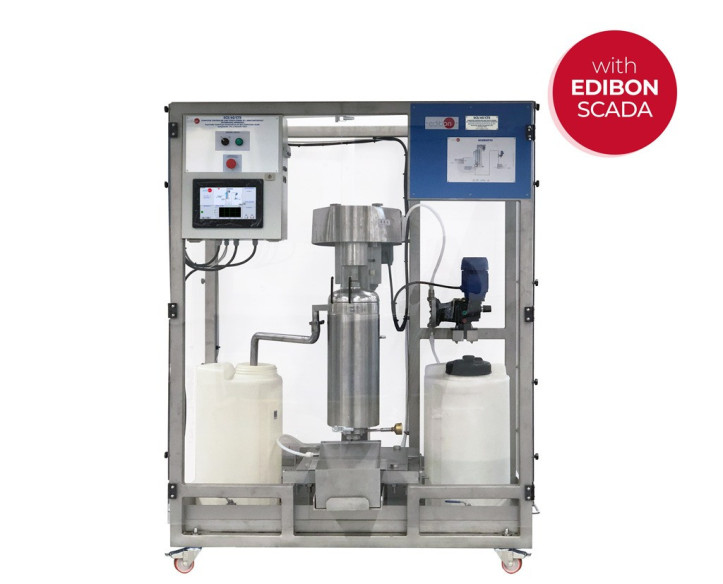

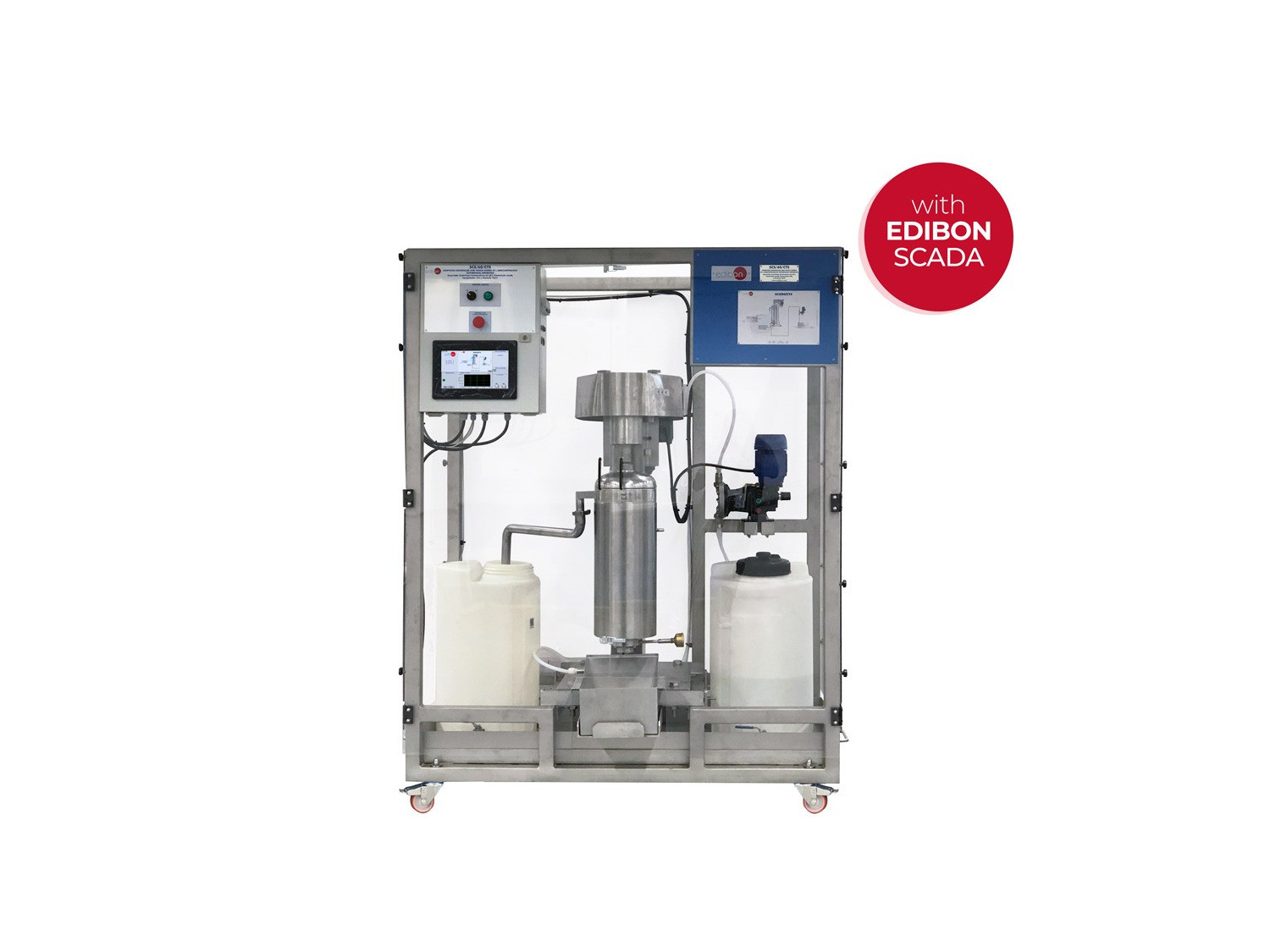

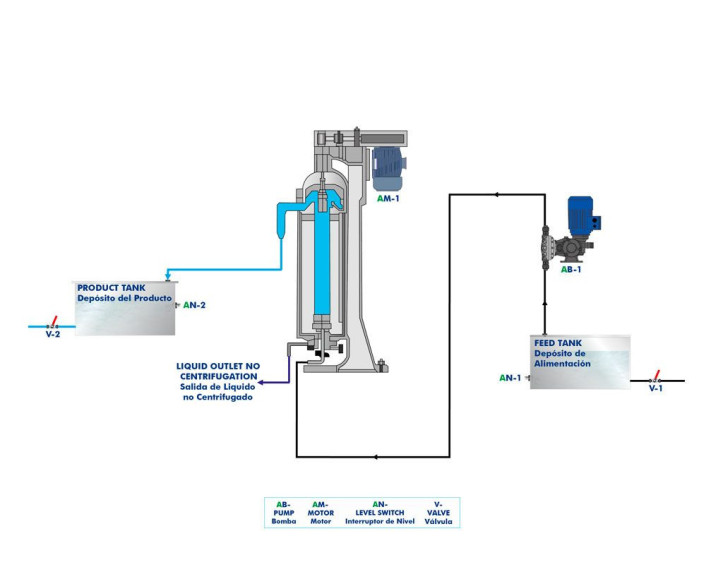

The unit consists of a tubular centrifuge, a pump and two storage tanks.

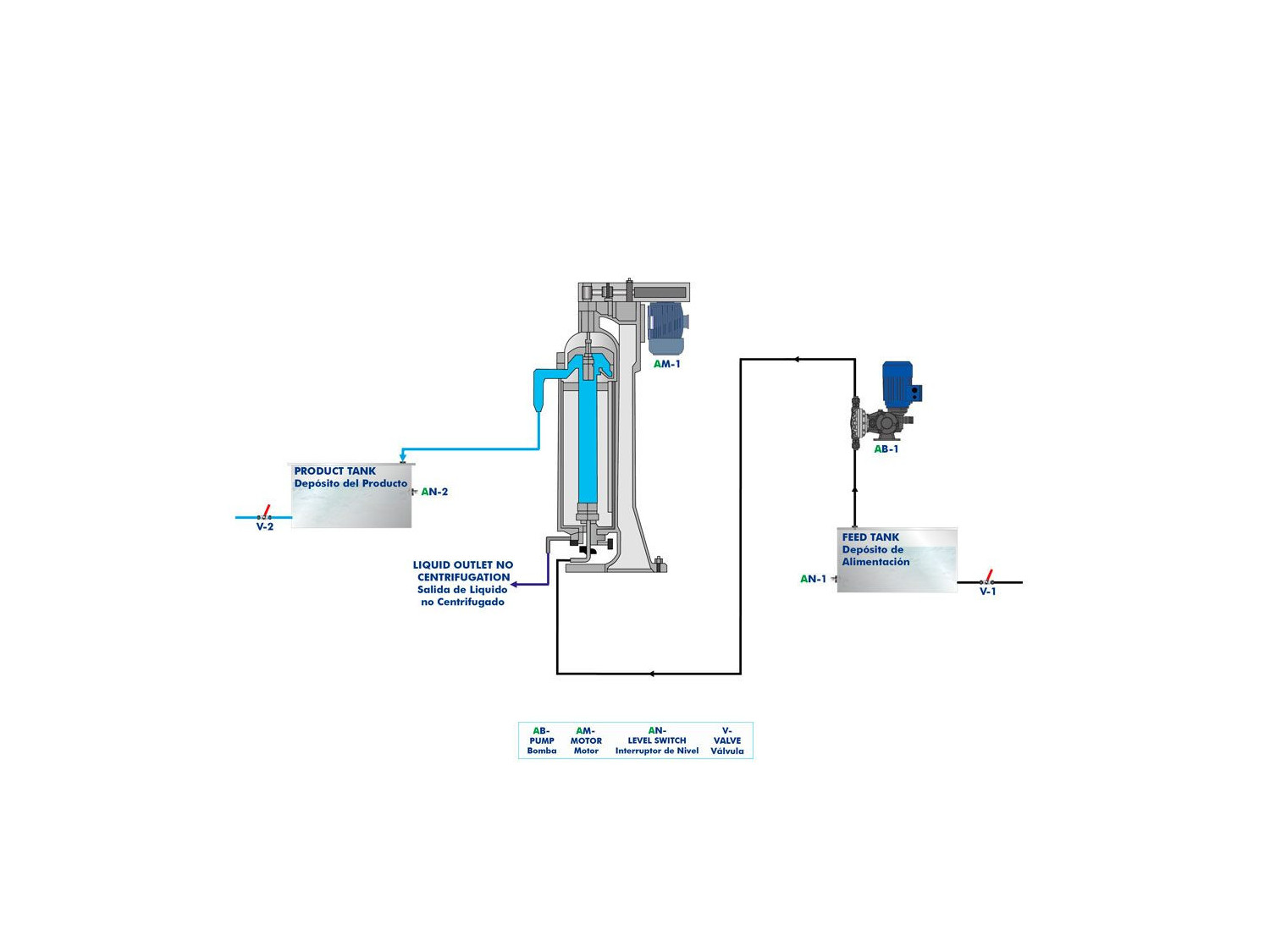

The mixture is introduced into the feed tank and pumped to the tubular centrifuge. The mixture, which is subjected to the
spinning and centrifugal force of the cylinder, will tend to carry the heavier phase to the outside of the cylinder (to the walls).
The mixture without solid (lignin) is extracted through the upper part of the unit, by means of overflow and is stored in a tank.
This process is carried out at ambient conditions, because lignin at high temperatures behaves like a rubber and makes separation difficult.

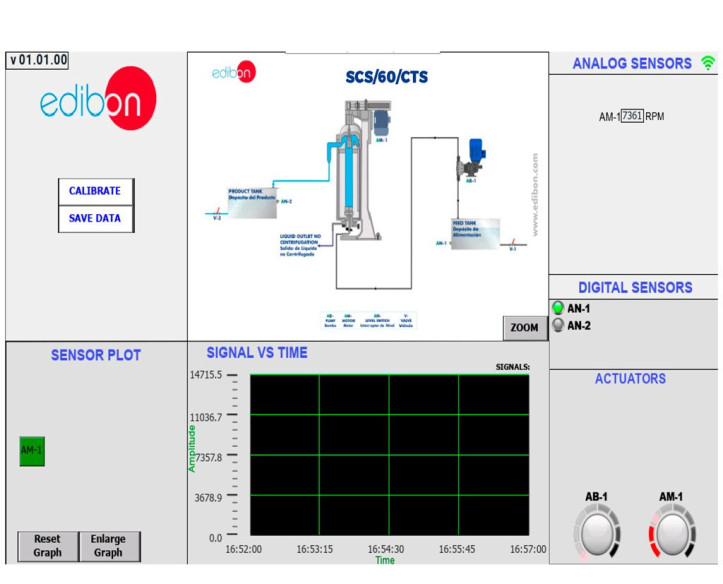

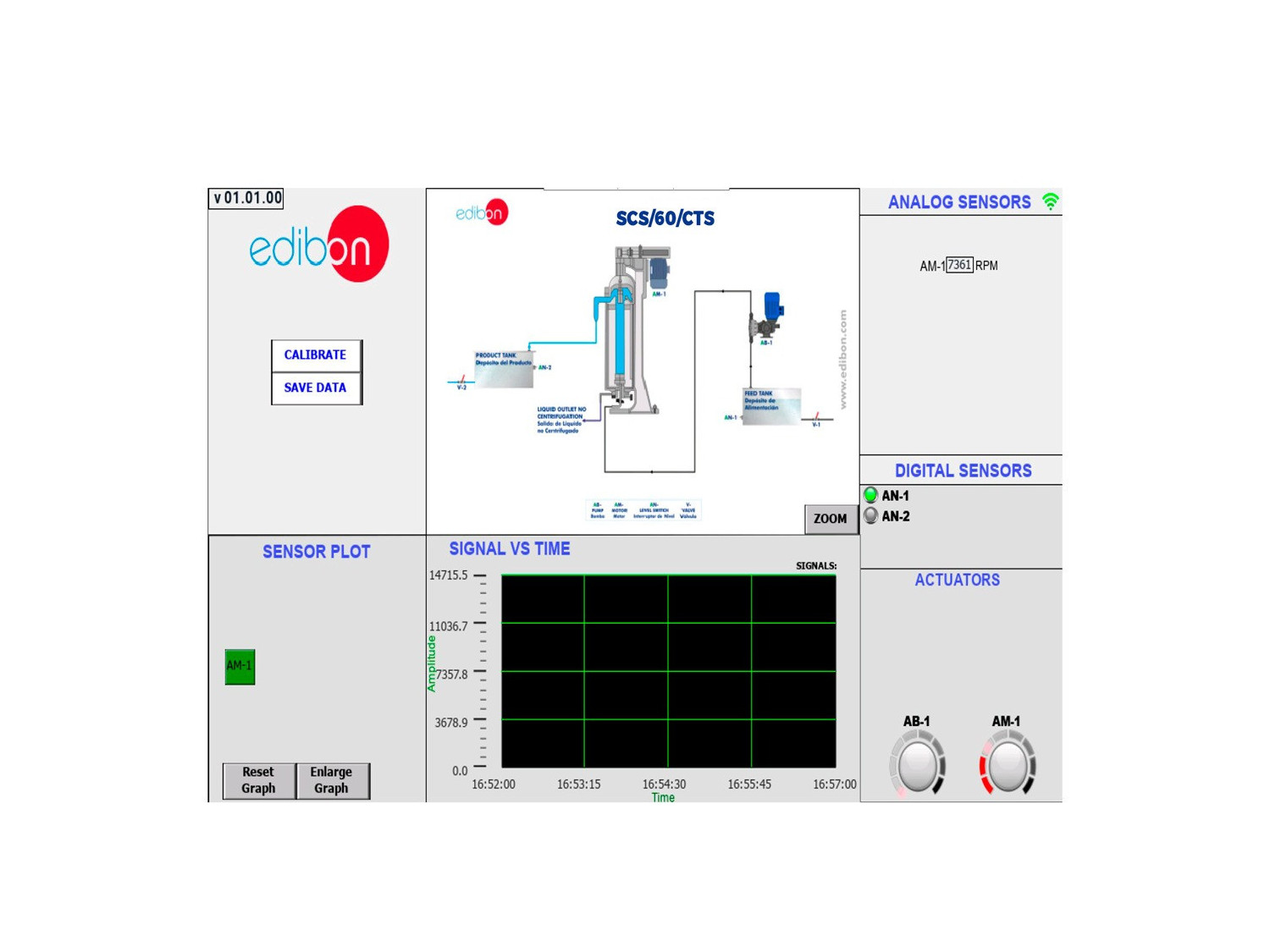

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
UNITÉS SIMILAIRES DISPONIBLES
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
EFLPC
The Computer Controlled Deep Bed Filter Unit, "EFLPC", allows us to filter a fluid in order to eliminate particles in suspension, to have it in more adequate conditions for its subsequent use or consumption.The pump takes raw water from one of the...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
EFLP
Unité de Filtration à Lit Profond
L'Unité de Filtration à Lit Profond, "EFLP", nous permet de filtrer un fluide afin d'éliminer les particules en suspension, pour l'avoir dans des conditions plus adéquates pour son utilisation ou sa consommation ultérieure.La pompe prend l'eau...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
PFTC
Filtre à Tambour, Contrôlé par Ordinateur (PC)

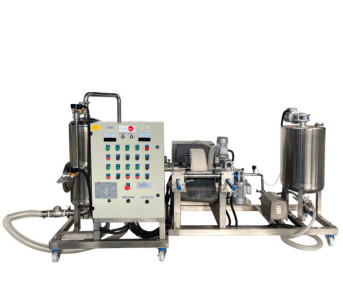

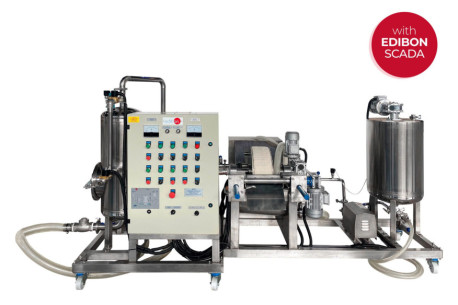

The Computer Controlled Drum Cell Filter, "PFTC", is a unit designed to observe the operation of a filtering drum that acts on a liquid with suspended solids. This drum cell filter allows investigate the filtration of multiple solutions with...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
TFUC
Unité de Filtration Continue et Discontinue, Contrôlée par Ordinateur (PC)
This filtration unit has been designed to study the filtration process with two different types of filters. On one hand, there is a vertical plate filter consisting of nylon plates with a diameter of 5 microns, used to filter a known concentration...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
TFUB
Unité de Filtration Continue et Discontinue
The Continuous and Batch Filtration Unit, "TFUB", has been designed to study the filtration process with two different types of filters. On one hand, there is a vertical plate filter consisting of nylon plates with a diameter of 5 microns, used to...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
AFPMC
Filtre-Presse à Plaques et Cadres, Contrôlé par Ordinateur (PC)
Le Filtre-presse à Plaques et à Cadres, Contrôlé par Ordinateur, "AFPMC", a été conçu pour étudier les processus de filtration et de clarification à l'aide d'un filtre-presse dans lequel le nombre de cadres et le type de toile filtrante peuvent...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
QCDIC
Centrifuge de Disques, Contrôlé par Ordinateur (PC)
The Computer Controlled Disc Centrifuge, "QCDIC", allows the study of the separation of emulsions by centrifugation. In order to make the unit work, two immiscible liquids are poured into the agitation tank, such as water and oil. In this deposit...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
PSMC
Unité de Séparation Magnétique, Contrôlée par Ordinateur (PC)

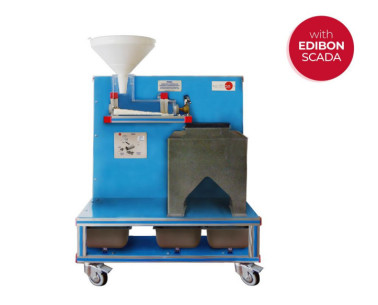

The Computer Controlled Magnetic Separation Unit, "PSMC", has been designed to understand the operation of a magnetic rotary drum used to classify materials of different magnetic characteristics.The main components of the unit are: a feed hopper...
