SCSP Système de Calibration de Capteurs de Pression

2.4.1.- INSTRUMENTATION ET CONTRÔLE 8.2.- MESURES 14.2.2.- INSTRUMENTATION ET CONTRÔLE
PRESSURE SENSORS CALIBRATION SYSTEM - SCSP

SYSTEMES INNOVANTS

The Pressure Sensors Calibration System, "SCSP", is a unit with a very simple operation that allows to carry out different experiments which require measuring the pressure accurately, being it negative or positive..

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

Laboratories

2TV
 Laboratoire d'électronique pour l'enseignement Technique et Professionnel
2HE
 Laboratoire d'électronique pour l'enseignement Supérieur
11PTC
 Laboratoire pour le Centre de Formation Pétrolière

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Lire plus
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Lire plus

Description Générale

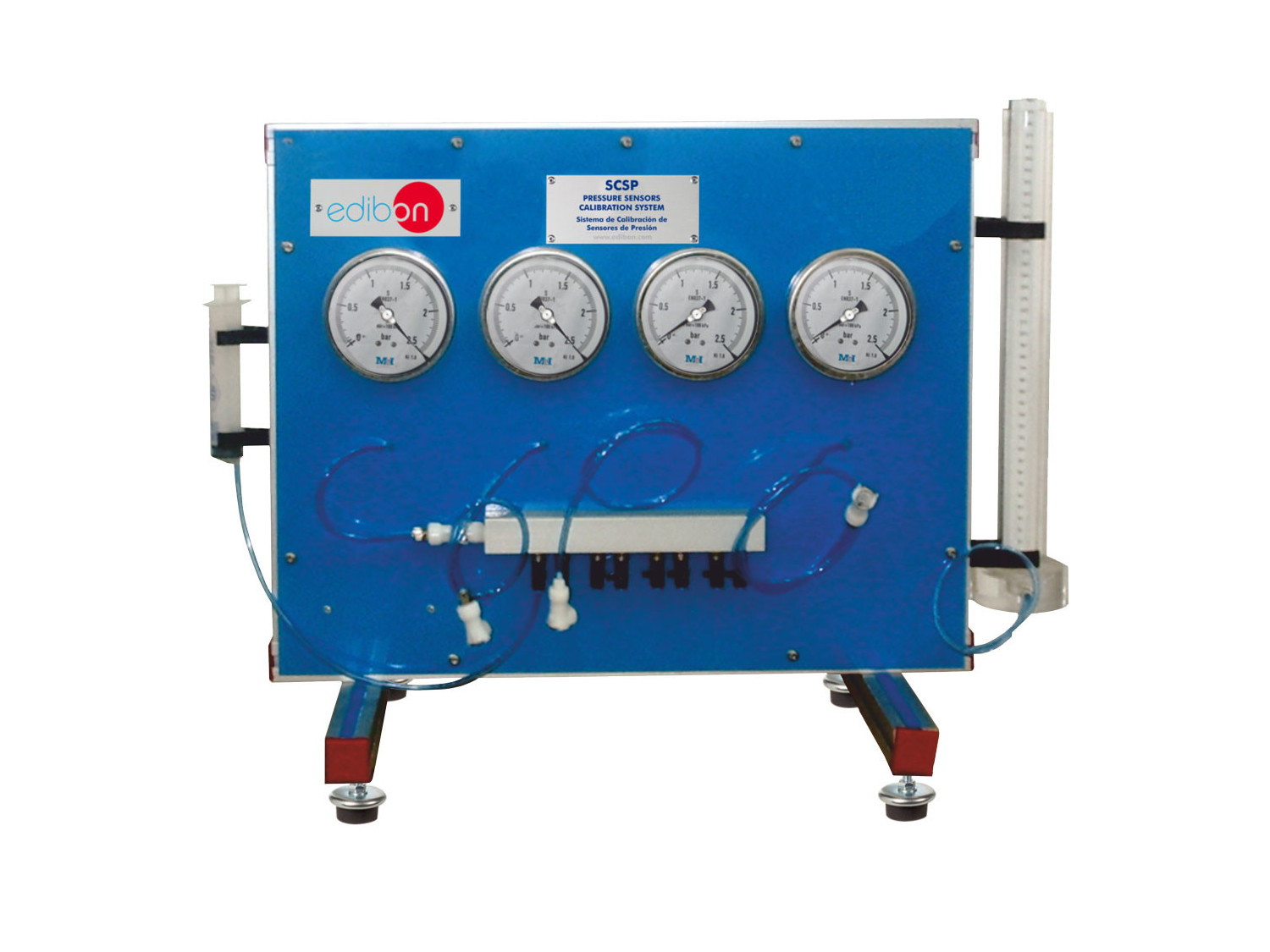

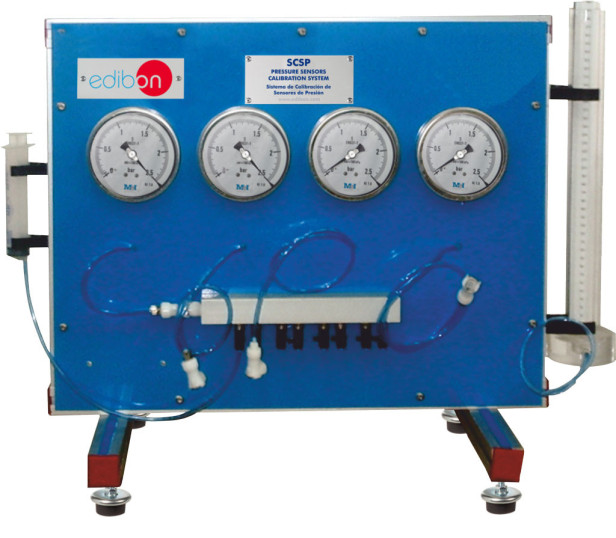

The Pressure Sensors Calibration System, "SCSP", is mainly composed of two pressure manometers on one hand, one measuring up to 1000 millimeters of water or 100 millibars and the other one measuring up to 2.5 bars and on the other hand, two vacuum gages or negative pressure manometers measuring up to 100 and 1000 millibars.

Furthermore, it includes a graduated cylinder which is used to measure water pressure in millimeters, and at the same time it allows to check the correct calibration of the unit’s manometers.

Finally, there is a syringe on the other side to both inject pressure and create vacuum.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Pressure measurements with a pressure gauge.
  2. Pressure measurements with a vacuum gauge.
  3. Pressure measurements in water column.
  4. Calibration of pressure gauges.
